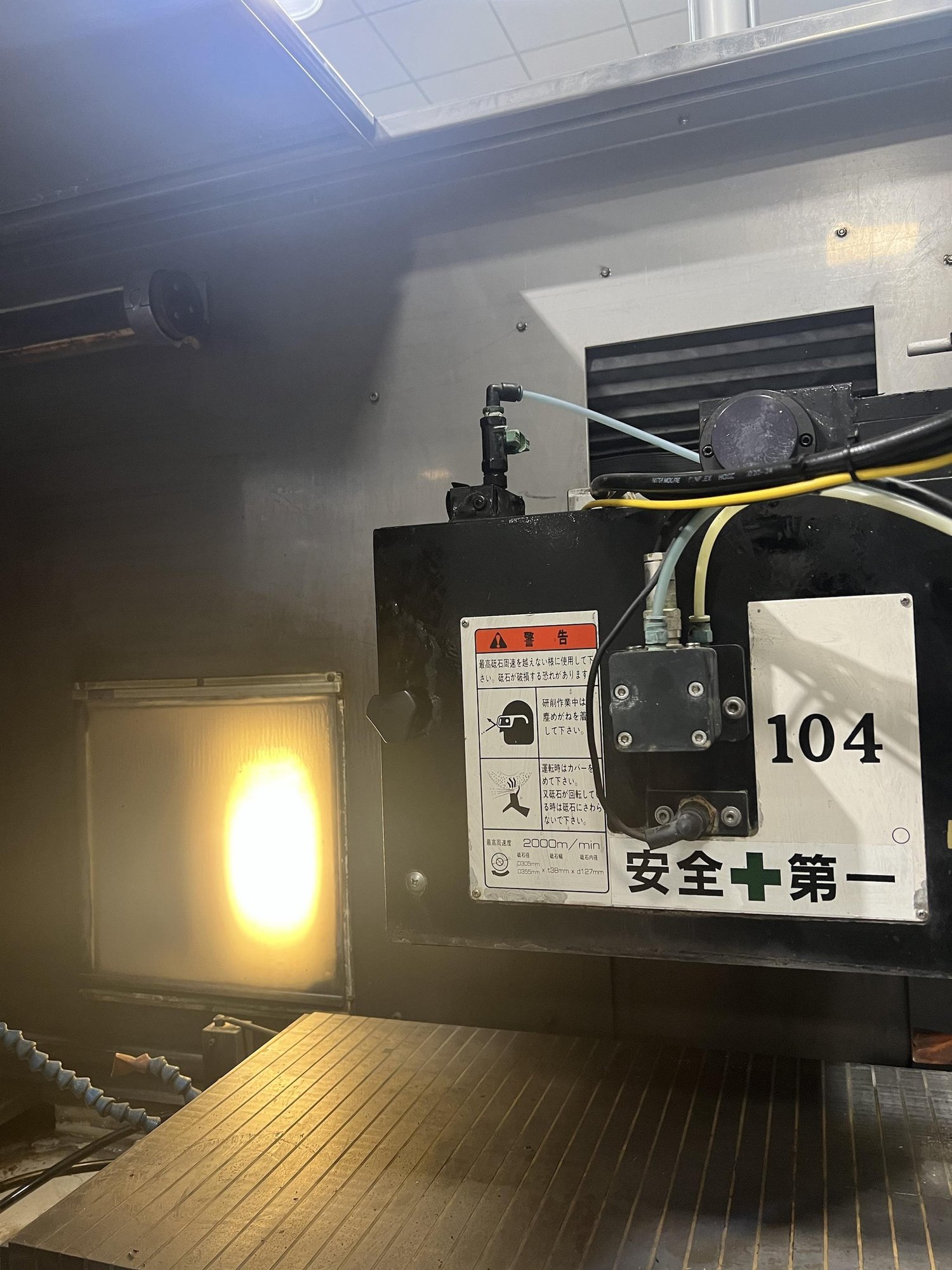

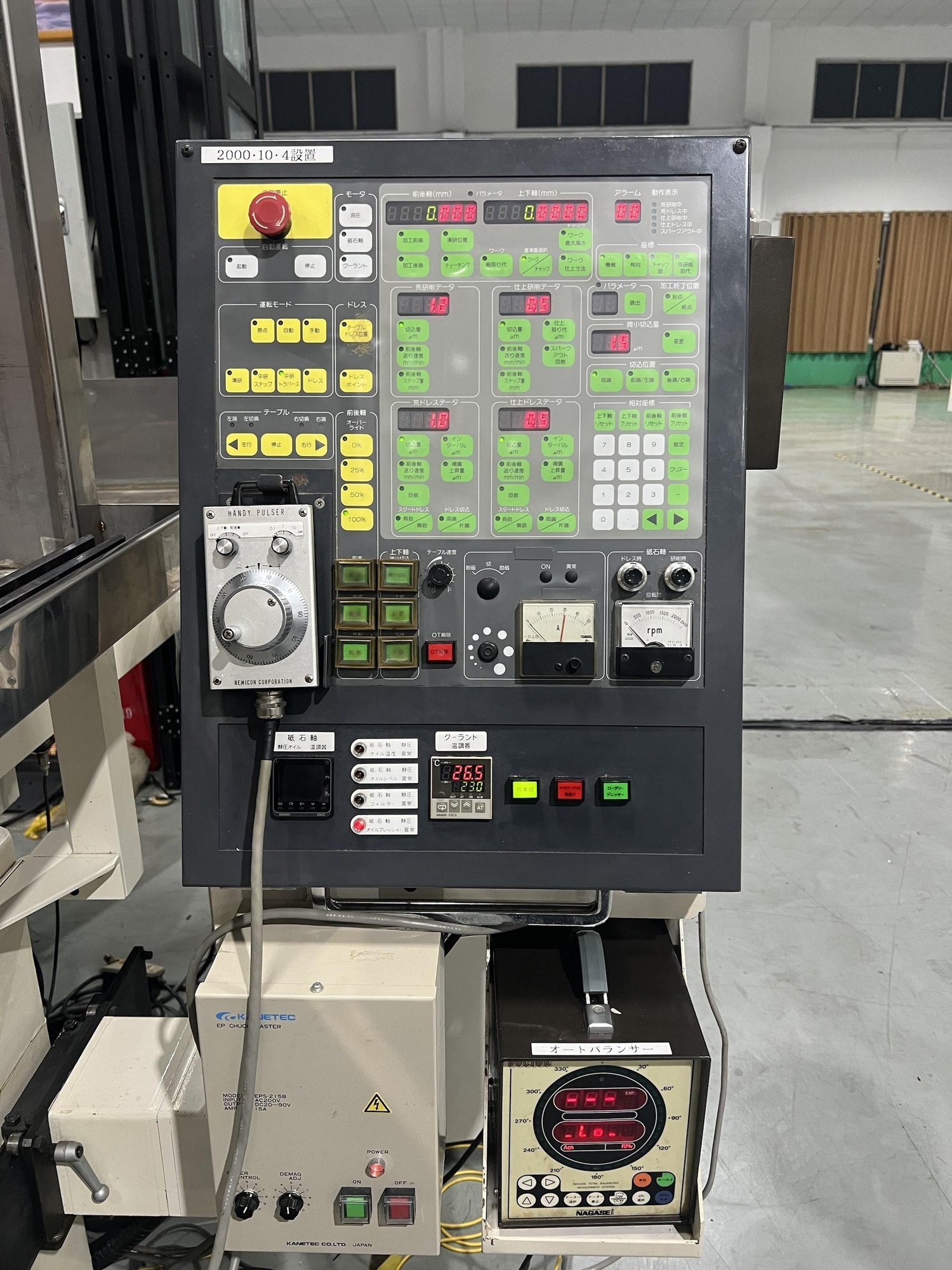

Nagase 104 Grinding machines

XYZ axis travel: 1400*550*280mm

Travel: (X 1200mm Y 440mm)

Vertical minimum unit: 0.0001

Minimum unit: 0.0001

Grinding wheel size (external diameter * width * internal diameter) : φ355~38*φ127

Grinding wheel speed: 2000 m/min

Sand wheel shaft: 3.7

Lead rail: X: static pressure YZ linear guideway

Each axis drive mode: YZ shaft screw X shaft hydraulic pressure drive

Grinding travel: 1200mm

Spindle drive mode: static mechanical direct connection

Magnetic seperation chip conveyor

Worktable size: 1000*400mm

Dimensions: 4500*3000*2500mm
