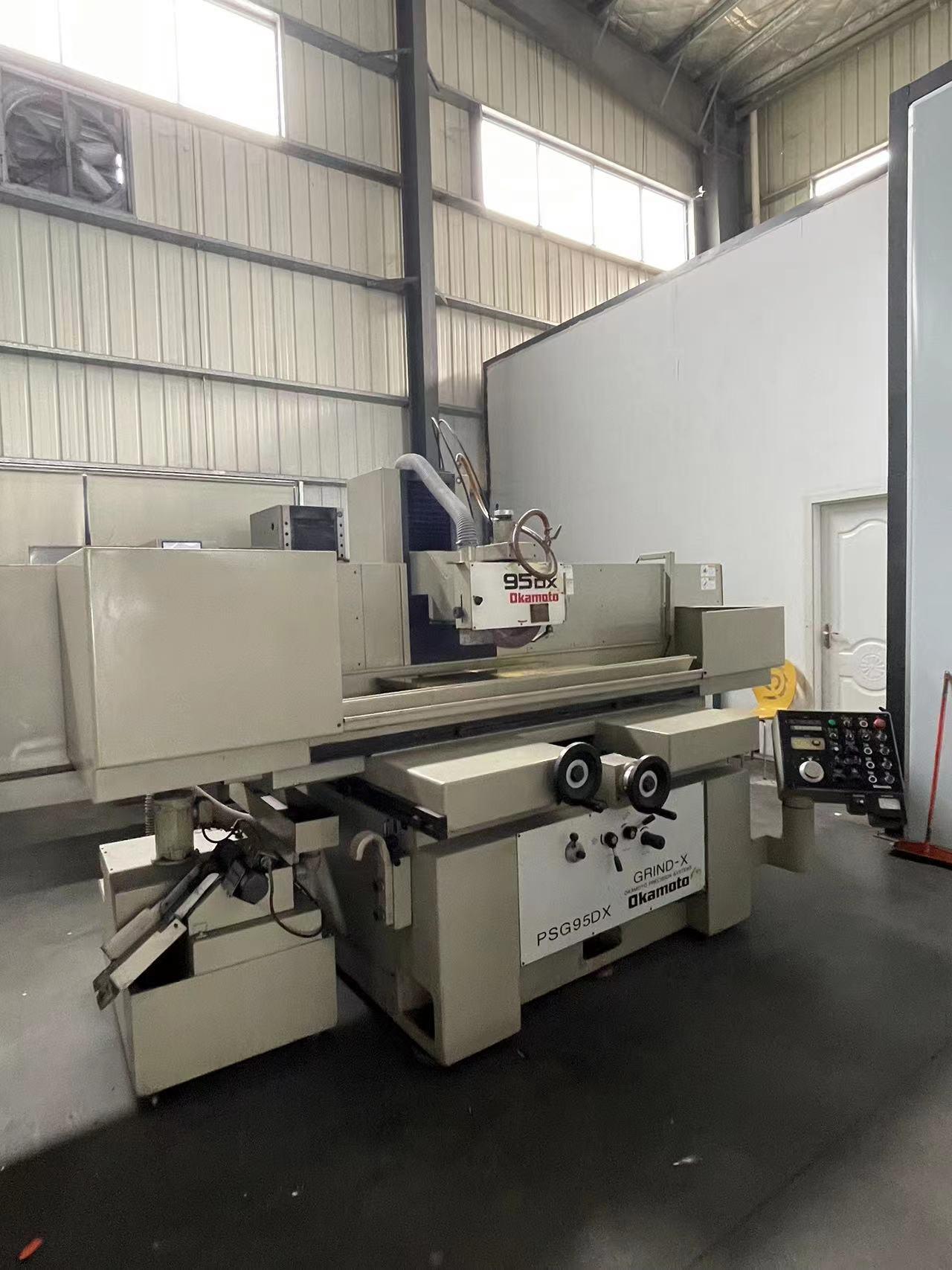

Okamoto PSG-95DX Grinding machines

Worktable machining  area: 916*500mm

Standard chuck size: 900*500*110mm

Worktable load: 700kg

T-slot: 17

Longitudinal feed: Maximum feed :1150mm

Average longitudinal feed :3~25mm/min

Manual feed per revolution:47mm

Transverse feed: Maximum feed :540mm

Manual feed: Feed per change of hand :5.0mm

Remote control box scale :0.02mm

Automatic feed: intermittent feed :0.5~20mm

Continuous feed :0.2~1.0m/min

Manual feed per revolution of remote control box :0.01/0.1/1.0mm

Number of empty grinding :0~5 times

Vertical fast feed rate :600mm/min
