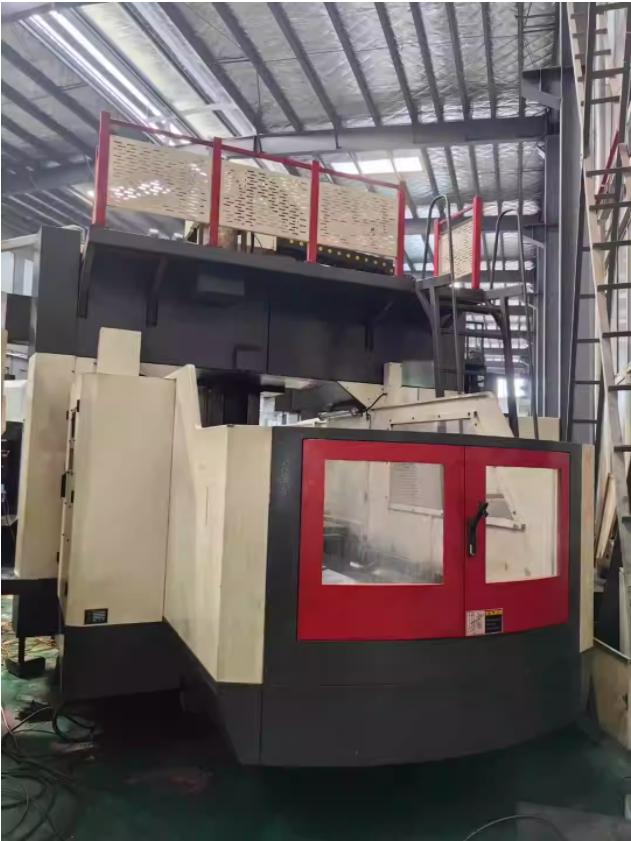

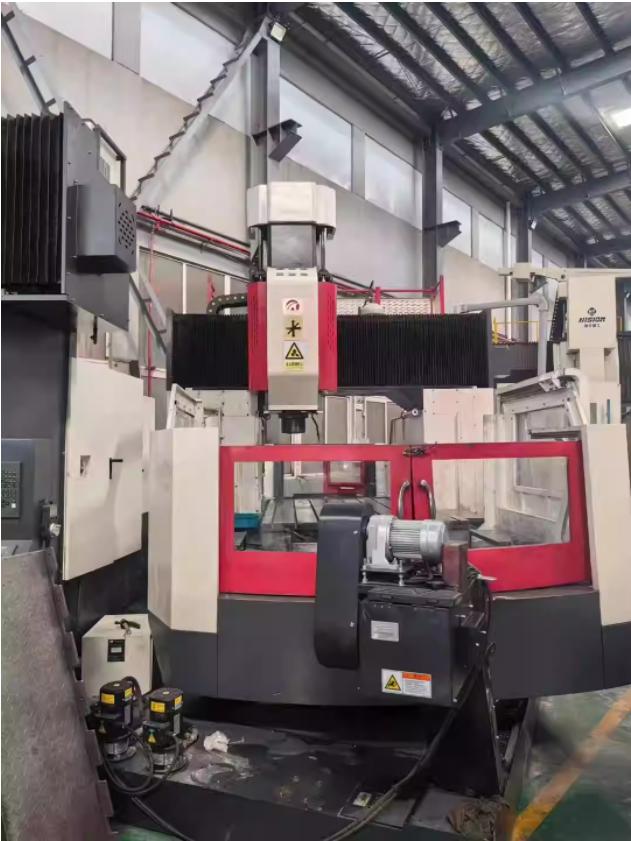

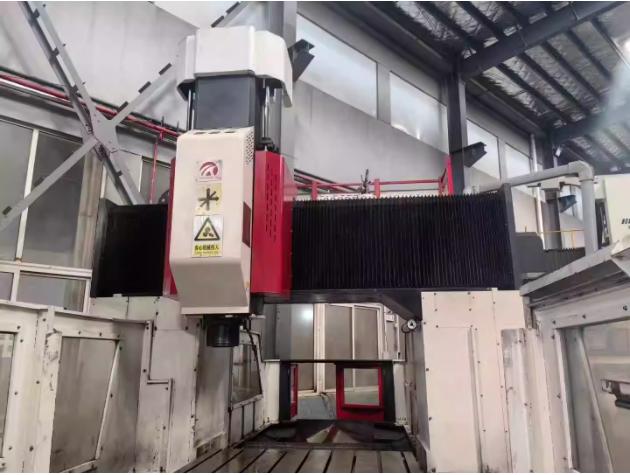

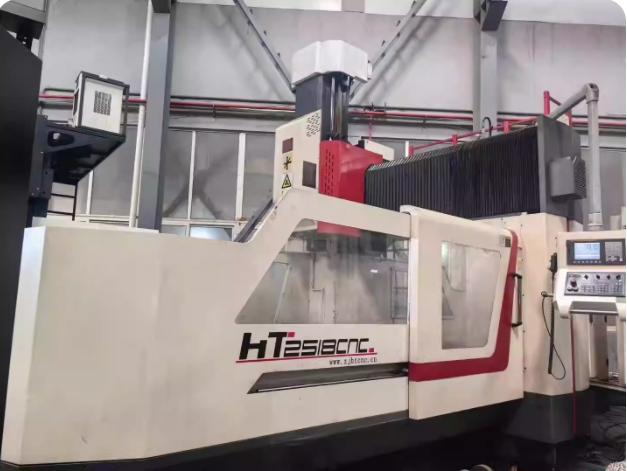

HUATE HT-2518 Gantry machining centre

[Product Information]:

Three axes travel: 2500*1900*800mm

BT50 spindle

Spindle speed: 6000rpm

Worktable size: 2500*1600mm

Gantry height: 1250mm

Gantry width: 1850mm

Distance from spindle nose to worktable: 970mm

With spindle oil chiller, double spiral type chip conveyor, chain type chip conveyor

Two linear guideways and one rigid guideway

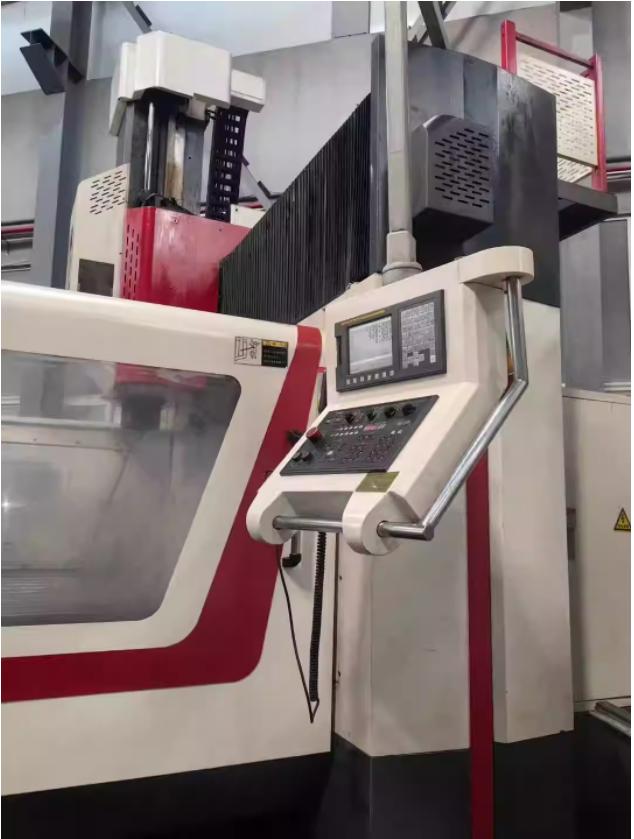

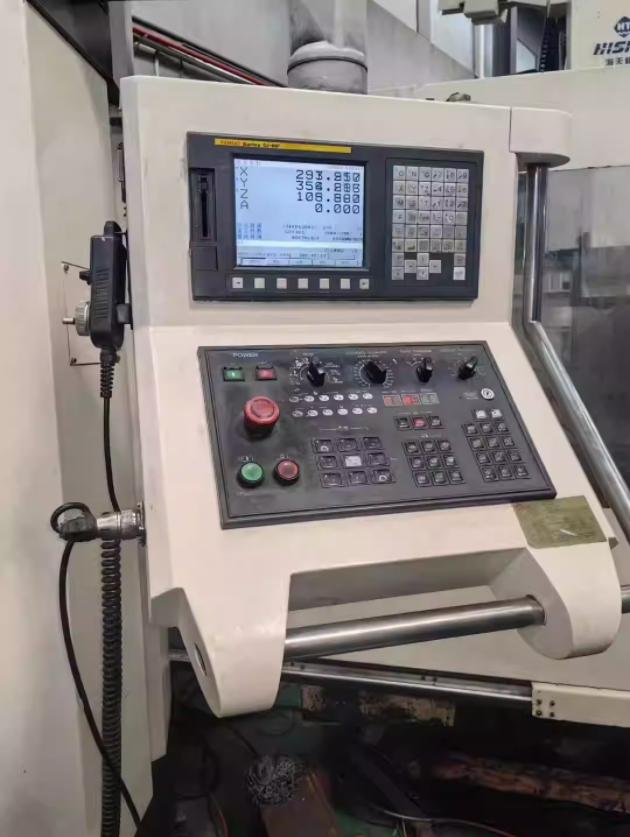

Fanuc OI-MF-1 CNC system

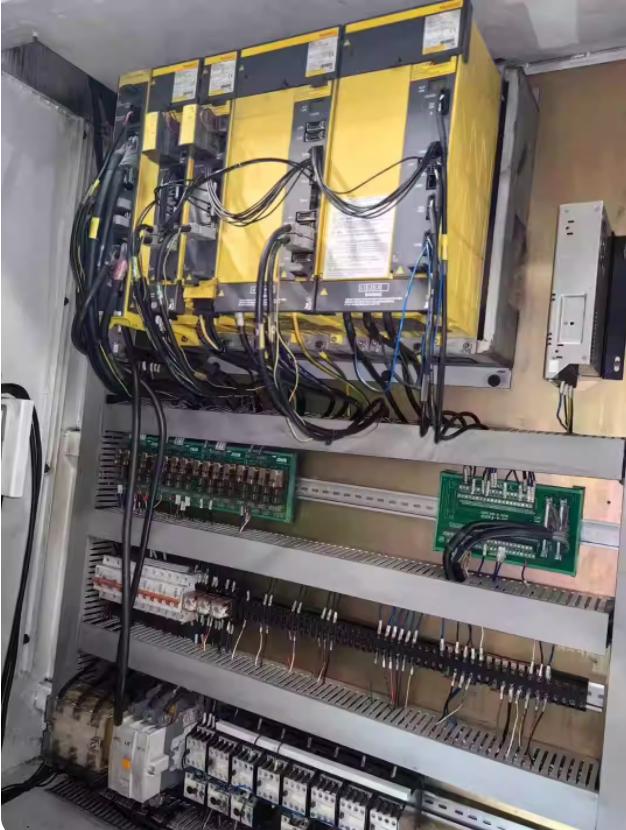

Alpha motor drive
