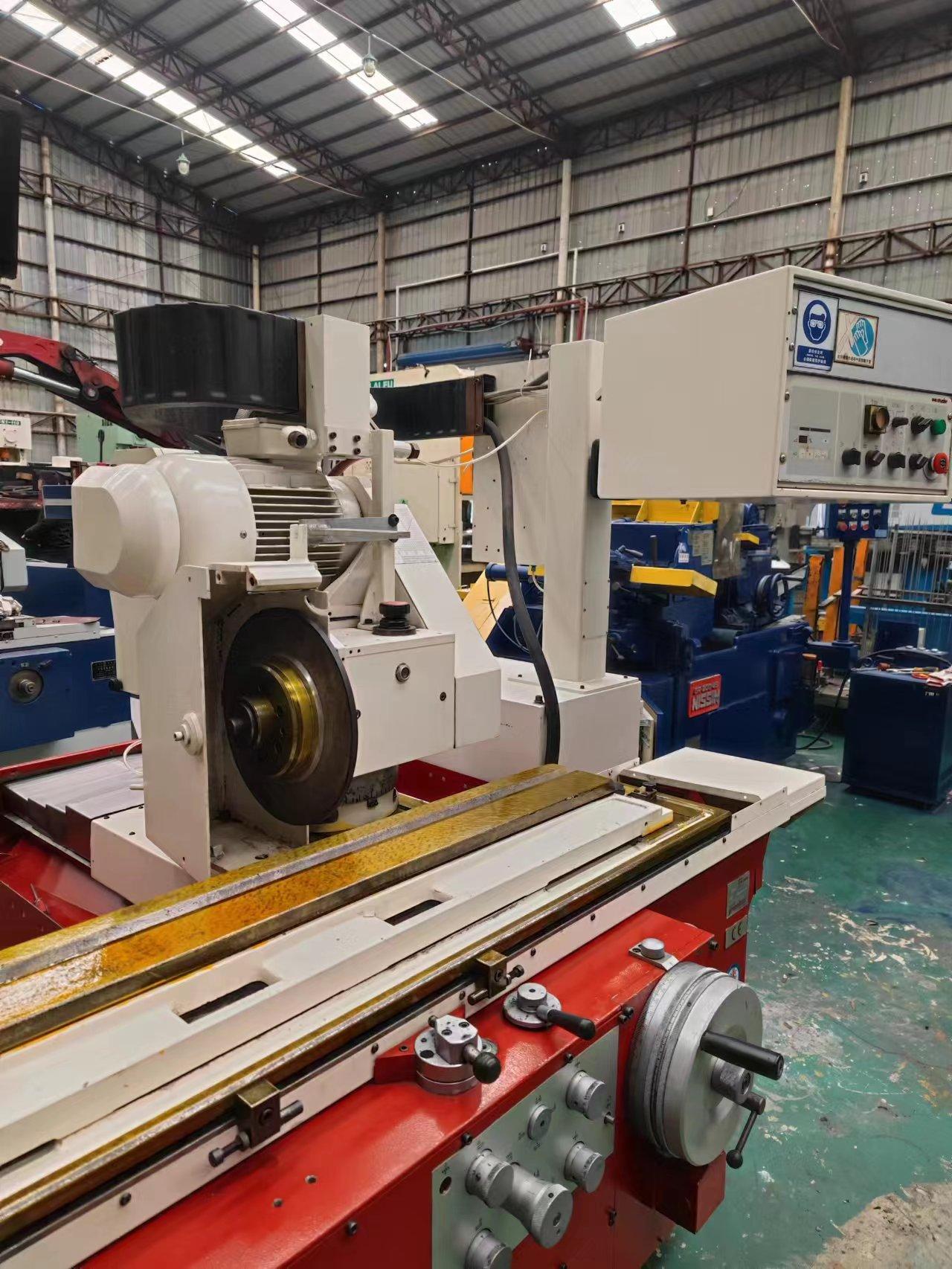

Studer S30 Cylindrical grinder

Machining  length: 1000mm

Machining  diameter: 250mm

Distance between centers: 650/1000/1600mm

Center height: 125/175/225mm

X-axis feed feed: 6mm/min

Maximum X axis travel: 260mm

Maximum Z axis travel : 700/1050/1650mm

Z-axis feed rate: 50-5000mm/min

Maximum grinding wheel diameter: 500mm

Grinding wheel driving power: 5.5kw

Grinding wheel speed: 1670/2110rpm
