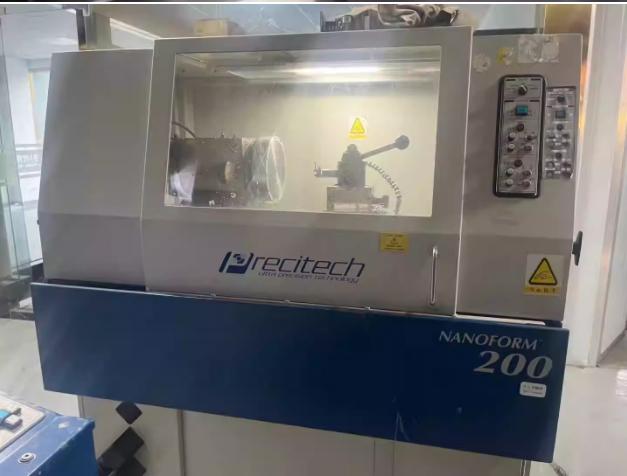

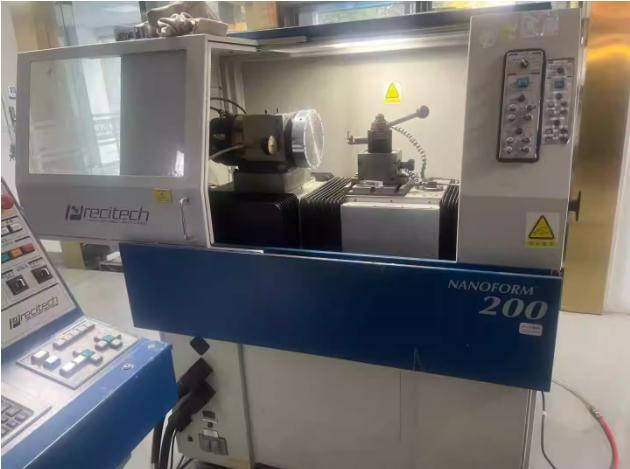

Prestech NANOFORM 200 Automatic lathe

Granite bed size: 1016x610x150 mm

Spindle speed: 10000rpm

Swing angle on sliding plate: 8"

Resolution: 8.6nm

Slider total travel: 190mm

Slider speed: 1000 mm/min

Slider straightness: 0.25μm(travel: within 102mm)

Slider perpendicularity: 0.25 arc-seconds

Noise level: < 70 dB

Air source: 688kPa（100 PSIG），340L/min

Power supply: 208/230volt AC, 50/60 Hz
