HAAS VF-3 Machining centre

[Product Information]:

Three-axis travel :1016*508*635mm

Distance from spindle nose to worktable : 102-737mm

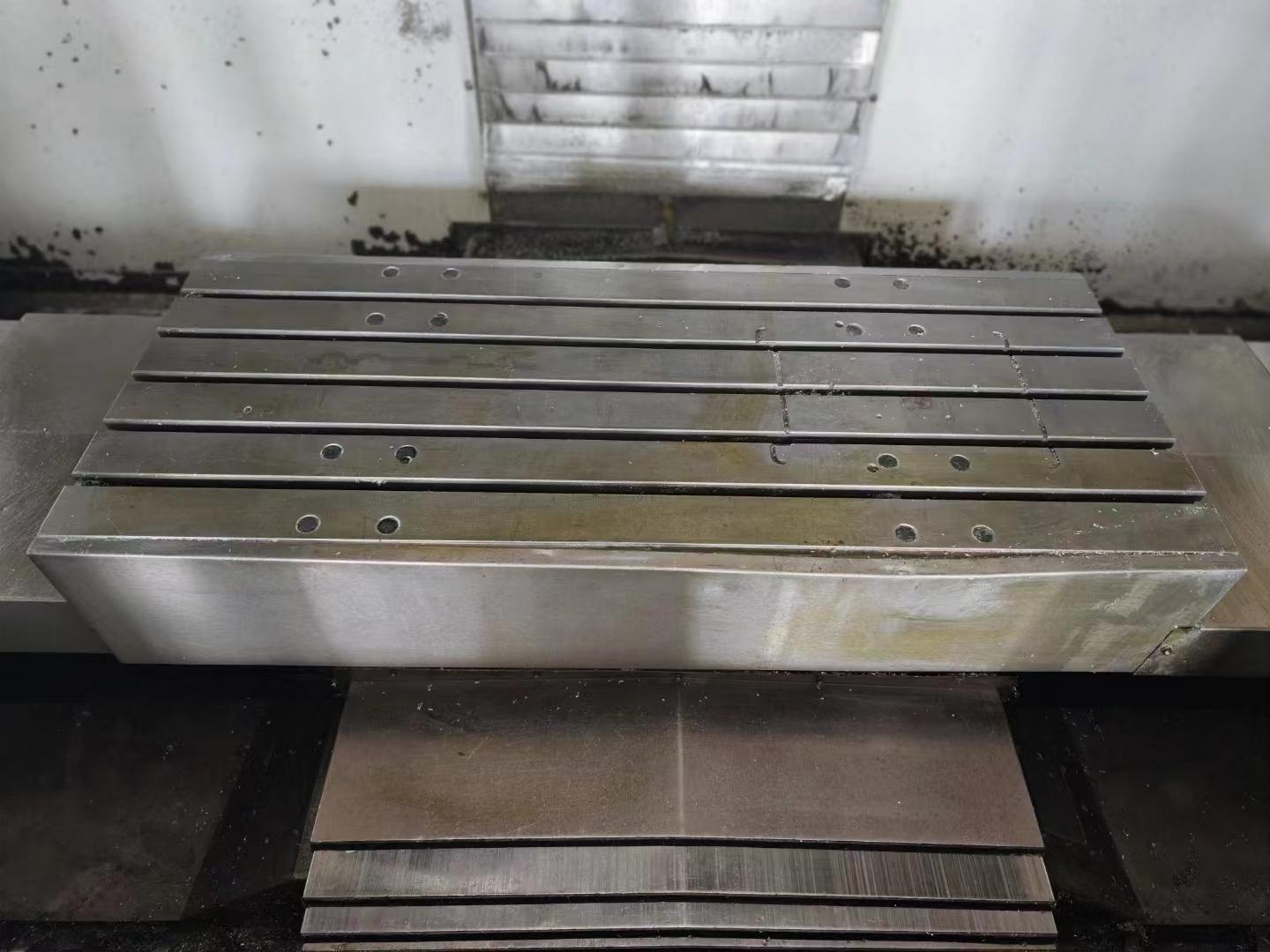

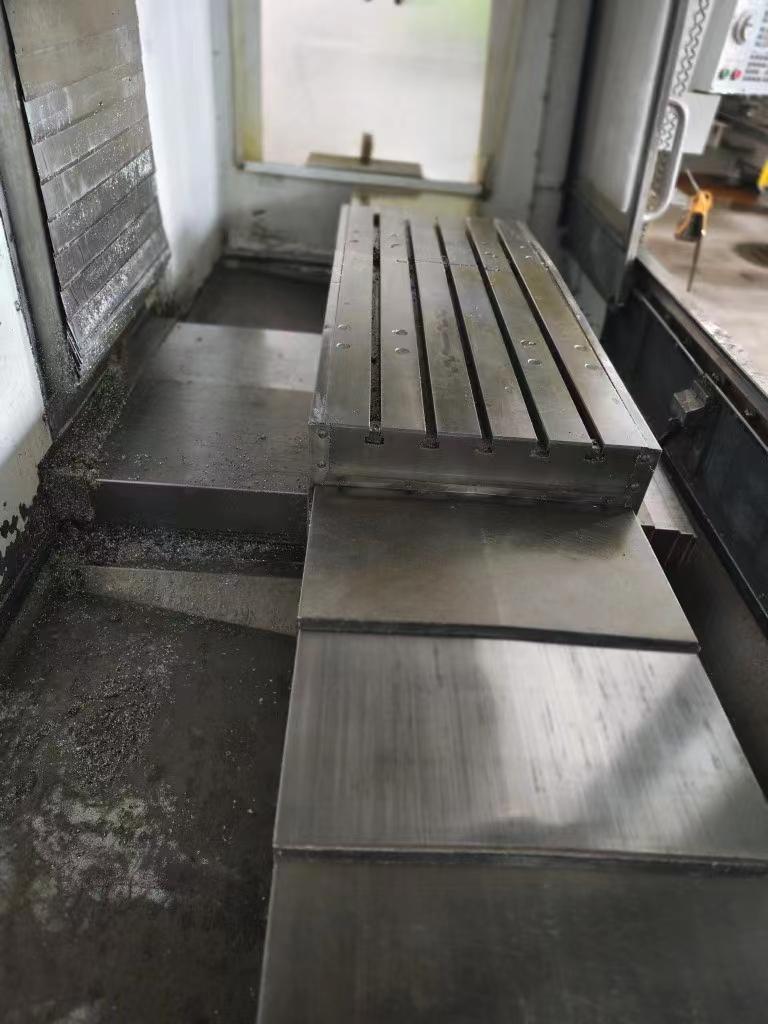

Worktable size :1219*457mm

T slot width :16mm

Distance between T-slots :80.0mm

Worktable load :794kg

Main motor power :22.4kw

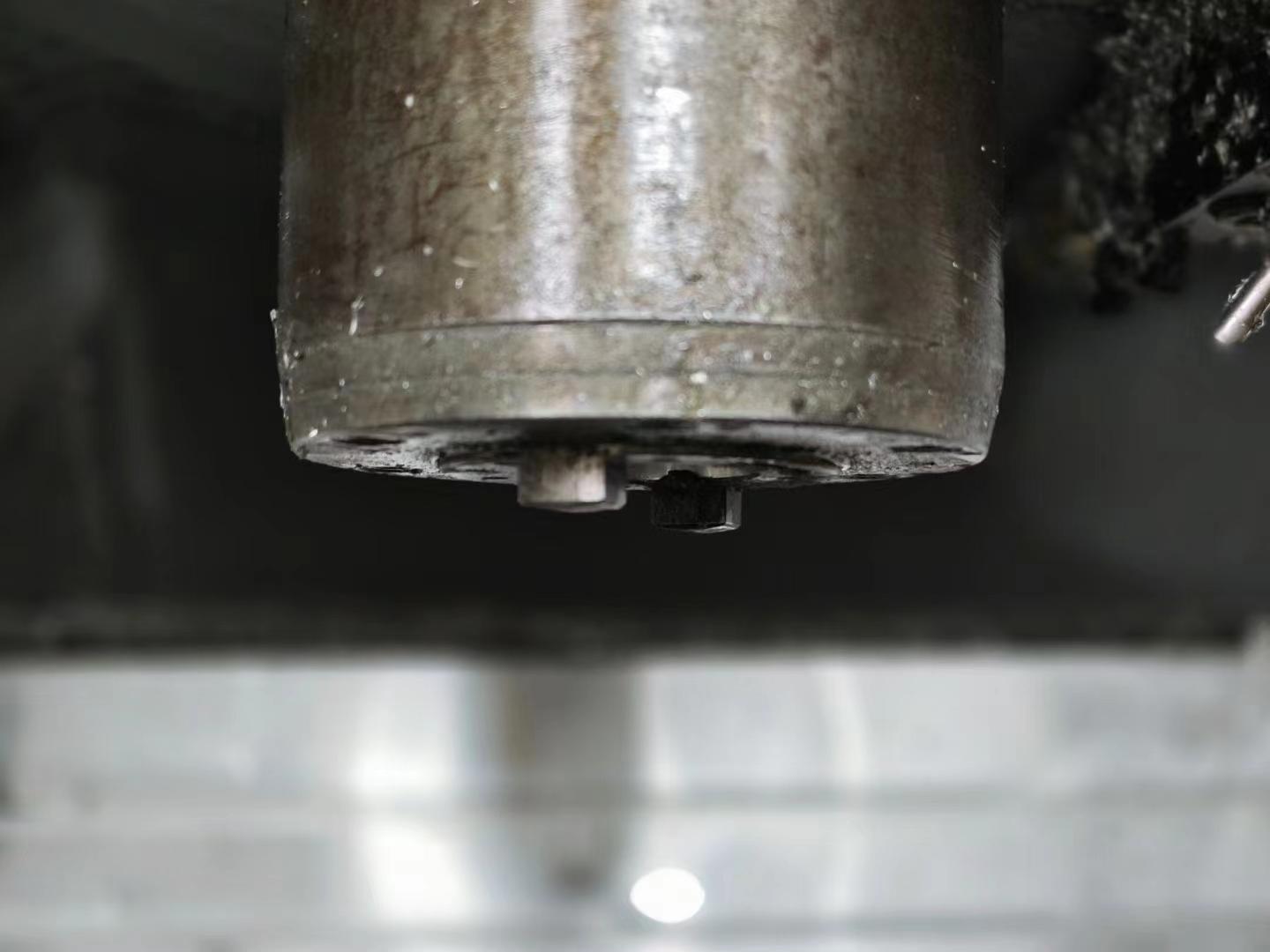

Spindle speed : 8100rpm

Tool holder type: BT40
