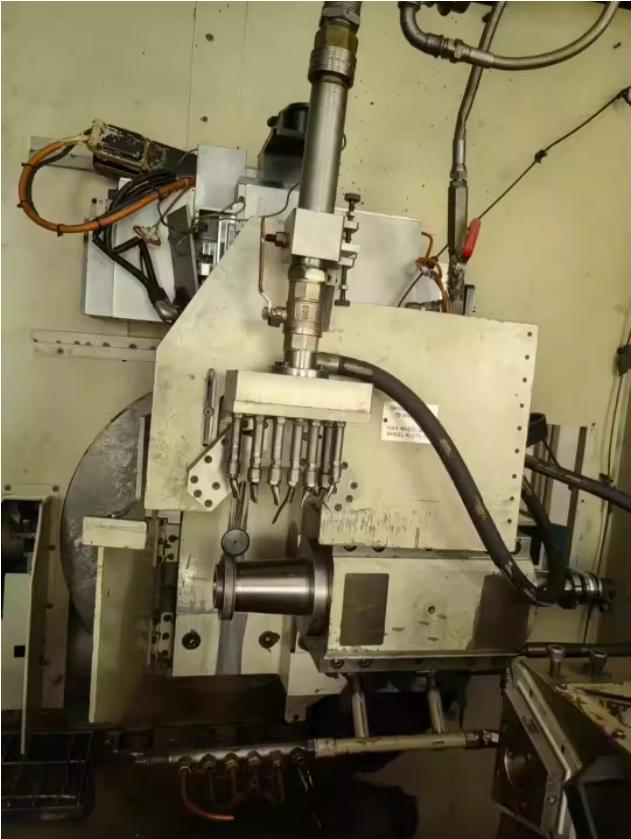

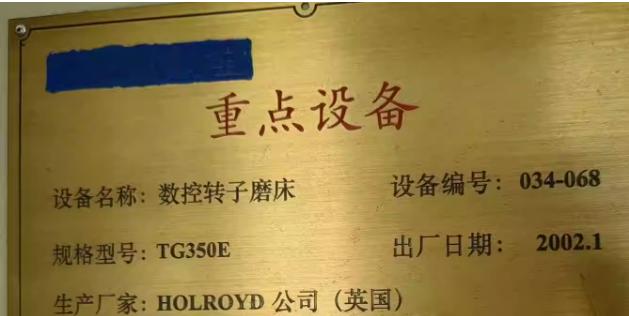

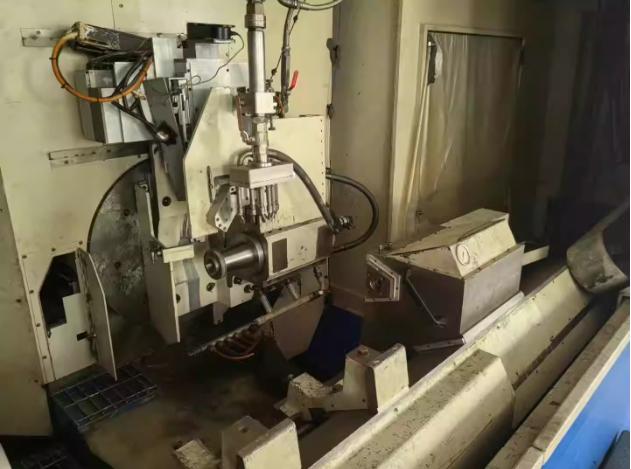

Holroyd TG350E Grinding machines

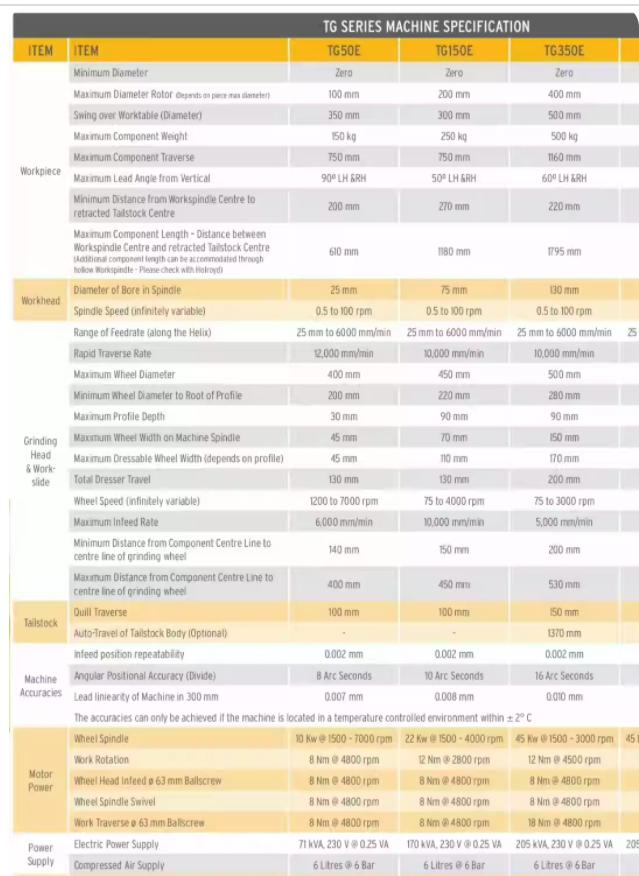

Maximum diameter rotor: 400mm

Swing diameter over worktable: 500mm

Maximum workpiece weight: 500kg

Maximum workpiece traverse: 1160mm

Maximum lead angle from vertical: 60° LH&RH

Maximum distance from spindle center to retracted tailstock center: 220mm

Diameter of bore in spindle: 130mm

Spindle speed: 0.5-100rpm

Range of feed rate: 25-6000mm/min

Rapid traverse rate: 10000mm/min

Maximum wheel diameter: 500mm

Minimum wheel diameter to root of profile: 280mm

Total dresser travel: 200mm

Grinding wheel speed: 75-3000rpm

Maximum infeed rate: 5000mm/min

Minimum distance from workpiece center line to center line of grinding wheel: 200mm

Maximum distance from workpiece center line to center line of grinding wheel: 530mm

Infeed reposition accuracy: 0.002mm

Angular positional accuracy: 16 Arc second

Machine dimension: 6775*5000*3300mm
