Schwabische Werkzeugmaschien BA 322 Horizontal Machining centre
[Product Information]:
- Inventory number：90843
- Brand：Schwabische Werkzeugmaschien
- Model：BA 322
- Origin：Germany.
- Location：China
- Year：2019
- Create Time：2023-12-04
Specifications:
X*Y*Z axis: 300*450/725*375mm
Distance between centers: 300 mm
X/Y/Z axes feed rate: 65/75/75 m/min
X/Y/Z axes acclerated speed: 10/10/15 m /s²
Maximum workpiece length: 725mm
Maximum workpiece weight: 7.5kg
Dimensions: 2750*2850*3650mm
Tool magazine: 2*40
Spindle speed: 10000rpm
Spindle taper: HSK-A63
Main motor power: 64kw
Machine weight: 12,000kg

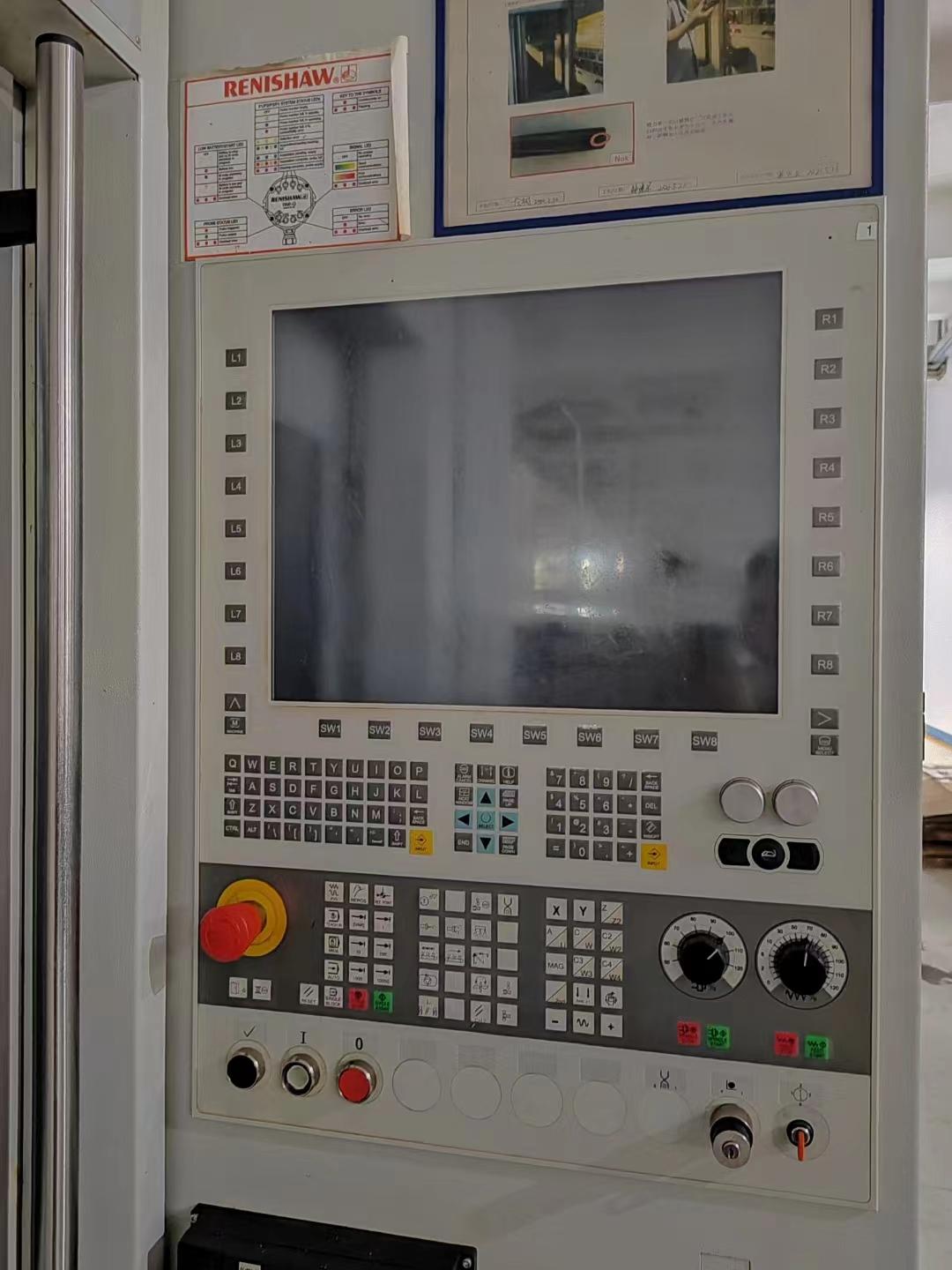

CNC System: Siemens 840D
