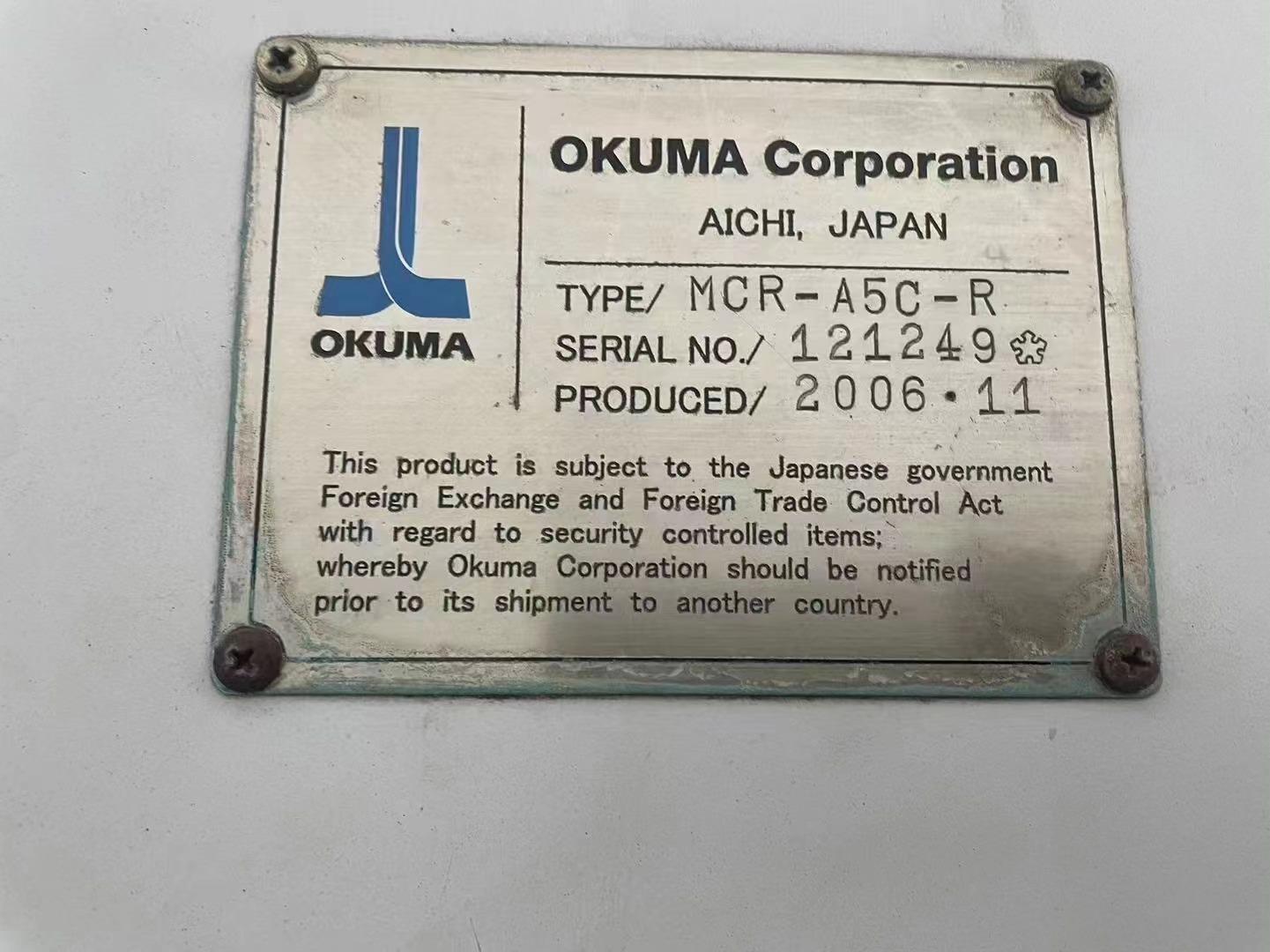

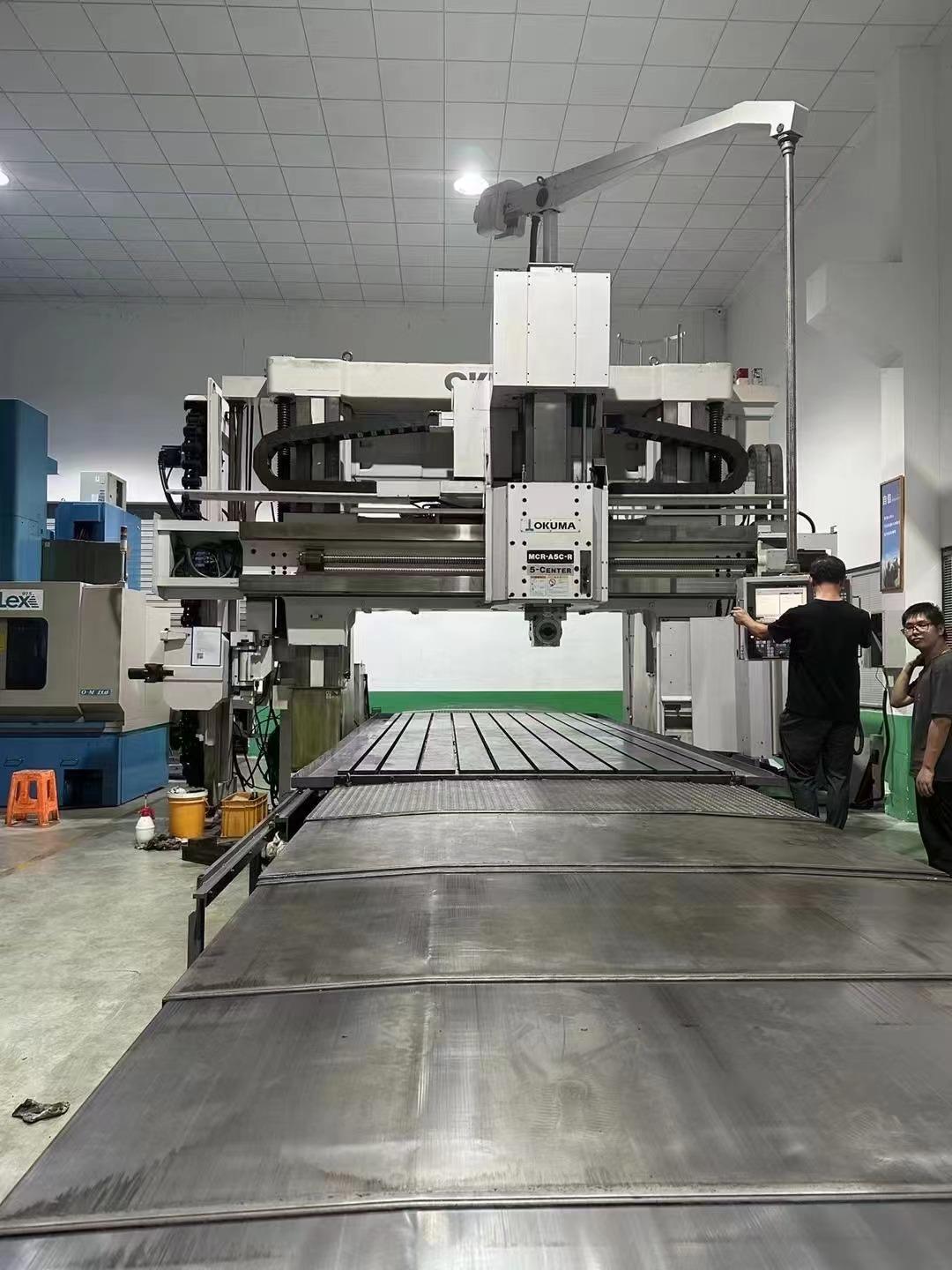

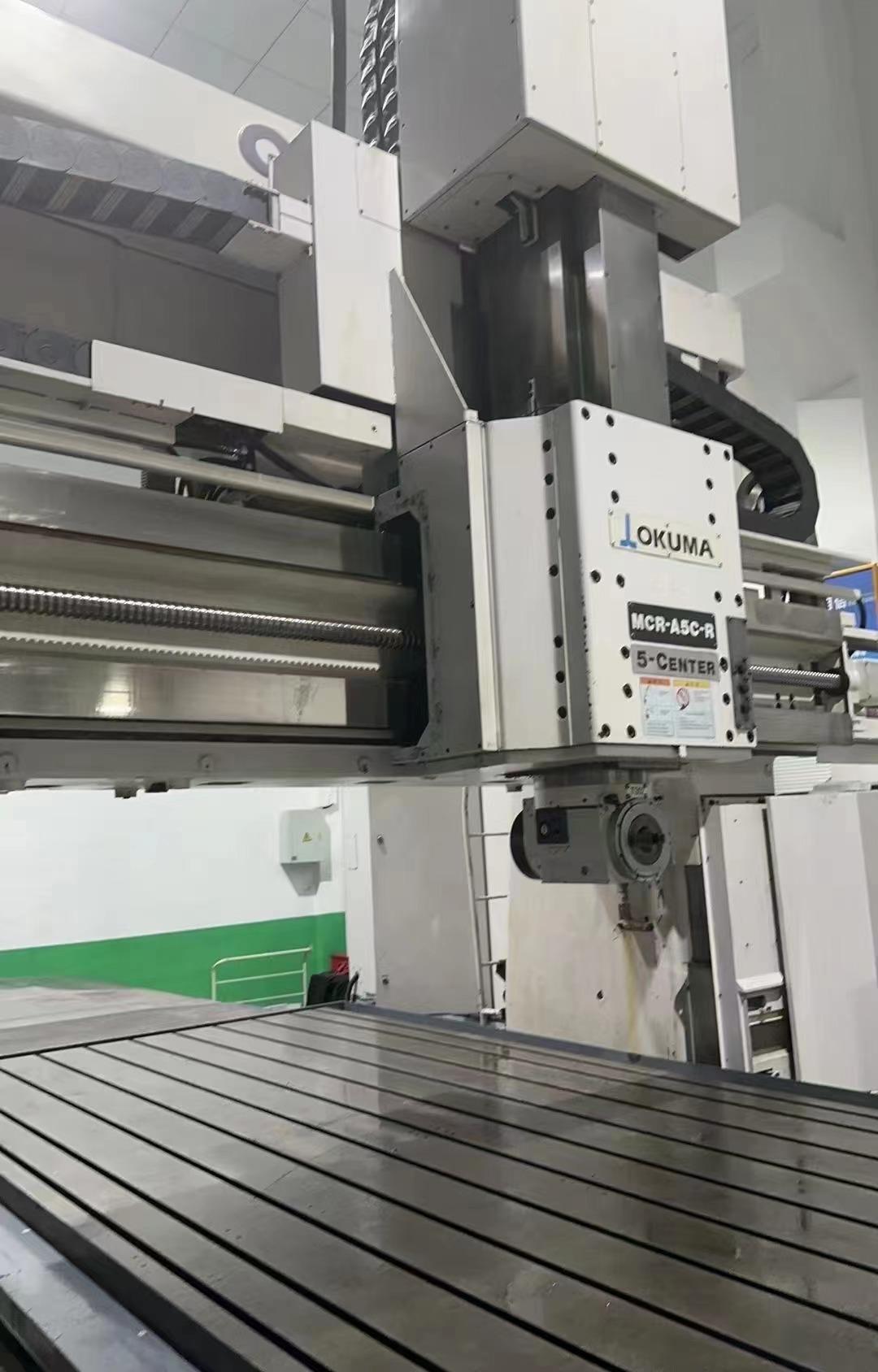

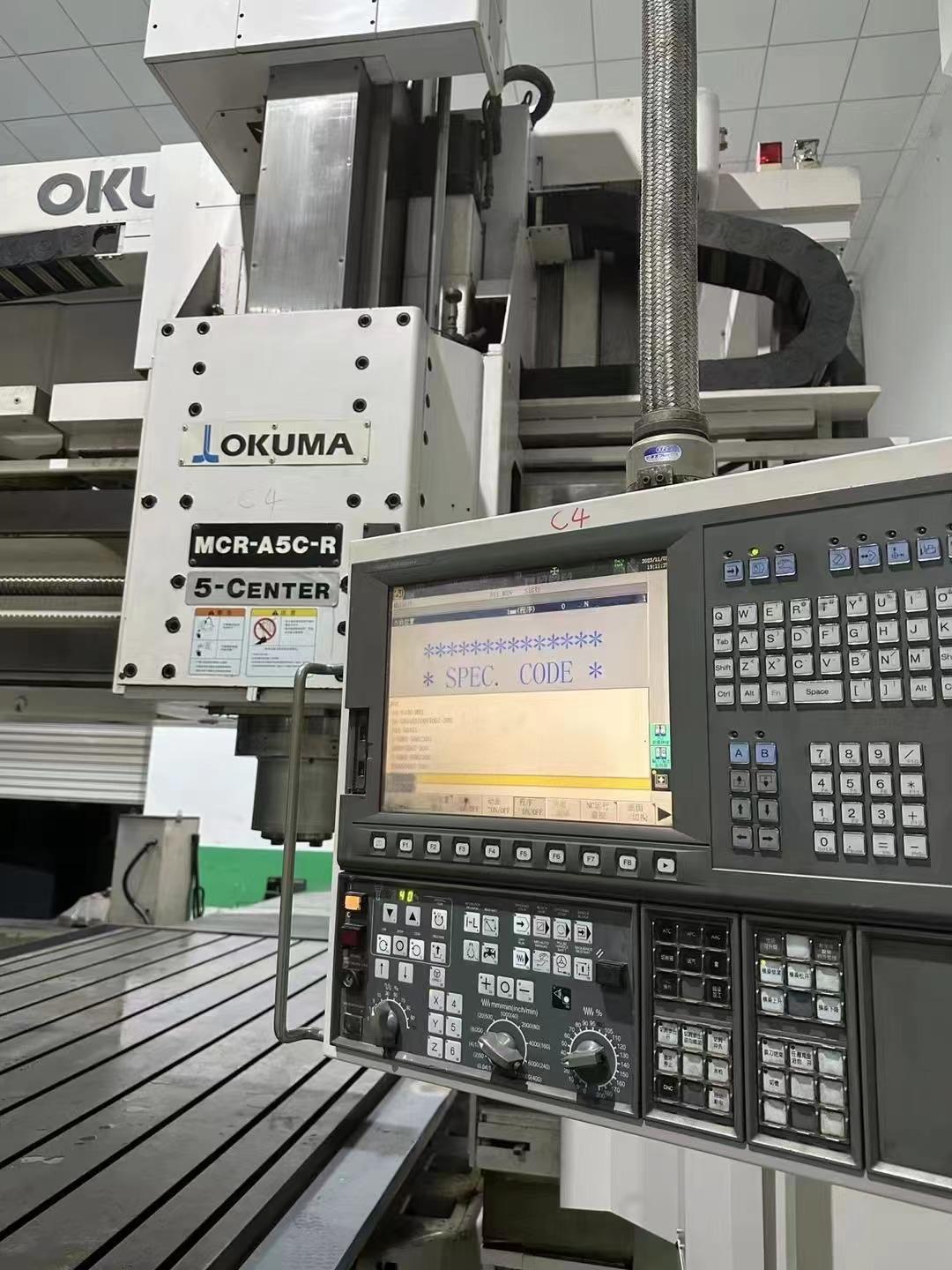

Okuma MCR-A5C-R Gantry machining centre

X*Y*Z*W*Z axis travel: 5200*3100*1000*1000*650mm

X*Y*Z axis feed rate: 30*32*20m/min

Spindle speed: 6000rpm

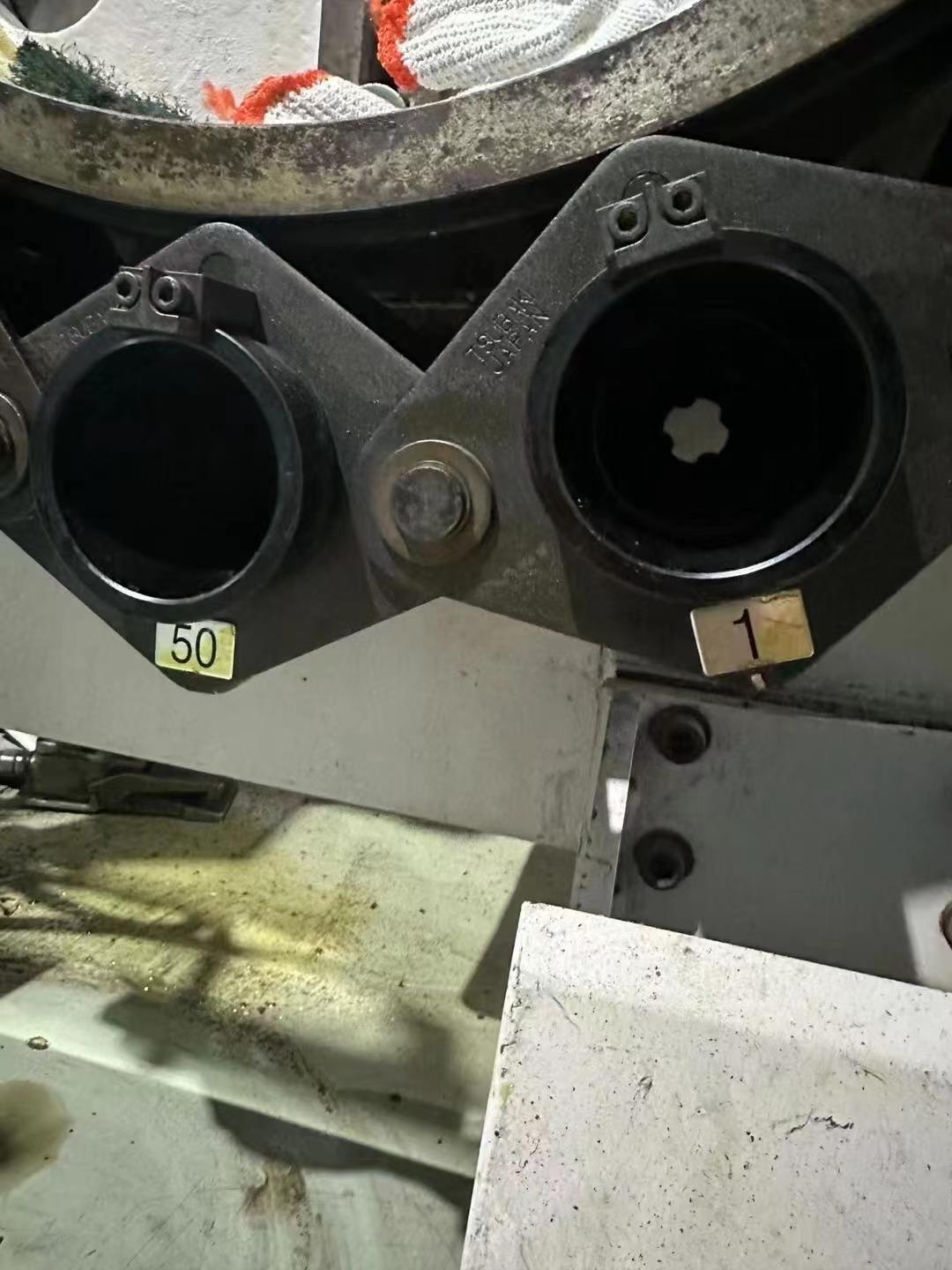

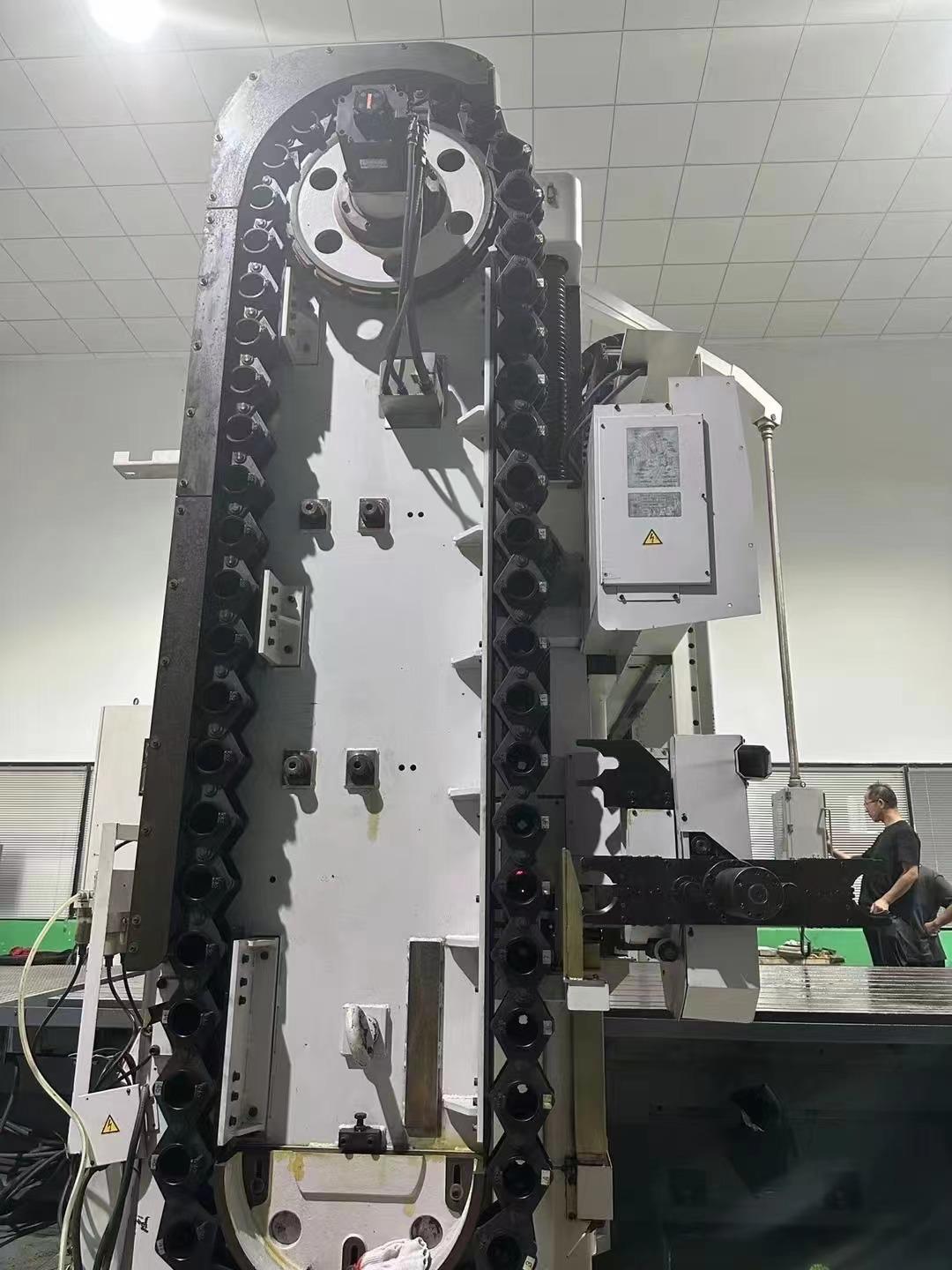

ATC: 50

Maximum tool length: 400mm

Tool weight: 25kg

Tool holder type: MASBT50

Worktable to spindle nose: 1650mm

Cutting feed rate: 1-10000rpm

Main motor power: 26/22kw, 30/22kw

Worktable size: 2000*5000mm

Worktable load: 27000kg

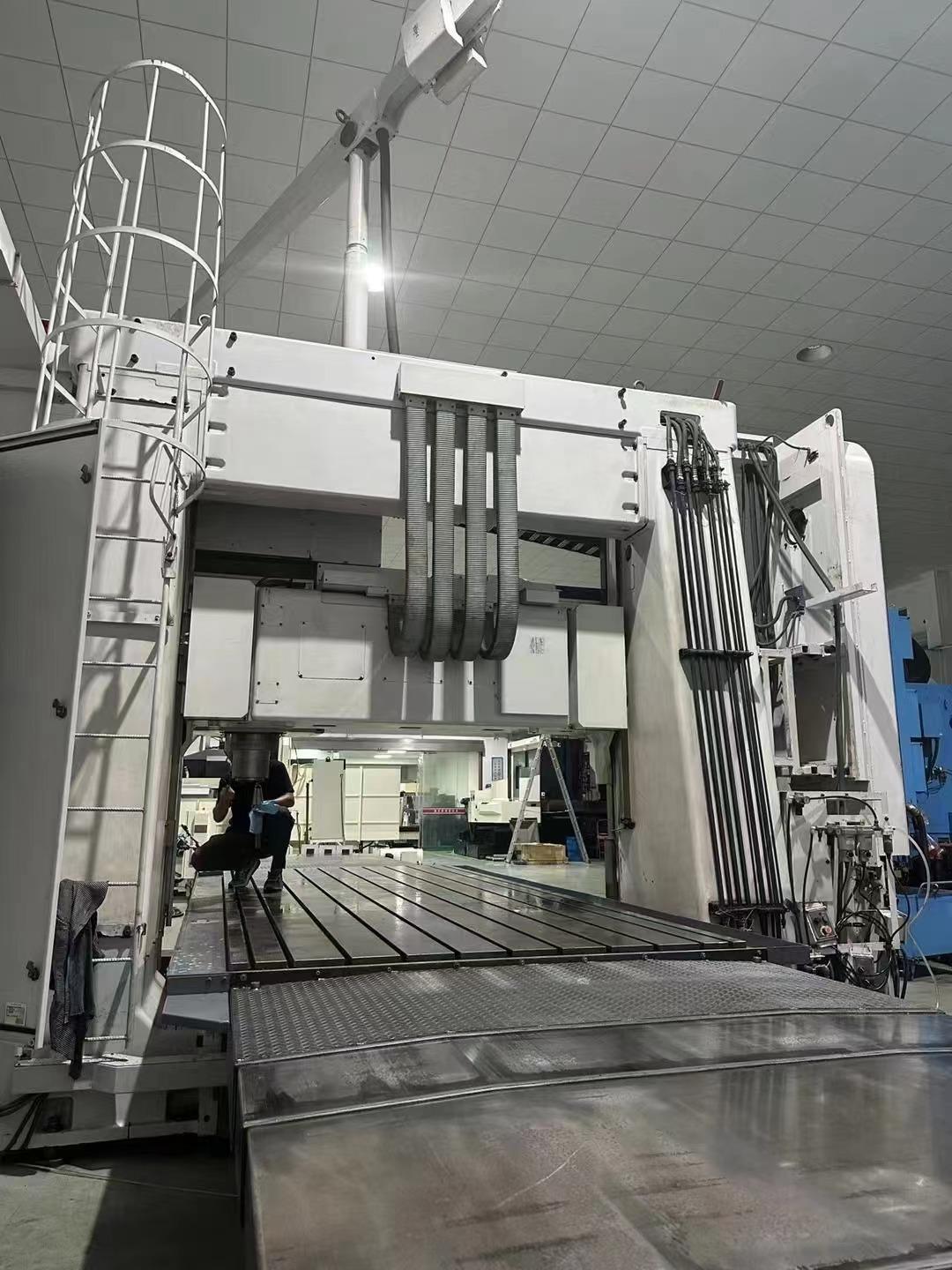

Gantry width: 2650mm

Spindle taper: BT50
