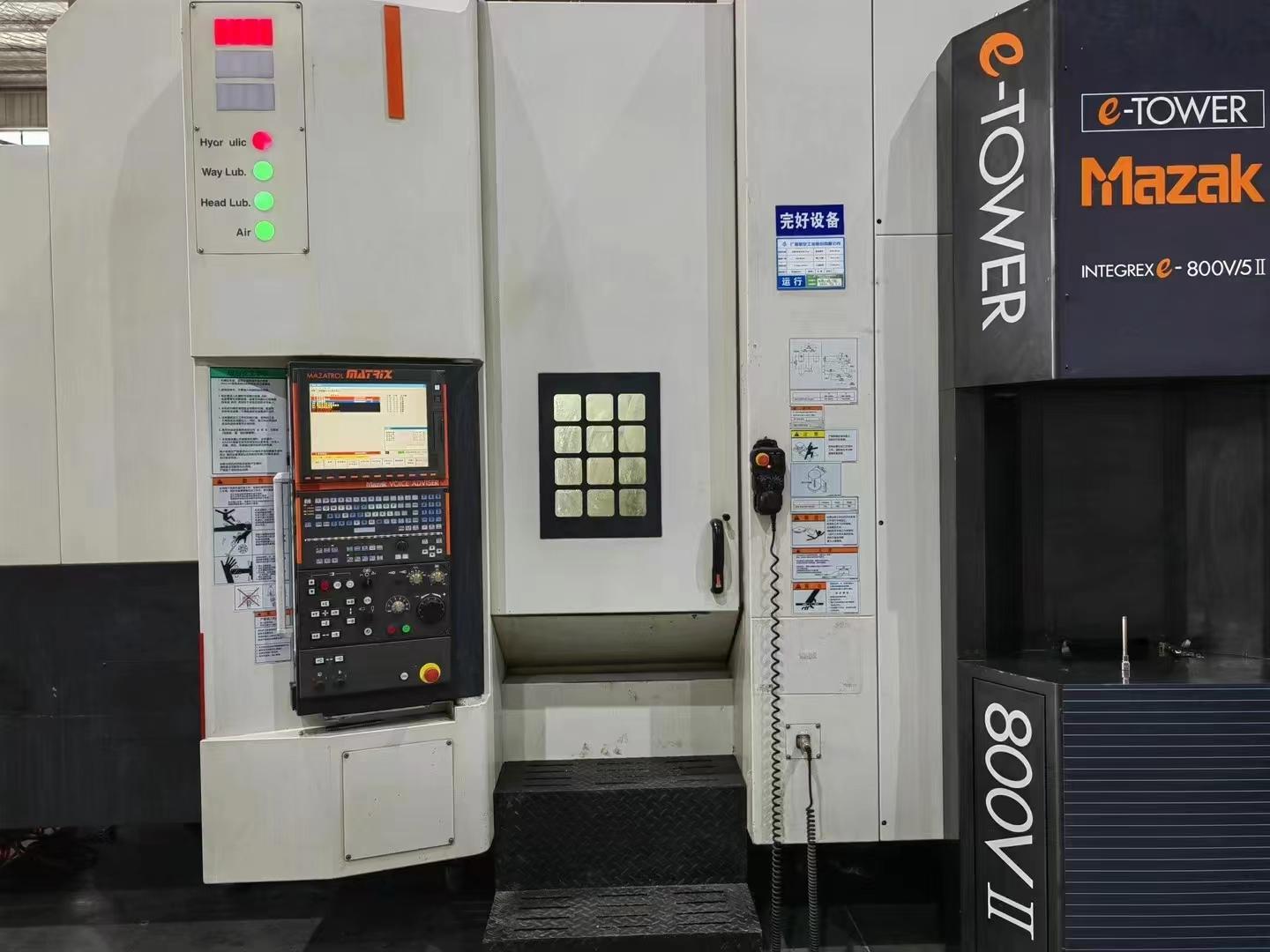

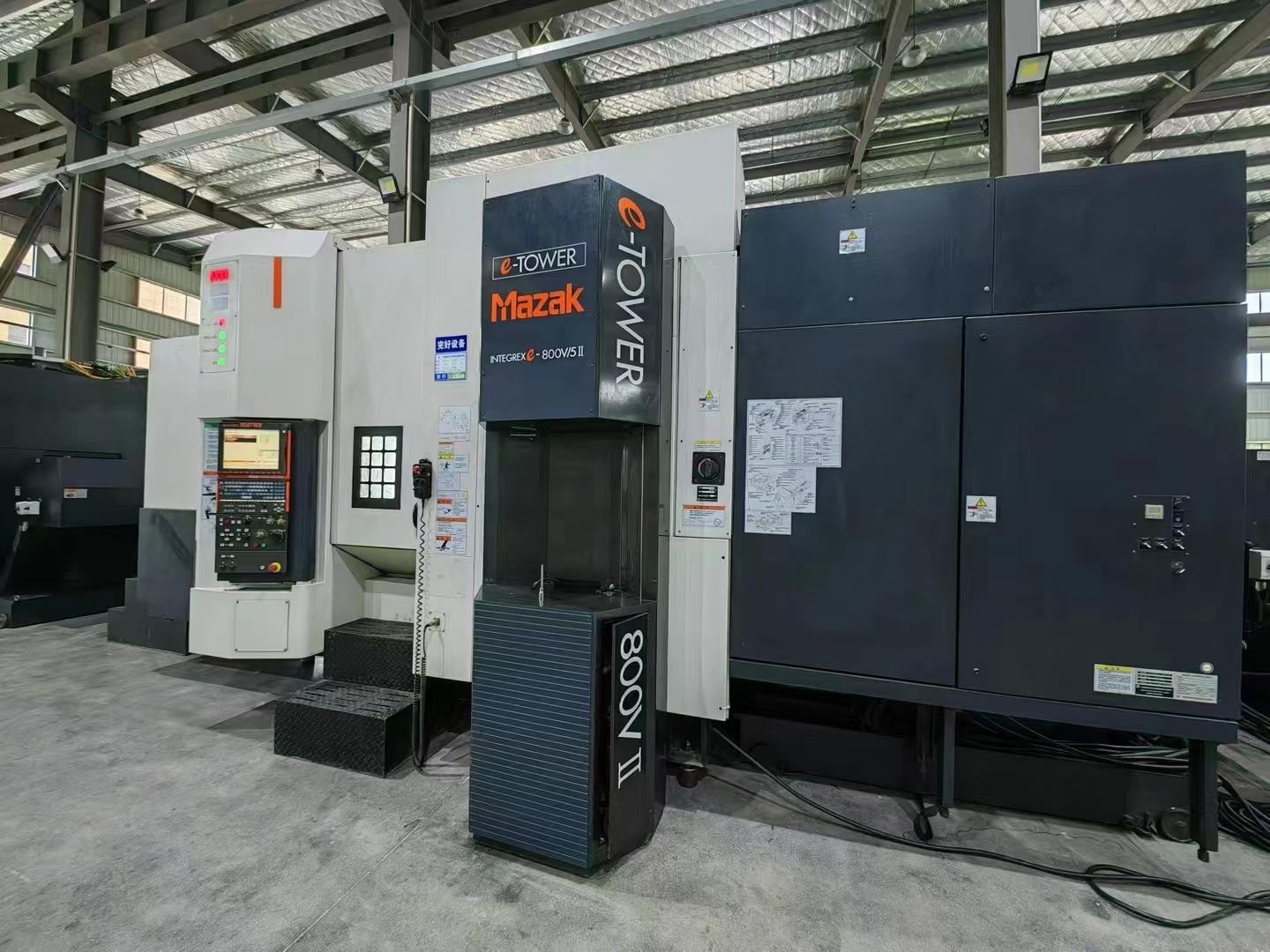

Mazak integrex-E800V Machining centre

Maximum machining diameter: 730mm

Maximum workpiece size: 730*1000mm

Worktable maximum load: 880kg

X*Y*Z axis travel: 1100*800*900mm

B axis travel: 150°(-30°-+120°)

C-axis travel: 360°

Spindle speed range: 1000-12000rpm

X/Y/Z axes fast feed rate :50000mm/min

ATC:80

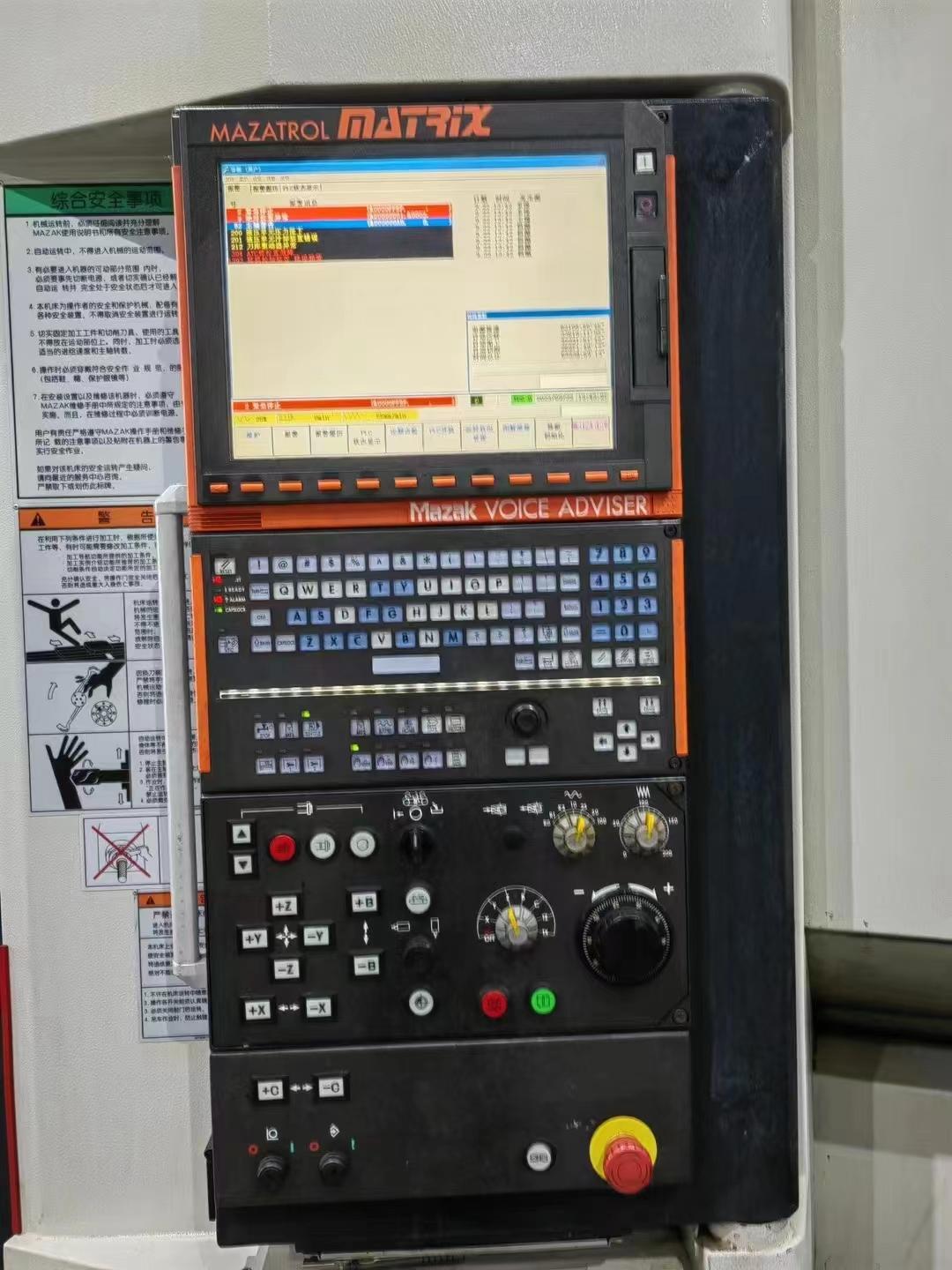

CNC System :MAZATROLMATRIX

Machine height :3435mm

Footage :3459*7550mm

Machine weight :21000kg
