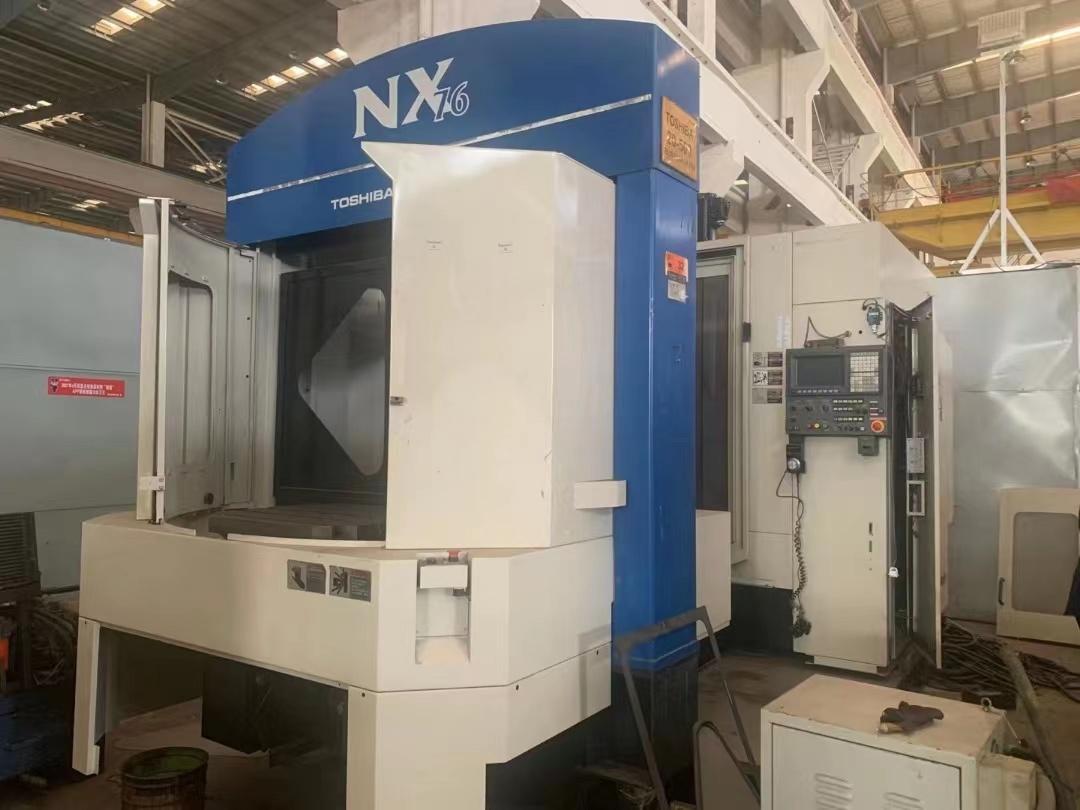

Toshiba NX-76 Horizontal Machining centre

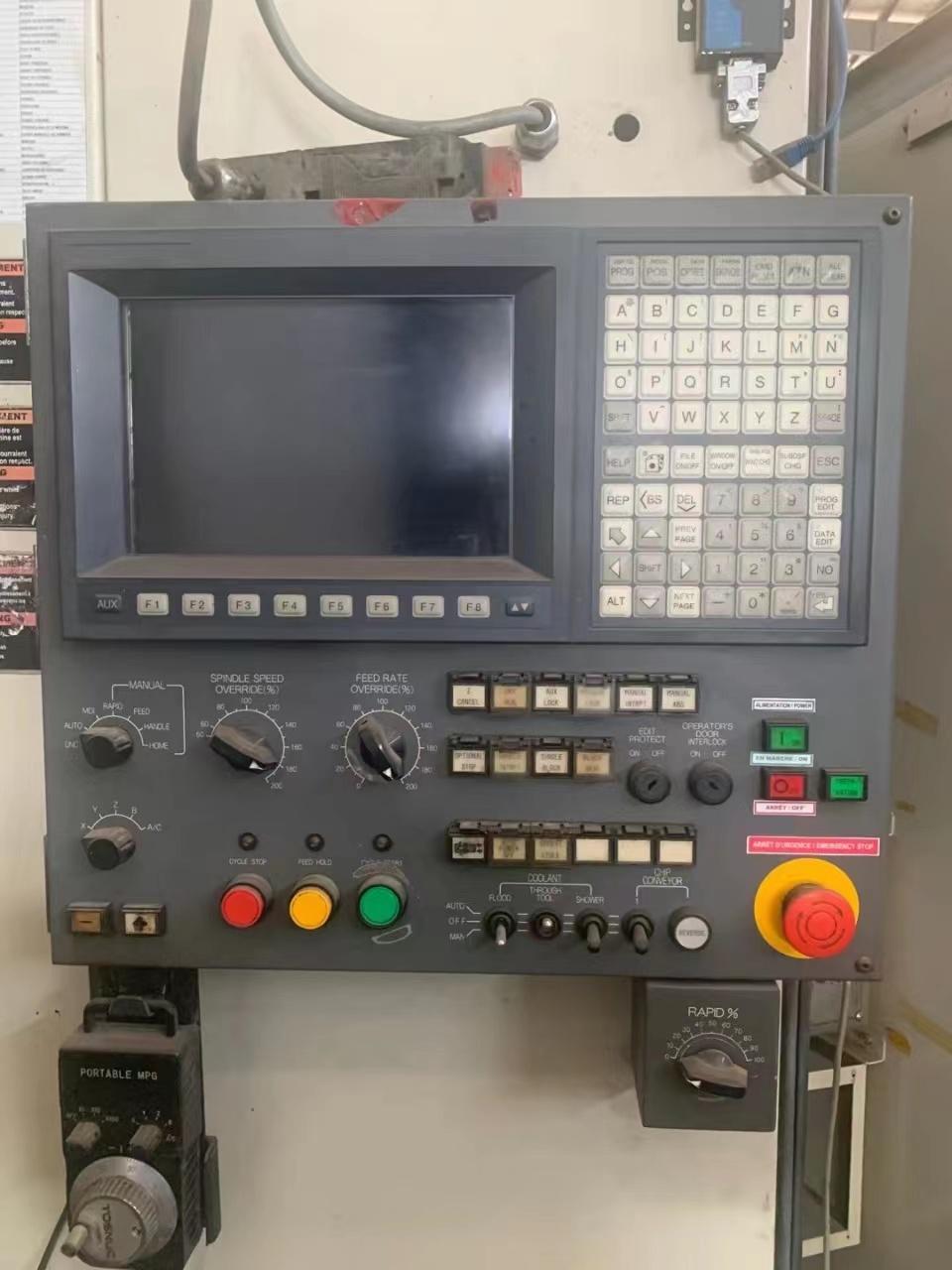

CNC System: Toshiba 888

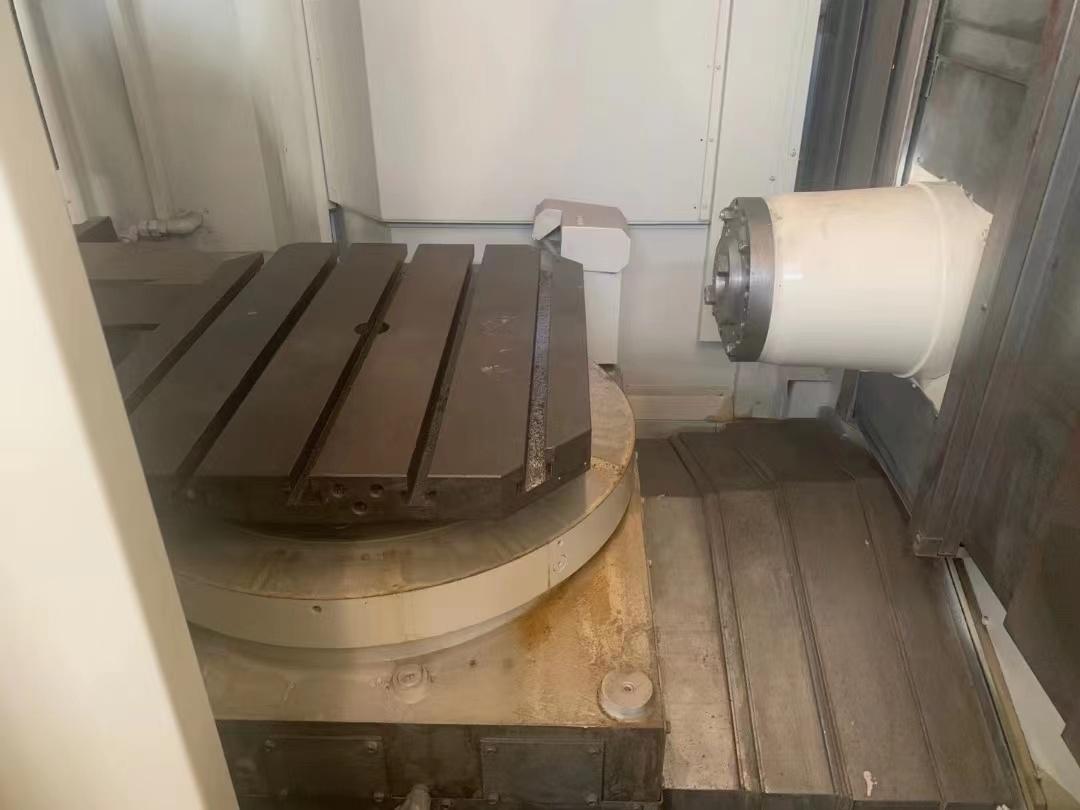

Worktable size: 627*754mm

Worktable indexing revolution: 0.001°

Distance from worktable to spindle center: 859mm

Distance from center to spindle: 960mm

X*Y*Z axis travel: 848*759*890mm

X*Y*Z axis feed rate: 30000mm/min

C axis travel: 360°

Spindle speed range: 50-8000rpm

Spindle drive motor: 37/30kw

Spindle inner and external diameter bearing: 99/160mm

Dimensions: 3866*5271*3145mm

Machine weight: 20970kg
