Mazak HCN8800-II Horizontal Machining centre

CNC System: MAZATRLO

Three-axis travel: 1400*1200*1325mm

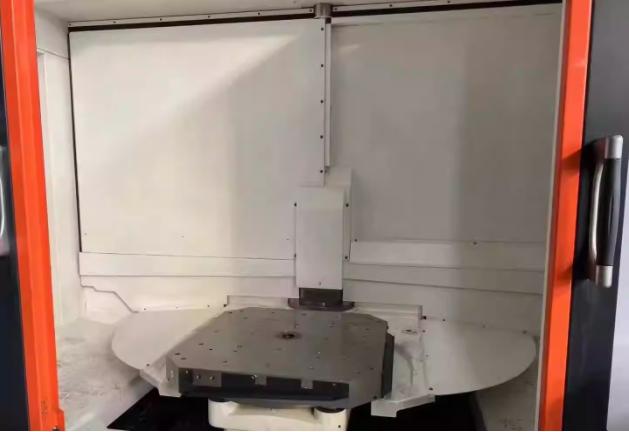

Worktable size: 800*800mm

Number of worktables: 2

Worktable load: 2200KG

Distance from spindle to worktable: 100-1275mm

Maximum rotating diameter: 1450mm

Maximum machining height: 1450mm

Indexing angle: 1°/0.001°

Spindle speed: 10000rpm

Tool holder: BT50

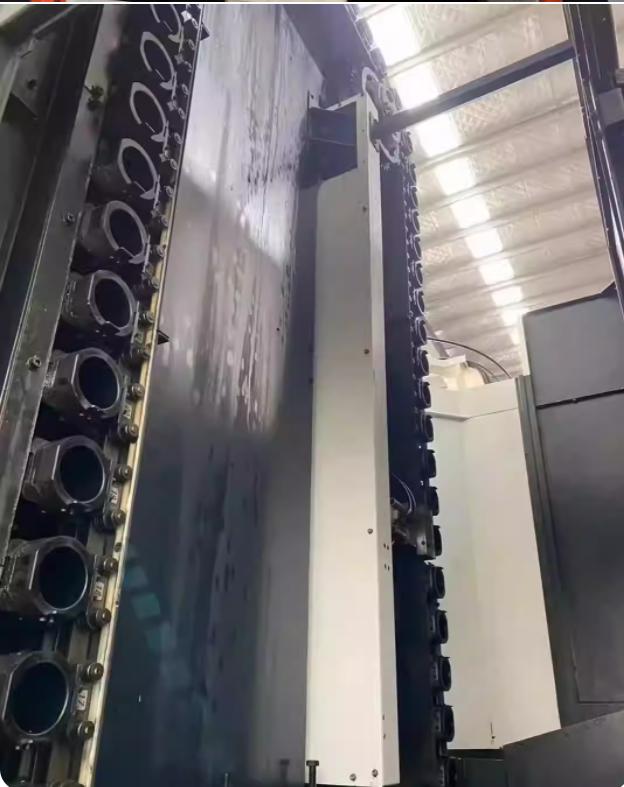

Tool magazine: 40

Maximum tool length: 800mm

Maximum tool weight: 30KG

Moving rate: 60000mm/min

Dimension: 4072*6918*3678mm
