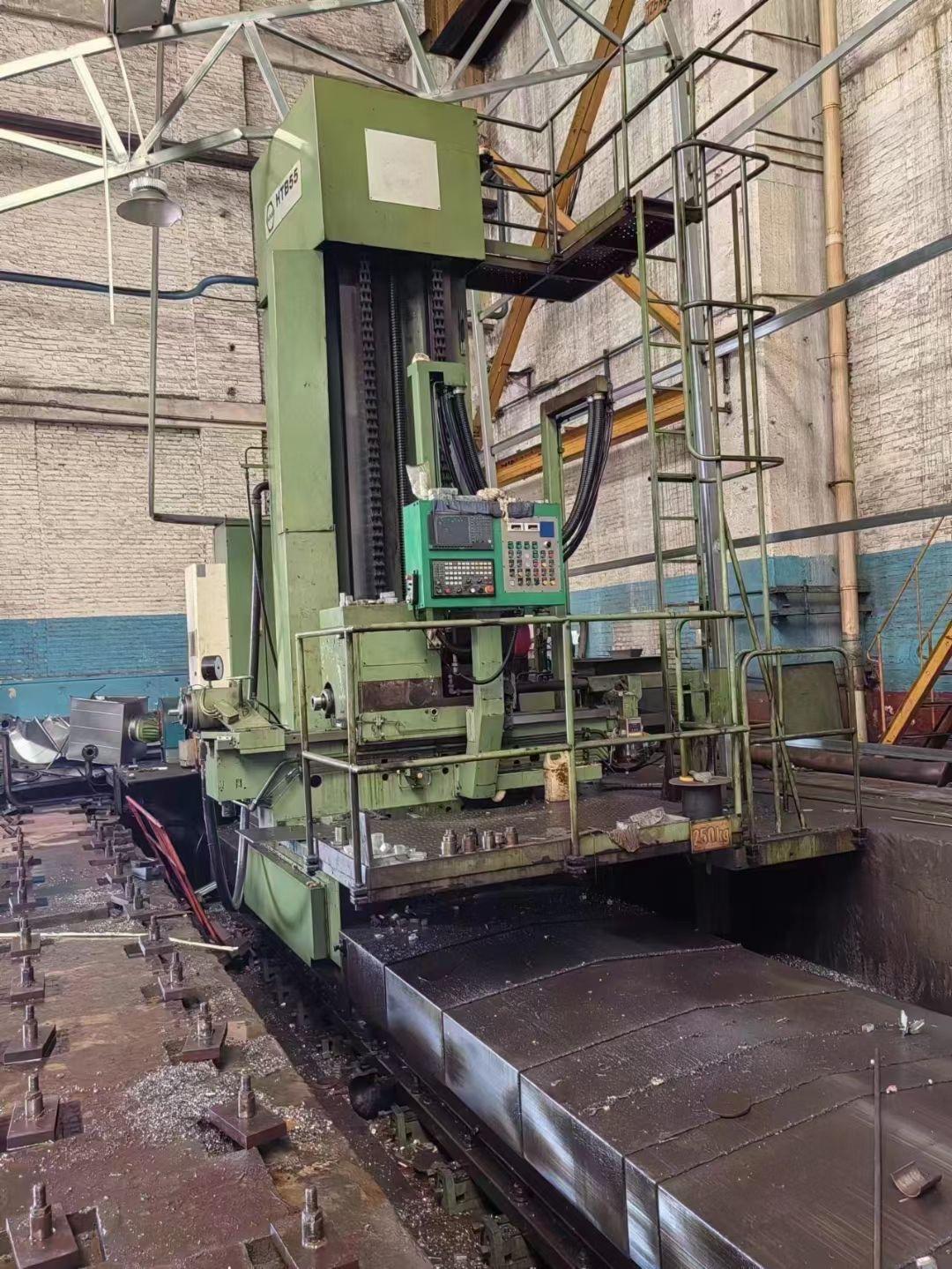

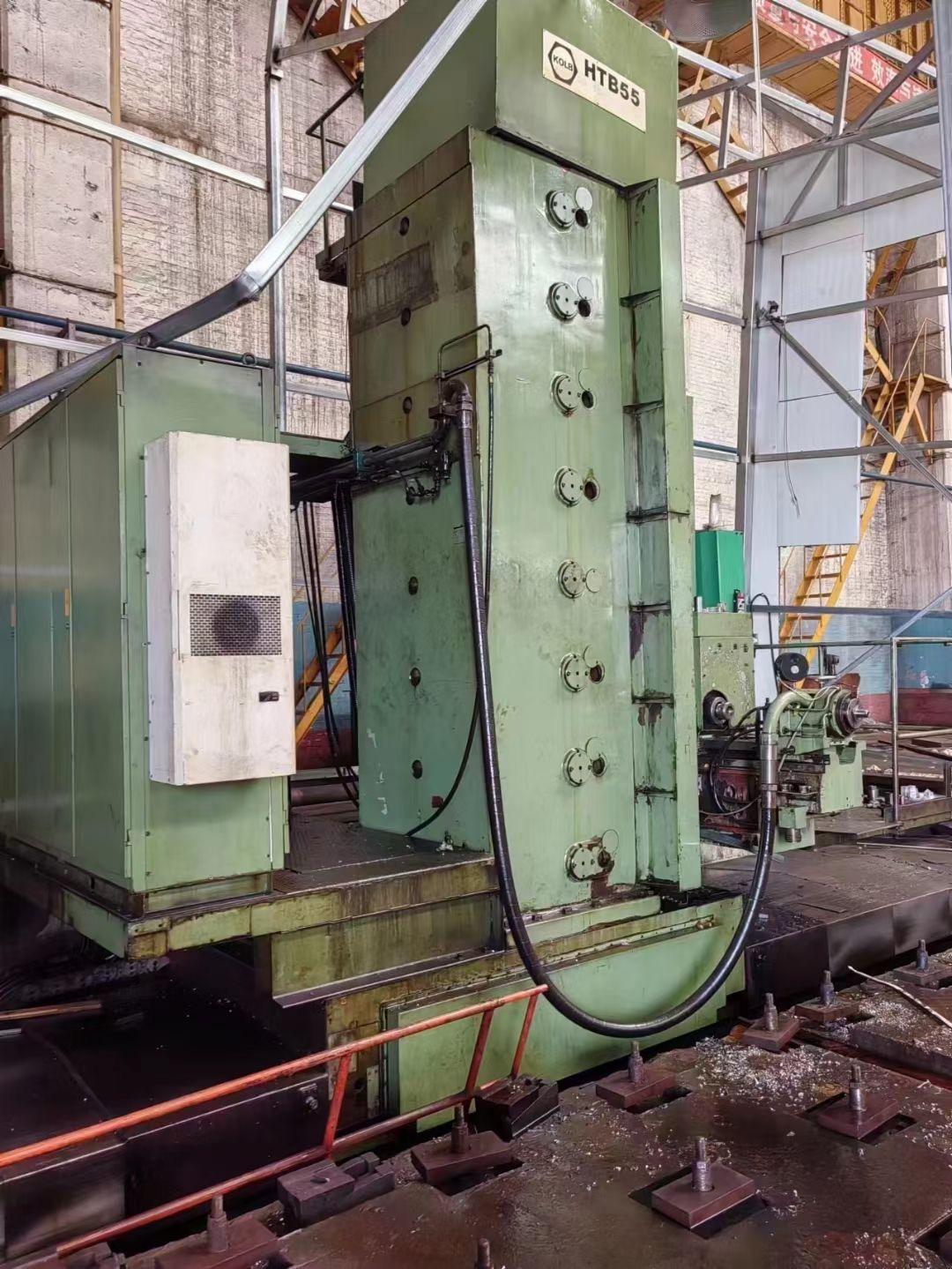

KOLB HTB55 Deep-hole drilling machine

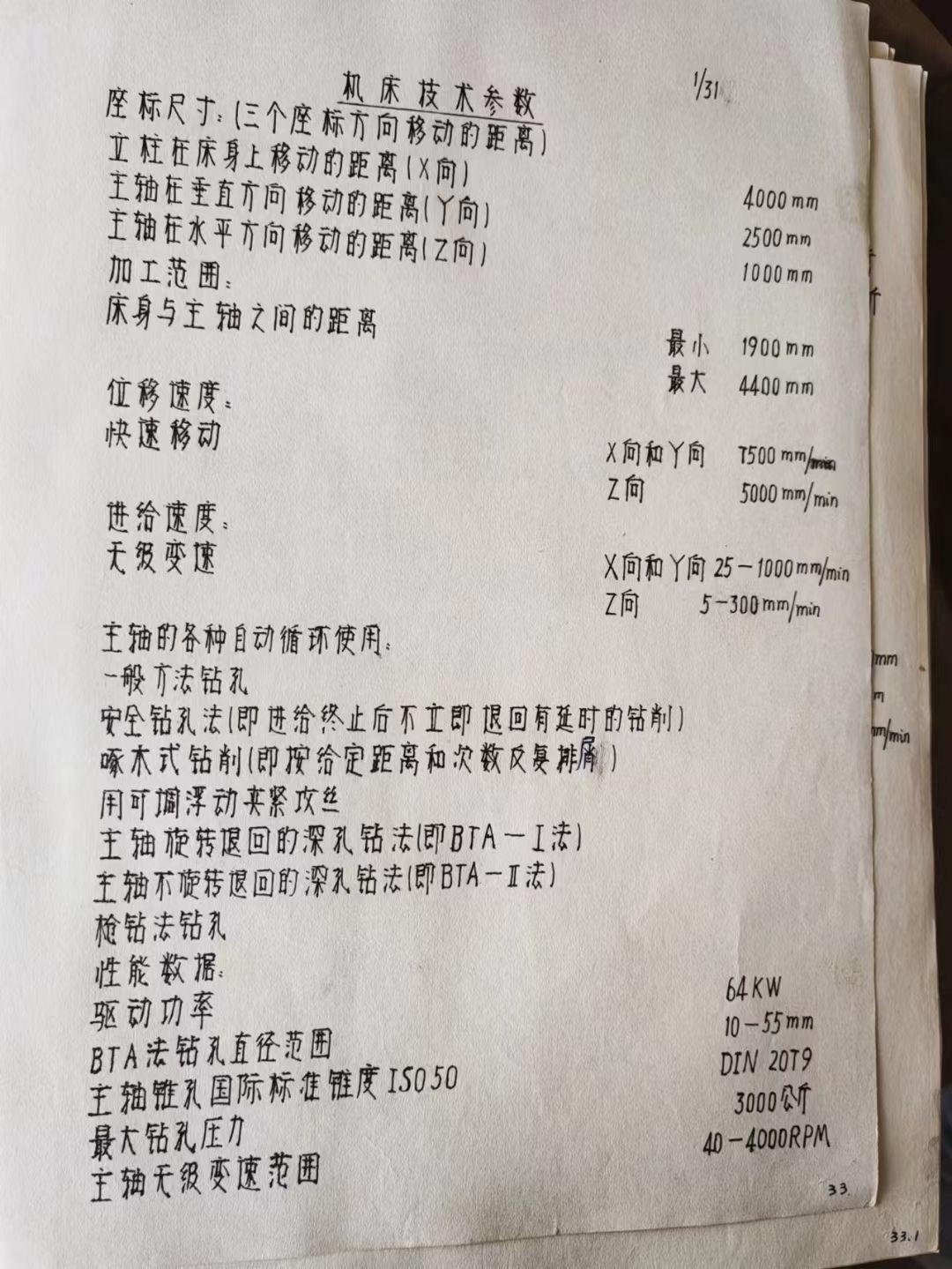

Distance of the column on machine (X direction) : 4000mm

Distance of spindle in the vertical direction (Y direction) : 2500mm

Distance of spindle in the horizontal direction (Z direction) : 1000mm

X*Y*Z axis fast moving rate: 7500*7500*5000mm/min

X*Y axis fast feed rate: 25-1000mm/min

Z-axis fast feed rate: 5-300mm/min

Spindle speed range: 40-4000rpm

Maximum drilling pressure: 3000kg
