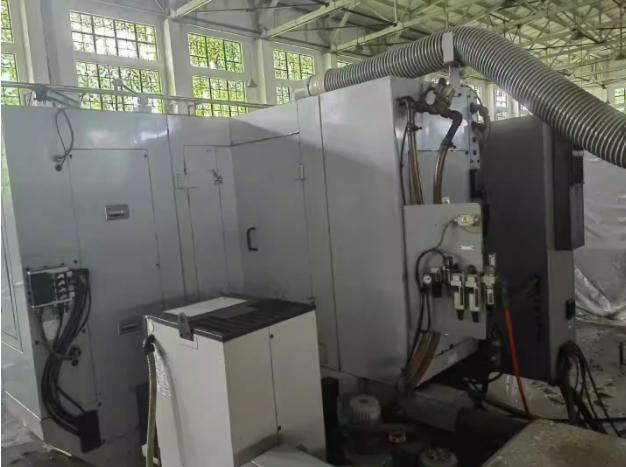

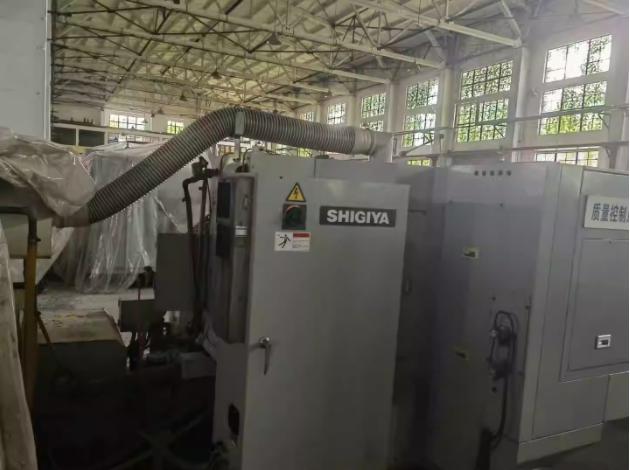

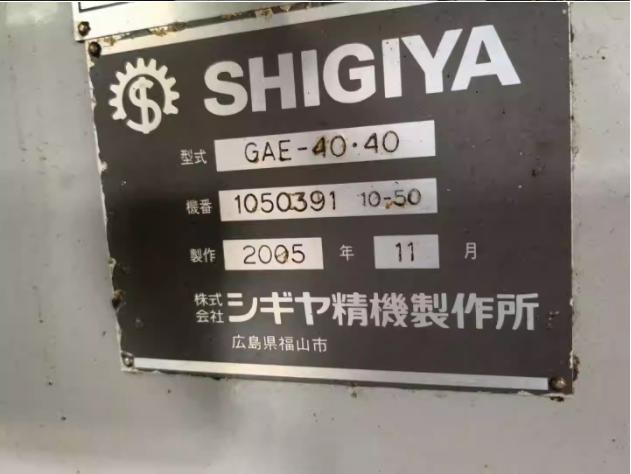

SHIGIYA GAE-40·40 Cylindrical grinder

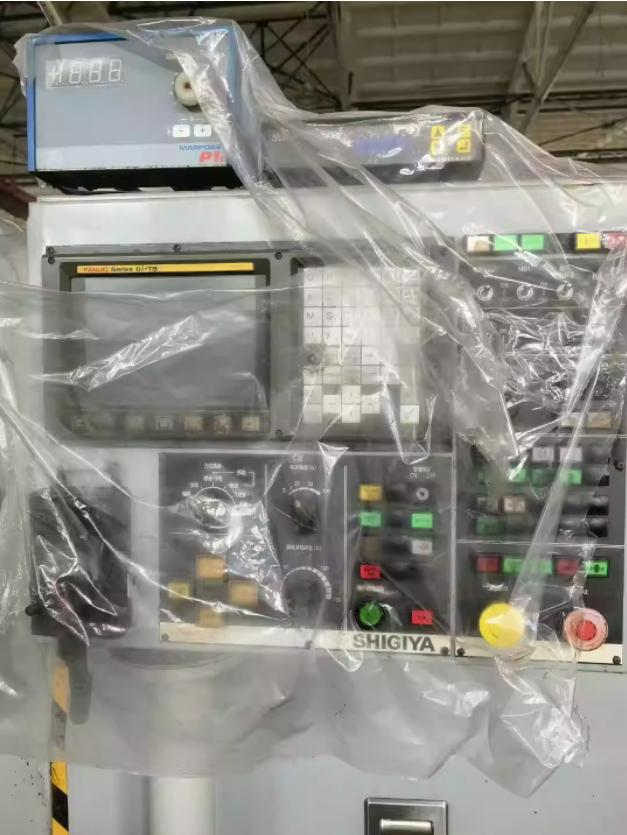

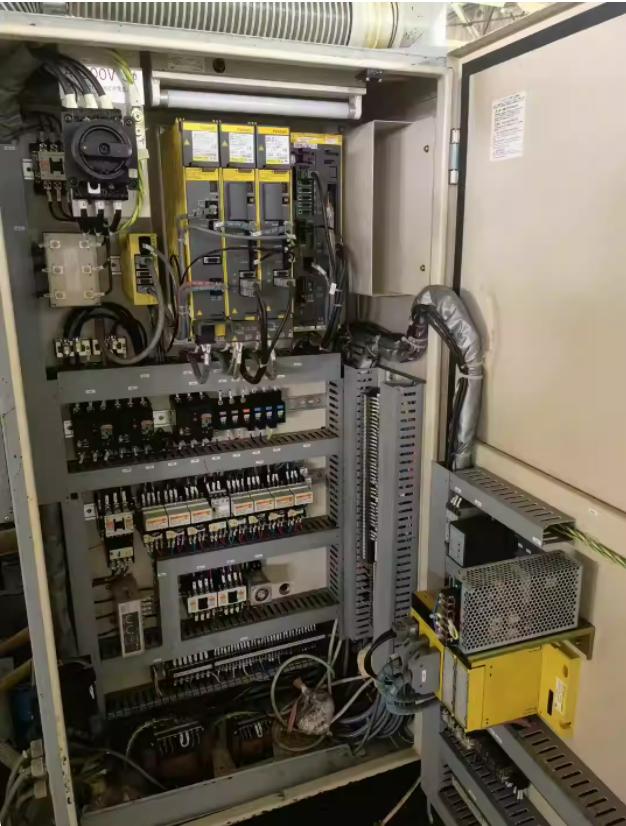

Fanuc 0i-TB CNC System

Marbos P5 online measurement

Rotating diameter: 410mm

Maximum machining diameter: 325mm

Distance between centers: 360mm

Maximum machining distance between centers: 260mm

Maximum travel: 510mm

Maximum machining weight: 150kg

Rotation angle: 30 deg;

C-axis servo motor: α8/3000i

Motor power: 1.6kW

Spindle speed: 10-300rpm

Grinding wheel shaft power: 5.5kW

Grinding wheel diameter: 455mm

Grinding wheel internal diameter: 127mm

Available grinding wheel width: 30mm

Grinding wheel speed: 1880rpm

Grinding wheel width: 50-100mm

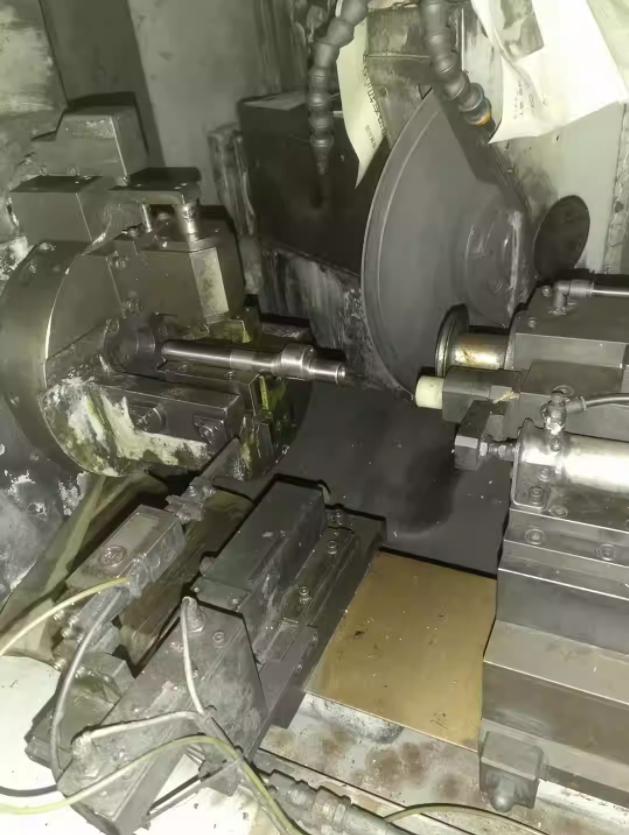

CBN grinding wheel

Grinding wheel linear speed: 45m/min

X-axis servo motor: β8/3000iS

Motor power: 0.9kW

Manual feeding rate: 225mm

Fast moving distance: 40mm

Fast feeding rate: 0-10000mm/min

Low speed: 0-2520mm/min

Minimum movement: 0.0001

Automatic cutting total rate: 99.999mm

Automatic cutting rate: 0.01-9.99mm/min

Z-axis servo motor: β8/3000iS

Motor power: 1.0kW

Grinding conveying rate: 0-10000mm/min

Low speed: 0-1260mm/min

Dresser:

Dressing wheel diameter: 80mm

Dressing wheel speed: 6430rpm

Grinding accuracy: 0.2 micron

Roughness: Within Ra0.1
