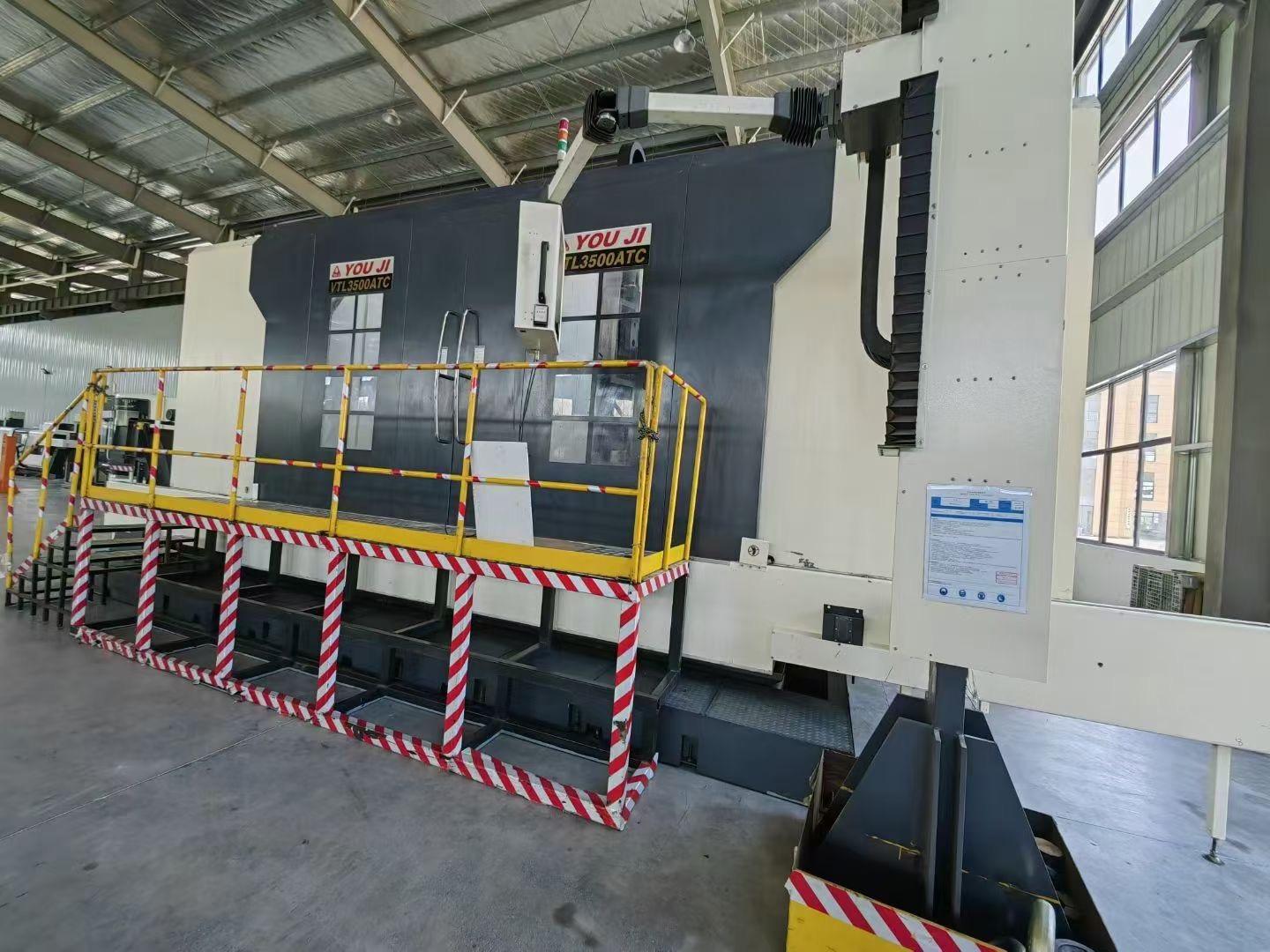

YOUJI VTL3500ATC Vertical Machining centre

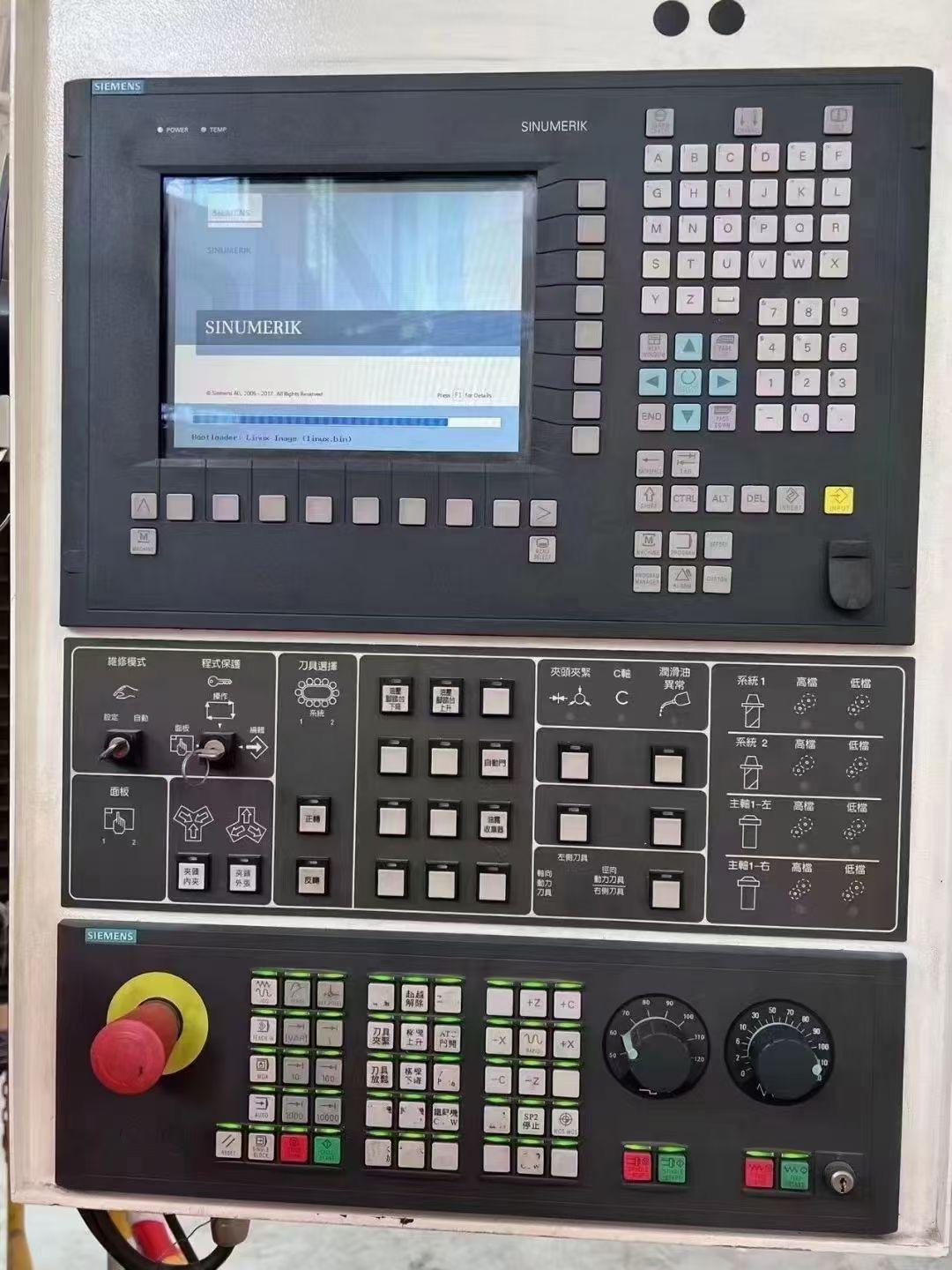

CNC System: 840DSL

Z-axis dual servo drive

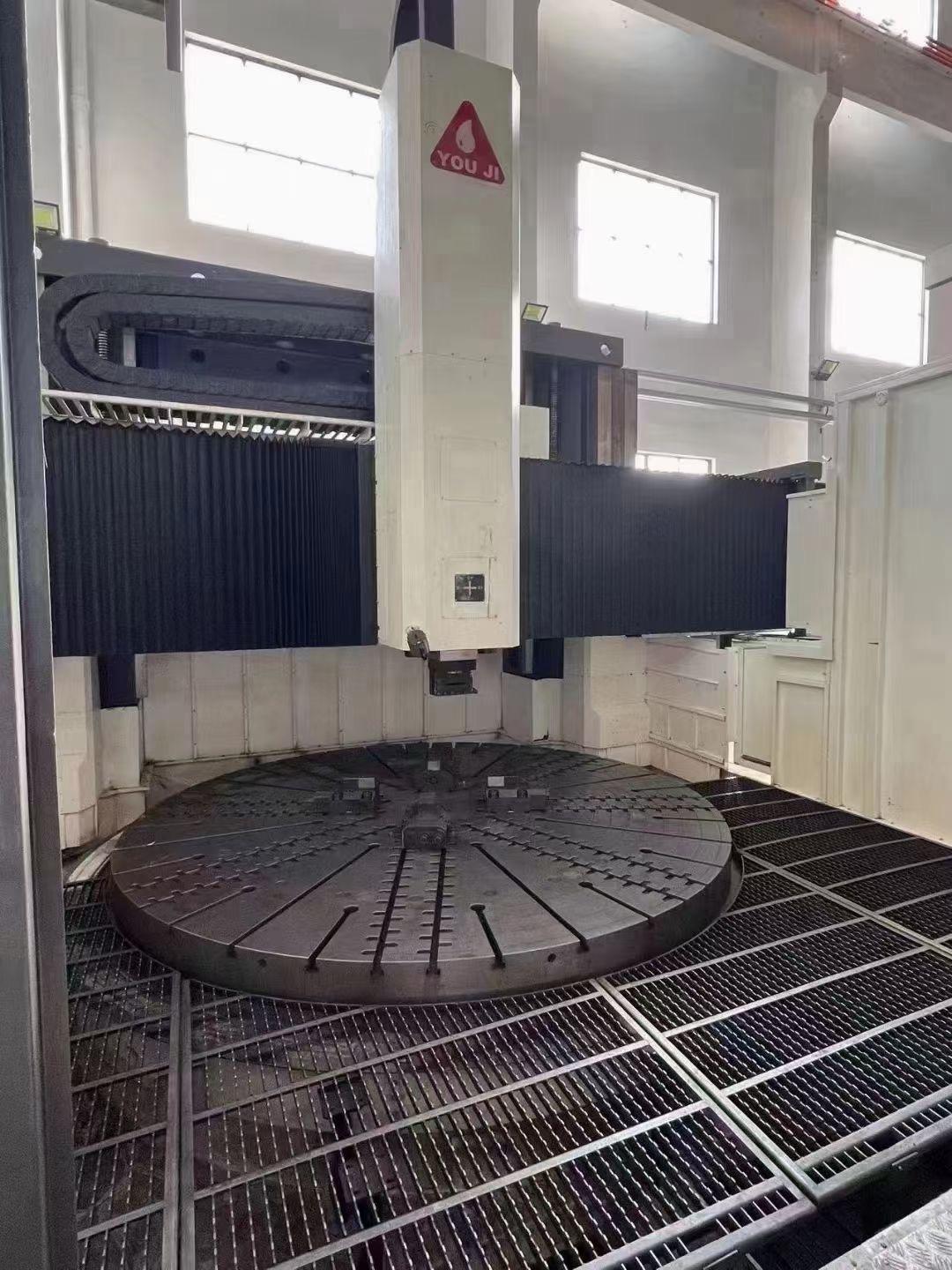

Worktable size: Φ3500mm

Maximum diameter: Φ4100mm

Maximum turning diameter: Φ3800mm

Maximum turning height：1600mm

Maximum load: 20000kg

Maximum torque: 167,000nm

X-axis travel :-1750+2160mm

Z-axis travel :1500mm

Spindle gear: 2

Spindle speed :1-14/14-60

X axis feed rate: 6m/min,

Z-axis feed rate: 10m/min

Remote control box feed rate X, Z-axis: 0-6m/min

Cutting rate: 1-2000mm/min

Main motor power：58KW

X-axis motor: 7.7KW

Z-axis motor: 7.7KW

Cooling pump motor: 3KW

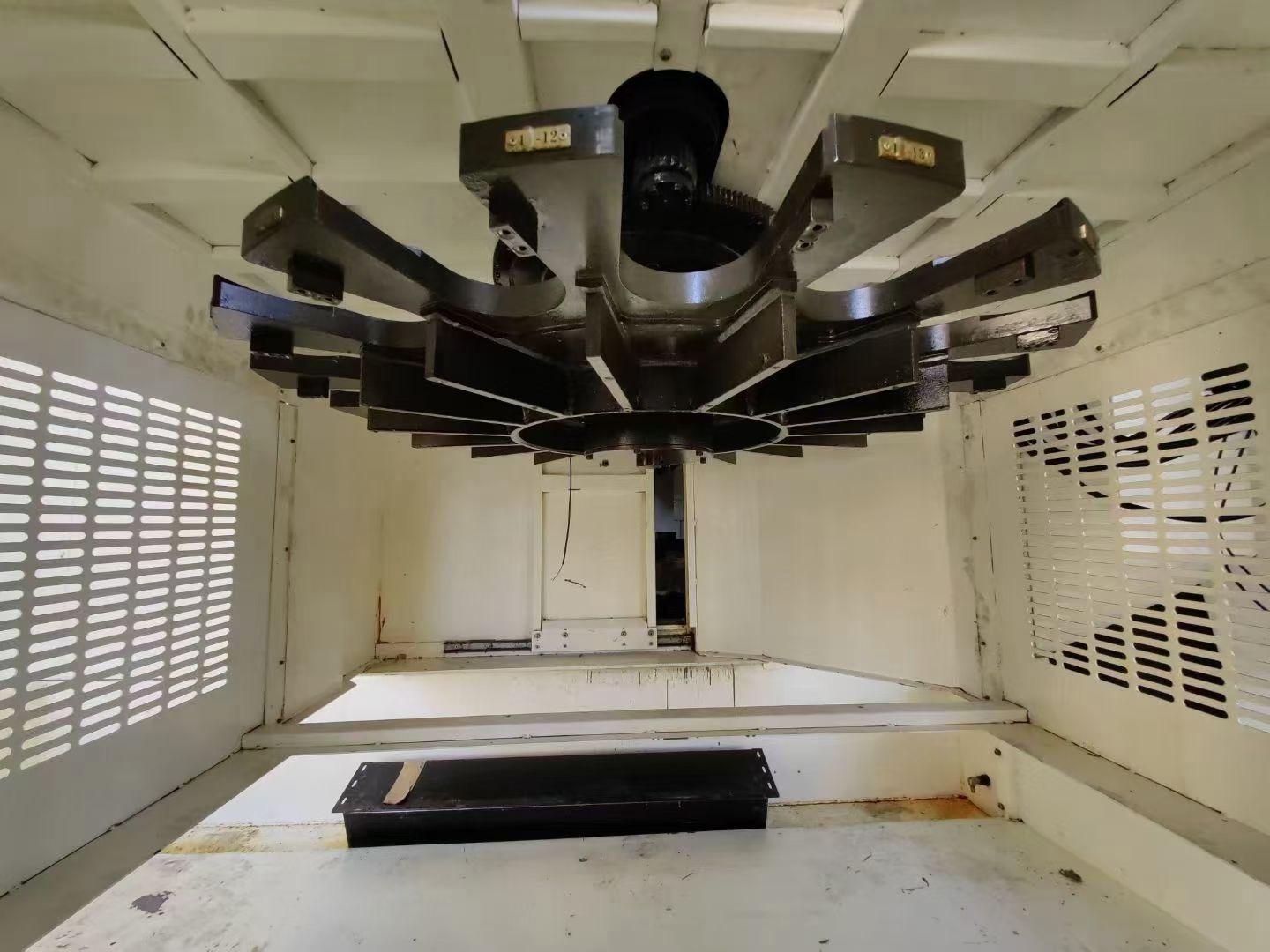

Tool magazine: 16

Maximum tool size: 280W*150T*400L

Maximum tool weight: 50kg

Two axes glass scale
