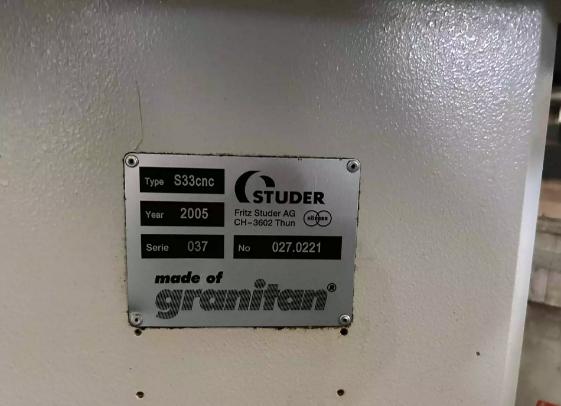

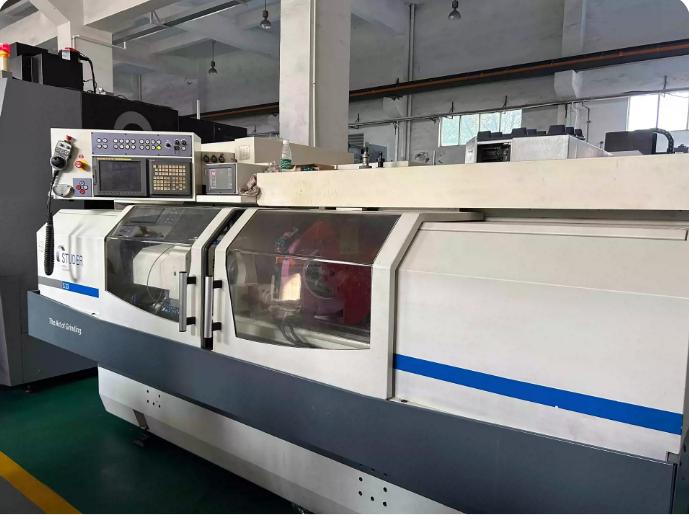

Studer S33cnc Automatic lathe

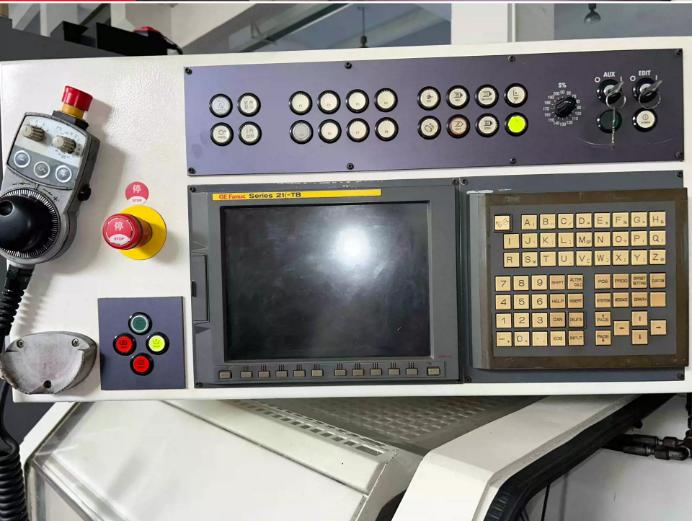

CNC System: Fanuc 21i-TB

Center height: 175 mm

Distance between centers: 1000 mm

Maximum weight of workpiece supporting by center: 120 kg

Grinding wheel right sliding travel:

Diameter: 500mm

Width: 63 mm

Boring diamiter: 203mm

External circumferential velocity: 44/35 m/s

Rotary grinding spindle head: -15/+195°

Rotation axis: 2.5/1 deg

Maximum longitudinal sliding travel: 1150 mm

Maximum tangential sliding travel: 285 mm
