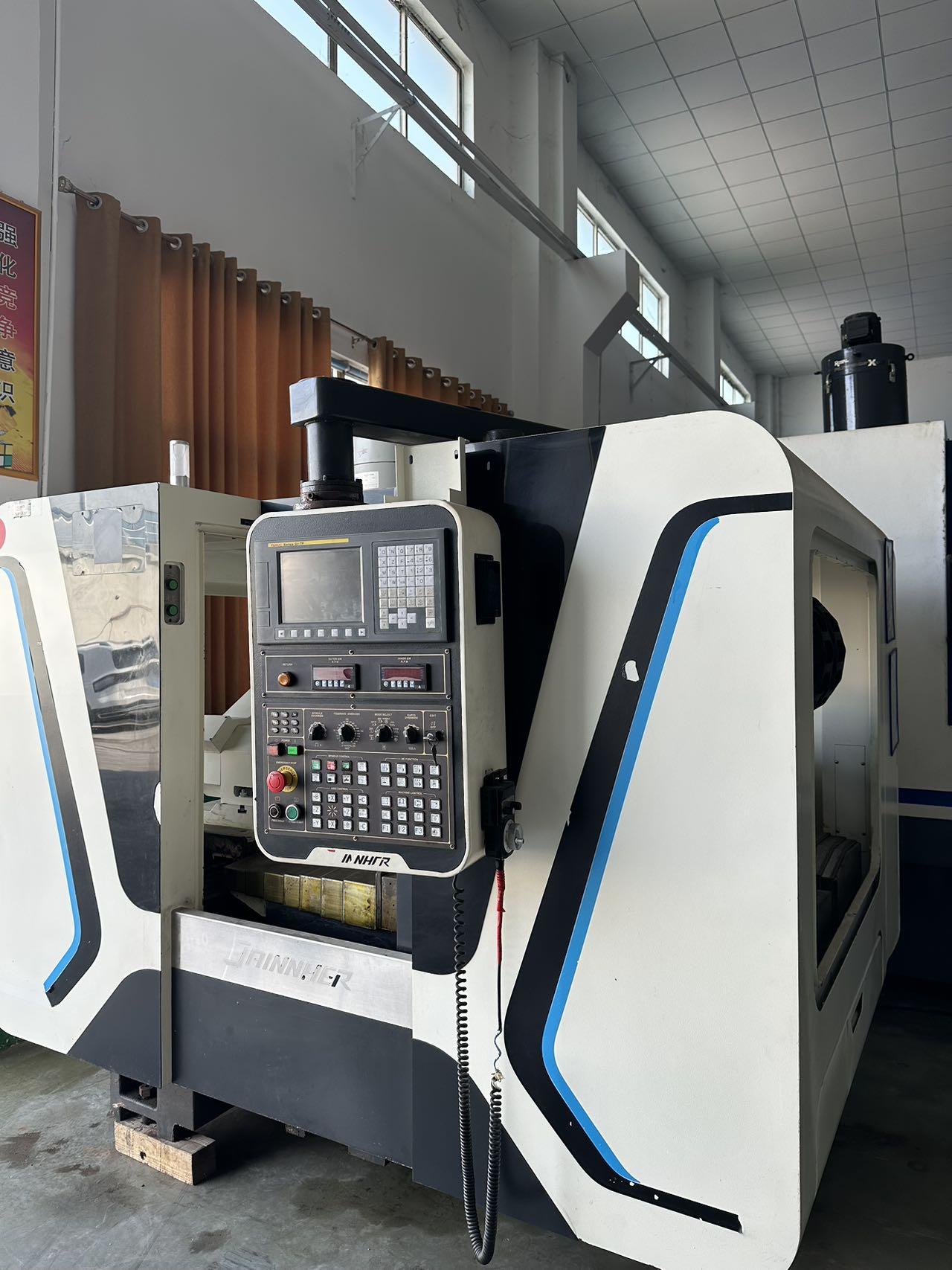

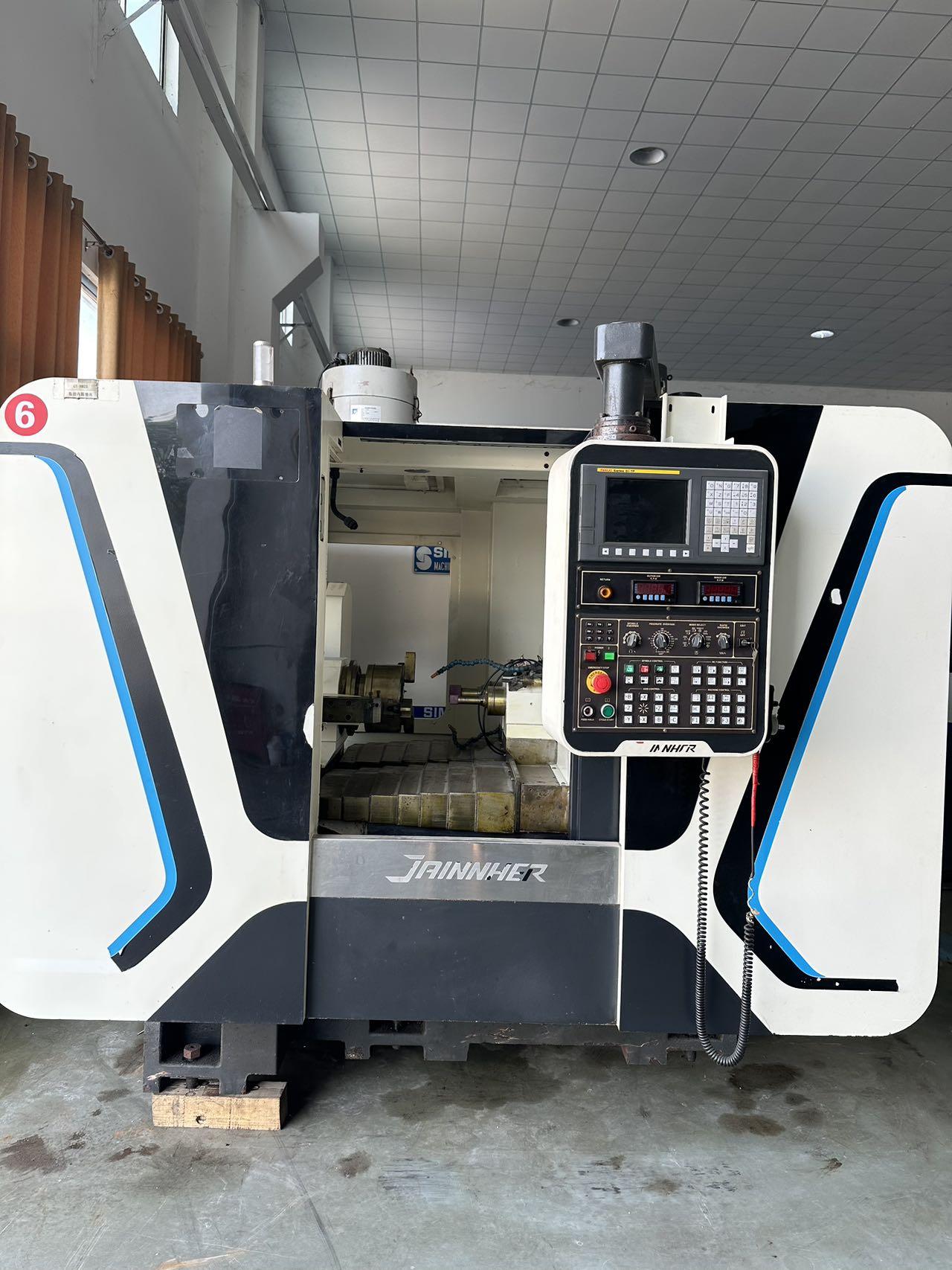

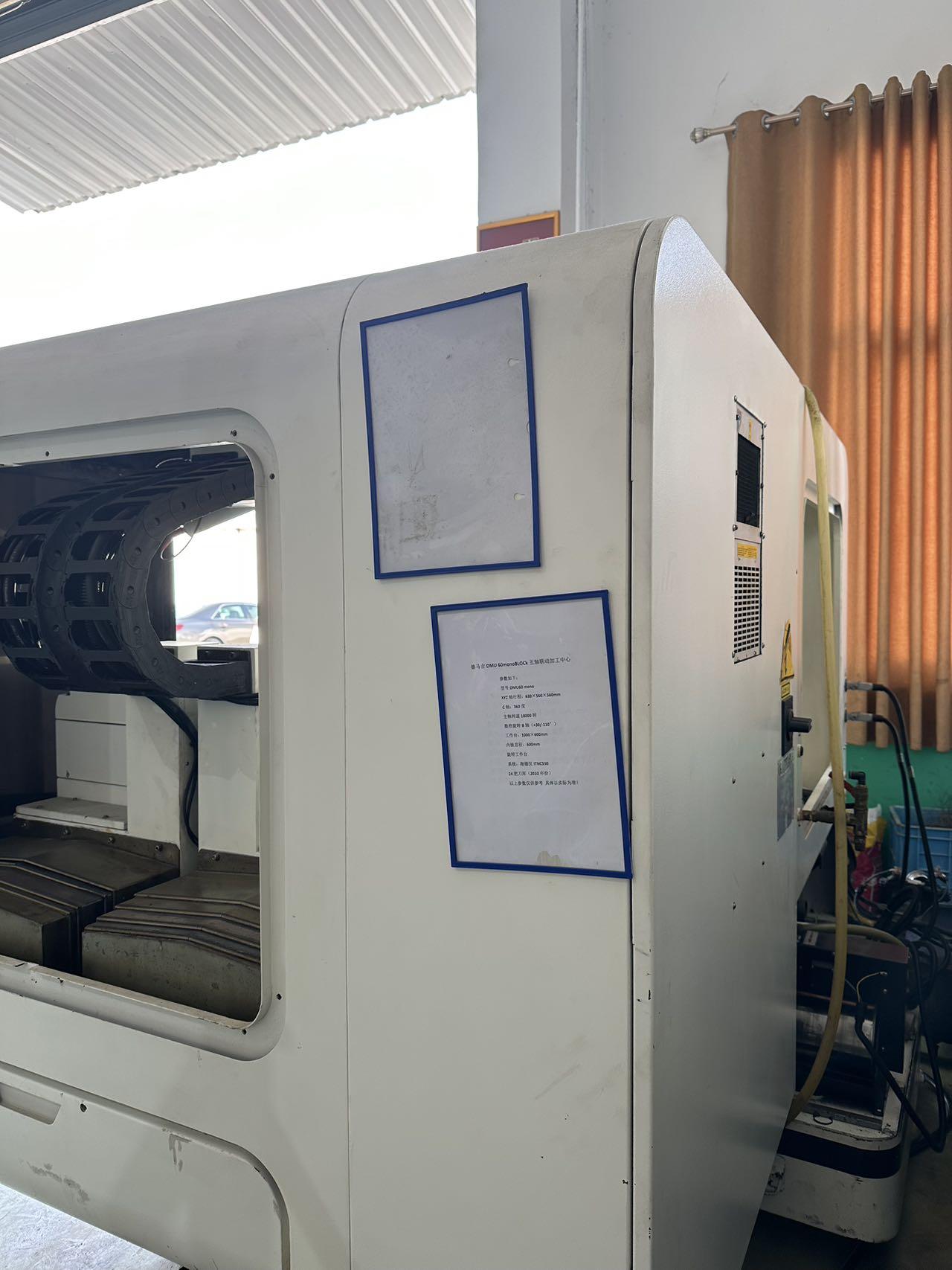

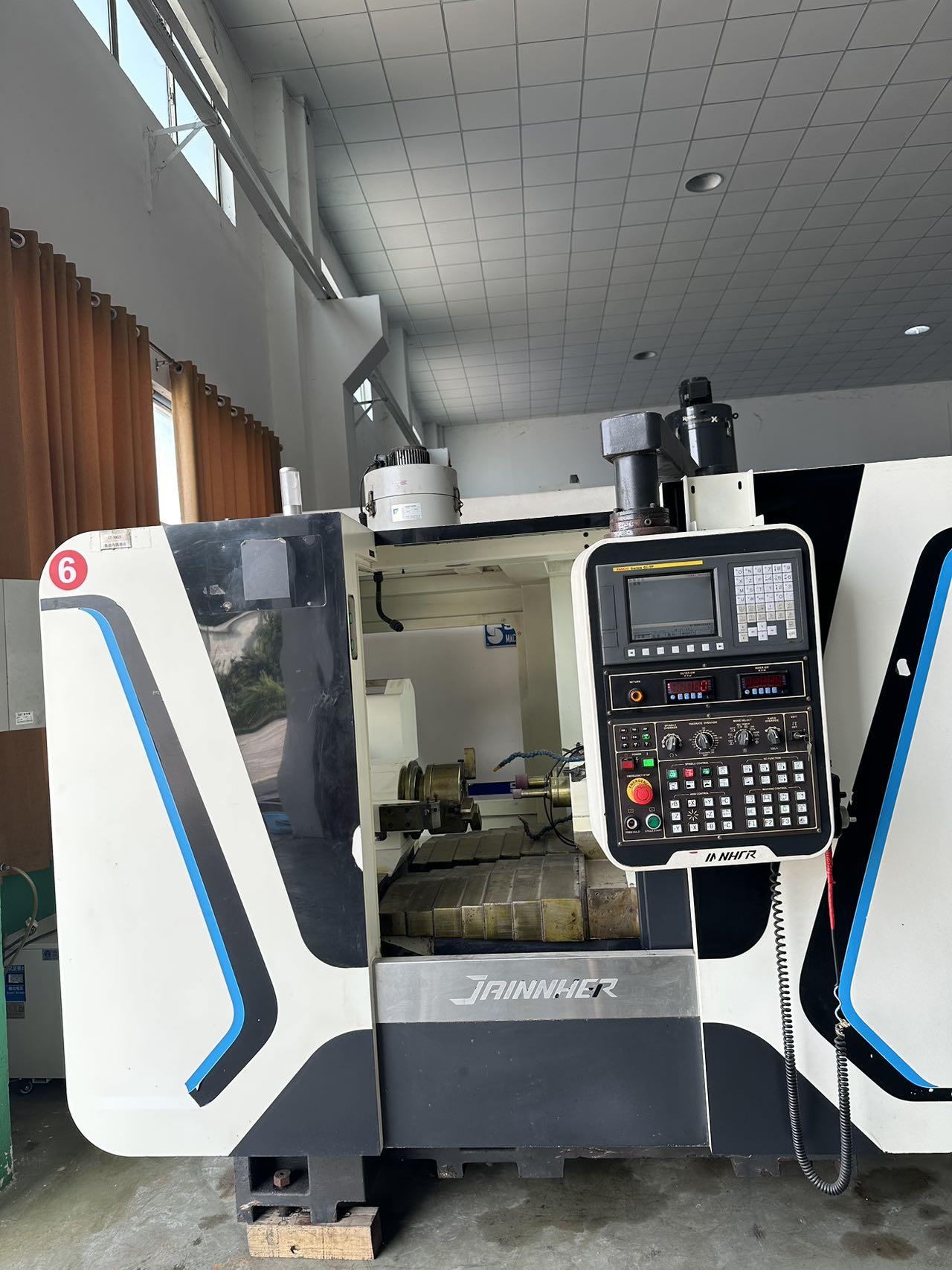

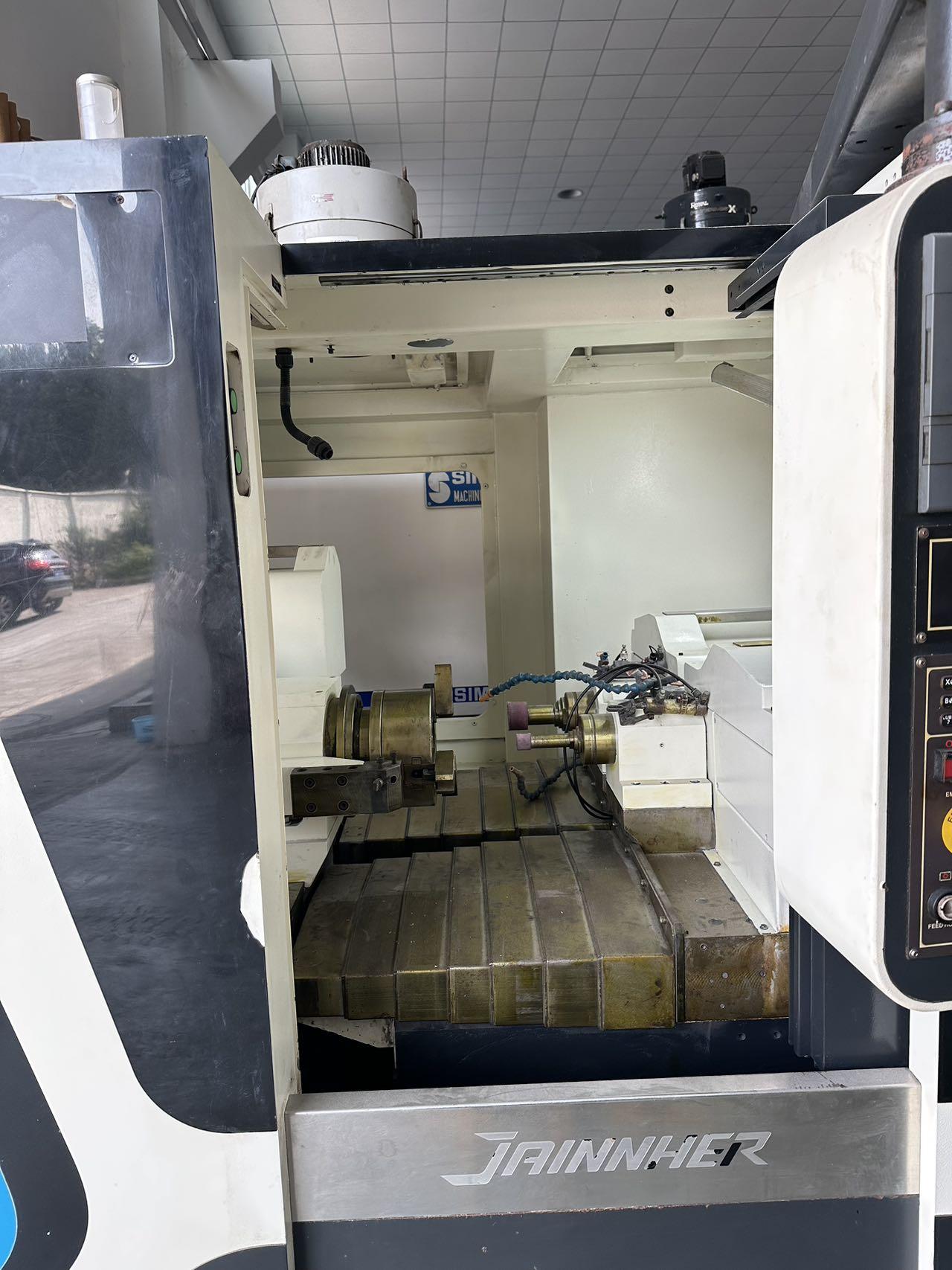

JAINNHER J-D-1503II Grinding machines

Grinding Internal diameter (through hole and depth) : Ø6~Ø120*80mm

Maximum grinding diameter: Ø150mm

Maximum grinding length: D:100/O D:120mm

Maximum diameter of spindle head :Ø300mm

Maximum workpiece weight :70kgs

Main chuck: 6 inches

Spindle speed (positive and negative) : 20-1000rpm/min(no speed change)

Maximum travel: 350mm

Fast moving rate: 10 m/min (32.8ft/min)

Minimum setting unit: 0.001mm(0.00004 ")

Wheel size (outside diameter)：Ø 150 x 25 mm

Grinding wheel speed: 4200 rpm

Feeding method: straight into the outer diameter grinding, molding sand inner hole grinding

Weight: 4200kg

Dimensions (length * width * height) : 2800*1950*2100mm
