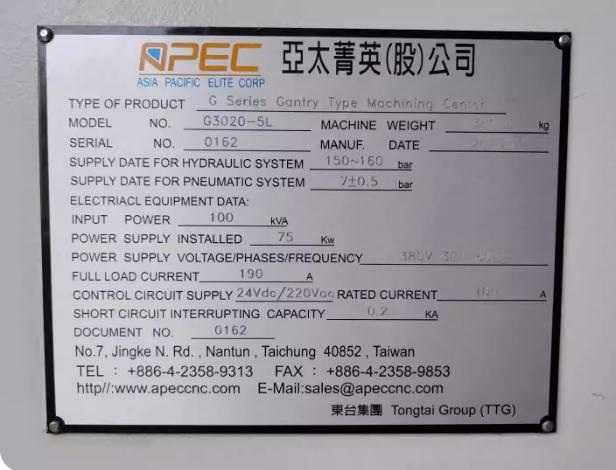

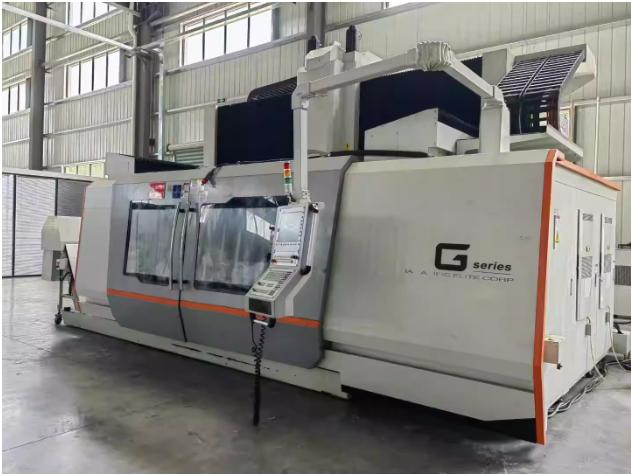

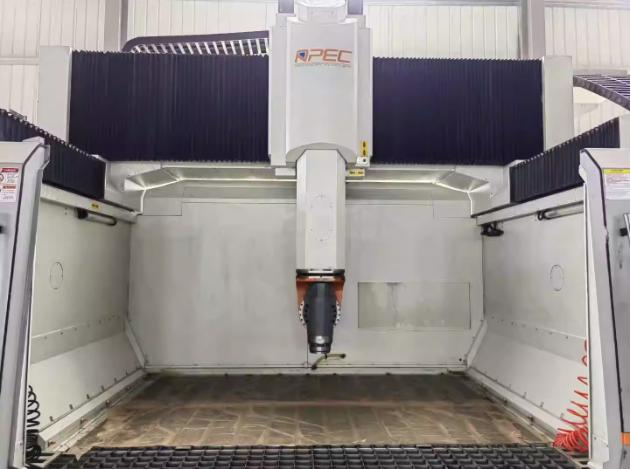

APEC G3020-5L Gantry machining centre

Worktable size: 3000*2000mm

Three axes travel: 2000*3000*1000mm

Worktable load: 3T

Distance from worktable to spindle nose: 320-1320mm

Height from ground to worktable: 450mm

Spindle power: 25KW

Spindle speed: 12000RPM

Spindle type: HSK100A

B-axis maximum rotating speed: 30rpm

C-axis maximum rotating speed: 30rpm

B-axis maximum rotating torque: 760N.M

C-axis maximum rotating torque: 800N.M

B-axis clamping force: 2100N.M

C-axis clamping force: 3000N.M

B-axis rotation angle: +/-105°

C-axis rotation angle: +/-200°

X-axis fast feed rate: 60m/min

Z-axis fast feed rate: 40m/min

Three axes acceleration speed: 5m/s²

Three-axis cutting feed rate: 40m/min

Tool magazine: 20

Maximum tool length: 300mm

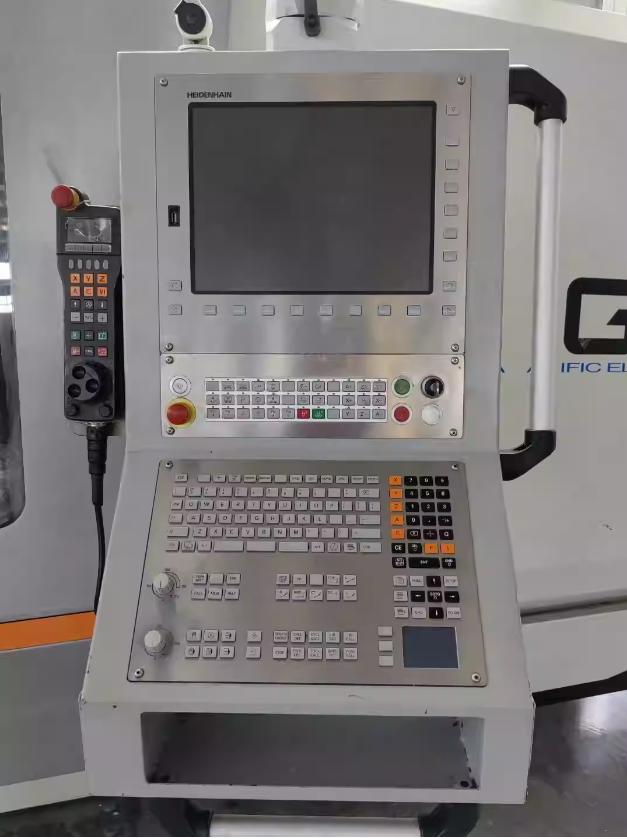

Heidenhain ITNC530 CNC System

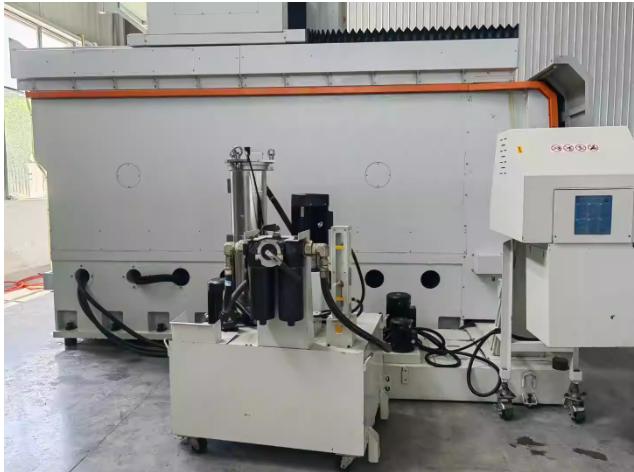

With glass scale, X/Y axis linear motor, Z-axis twin screw servo drive , full cover type protective sheet metal, handle control box, spindle center flushing, spindle circular flushing cooling, tool measurement System, workpiece measurement System, spindle dryer, spindle oil chiller
