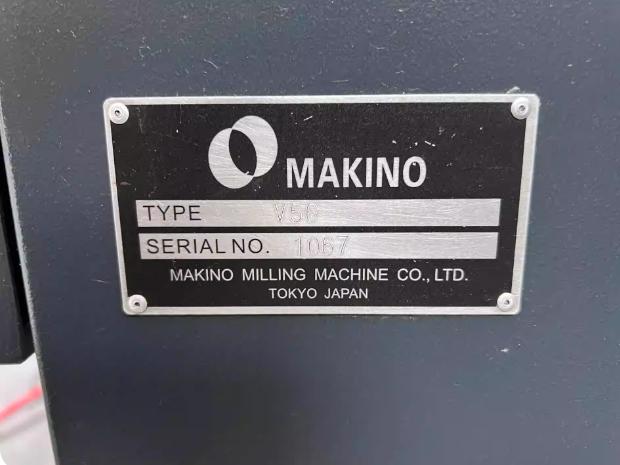

Makino V56 Machining centre

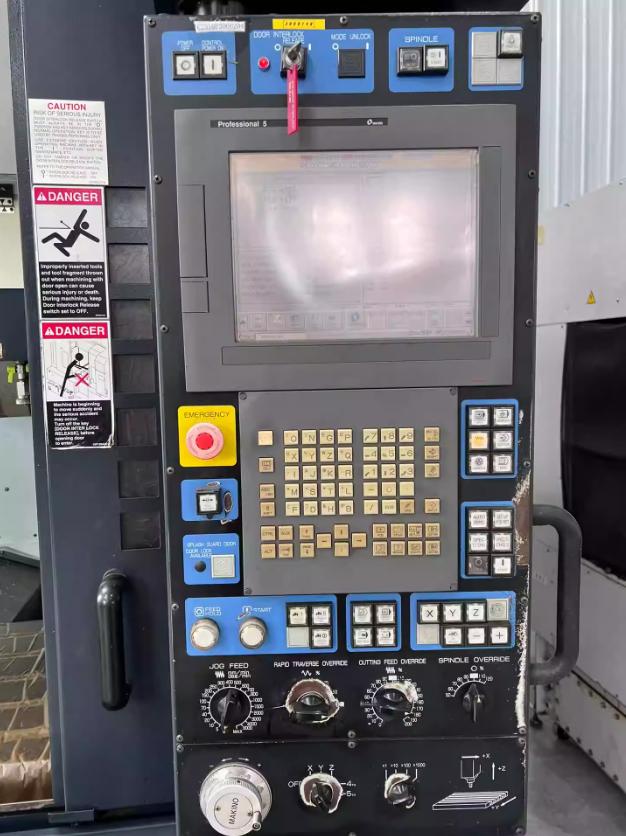

CNC System: professional

Three axes travel: 900*550*450 mm

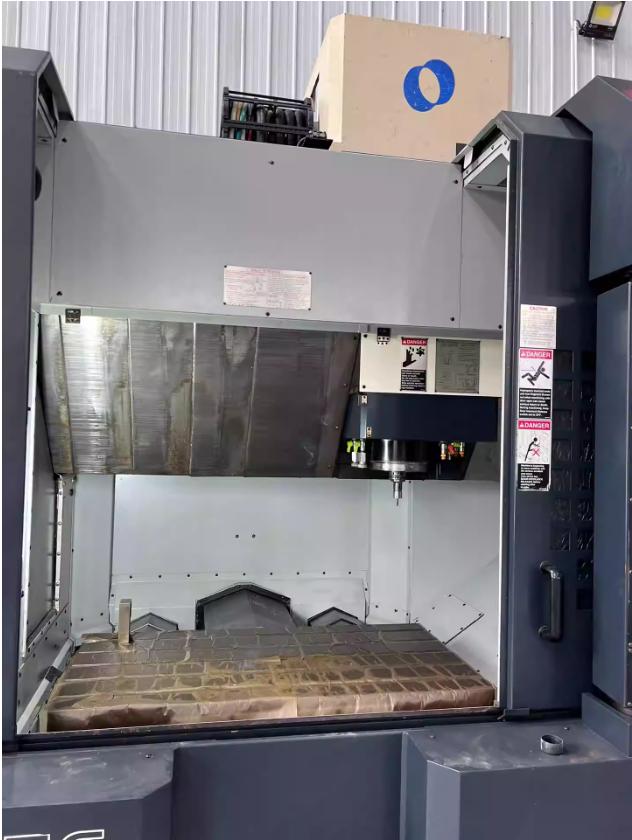

Worktable size: 1050*550mm

Spindle drive motor: 18.5/15Kw

Spindle speed range: 50-30000r/min

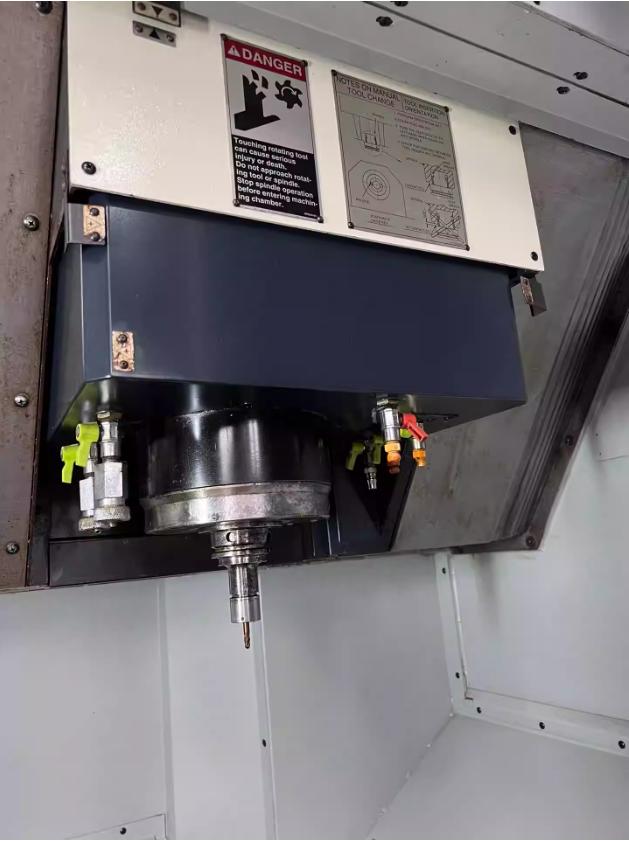

Spindle taper: HSK F63

Maximum workpiece size: 1050*720*450 mm

Maximum load: 800kg

Machining feed rate: 1-20000mm /min

Fast feed rate: 20000 mm/min

Worktable height: 850 mm

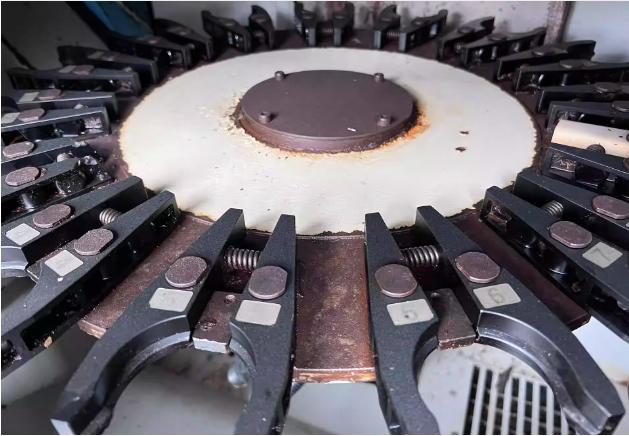

Tool magazine: 30

Machine dimensions: 2500*2450*2925mm

Machine weight: 10300kg
