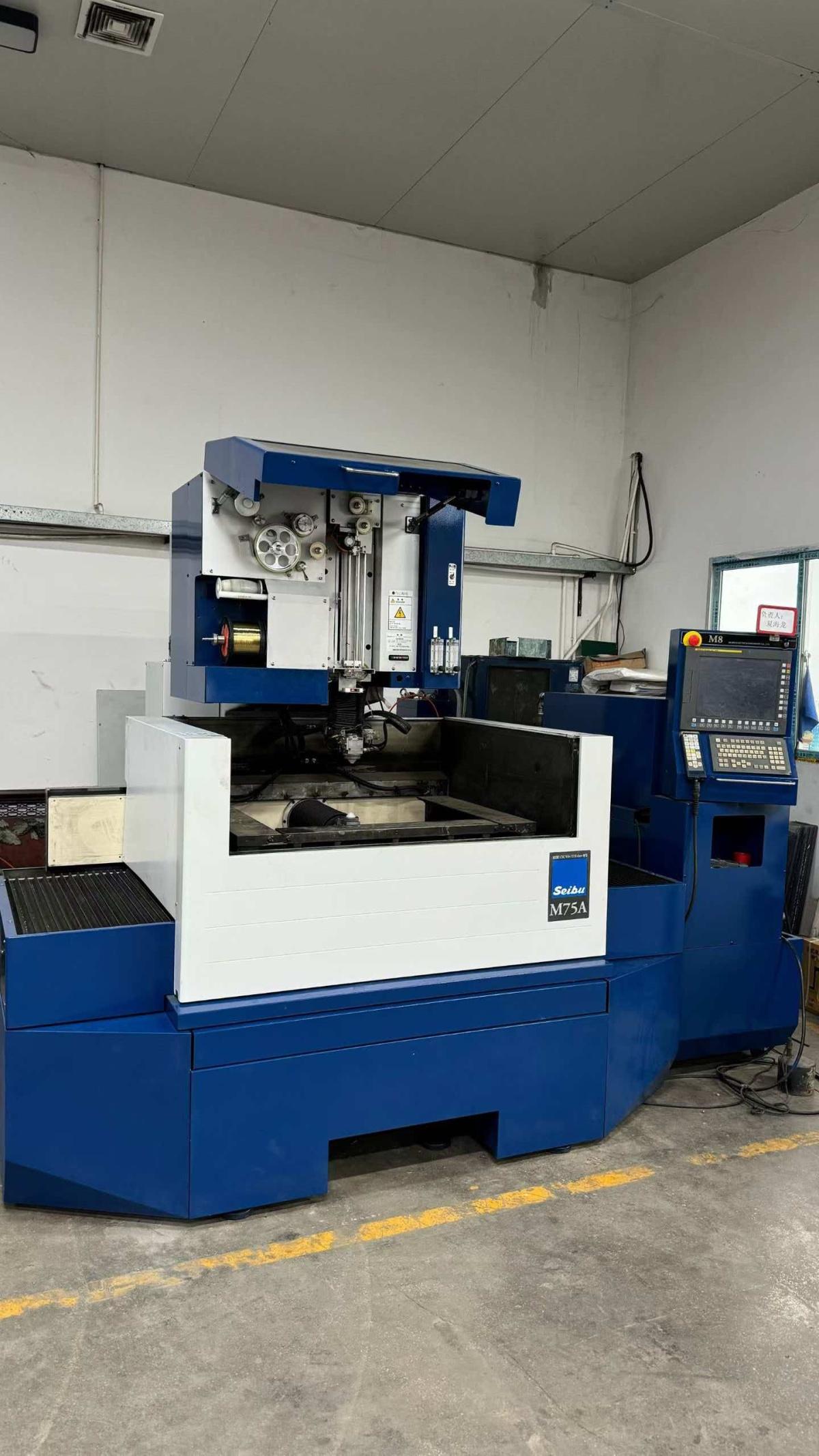

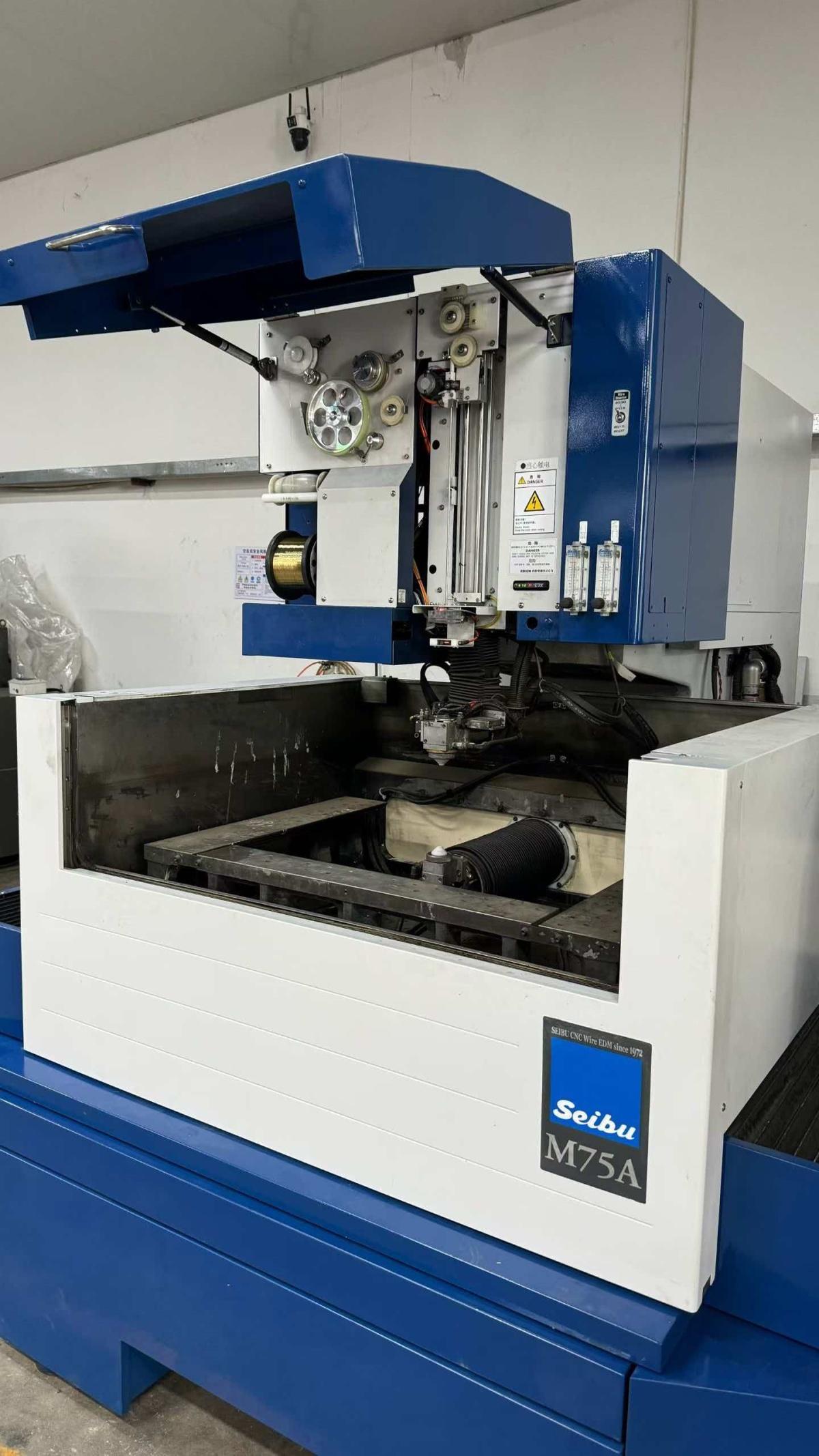

Seibu - M75A

Inventory number：468962

Brand：Seibu

Model：M75A

Origin："Japan

Location：China

Year：2014

Create Time：2026-10-03

Specifications:

Worktable travel (X/Y/Z) : approximately 650×550×230mm
U/V axis travel: ±60mm (supports taper cutting)
Maximum machining thickness: up to 400mm
Maximum taper Angle: 45° (optional)
Electrode wire diameter range: Φ0.07-0.3mm, tension 2-25N
Wire feeding speed: below 0.2m/s (some configurations can reach 0.5m/s)
machining precision: Pitch precision ±1μm, repeated Positioning precision 0.01mm
Surface roughness: Ra0.2-0.8μm, and can reach Ra0.05μm after fine finishing

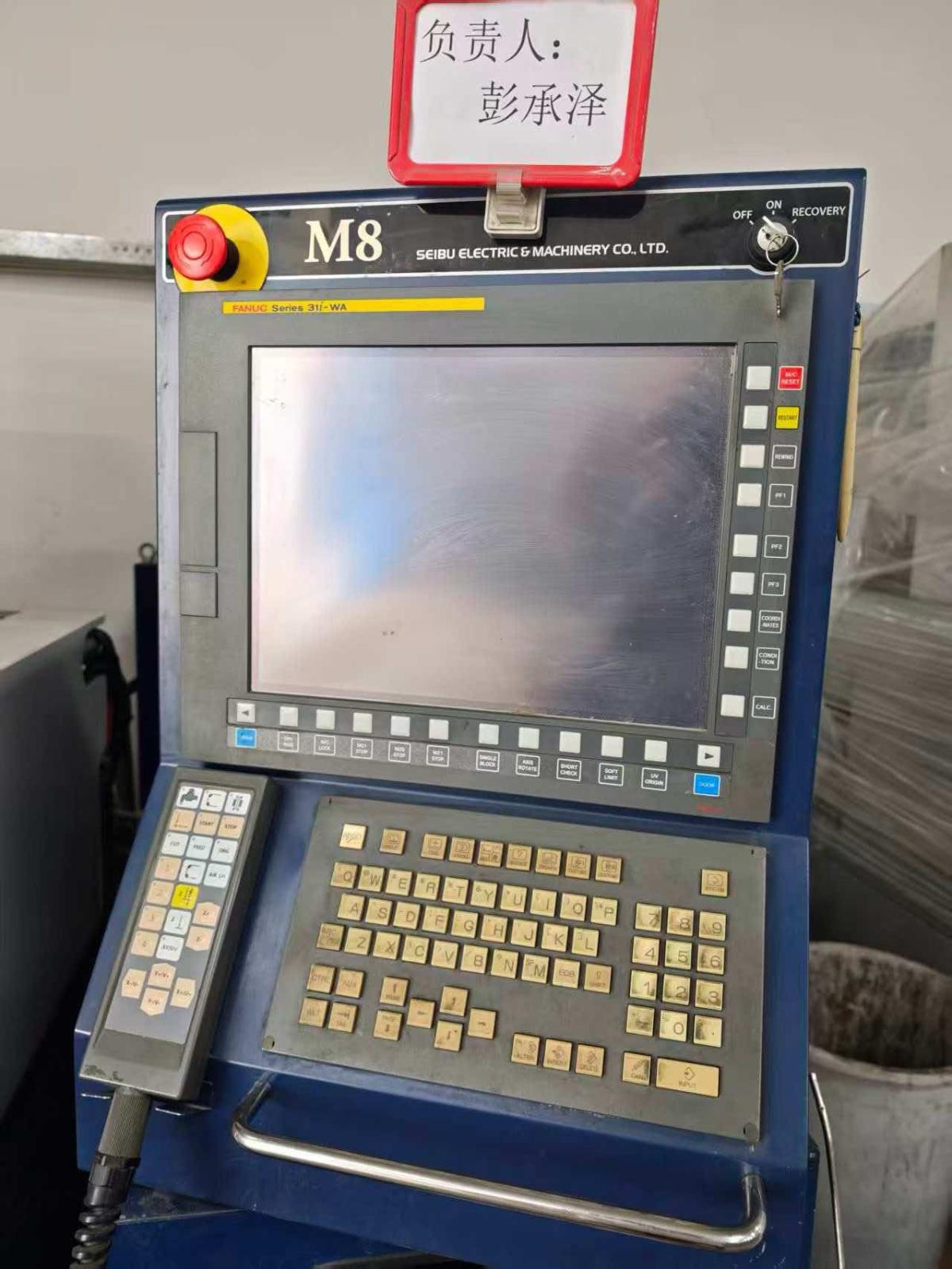

Control CNC System: Western self-developed SmartNC CNC System, supporting graphical programming and multi-axis simultaneous control
Working fluid: deionized water, conductivity < 10μS (during finishing)
Ambient temperature requirement: 20±1℃ (The equipment guarantees a precision range of 20±3℃)
Main unit weight: approximately 2,900 kg
Power supply requirements: Three-phase 380V/50Hz, total power approximately 50kVA
