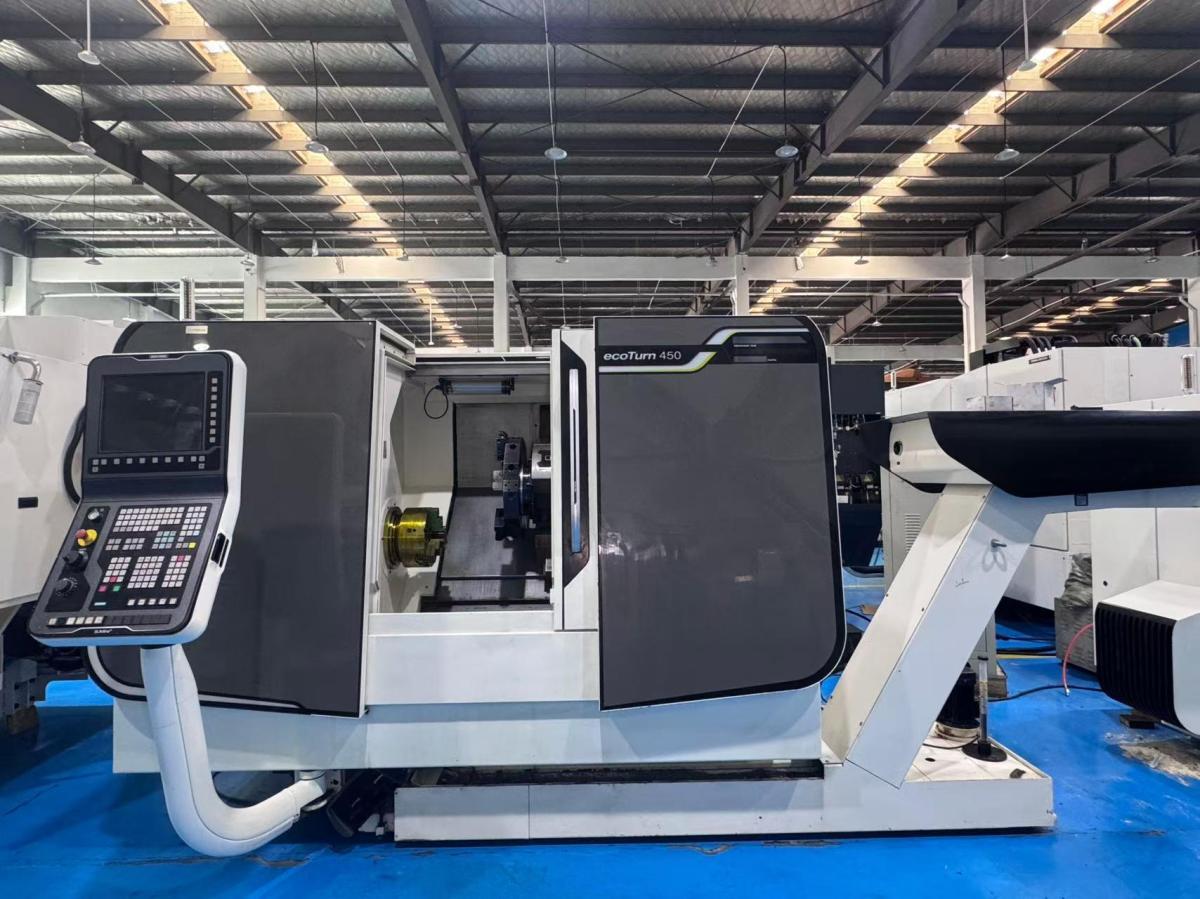

DMG - Ecoturn 450

Inventory number：4813179

Brand：DMG

Model：Ecoturn 450

Origin：Germany

Location：China

Year：2015

Create Time：2026-10-03

Specifications:

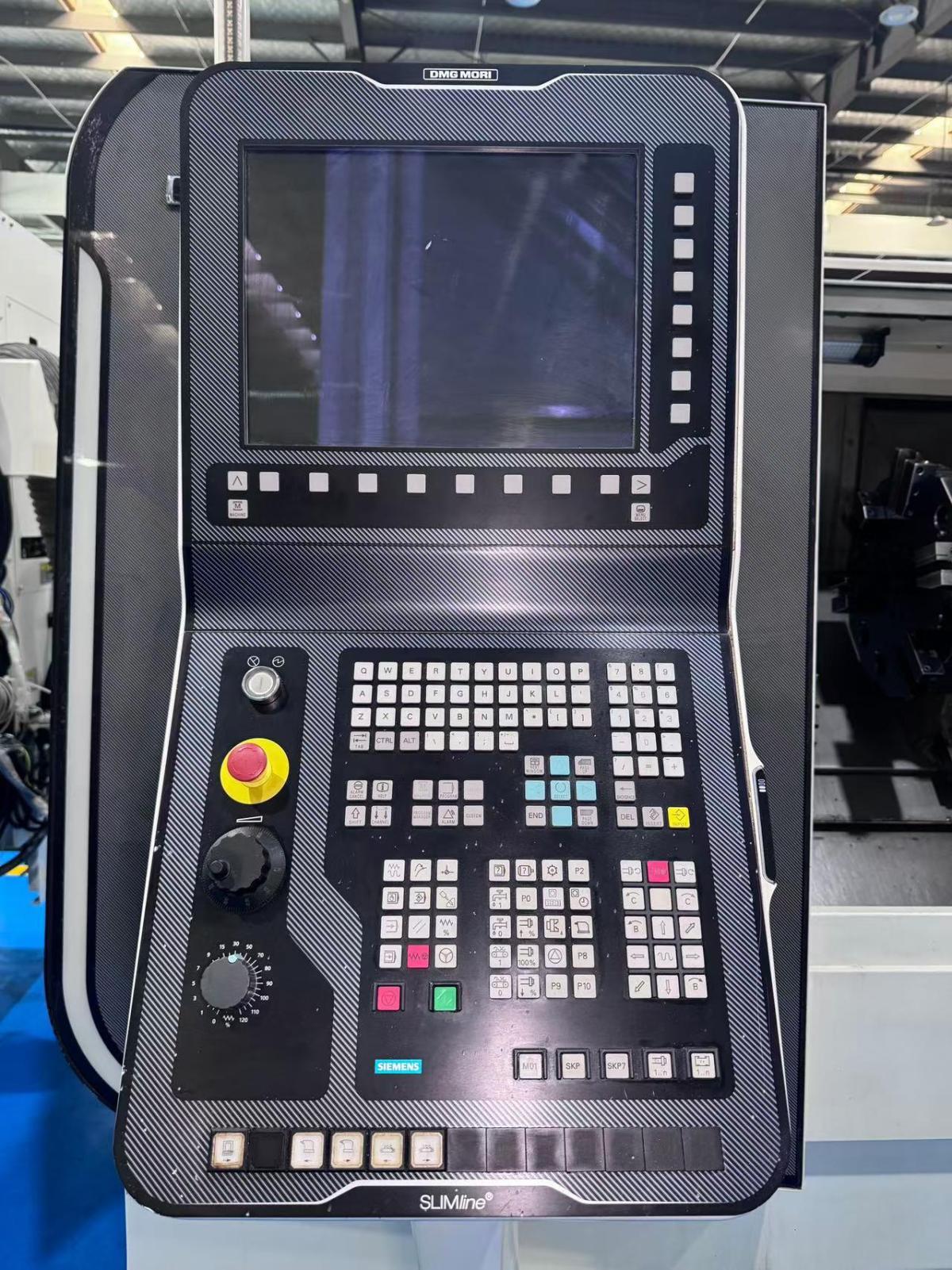

CNC System: Siemens 840D sl
Spindle Type: Belt-Driven
Spindle Speed: 4,000 rpm
Maximum Swing Diameter: 650 mm
Maximum machining Diameter: 400 mm
X-Axis Travel: 265 mm
Z-Axis Travel: 650 mm
Spindle Bore: 65 mm

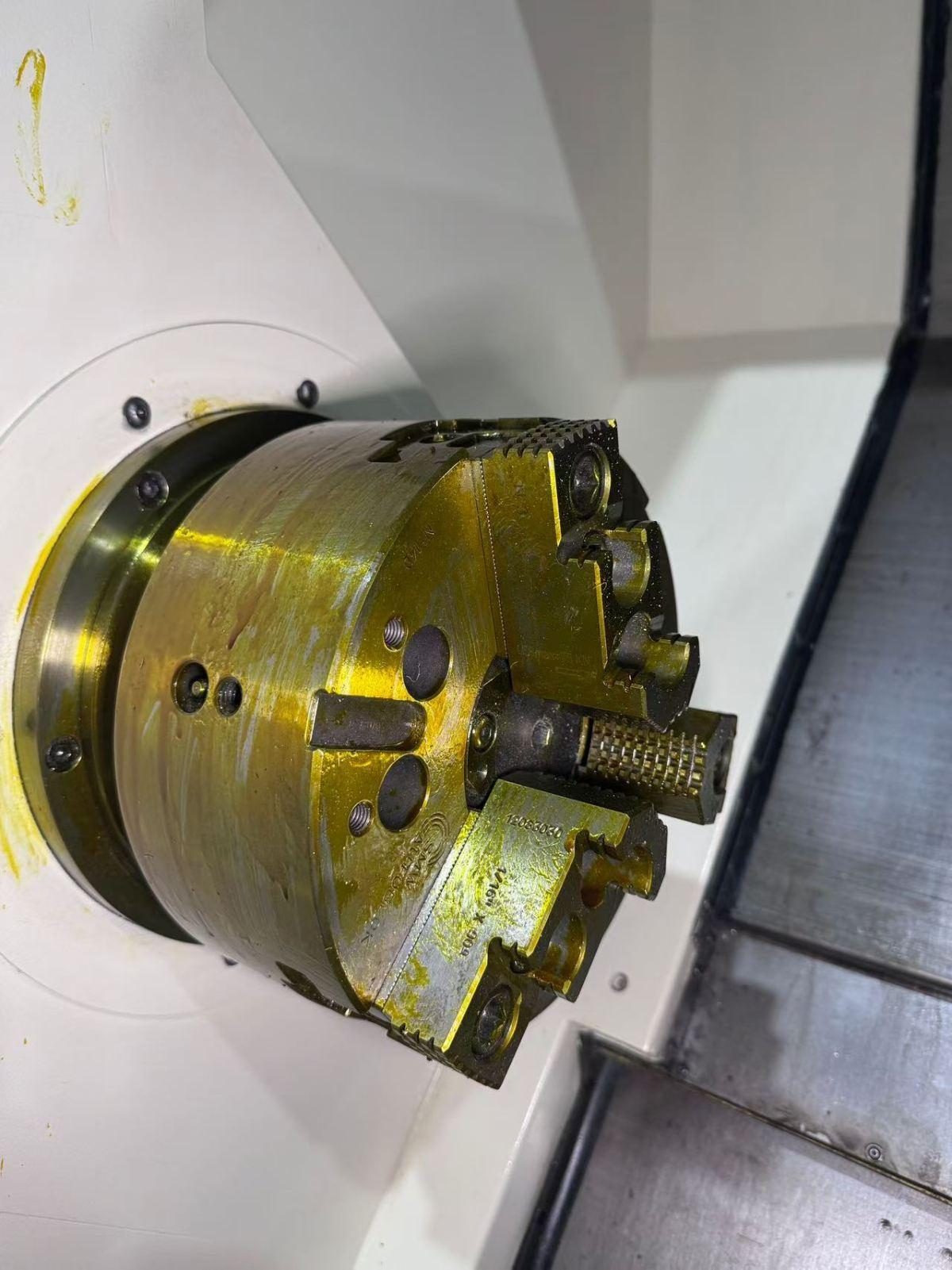

Chuck Specification: 10" (250 mm)

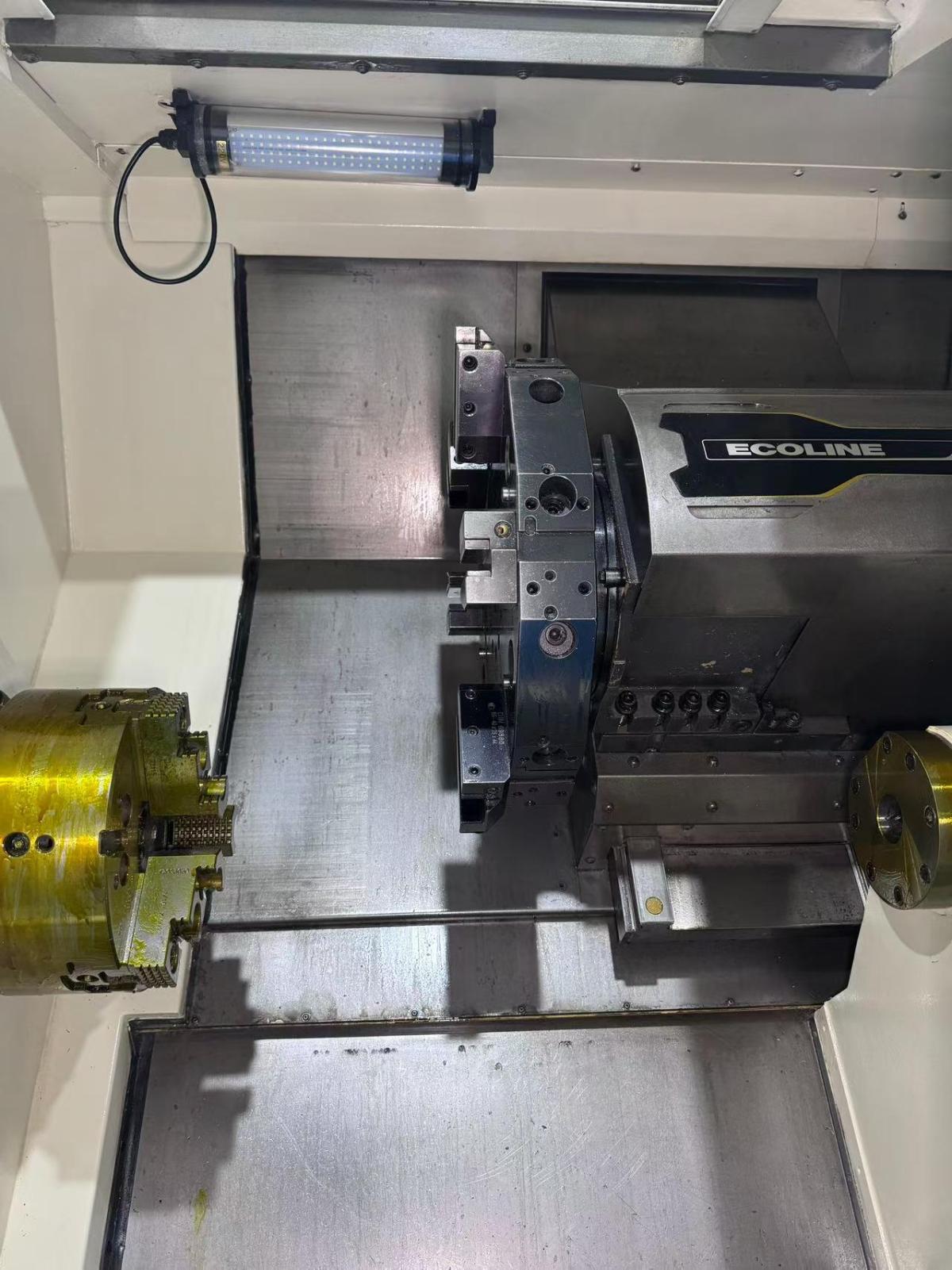

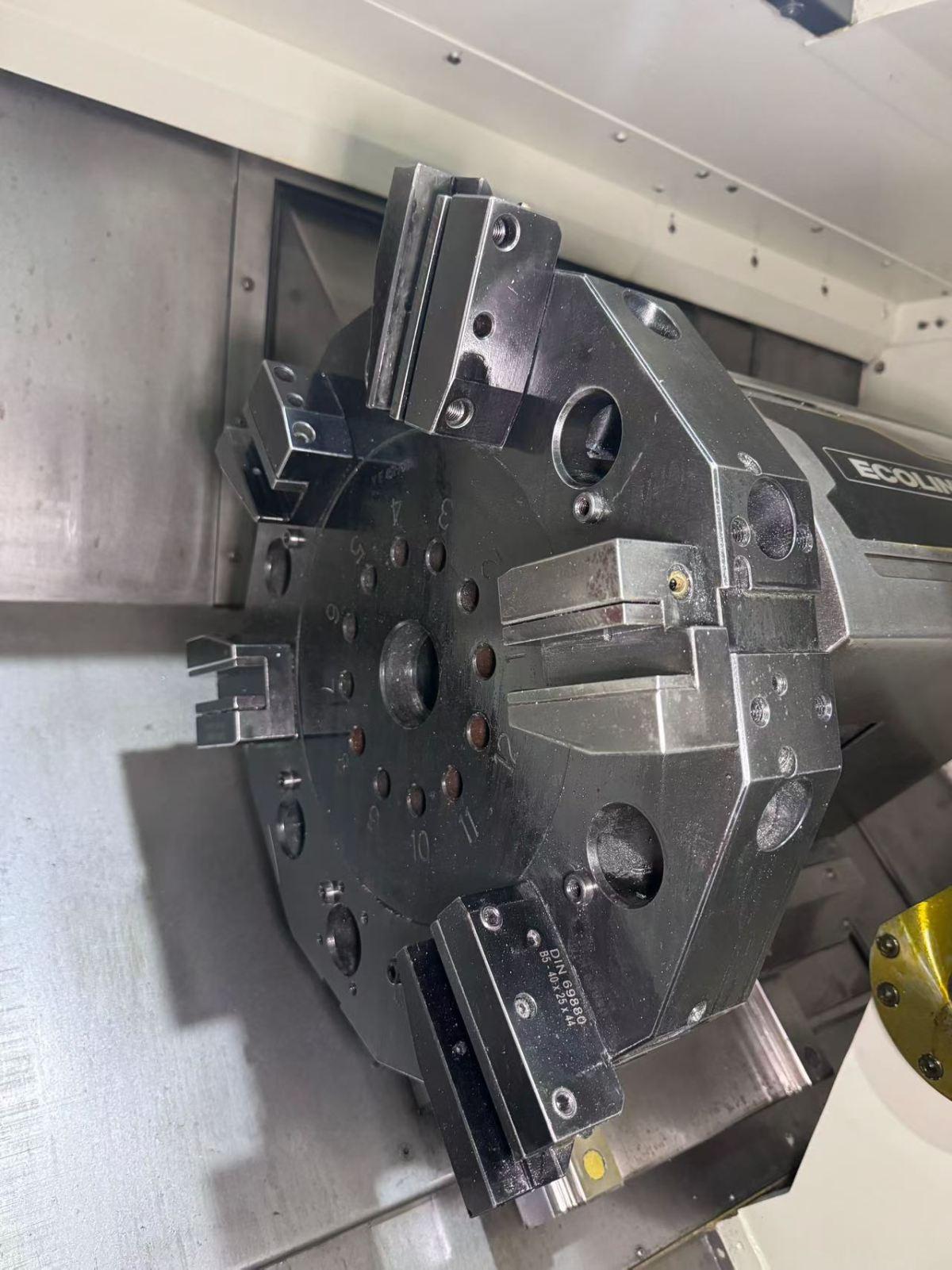

Tool Turret: 12-Position Servo Tool Turret
Guideway Type: Linear Guideways on All Axes
X/Z-Axis Rapid Traverse Rate: 30 m/min
Configuration:
Gantry-Type Chip Conveyor
Tailstock
Trial Cutting Accuracy: 0.005 mm
