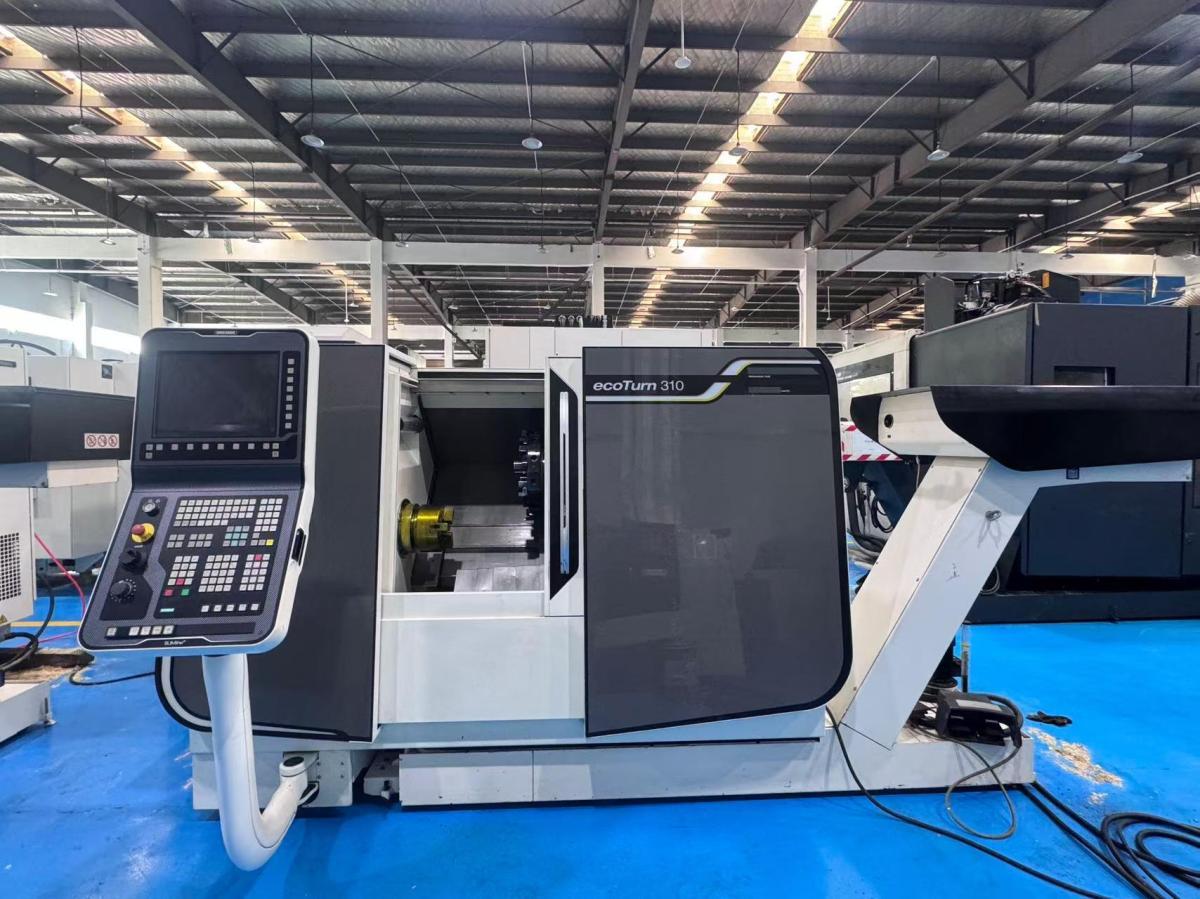

DMG - Ecoturn 310

Inventory number：813178

Brand：DMG

Model：Ecoturn 310

Origin：Germany

Location：China

Year：2016

Create Time：2026-09-14

Specifications:

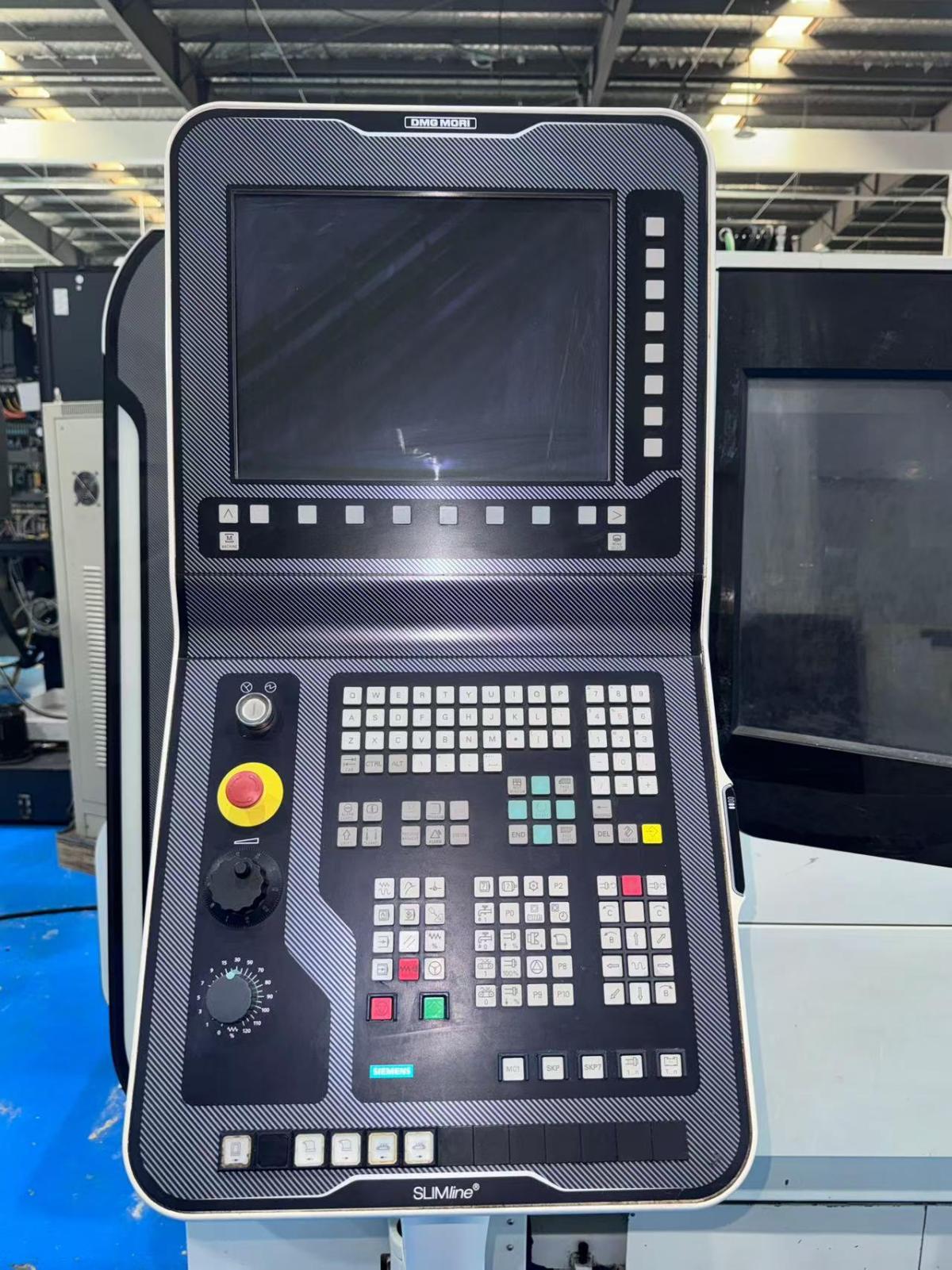

CNC System: Siemens 840D sl
Spindle Type: Belt-Driven
Spindle Speed: 5,000 rpm
Maximum Swing Diameter: 330 mm
Maximum Turning Diameter: 200 mm
X-Axis Travel: 160 mm
Z-Axis Travel: 450 mm
Spindle Bore: 51 mm

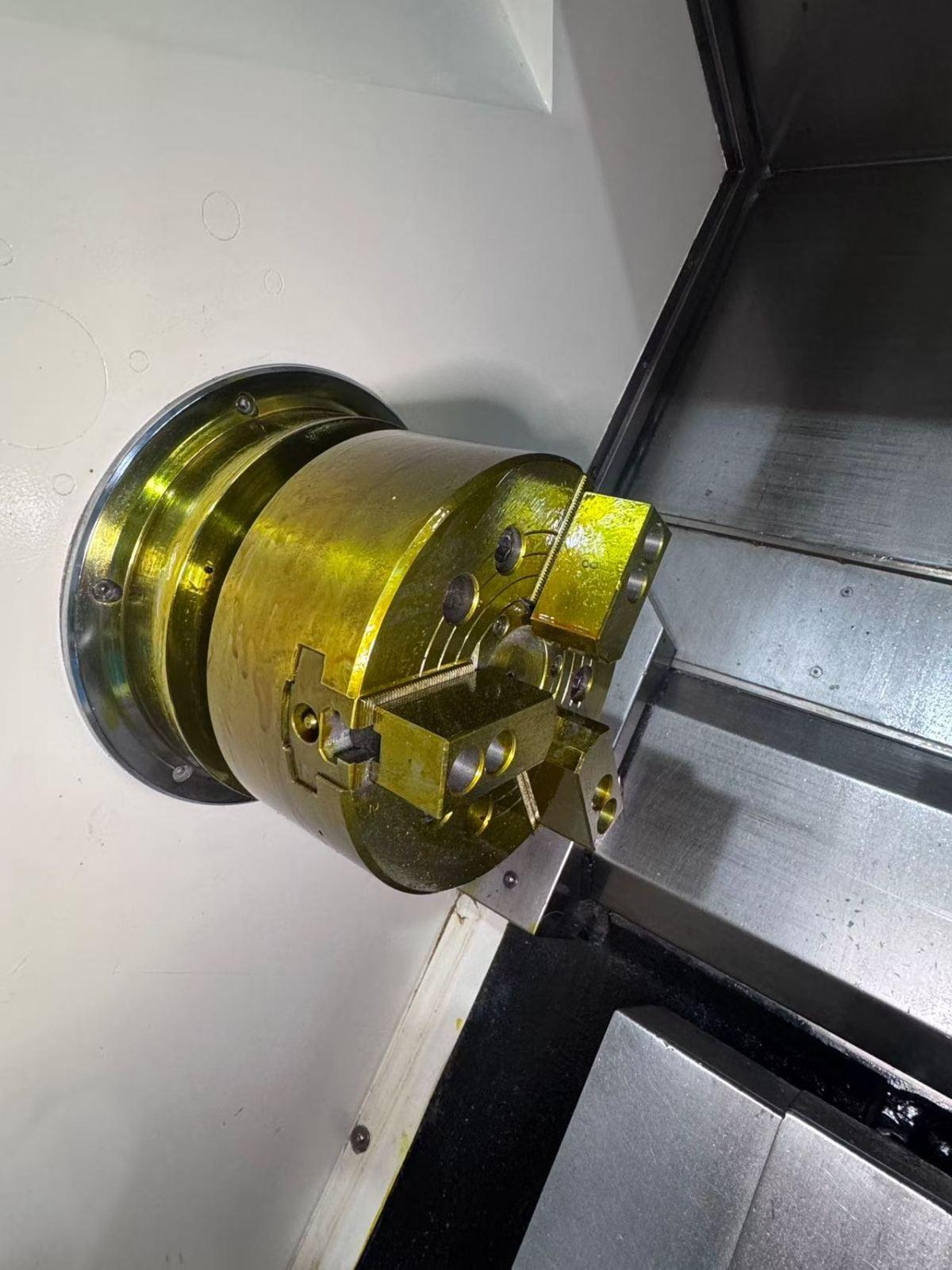

Chuck Specification: 8" (210 mm)

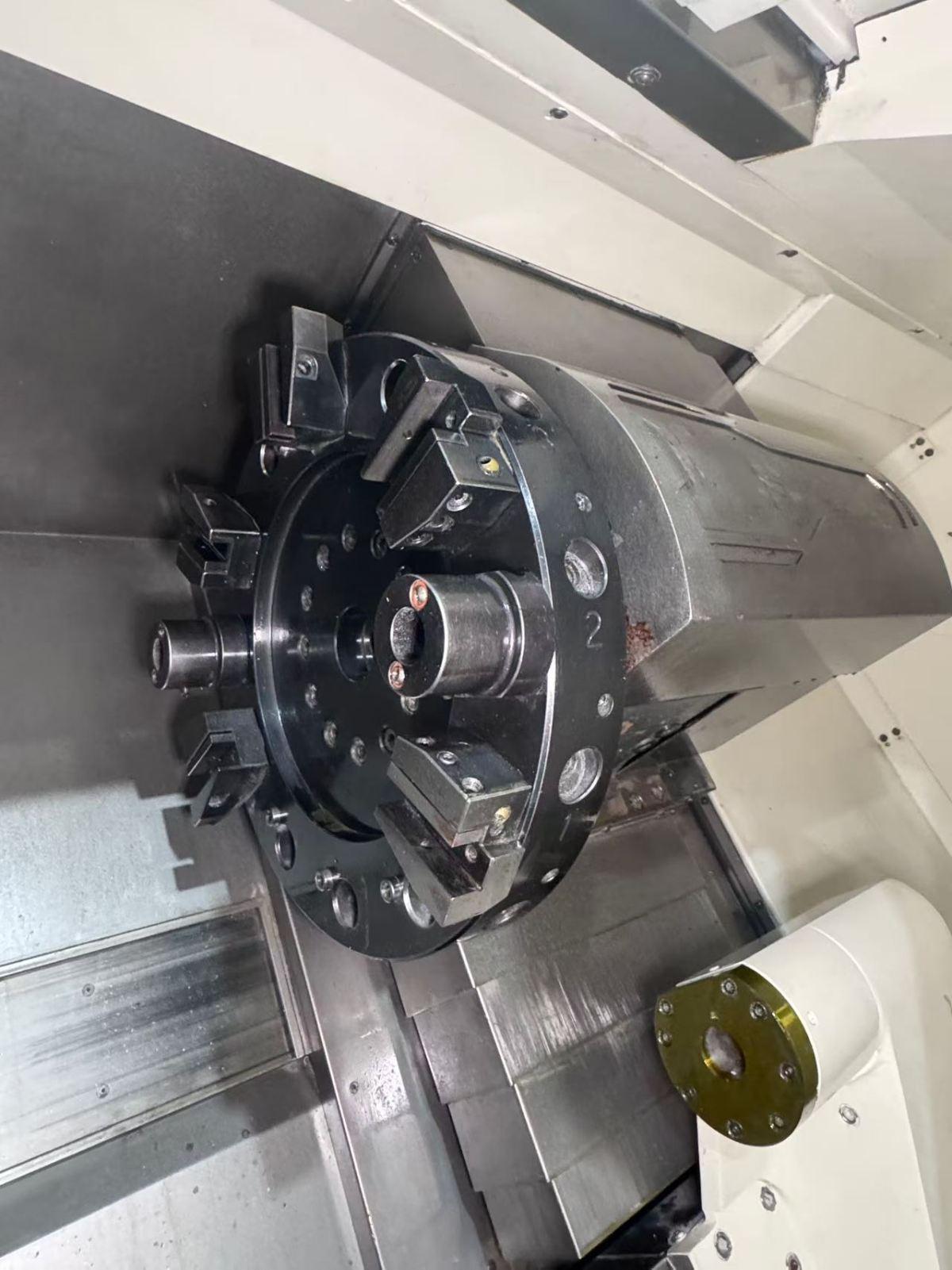

Tool Turret: 12-Position Servo Tool Turret
Guideway Type: Linear Guideways on All Axes
X/Z-Axis Rapid Traverse Rate: 30 m/min
Configuration:
Gantry-Type Chip Conveyor

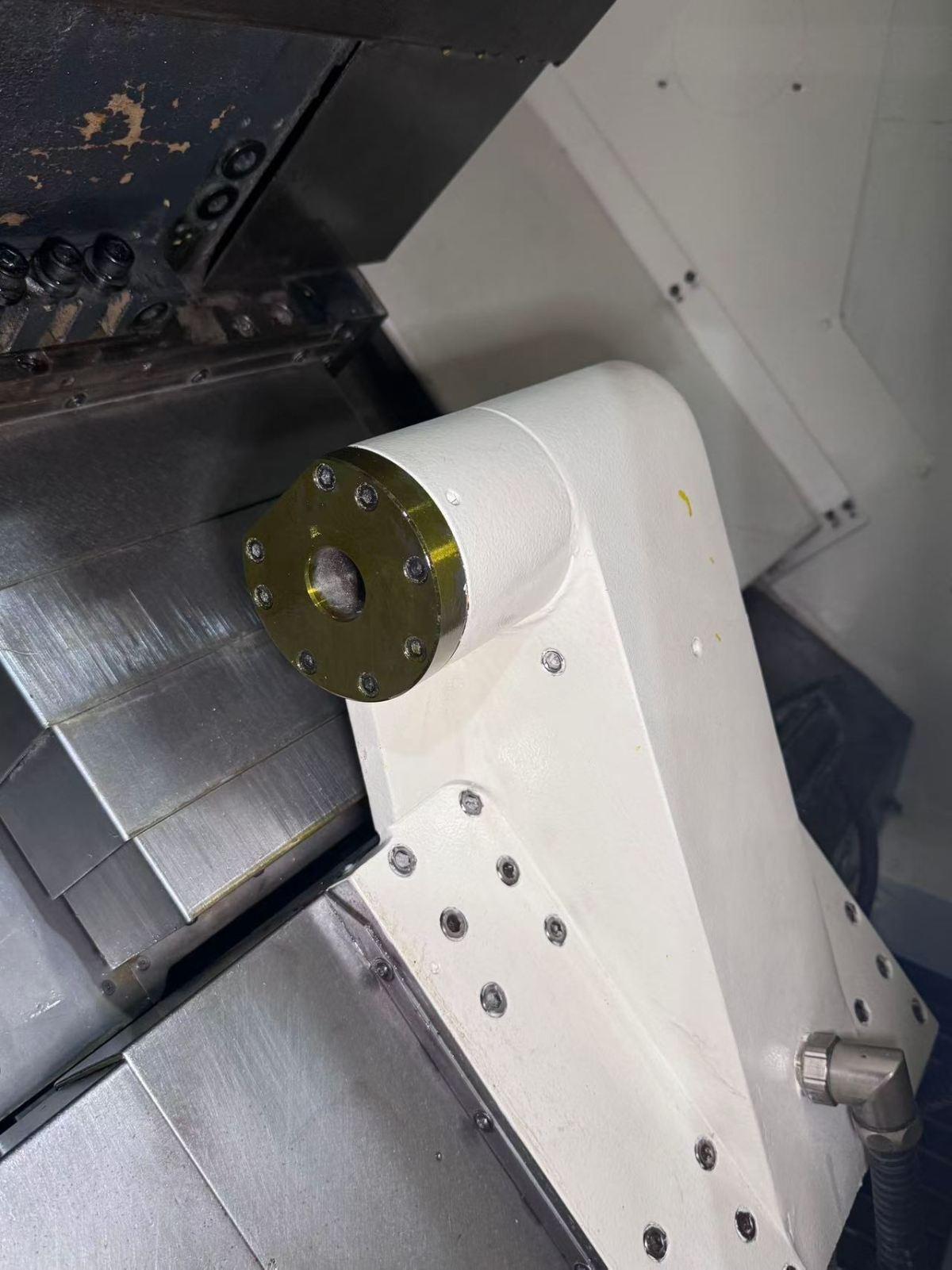

Tailstock
Trial Cutting Accuracy: 0.005 mm
