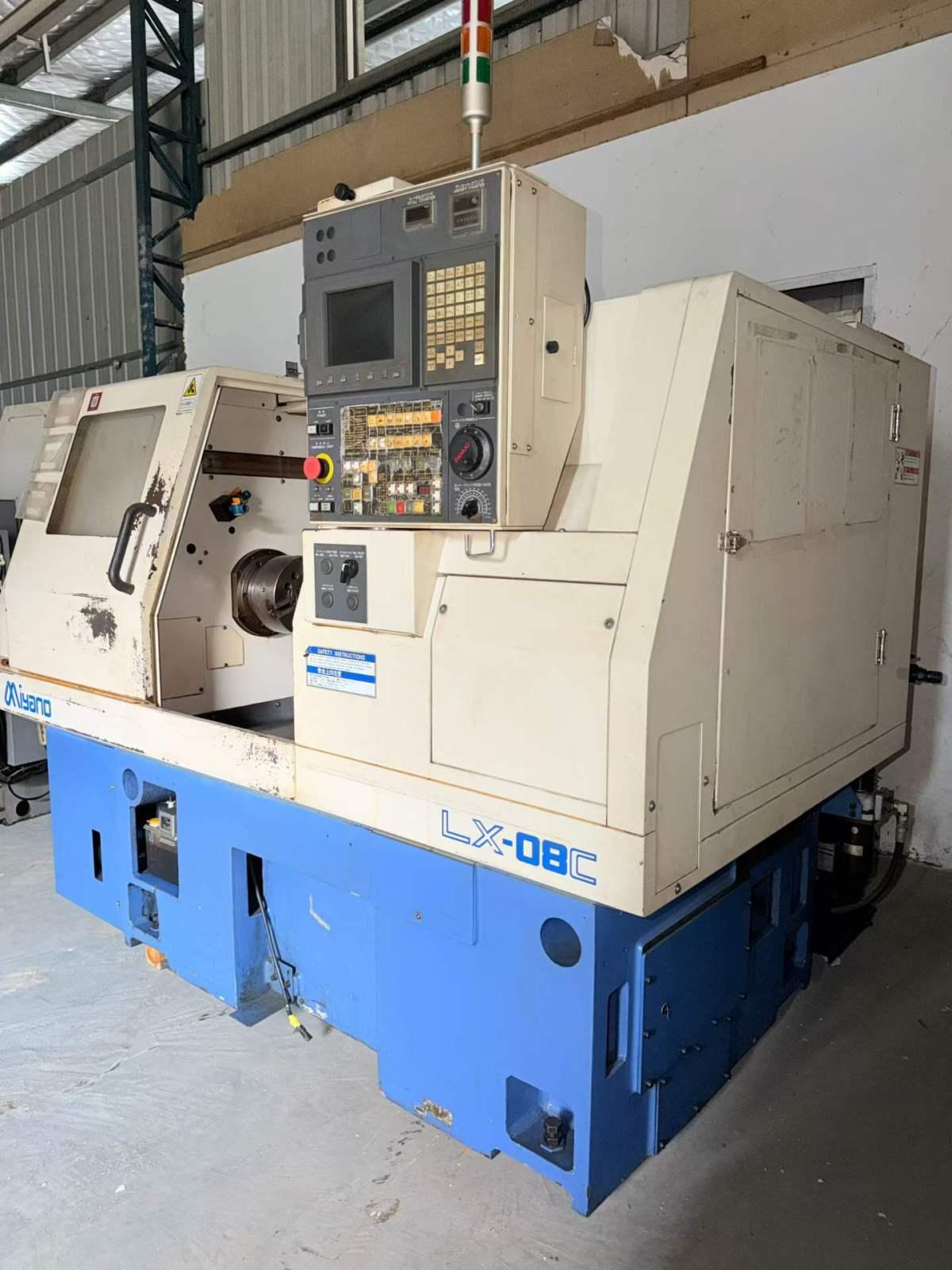

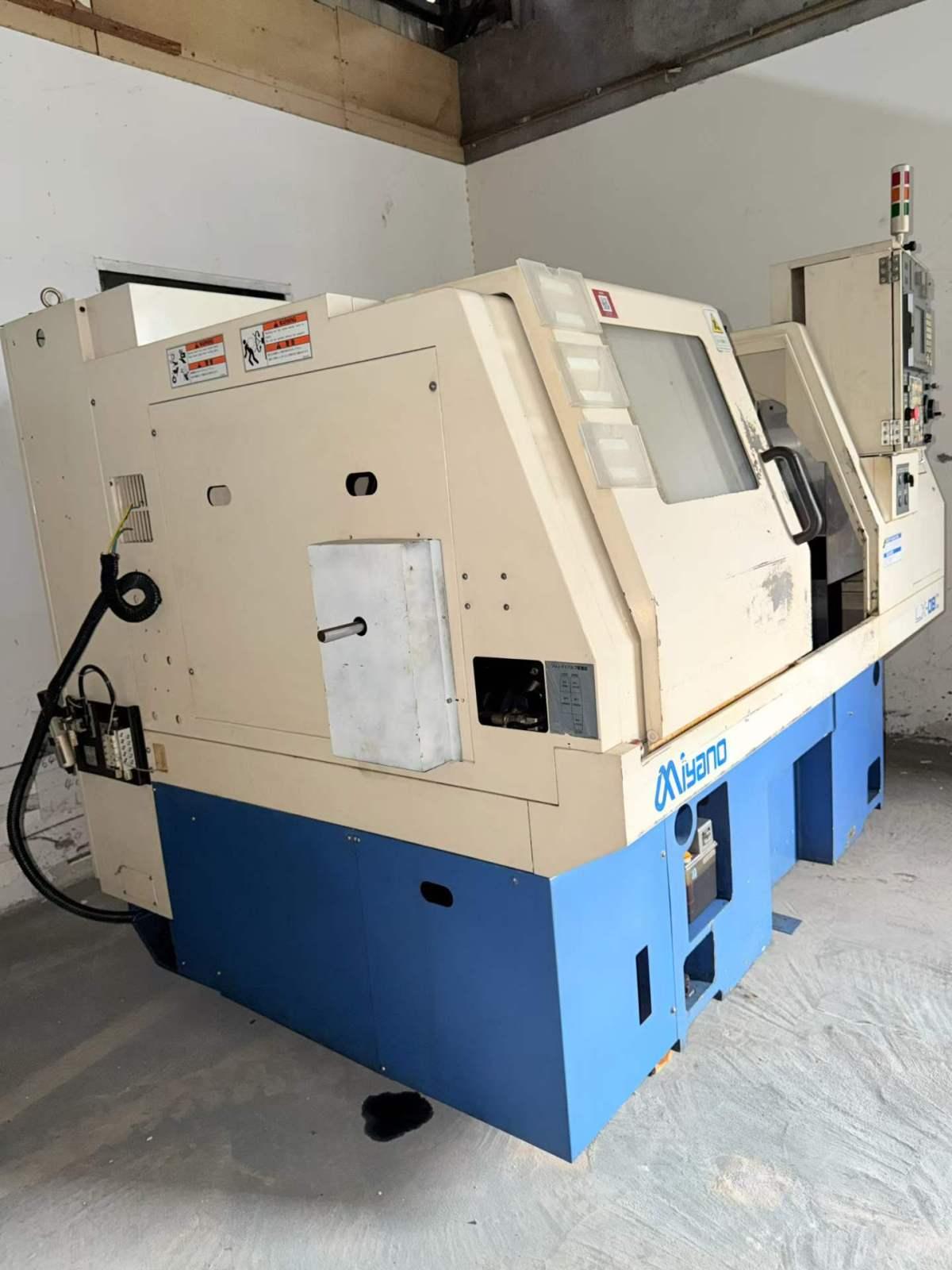

Miyano - LX-08C

Inventory number：813164

Brand：Miyano

Model：LX-08C

Origin："Japan

Location：China

Year：2006

Create Time：2026-09-14

Specifications:

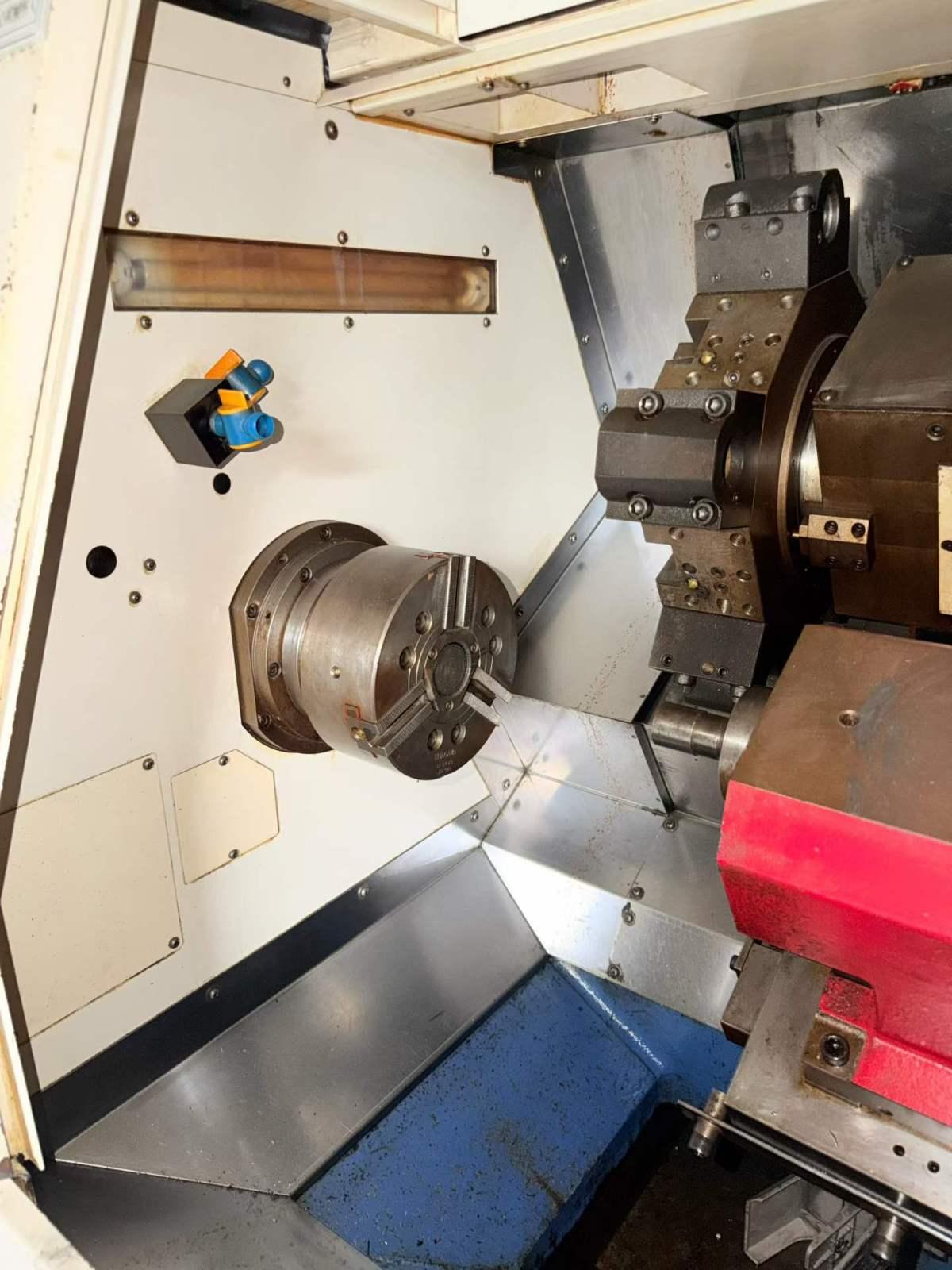

Power Chuck: 8"
Maximum Machining Diameter: 210 mm
Maximum Machining Length: 320 mm
Spindle Speed Range: 40–4,000 rpm
Spindle Motor: 11 / 7.5 kW (30 min./Continuous)

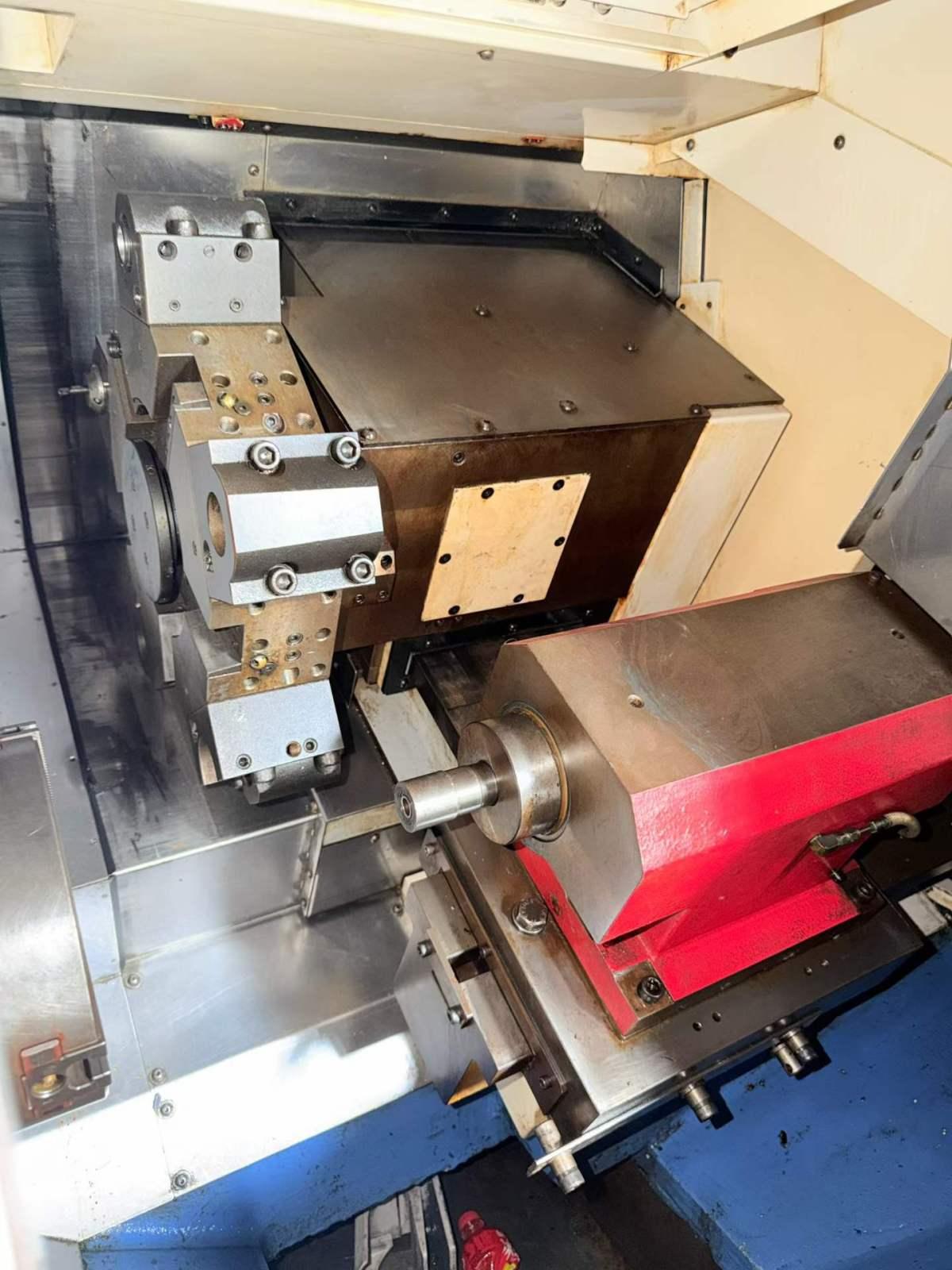

Tool Turret Type: 10-Station Turret
O.D. Tool Mounting Method: Direct Mounting
Square Turning Tool Shank Size: 25 mm
Tool Hole Diameter: 40 mm
X-Axis Travel: 175 mm
Z-Axis Travel: 435 mm
Tailstock Taper Size (Optional): MT4
Maximum Thrust Force of Quill-Type Tailstock: 3,116 N (318 kgf)
Maximum Thrust Force of Slide-Type Tailstock: 5,488 N (560 kgf)
Floor Space (Machine Only): 2035 × 1690 mm
Machine Weight (Approx.): 4,500 kg
