Mitsubishi - SC40CNC

Inventory number：4813051

Brand：Mitsubishi

Model：SC40CNC

Origin："Japan

Location：China

Year：2008

Create Time：2026-09-13

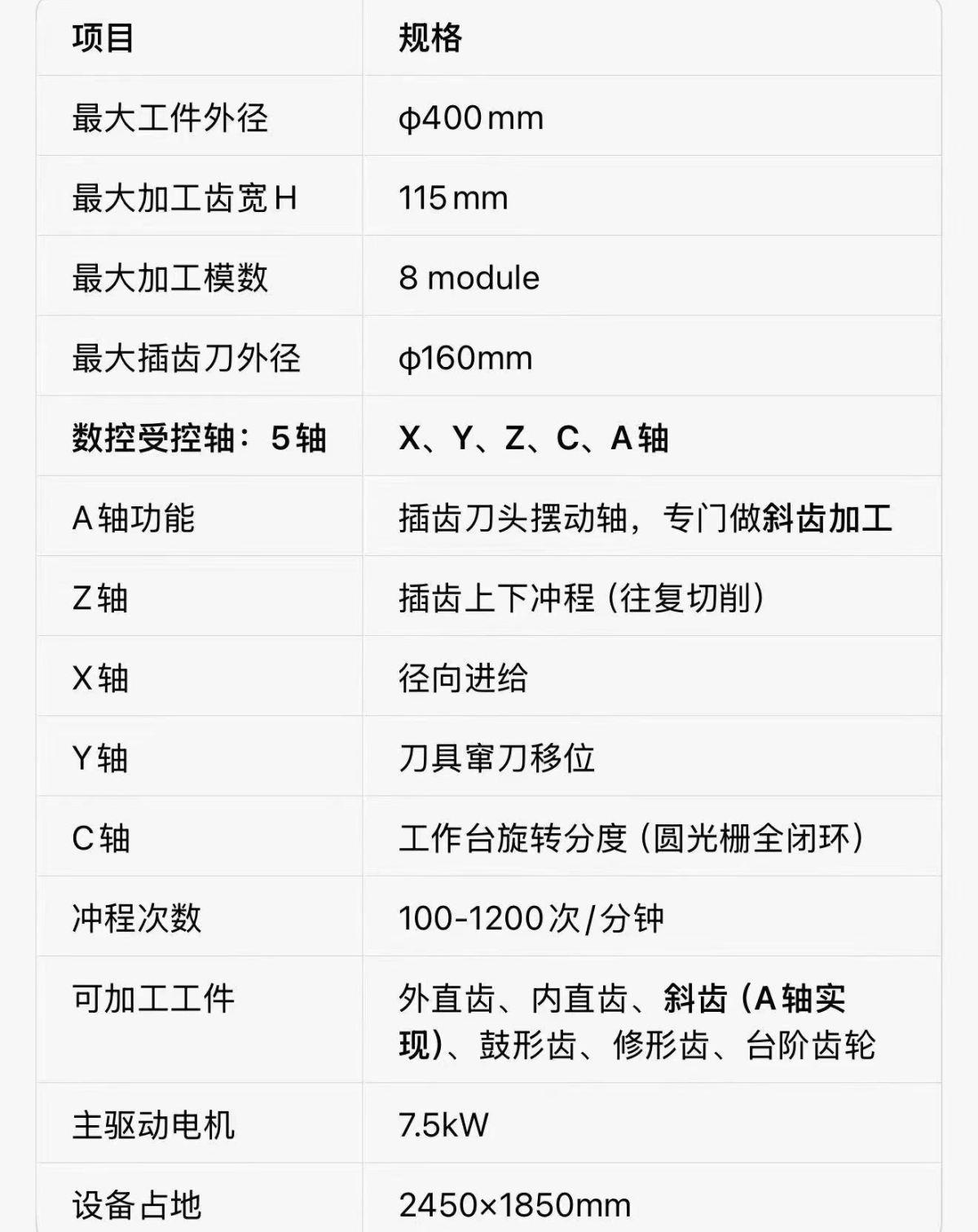

Specifications:

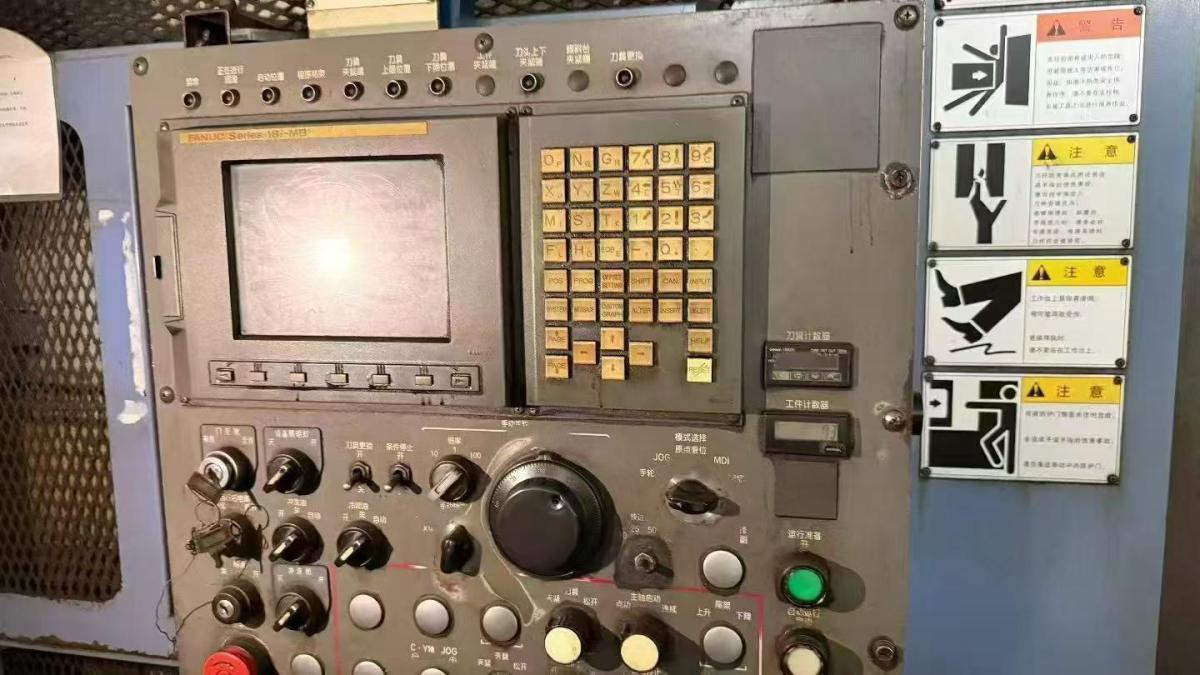

CNC System: FANUC
Maximum Workpiece External Diameter: Ø400 mm
Maximum Machining Tooth Width: 115 mm
Maximum Machining Module: 8 Module
Maximum Gear Shaper Cutter Diameter: Ø160 mm
CNC Controlled Axes: 5 Axes (X, Y, Z, C, A Axes)
Axis Functions:
A-Axis: Gear shaping cutter head swing axis, specifically designed for helical gear machining
Z-Axis: Gear shaping reciprocating stroke (up and down cutting motion)
X-Axis: Radial feed
Y-Axis: Cutter shifting movement
C-Axis: Worktable rotary indexing (full closed-loop control with circular glass scale)
Stroke Rate: 100–1200 strokes/min
Machinable Workpieces:
External spur gears
Internal spur gears
Helical gears (realized by A-axis)
Crown gears
Modified gears
Stepped gears
Main Drive Motor Power: 7.5 kW
Floor Space: 2450 × 1850 mm
