TAILIFT - TPR-1230H

Inventory number：468875

Brand：TAILIFT

Model：TPR-1230H

Origin：Taiwan, China

Location：China

Year：2018

Create Time：2026-09-12

Specifications:

The maximum distance from spindle center to the surface of machine column is 1230 mm
The minimum distance from spindle center to the surface of machine column is 330 mm

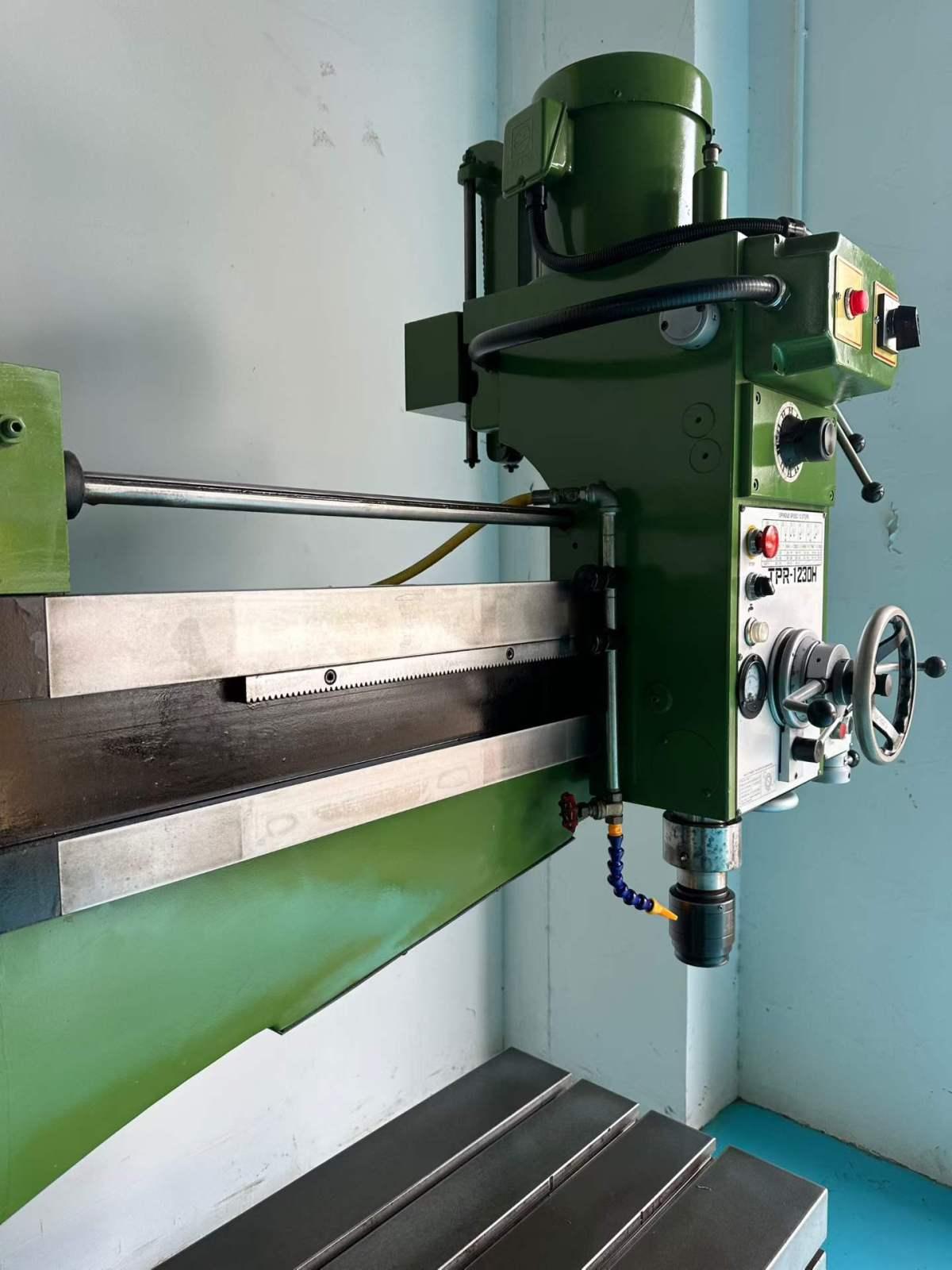

The travel of the horizontal movement of spindle head on the rotating arm is 880 mm
The maximum distance from the end of spindle to the machining surface of the base is 1360 mm
The minimum distance from the end of spindle to the machining surface of the base is 467 mm
The vertical lifting travel of the swing arm on machine column is 620 mm

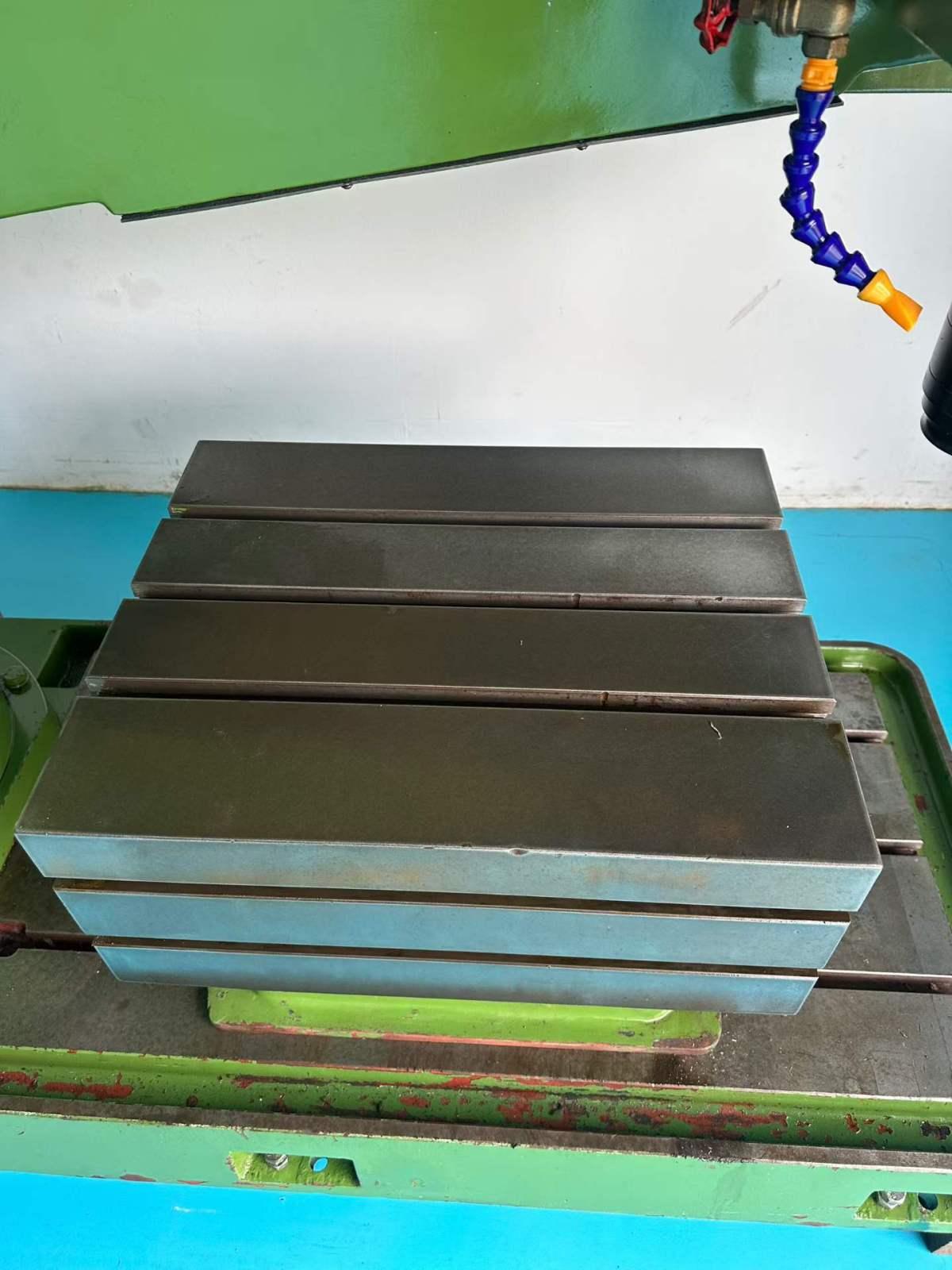

The effective working range of the box-type Worktable is 635×520×415 mm
Base Footage: 1720×715×185 mm

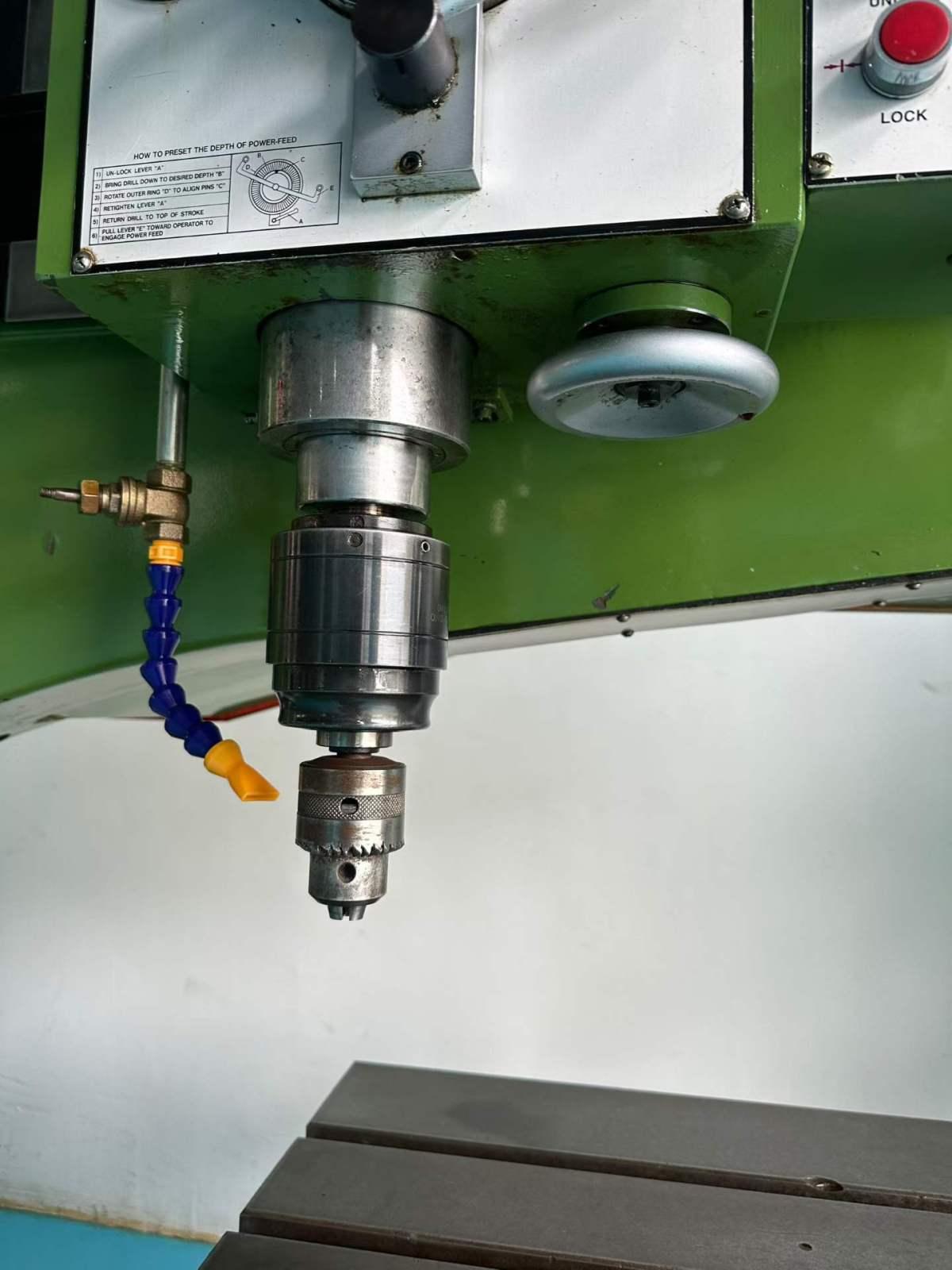

Taper of spindle through hole: MT#4
Vertical travel of spindle: 270 mm
