Makino - KE55

Inventory number：813147

Brand：Makino

Model：KE55

Origin："Japan

Location：China

Year：2004

Create Time：2026-09-10

Specifications:

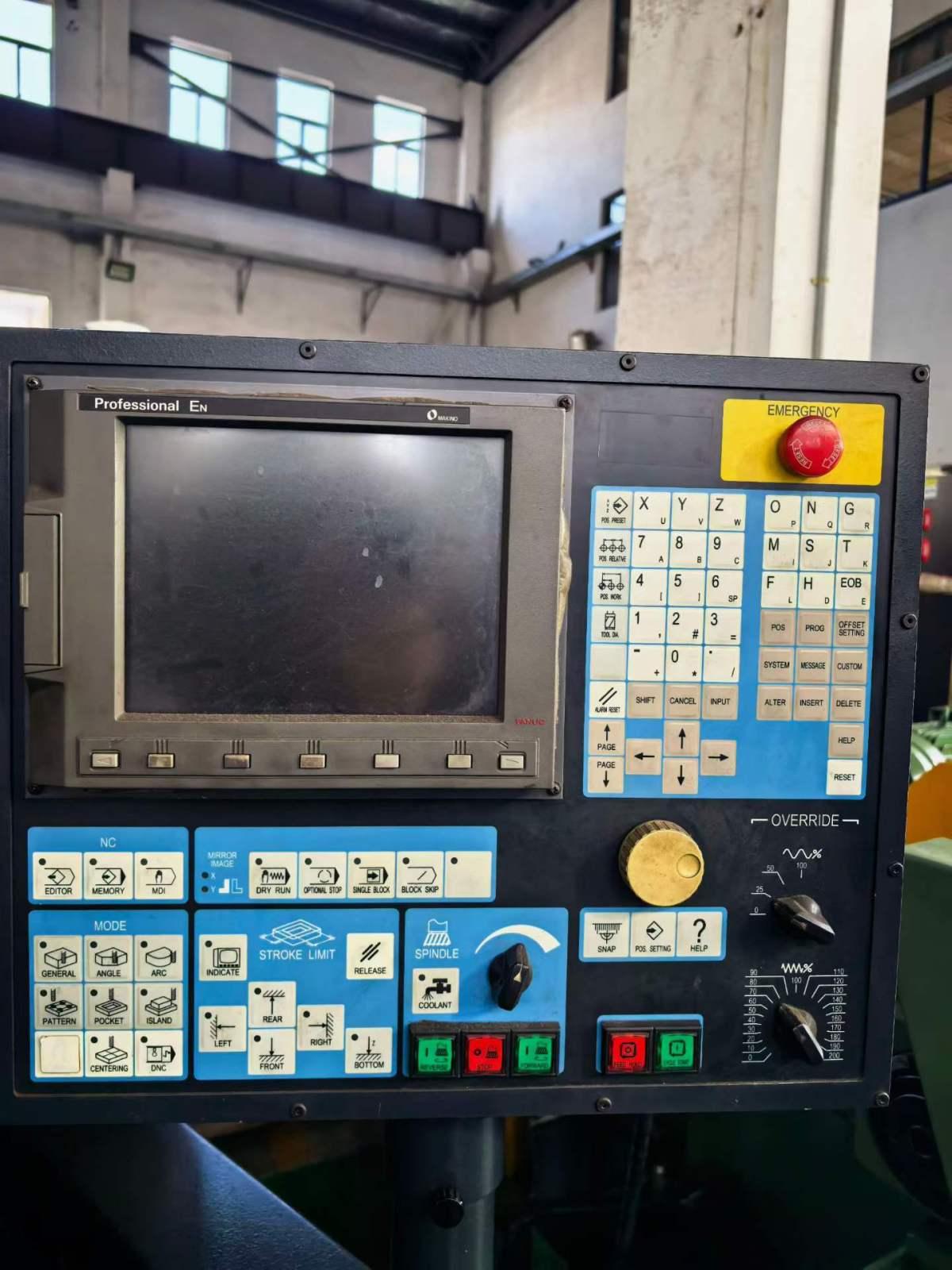

CNC System: FANUC Professional Jr CNC
Worktable Size: 800 × 375 mm
Three-Axis Travel (X/Y/Z): 549 × 320 × 350 mm
Rapid Traverse Rate (X/Y/Z): 11.9 / 11.9 / 5.0 m/min
Maximum Worktable Load: Approximately 250 kg
Spindle Taper: CAT40
Maximum Spindle Speed: 6,000 rpm
Spindle Drive Power: 7.5 HP (approximately 5.6 kW)
Distance from Spindle Nose to Worktable: 102–450 mm
Distance from Spindle Center to Column: 75–395 mm
