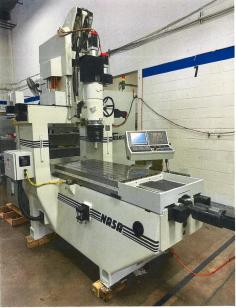

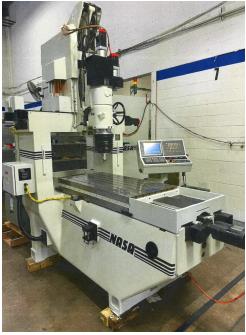

MOORE - G-48

Inventory number：813120

Brand：MOORE

Model：G-48

Origin：The United States

Location：China

Year：2010

Create Time：2026-09-08

Specifications:

CNC System: FANUC 0i-MF
X-axis Travel: 1,219 mm
Y-axis Travel: 610 mm
Z-axis Travel (Headstock Vertical Travel): 330 mm
U-axis Travel (Grinding Head Feed Travel): 127 mm
Column Spacing: 813 mm
Worktable Size: 1,219 × 610 mm
Worktable Flatness: 0.00127 mm
Grinding Head Speed: 9,000–175,000 rpm
Grinding Head Options: Moore 40,000 rpm grinding head or high-speed pneumatic/electric grinding head
C-axis Rotation: 360°
C-axis Function: Automatic conventional and planetary grinding modes
U-axis: Absolute programmable feed with home and limit switches
Standard Number of Controlled Axes: 4 axes (X/Y/C/U)
Optional Axes: Z-axis or A-axis
Rapid Traverse Rate: 1,016 mm/min
Contour Machining Speed: 381 mm/min
Drive System: Oil-bath-lubricated ultra-precision ball screws
Guideway: Heavy-duty precision roller guideways
Overall Dimensions: Approximately 3,658 × 2,134 × 2,743 mm
Machine Weight: Approximately 5,900 kg
