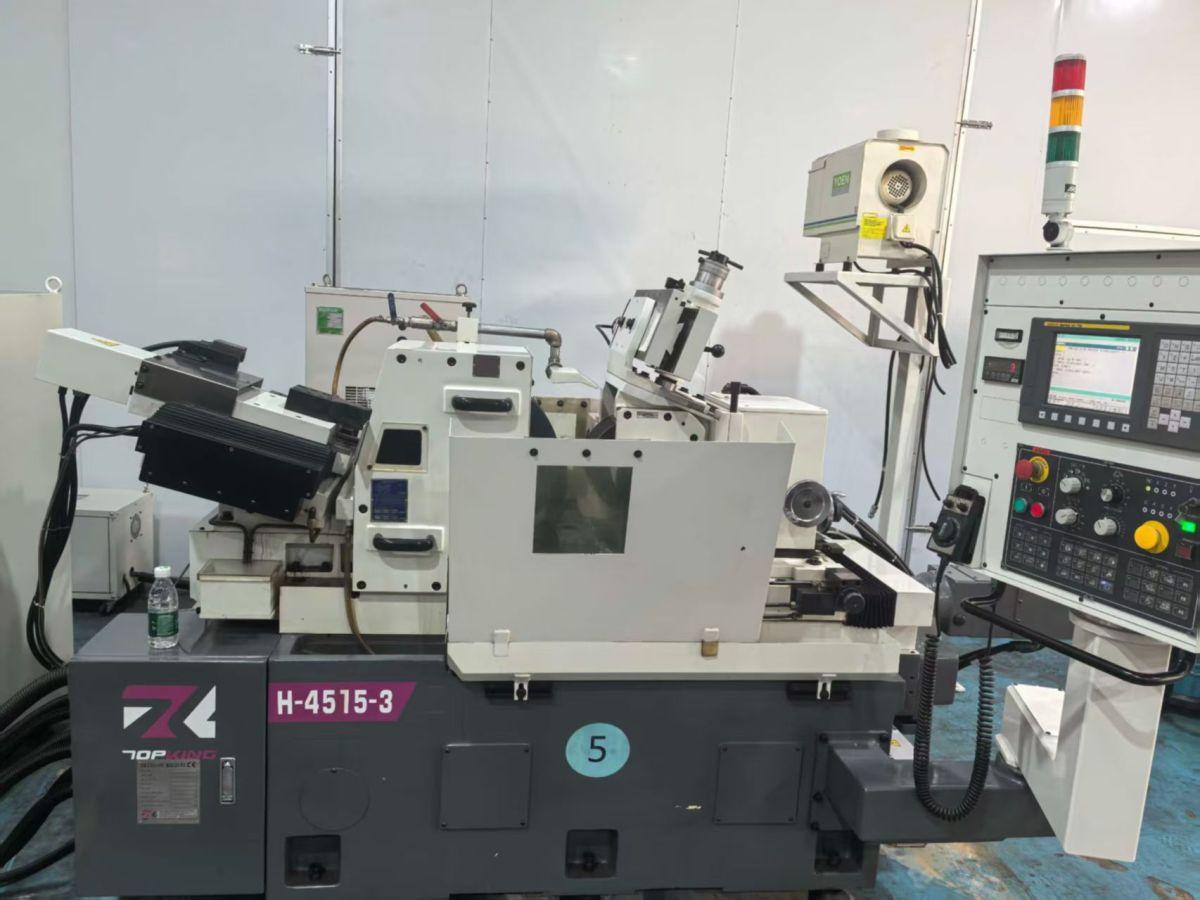

TOPKING - H-4515-3

Inventory number：4812953

Brand：TOPKING

Model：H-4515-3

Origin：Taiwan, China

Location：China

Year：2016

Create Time：2026-09-07

Specifications:

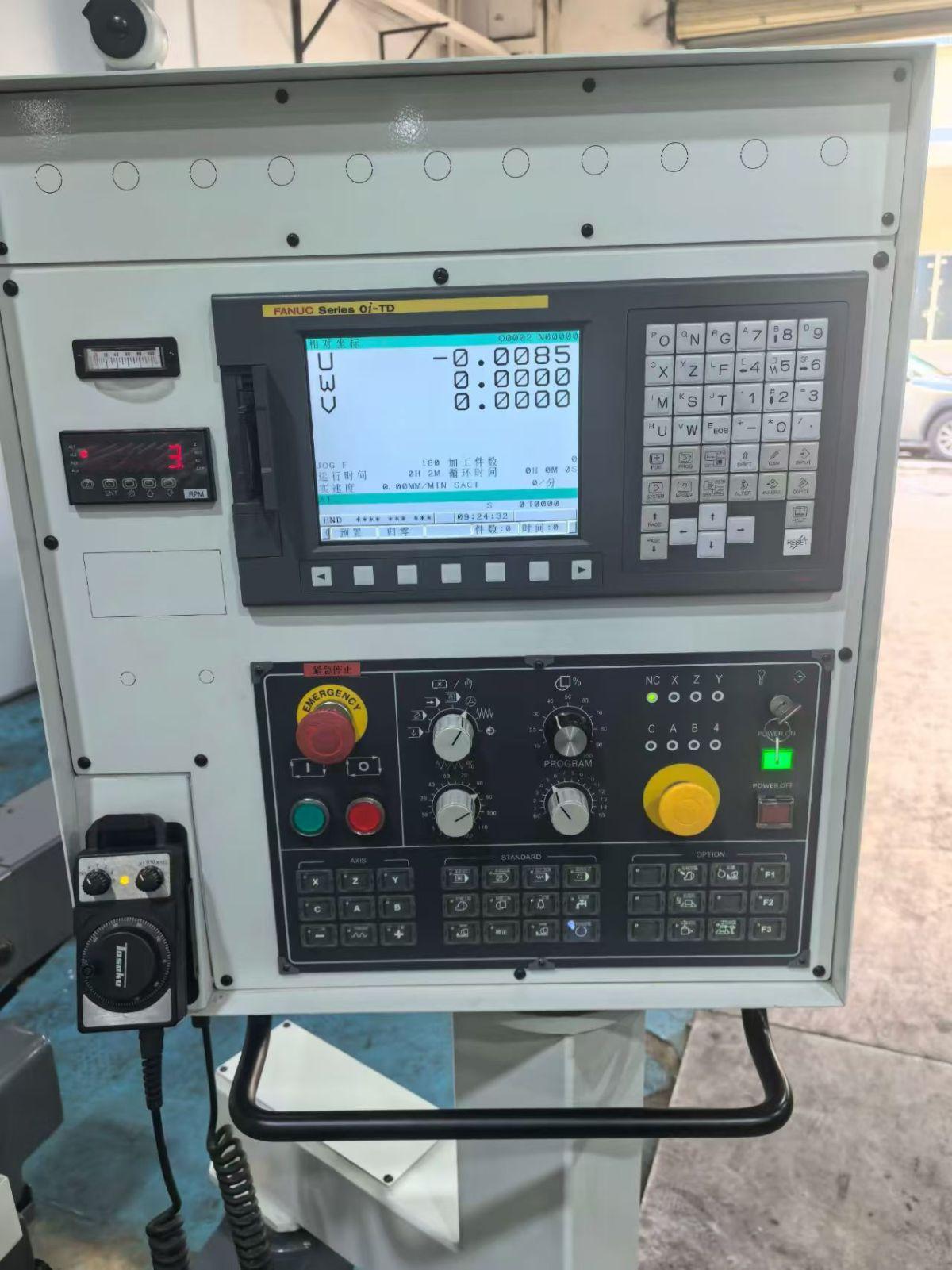

CNC System: FANUC
Grindable workpiece diameter range: Φ1–75 mm
Maximum workpiece length for stop-feed grinding: 150 mm
Minimum CNC-axis feed increment: 0.0005 mm

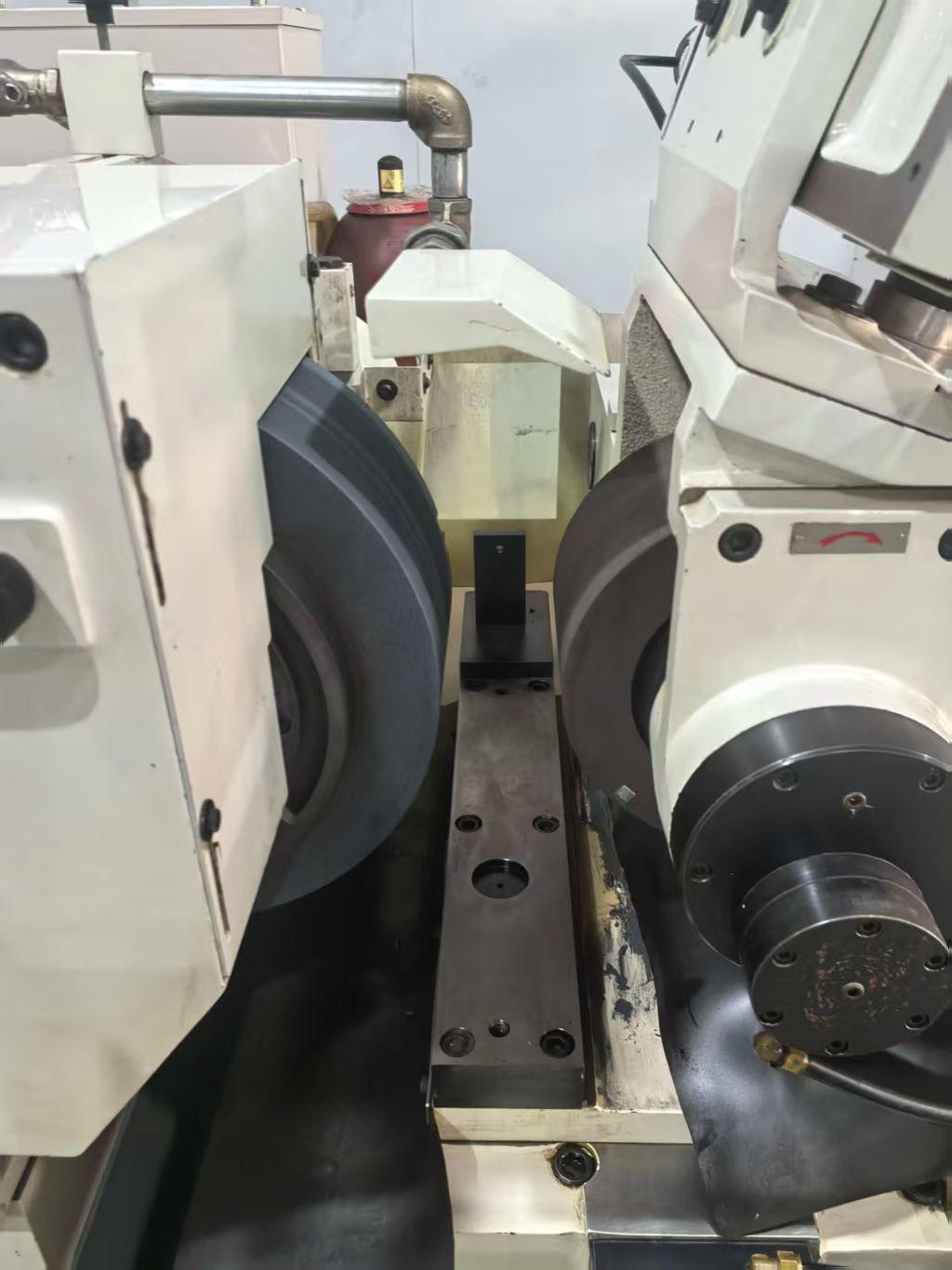

Grinding wheel dimensions: Φ455 × 150 × Φ228.6 mm
Maximum peripheral speed: 45 m/s
Rated speed: 1,900 rpm
Tilting angle: +5° to −3°
Swiveling angle: ±5°
X-axis minimum infeed: 0.0001 mm
Hydrostatic spindle
