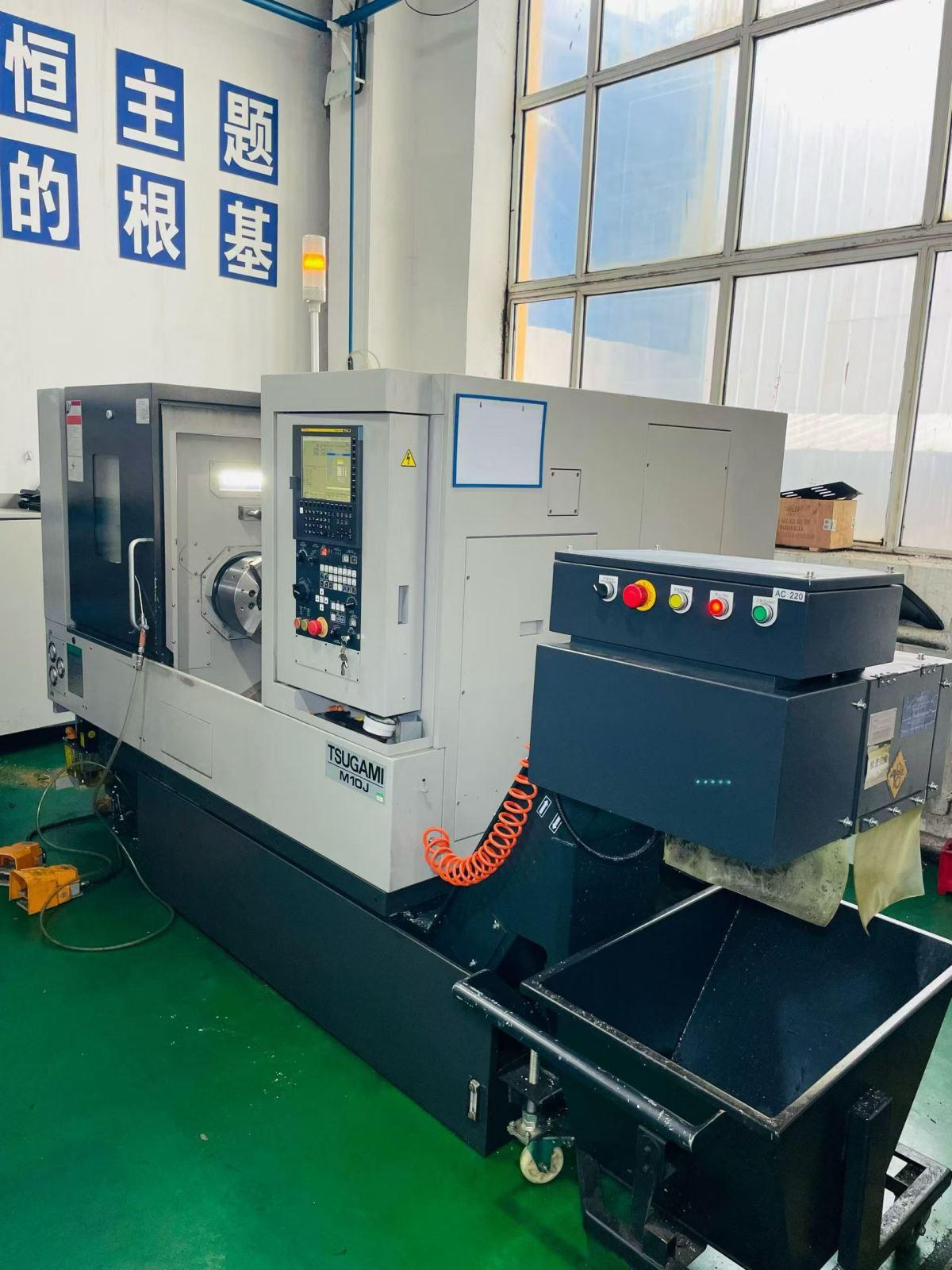

Tsugami - M10J

Inventory number：68996

Brand：Tsugami

Model：M10J

Origin："Japan

Location：China

Year：2023

Create Time：2026-09-07

Specifications:

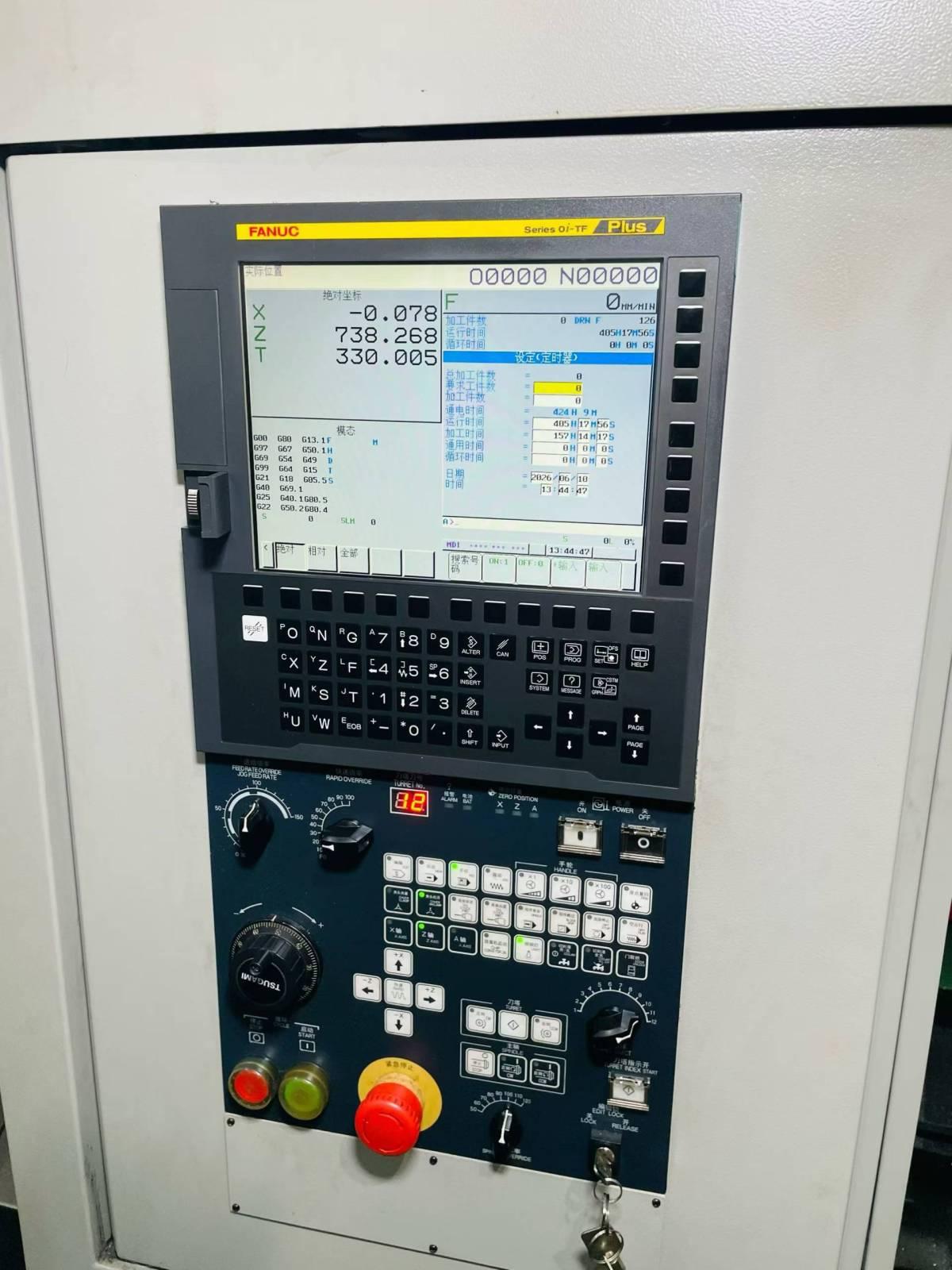

CNC System: FANUC 0i-TF Plus
Maximum swing diameter: 680 mm
Maximum machining diameter: 450 mm
Maximum machining length: 560 mm
Maximum bar capacity: 80 mm
Spindle through-hole diameter: 90 mm

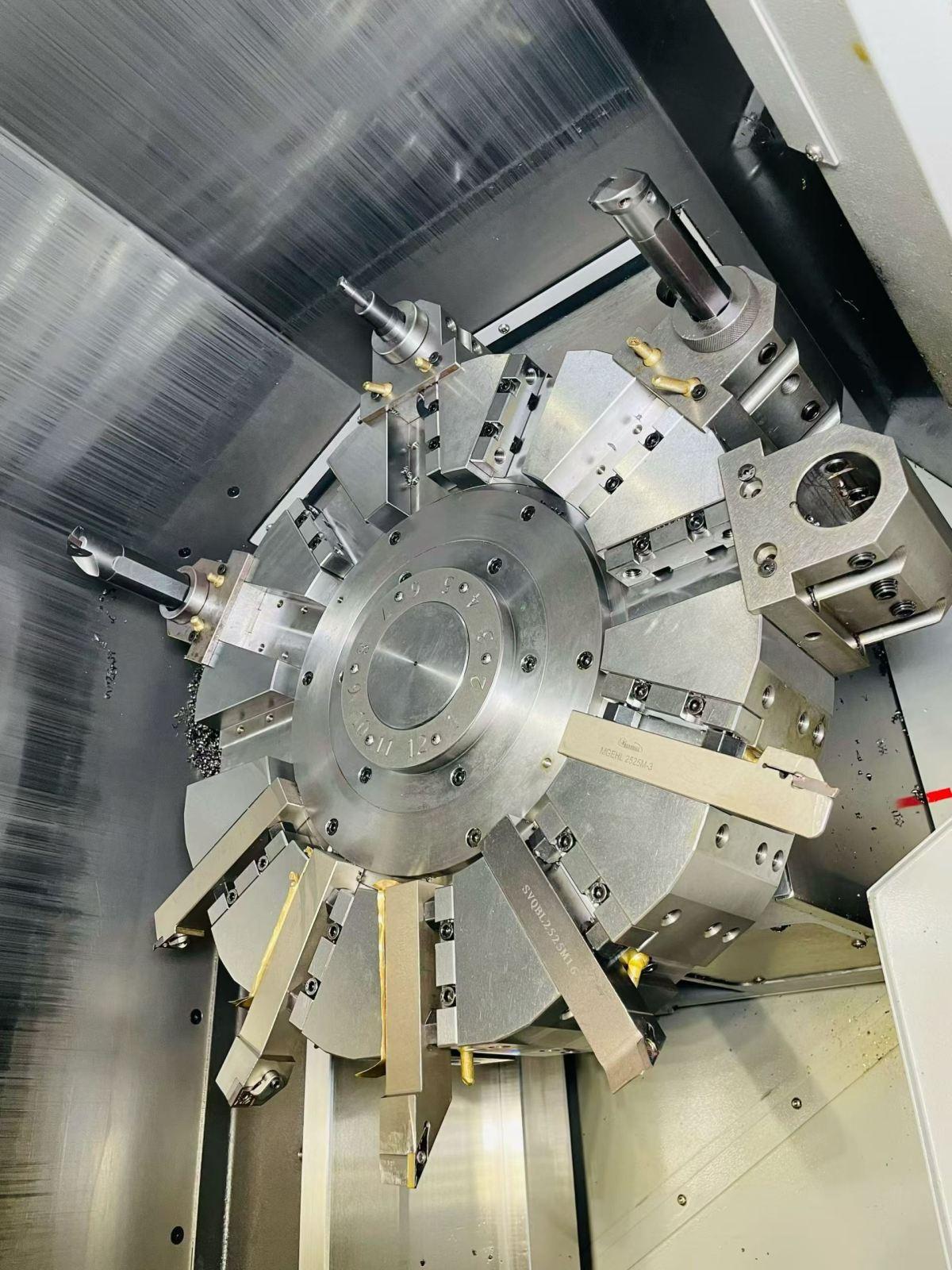

Number of turret stations: 12 tools
X-axis rapid traverse rate: 30 m/min
Z-axis rapid traverse rate: 33 m/min
Maximum spindle speed: 3500 rpm
Turret servo motor power: 4.5 kW
Spindle type: 12-inch hollow spindle

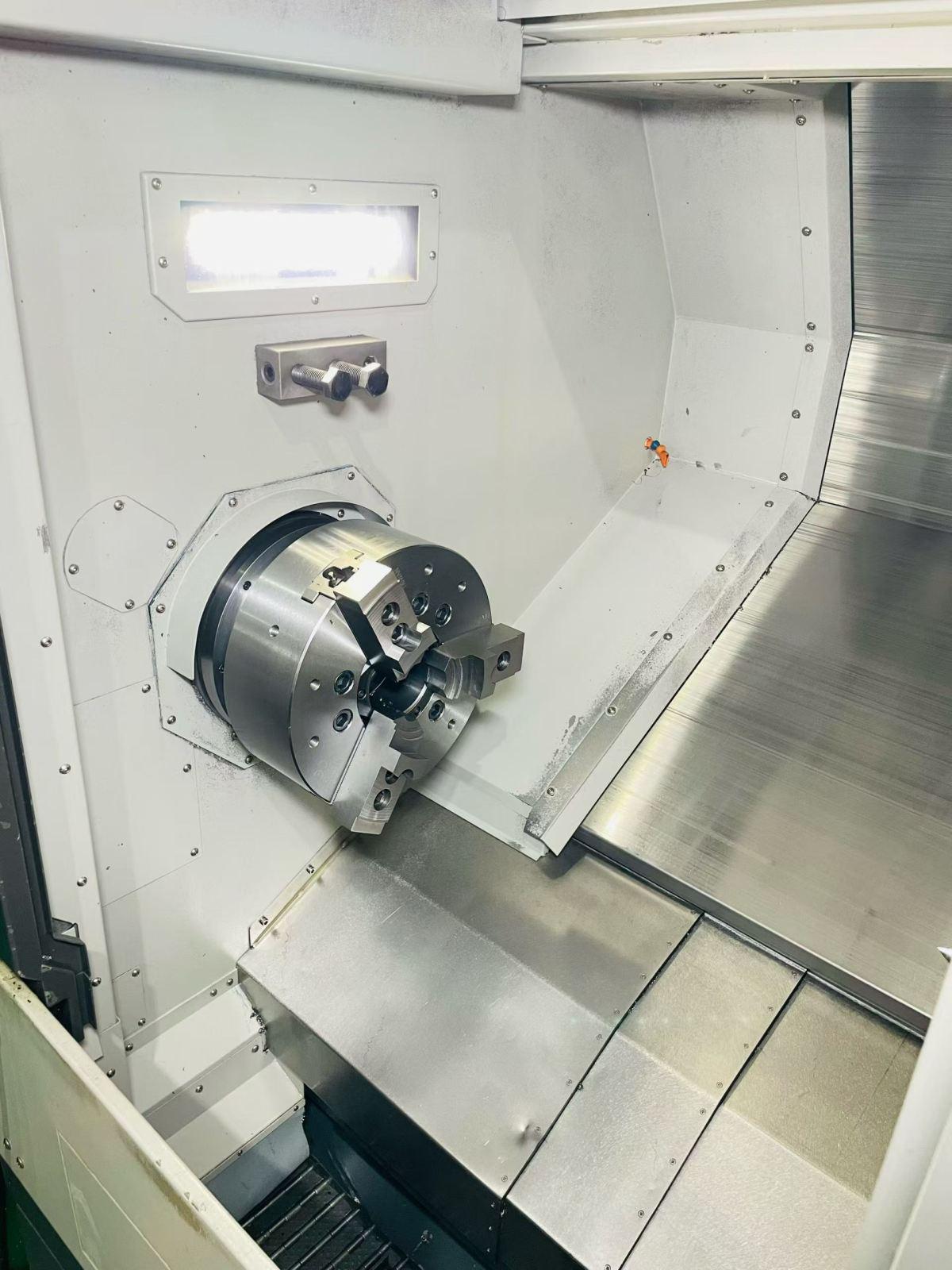

Chuck: 3-jaw chuck (Qian Dao OP-212-A8)
Machining time: Only over 100 hours
