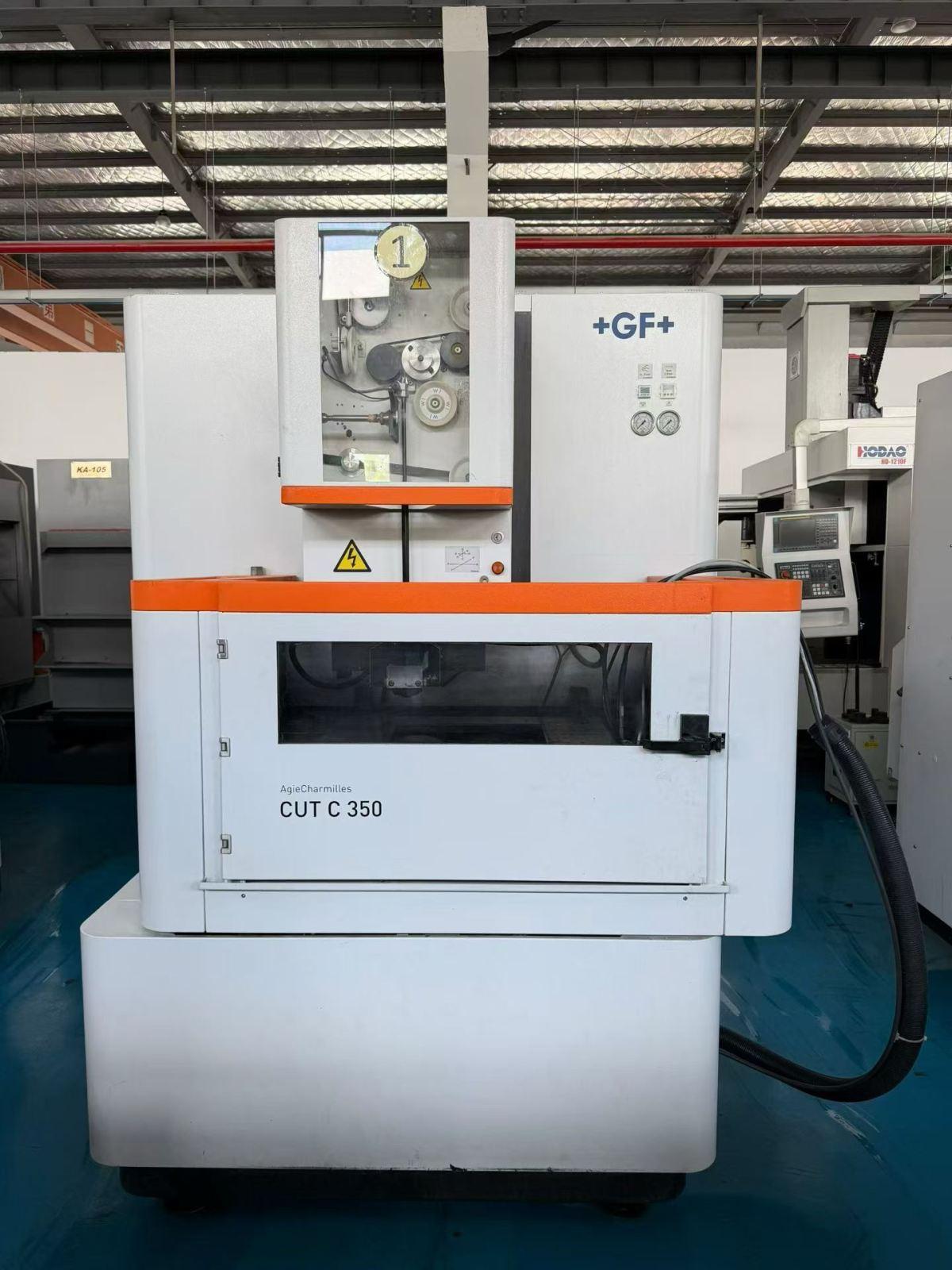

Charmilles - CUT C 350

Inventory number：813103

Brand：Charmilles

Model：CUT C 350

Origin：Switzerland

Location：China

Year：2019

Create Time：2026-09-05

Specifications:

Three-Axis Travel: 350 × 250 × 250 mm
U×V-Axis Taper Range: ±30°
Worktable Size: 590 × 440 mm
Maximum Workpiece Weight: 500 kg
Maximum Workpiece Height: 250 mm
Wire Diameter Range: 0.10–0.33 mm
Surface Roughness: Up to Ra 0.18 μm
Maximum Cutting Rate: 230 mm²/min (H13 Steel, Workpiece Height: 50 mm, Wire Diameter: 0.25 mm)
Positioning Accuracy: ±0.001 mm
Automatic Wire Threading: Supports Automatic Re-Threading During Cutting
Machine Weight: Approximately 3,200 kg
