Gamma - TH-4508L

Inventory number：4812959

Brand：Gamma

Model：TH-4508L

Origin：Taiwan, China

Location：China

Year：2026

Create Time：2026-09-04

Specifications:

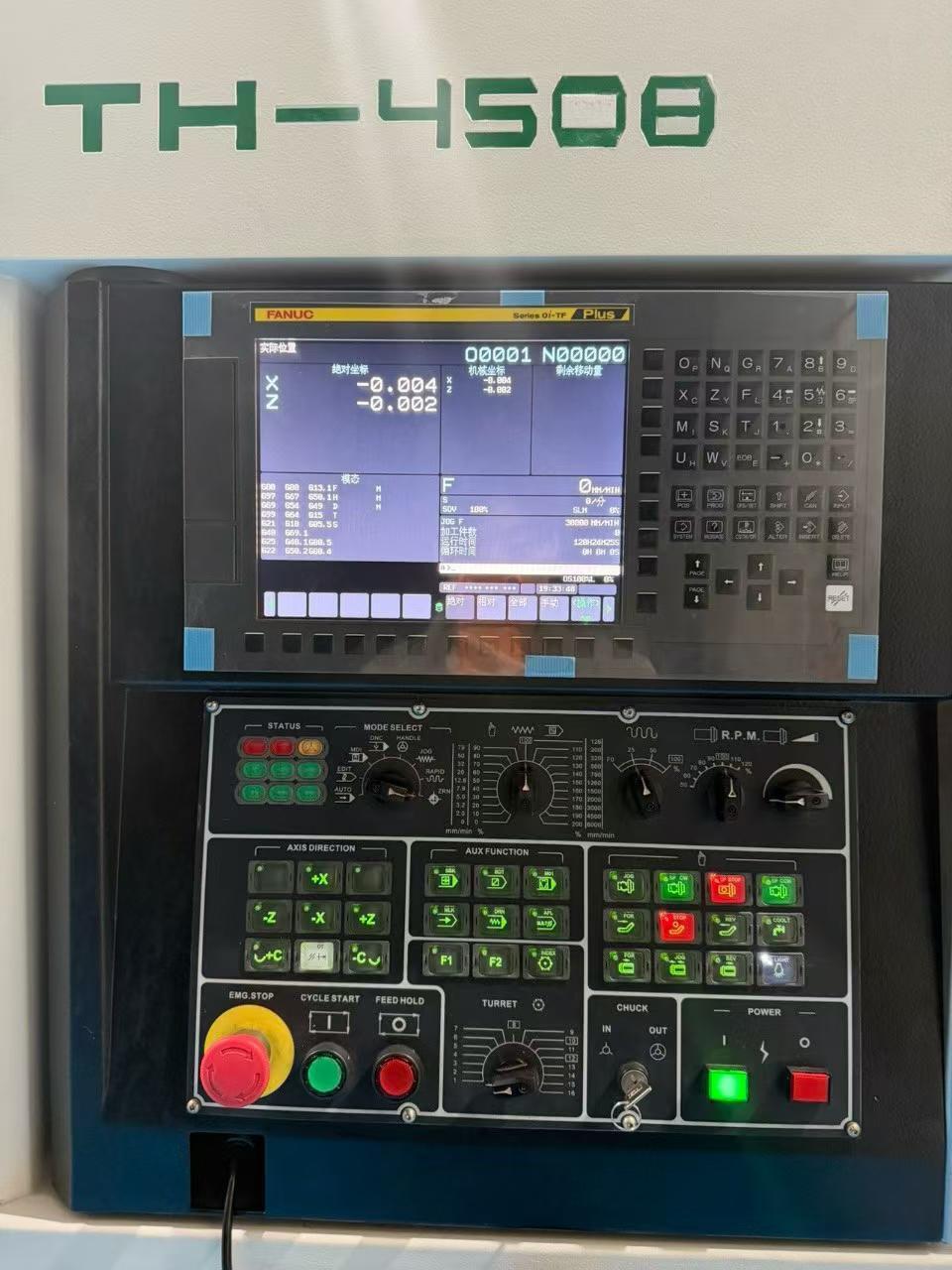

CNC System: FANUC 0i-TF(5)
Maximum Turning Diameter: Φ310 mm
Standard Turning Diameter: Φ210 mm
Spindle Motor: 7.5/11 kW, 8000 rpm
Maximum Spindle Speed: 4200 rpm
Spindle Through Hole: Φ66 mm
Chuck: OP-208A6
X/Z-axis Travel: 170/910 mm
X/Z-axis Rapid Traverse Rate: 30/30 m/min
Tool Turret: 8-station servo turret
Tool Changing Time: 0.32/0.8 seconds
Square Tool: 25 × 25 mm
Round Tool: Φ40 mm
Repeatability: ±0.003 mm
Machine Dimensions: 2700 × 1650 × 1730 mm
Machine Weight: 4100 kg
