KITAMURA - XKNC-204

Inventory number：68968

Brand：KITAMURA

Model：XKNC-204

Origin："Japan

Location：China

Year：2016

Create Time：2026-09-04

Specifications:

Maximum machining diameter: 200mm
Maximum machining length: 300mm (Standard configuration)
The diameter of spindle through hole is 36mm
Spindle speed range: 50-6000 r/min (higher speed electric spindle is optional)
spindle motor power: 7.5kW (continuous) / 11kW (15 minutes)
X/ Z-axis travel: 120mm for X-axis / 320mm for Z-axis
fast movement rate: 24m/min on the X-axis / 24m/min on the Z-axis
Cutting feed rate: 1-5000 mm/min
Positioning precision: ±0.005mm
Repeated Positioning precision: ±0.003mm

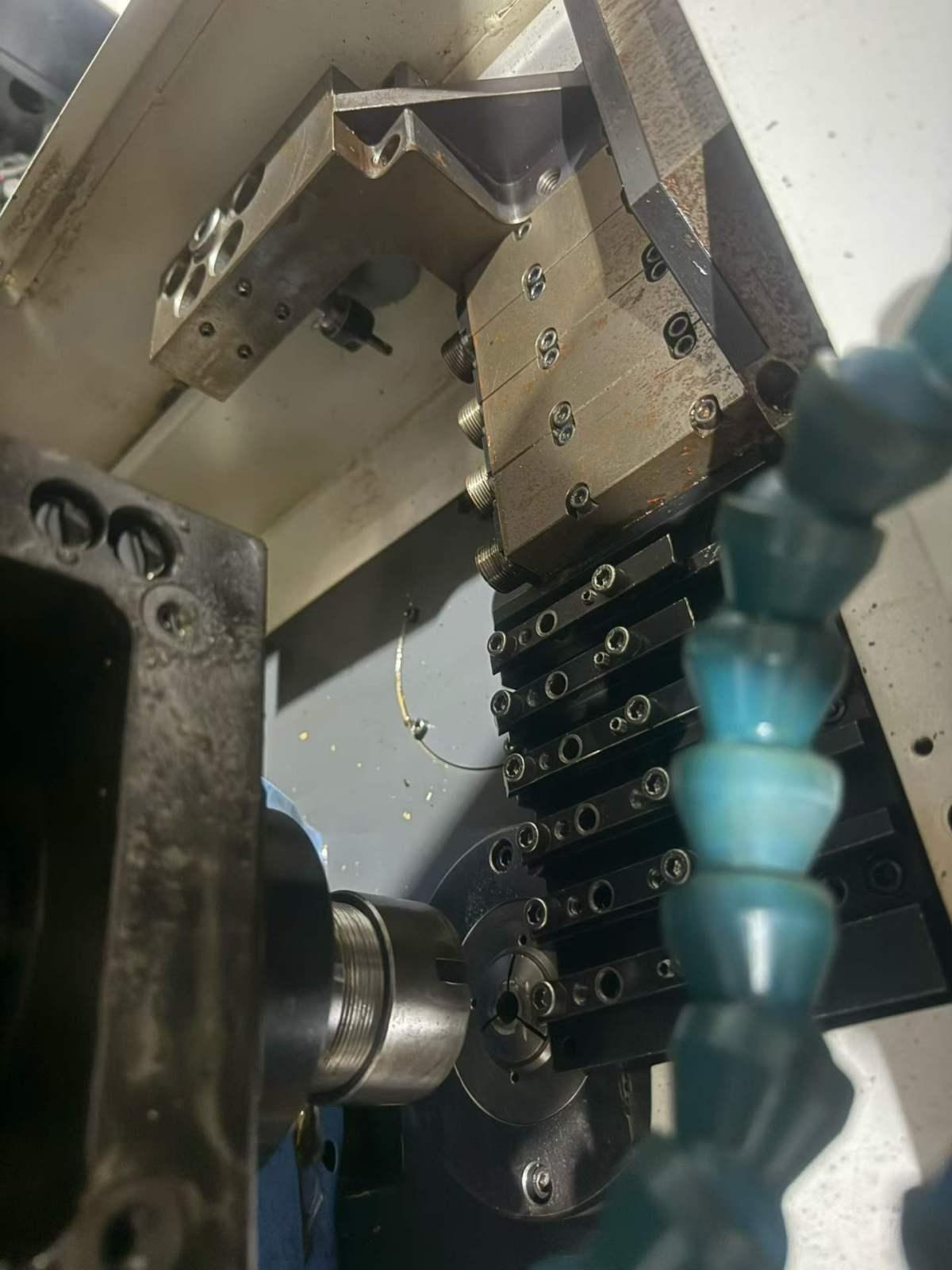

tool Tool Tool holder type: Row tool type (power Tool is optional)

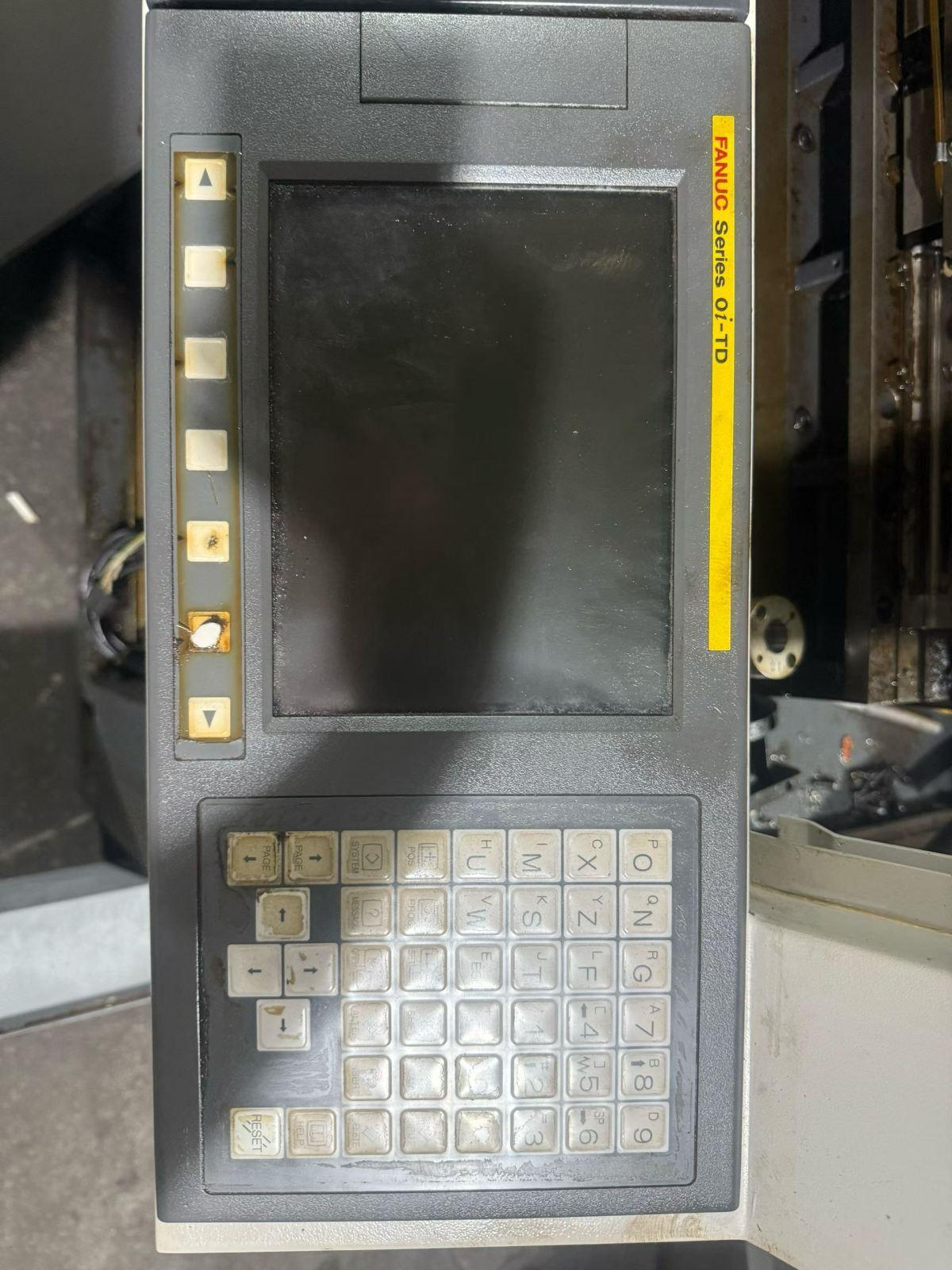

CNC System: FANUC 0i-TF
guideway form: Z-axis double-mountain type sliding guideway (rigid guideway), X-axis rolling guideway
The weight of machine tool is approximately 2.8 tons
Overall dimensions: approximately 2200×1600×1800mm
