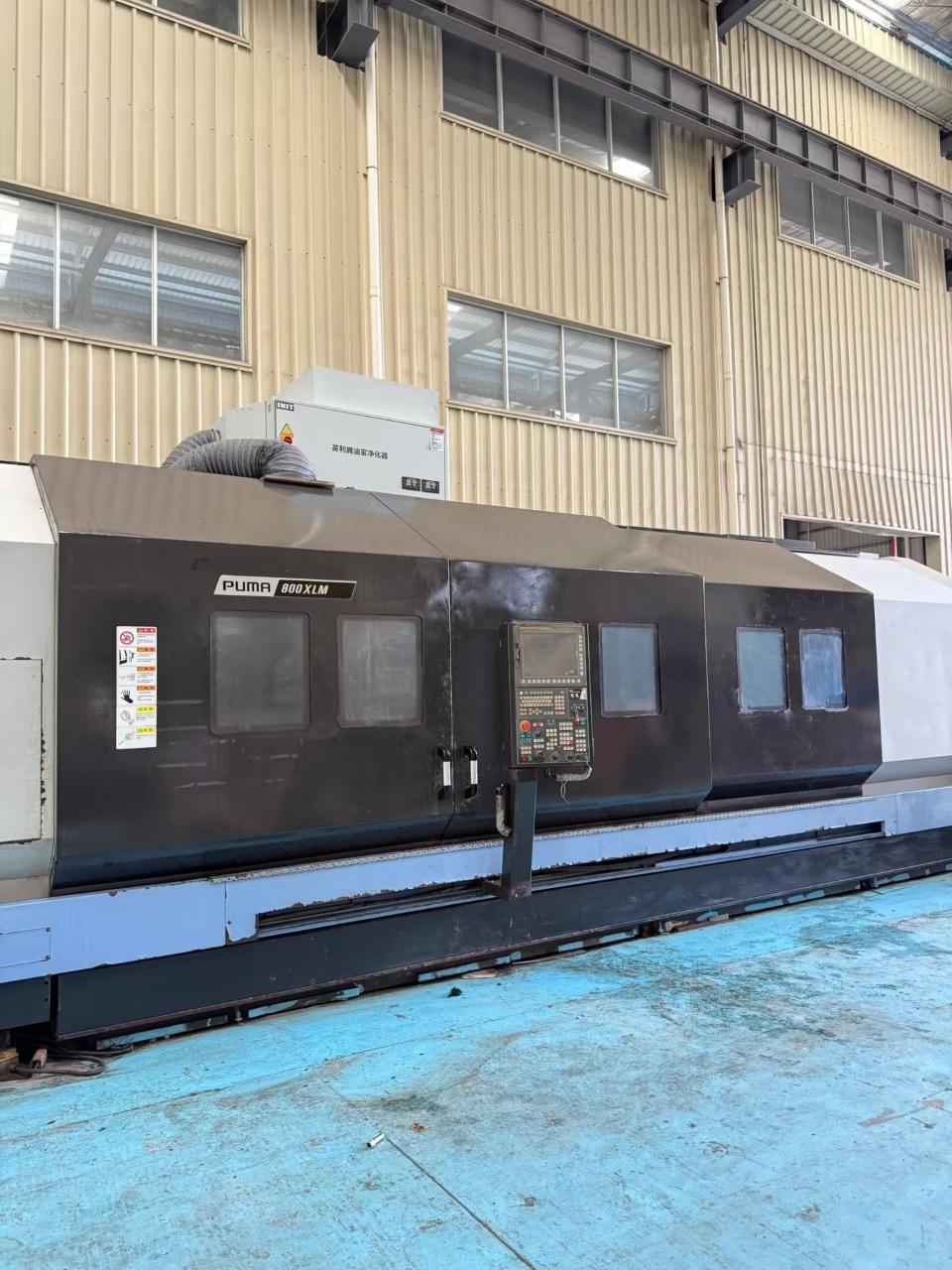

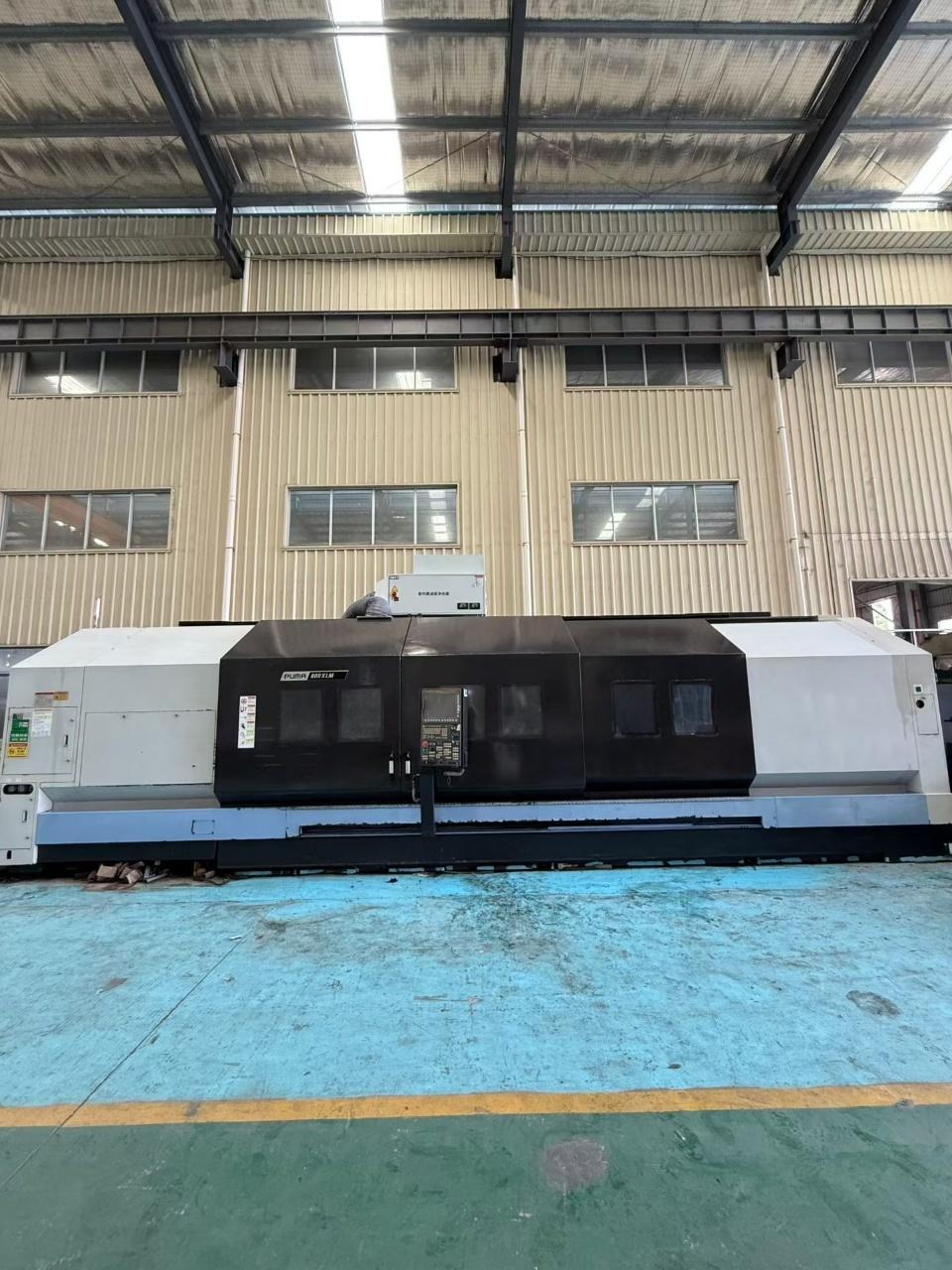

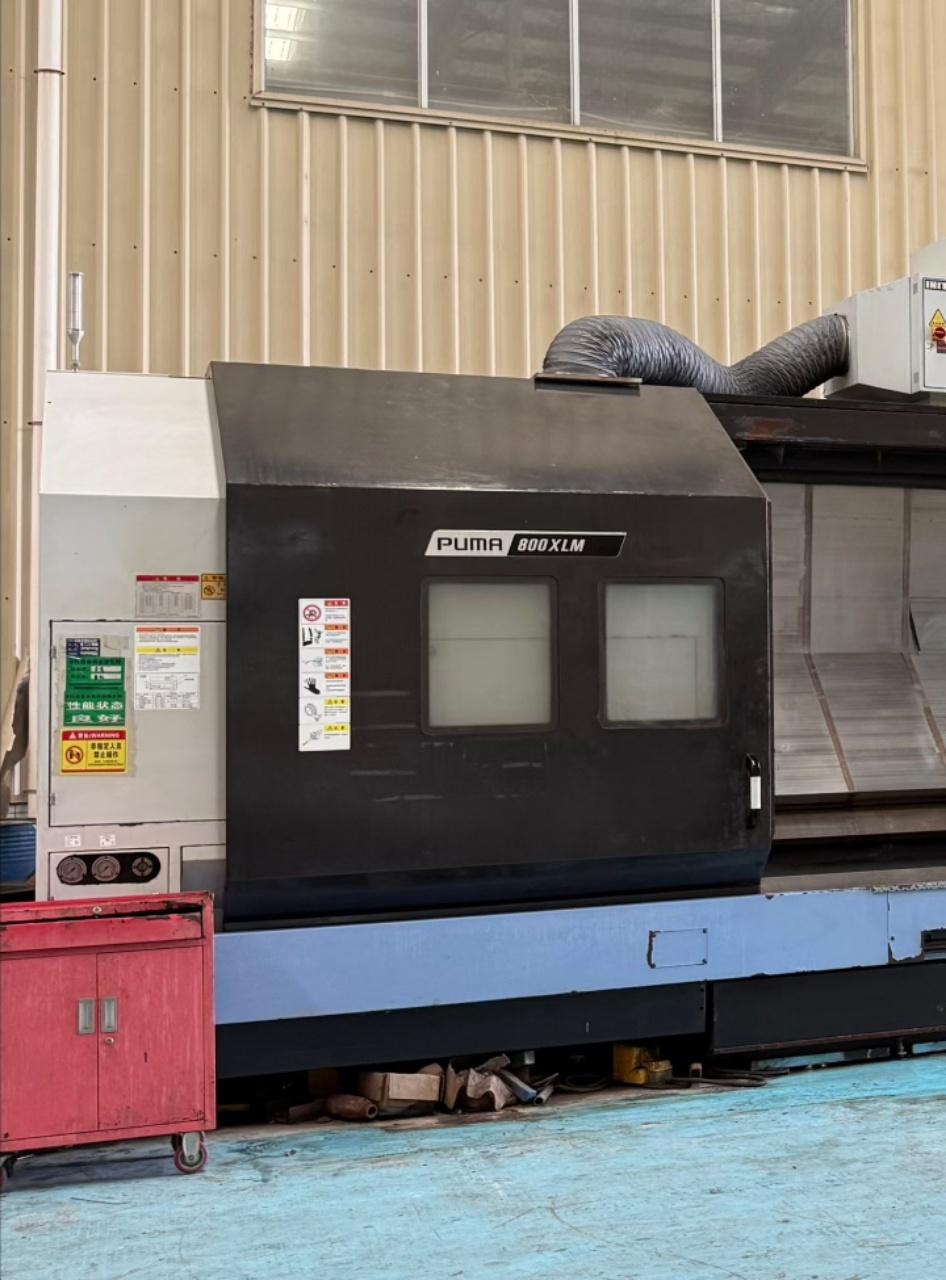

DOOSAN - PUMA800XLM

Inventory number：4813059

Brand：DOOSAN

Model：PUMA800XLM

Origin：South Korea

Location：China

Year：2019

Create Time：2026-09-03

Specifications:

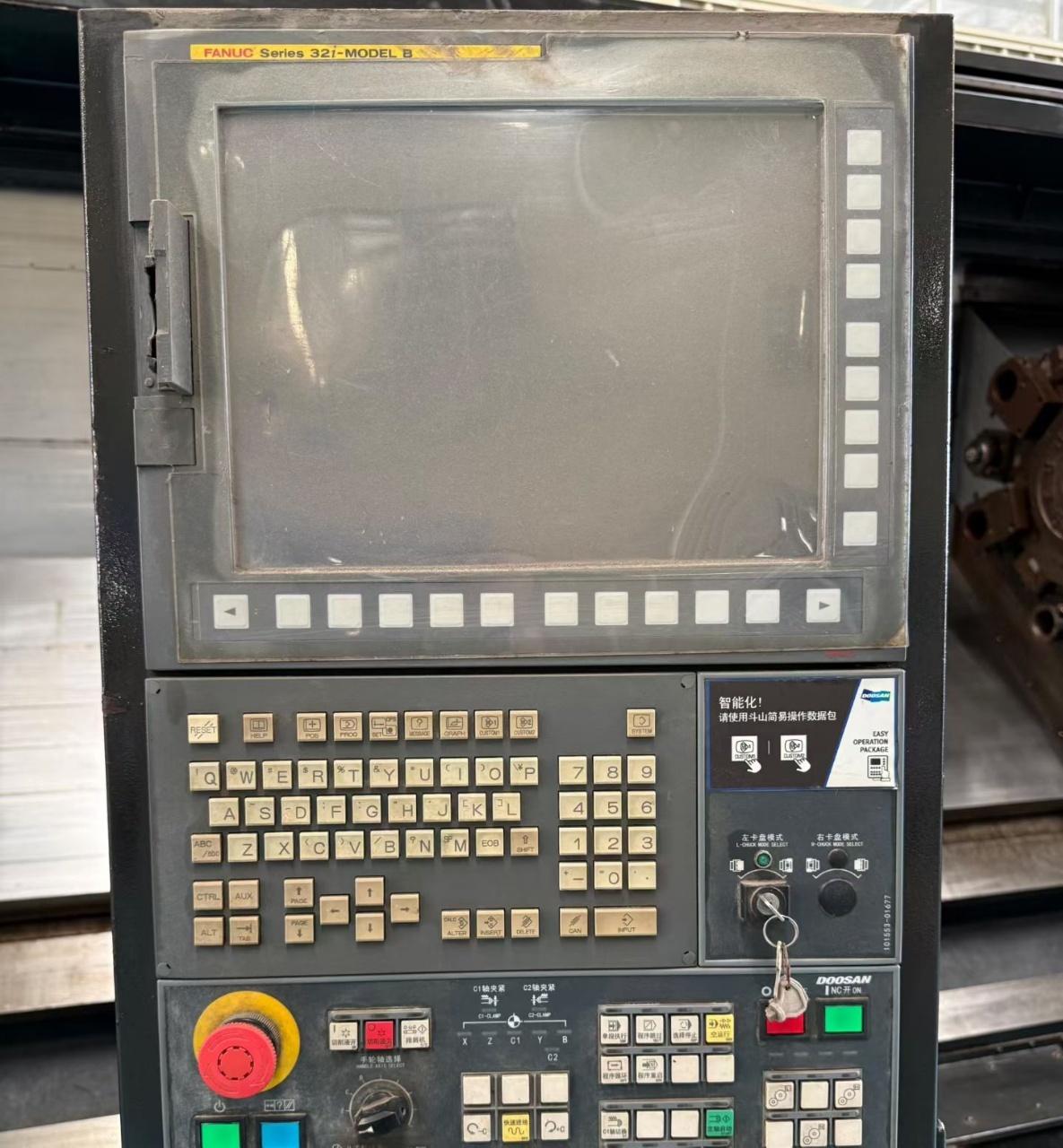

CNC System: FANUC 32i
Maximum Swing Diameter over Bed: Ø1140 mm
Maximum Swing Diameter over Saddle: Ø1000 mm
Maximum Machining Diameter: Ø900 mm
Machining Diameter: Ø800 mm
Maximum Machining Length: 5050 mm
Chuck Size: 32 inches
X-axis Travel: 470 mm
Z-axis Travel: 5100 mm
Spindle Speed: 750 rpm
Spindle Motor Power: 60 kW
Maximum Spindle Torque: 11,004 N·m
Tools Magazine Capacity: 12
Overall Dimensions (L × W × H): 9860 × 3090 × 2770 mm
