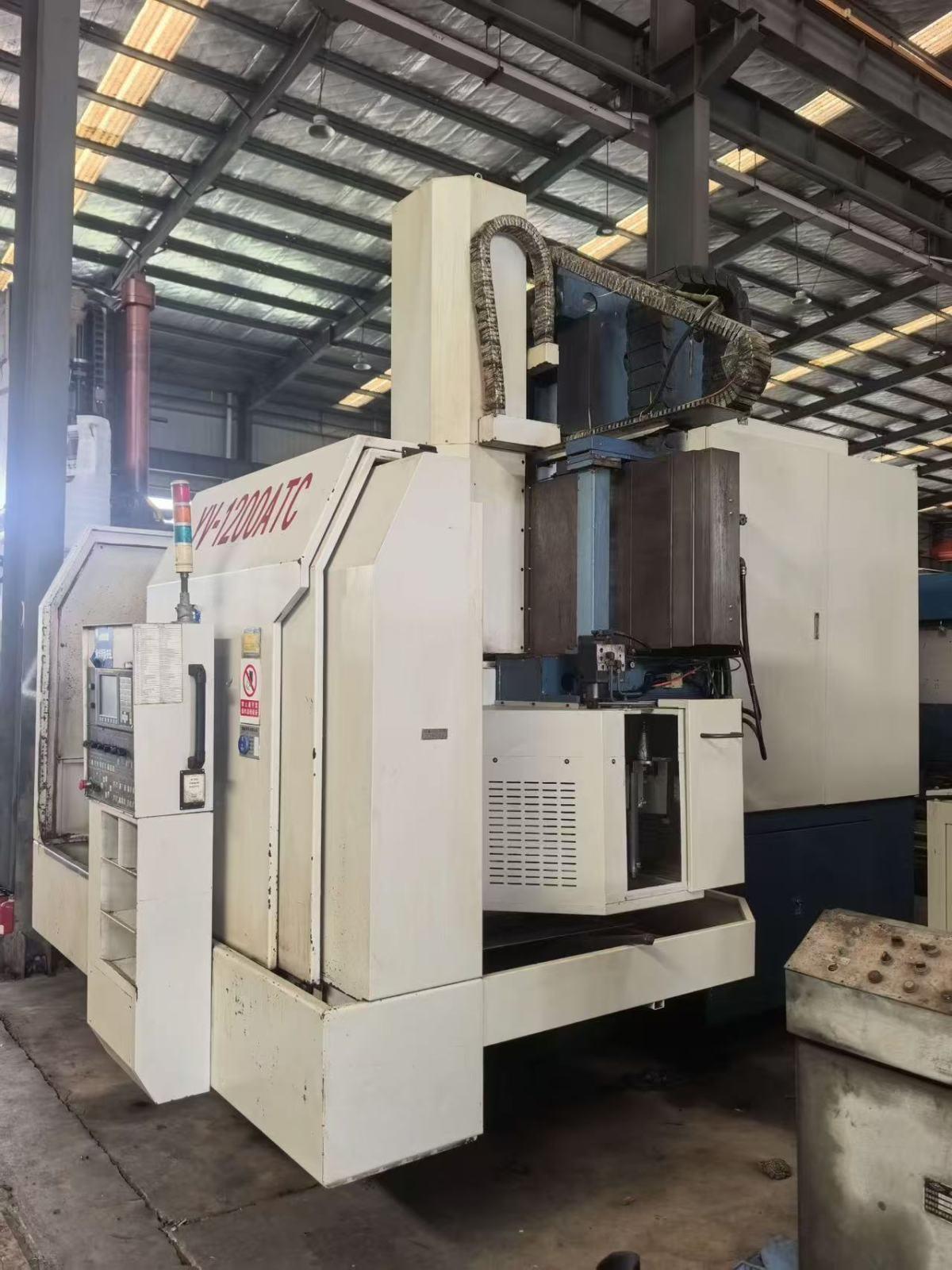

YouJi - YV-1200ATC

Inventory number：4813012

Brand：YouJi

Model：YV-1200ATC

Origin：Taiwan, China

Location：China

Year：2005

Create Time：2026-09-01

Specifications:

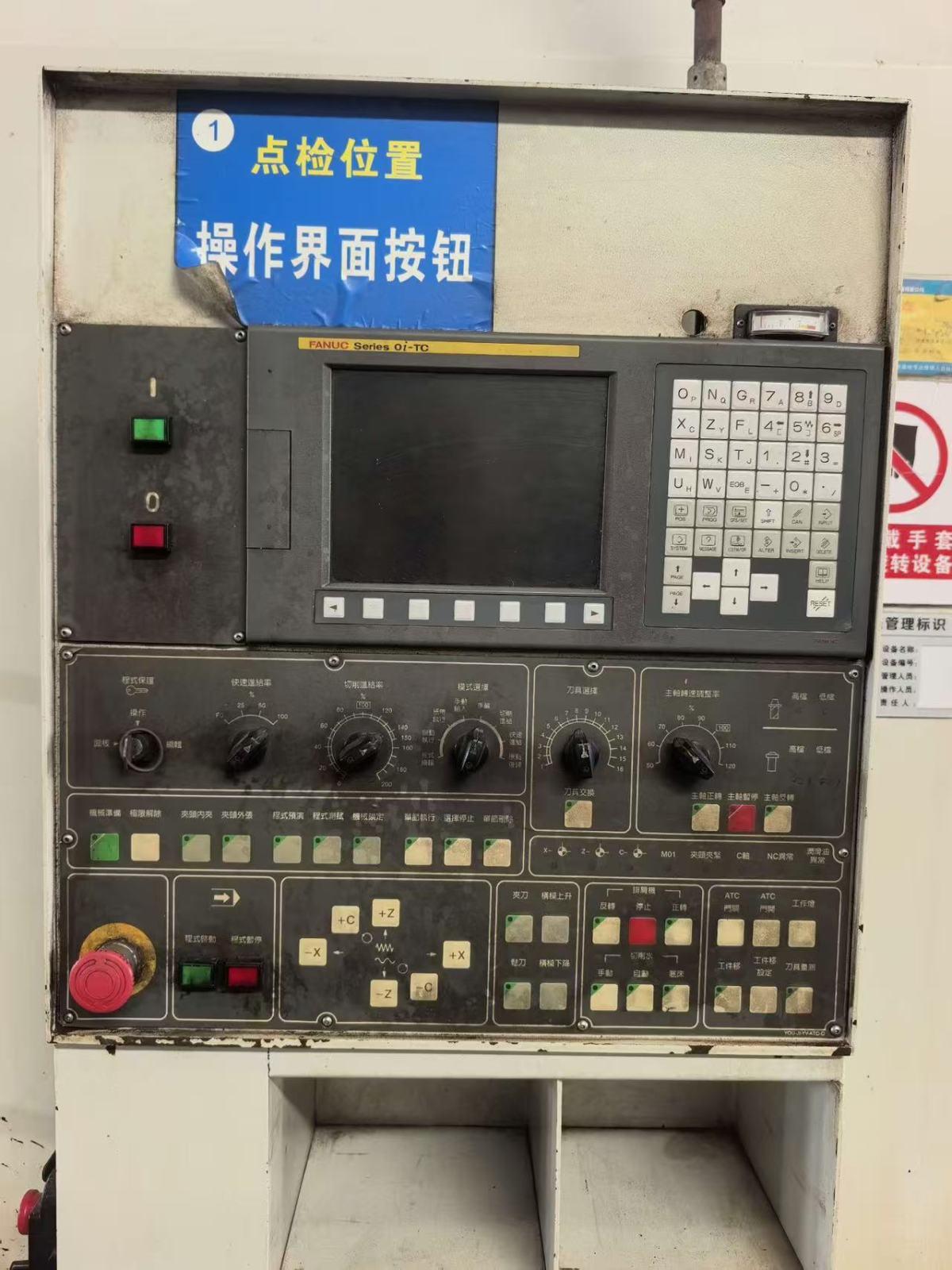

CNC System: FANUC 0i-TC

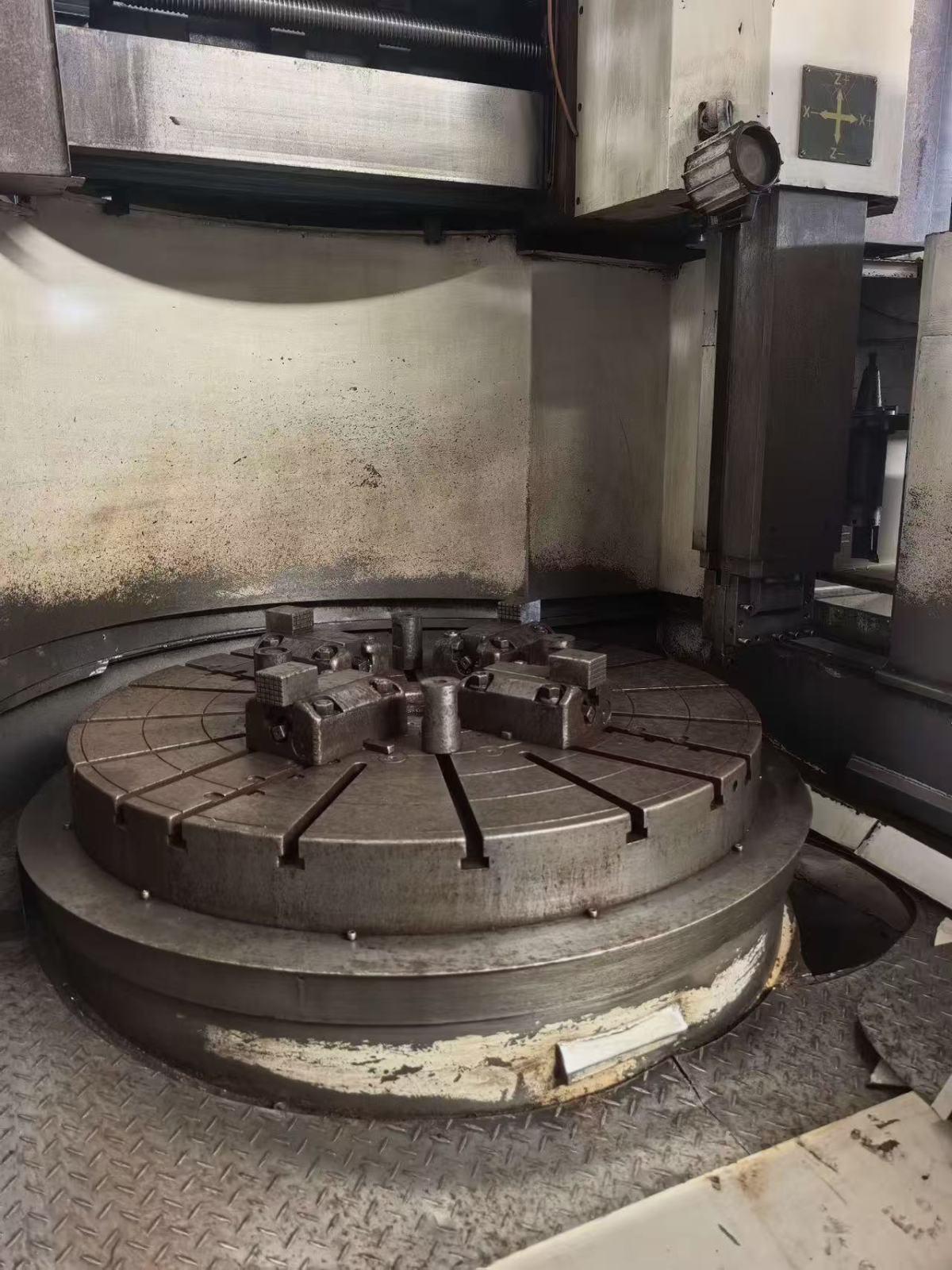

Worktable diameter: Ø1250 mm
Maximum swing diameter: Ø1600 mm
Maximum machining diameter: Ø1350 mm
Maximum machining height: 1200 mm
Maximum workpiece weight: 5000 kg
X/Z-axis travel: 935 × 900 mm
Crossbeam vertical travel: 700 mm
Spindle speed: 108–350 rpm
Spindle torque: 8200 Nm
Rapid feed rate: 12 m/min
Cutting feed rate: 2000 mm/min
Manual feed rate: 10 m/min
Spindle motor power: 37/45 kW
Positioning accuracy: 0.005 mm
Floor space: 4000 × 4600 mm
