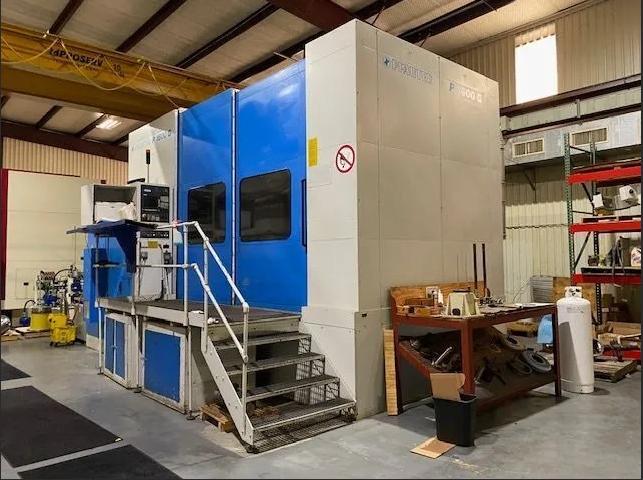

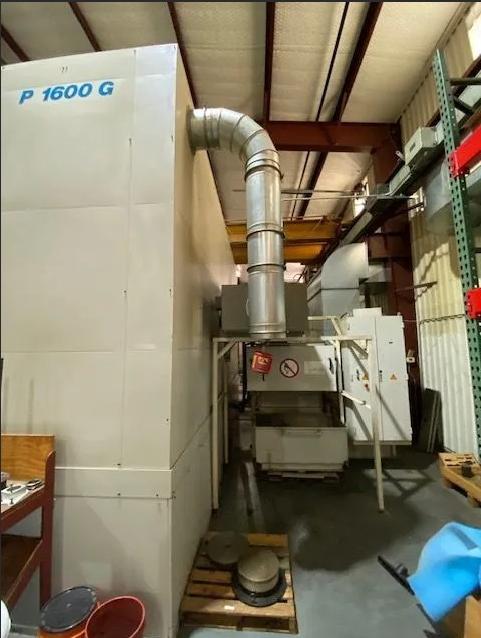

Gleason Pfauter - P-1600G

Inventory number：4812627

Brand：Gleason Pfauter

Model：P-1600G

Origin：Germany

Location：China

Year：2000

Create Time：2026-08-30

Specifications:

CNC System: Siemens 840C
Machining Capacity
Maximum workpiece diameter (standard): 1600 mm
Maximum workpiece diameter (optional): 1800 mm
Maximum workpiece weight (including fixtures): 15,000 kg
Worktable
Worktable diameter: 1200 mm
Center hole diameter: 300 mm
Center hole depth: 870 mm
Worktable height: 970 mm

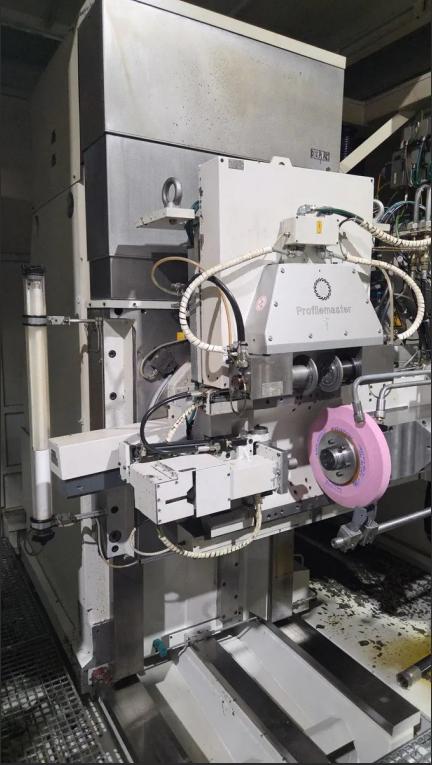

Grinding Wheel Spindle
Maximum distance from grinding wheel spindle center to worktable center: 900 mm (approx.)
Minimum distance from grinding wheel spindle center to worktable center: 100 mm
Maximum distance from grinding wheel spindle center to worktable surface: 1150 mm
Minimum distance from grinding wheel spindle center to worktable surface: 450 mm
Maximum axial travel: 700 mm
Grinding wheel spindle speed: 1200–6300 rpm
Grinding wheel spindle motor power: 24 kW
Cylindrical Grinding Wheel
Maximum grinding wheel diameter: 400 mm
Maximum grinding wheel width: 80 mm
Grinding wheel flange diameter: 80 mm
Form Grinding Wheel
Maximum grinding wheel diameter: 240 mm
Maximum grinding wheel width: 50 mm
Maximum form grinding depth: 50 mm
Tailstock
Maximum tailstock extension: 1680 mm
Minimum tailstock extension: 780 mm
Machine Dimensions
Overall dimensions (L × W × H): 8000 × 7400 × 5150 mm
Machine weight: 20,500 kg
