VICTOR - Vturn-24W

Inventory number：68906

Brand：VICTOR

Model：Vturn-24W

Origin：Taiwan, China

Location：China

Year：2026

Create Time：2026-08-27

Specifications:

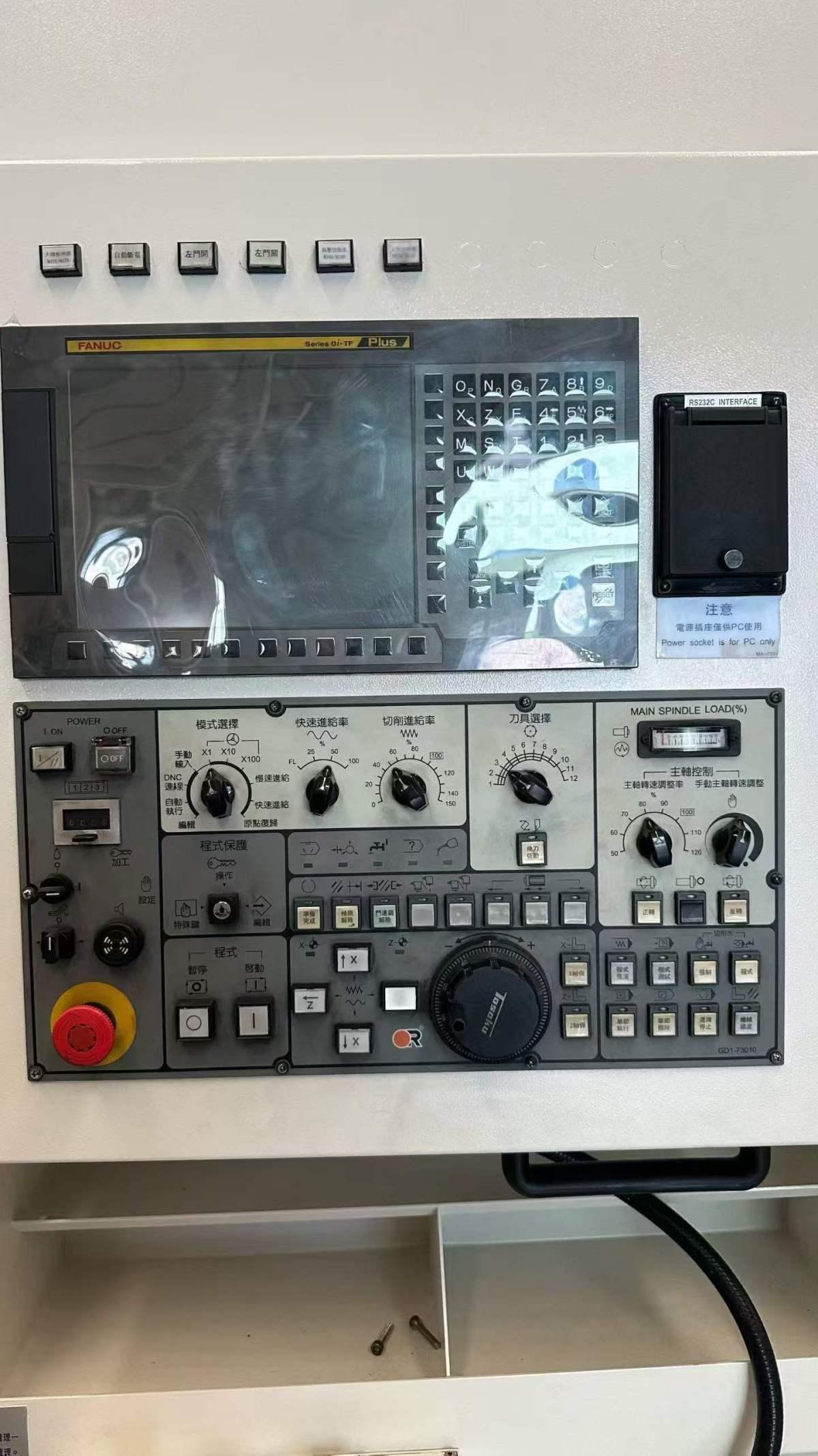

CNC System: FANUC oi - TF Plus
The maximum rotation diameter on the bed: Ø750mm
Maximum machining diameter: Ø720mm
Maximum machining length: 460mm
Compatible maximum aluminum wheel size: 24×12J inches
X-axis travel: 390mm
Z-axis travel: 900mm
spindle nose: A2-8
Spindle speed: 2000rpm
spindle motor power: 37kW

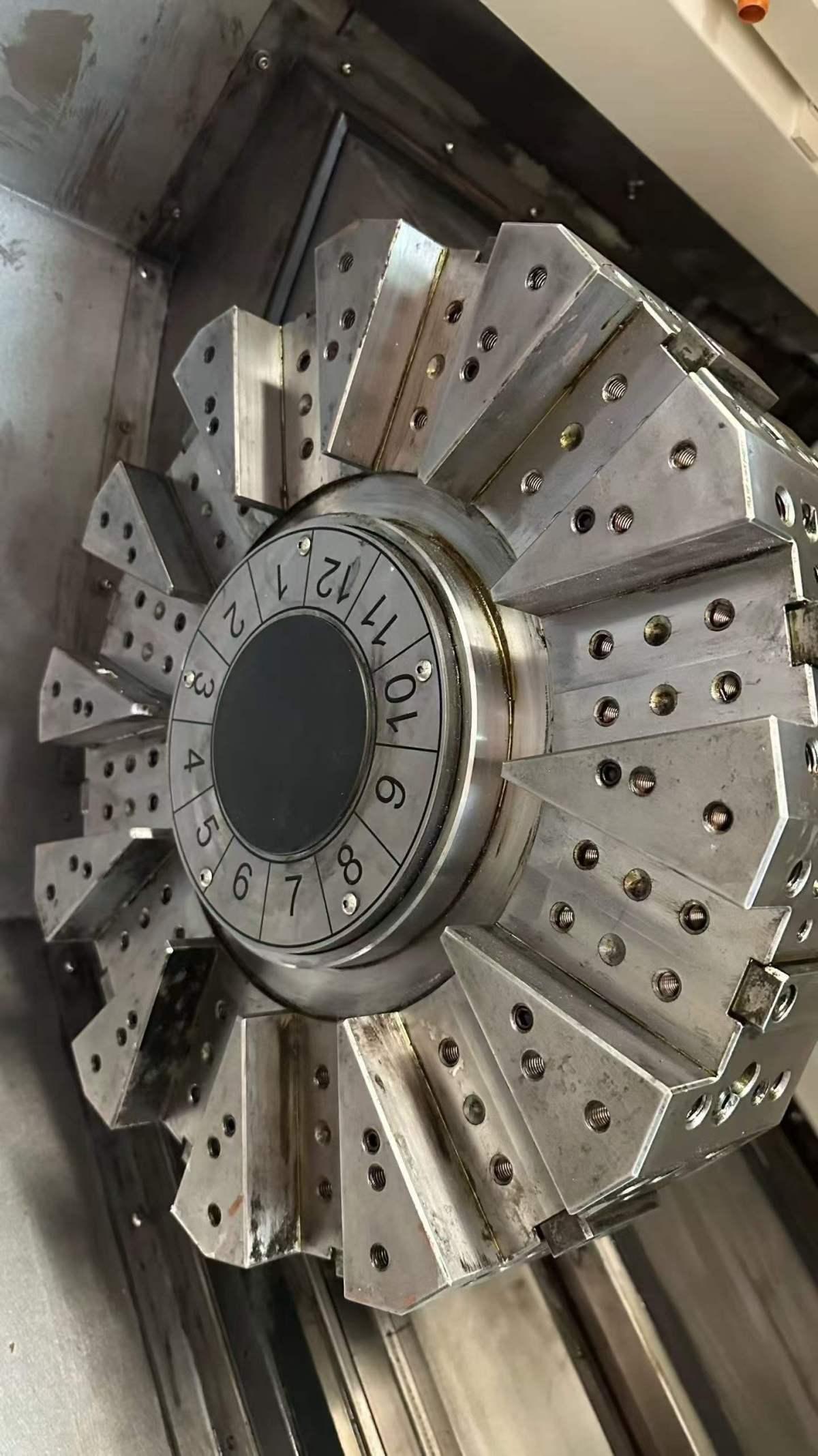

Turret positions: 12 workstations

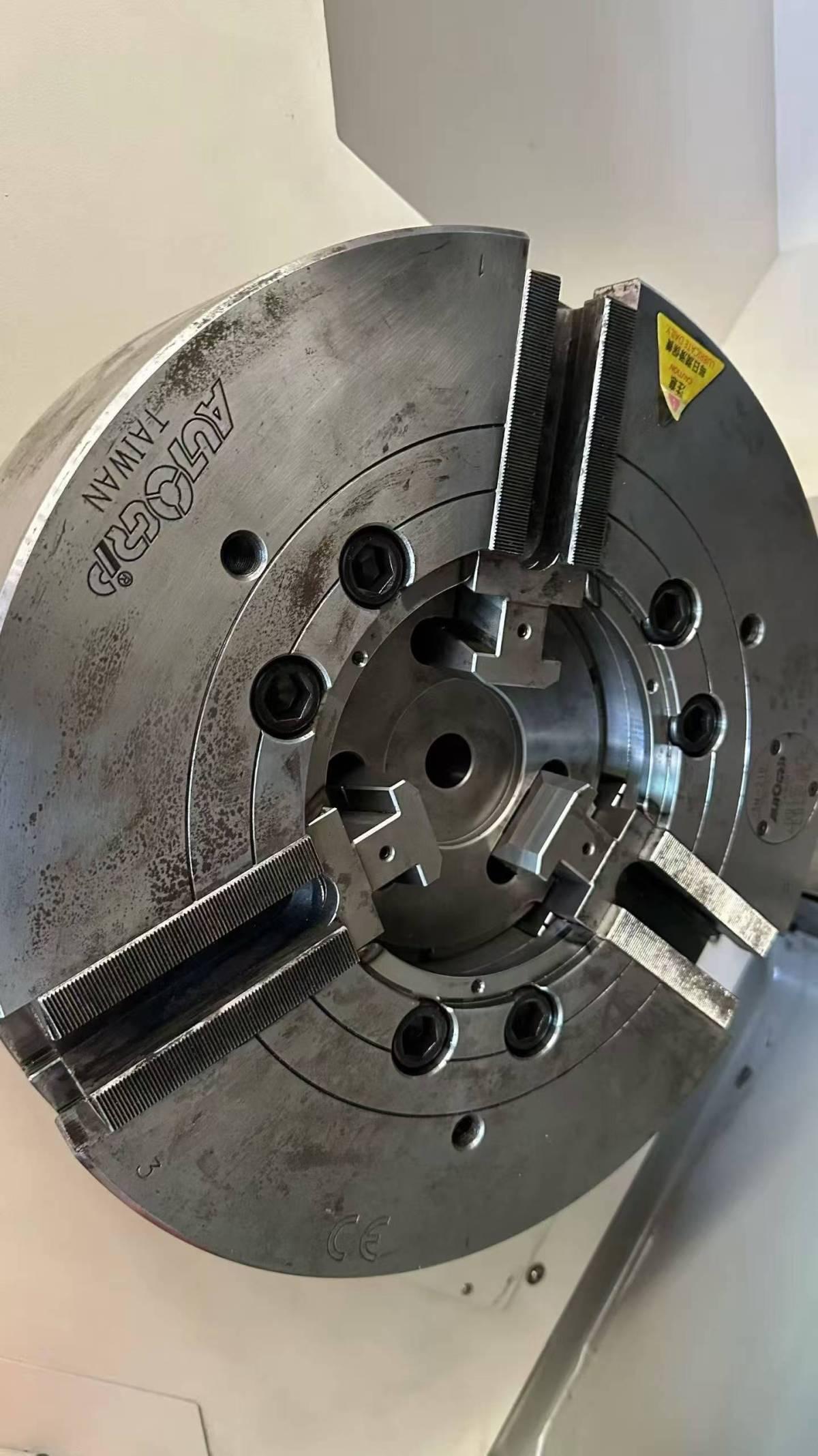

chuck : 15 inches
