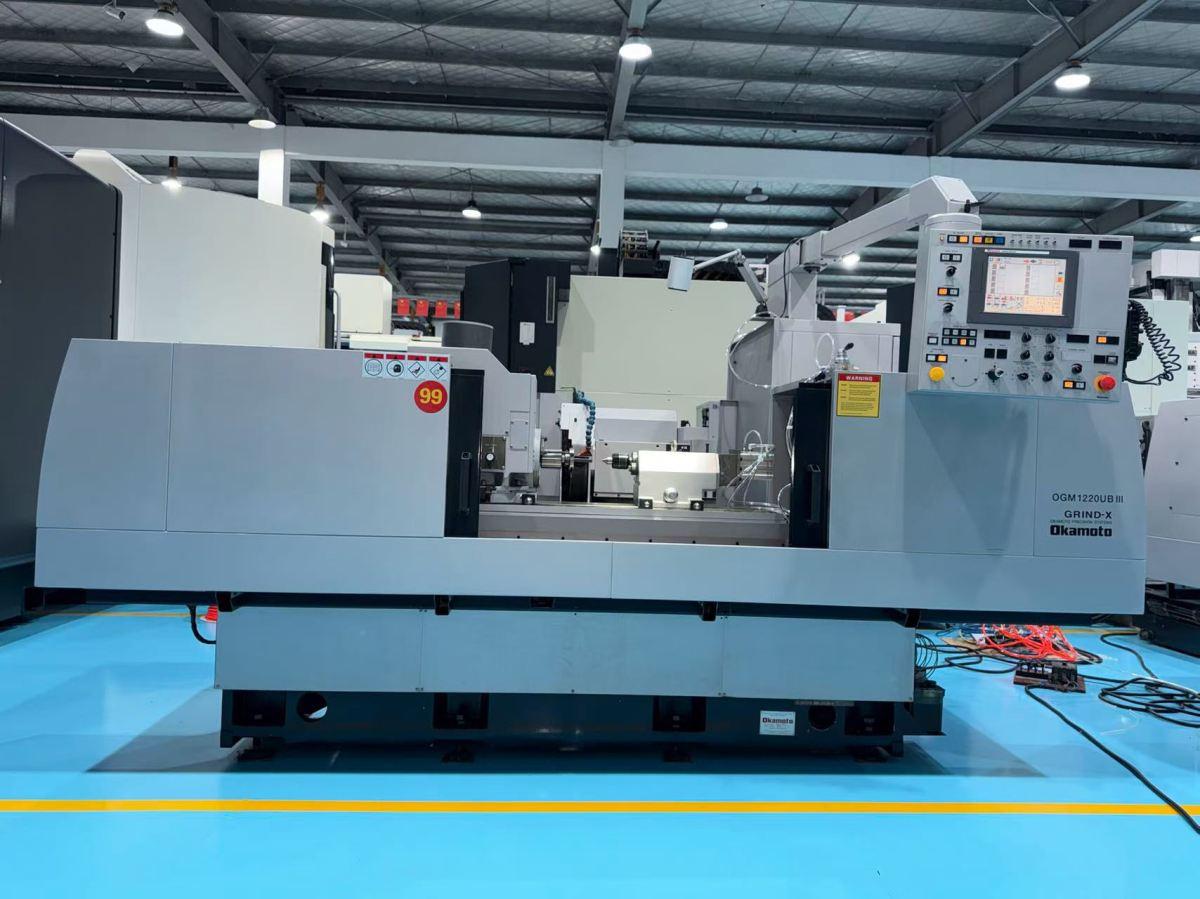

Okamoto - OGM-1220UB III

Inventory number：813013

Brand：Okamoto

Model：OGM-1220UB III

Origin："Japan

Location：China

Year：2016

Create Time：2026-08-26

Specifications:

Worktable swing diameter: Ø320 mm
Maximum grinding diameter: Ø305 mm
Distance between centers / Maximum grinding length: 508 mm
Maximum workpiece weight: 60 kg
Grinding wheel size: Ø355 × 38 × Ø127 mm
Grinding wheel head swivel angle: ±30°
Grinding wheel spindle motor: FANUC servo motor 5.5/7.5 kW
Worktable swivel angle: +4° to -11°
Tailstock taper: MT4
Spindle speed: 10–500 rpm
