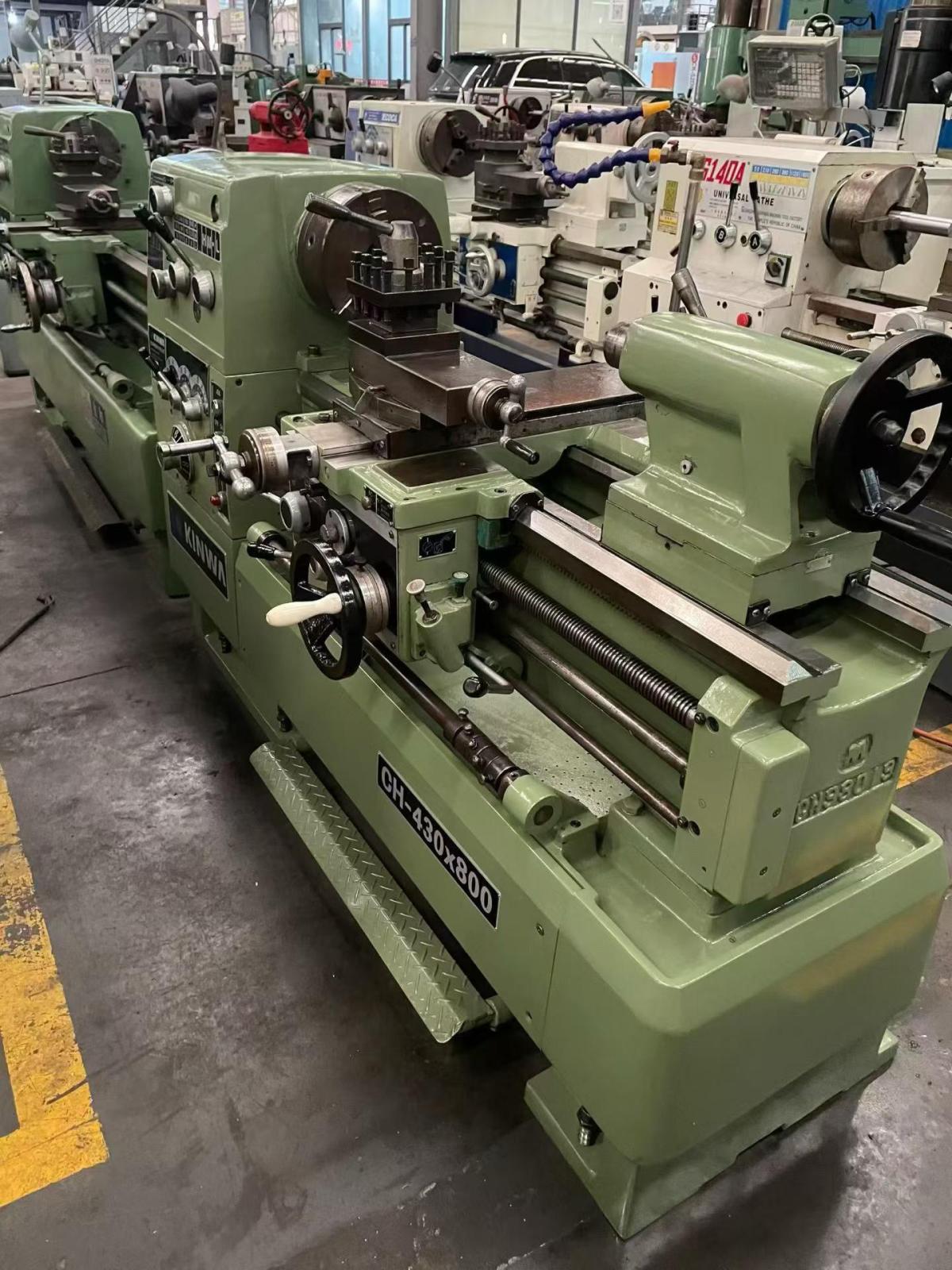

KINWA - CH430X800

Inventory number：68880

Brand：KINWA

Model：CH430X800

Origin：Taiwan, China

Location：China

Year：2021

Create Time：2026-08-25

Specifications:

The maximum rotation diameter on the bed is 432mm
Maximum rotational diameter on the saddle surface: 268mm
Distance between the two centers: 800mm

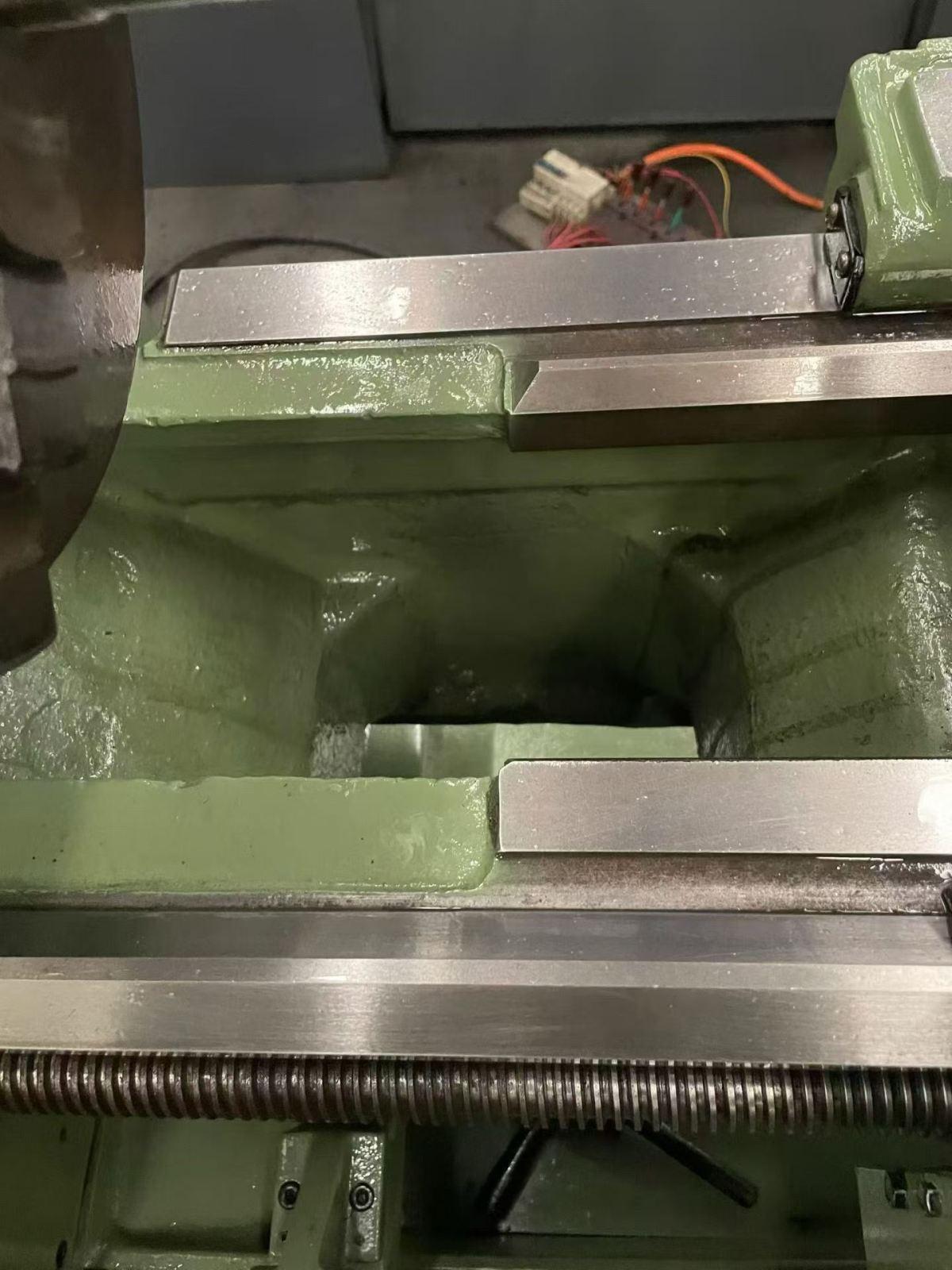

Width of the bed guideway: 300mm
spindle through hole: 58mm
spindle taper: MT-6
spindle nose: A1-6
Spindle speed: 2000rpm
Main motor power: 5.5kW
