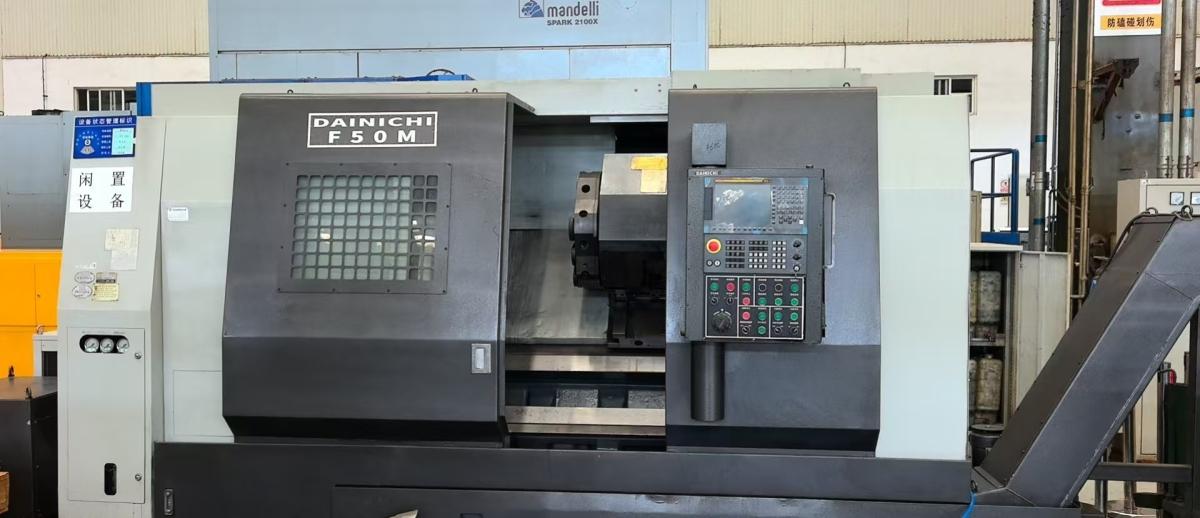

DAINICHI - F50M

Inventory number：4812777

Brand：DAINICHI

Model：F50M

Origin：

Location：China

Year：2026

Create Time：2026-08-24

Specifications:

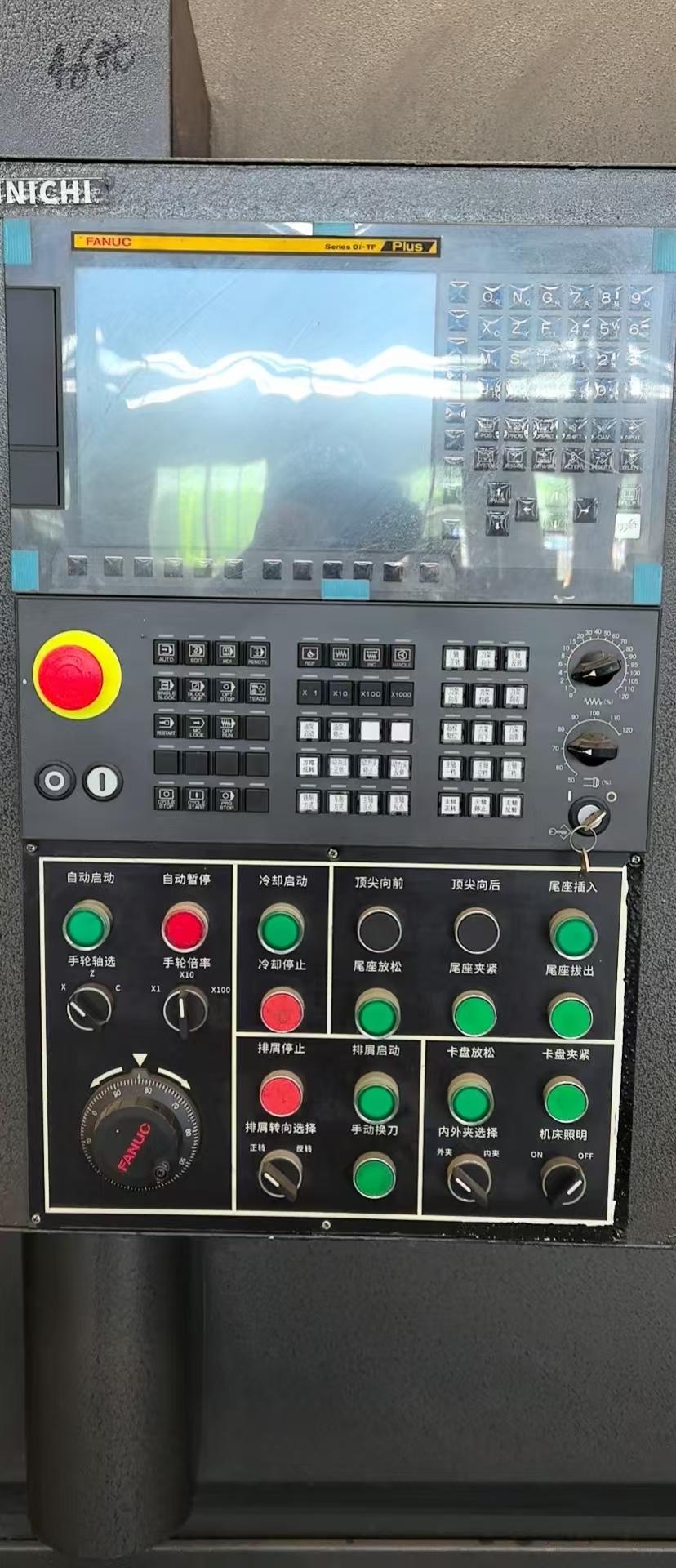

CNC System: FANUC Oi-TF
Maximum swing diameter over bed: φ700 mm
Maximum swing diameter over cross slide: φ460 mm
Distance between centers: 1250 mm
Maximum machining length: 1180 mm
Spindle through-hole diameter: φ120 mm

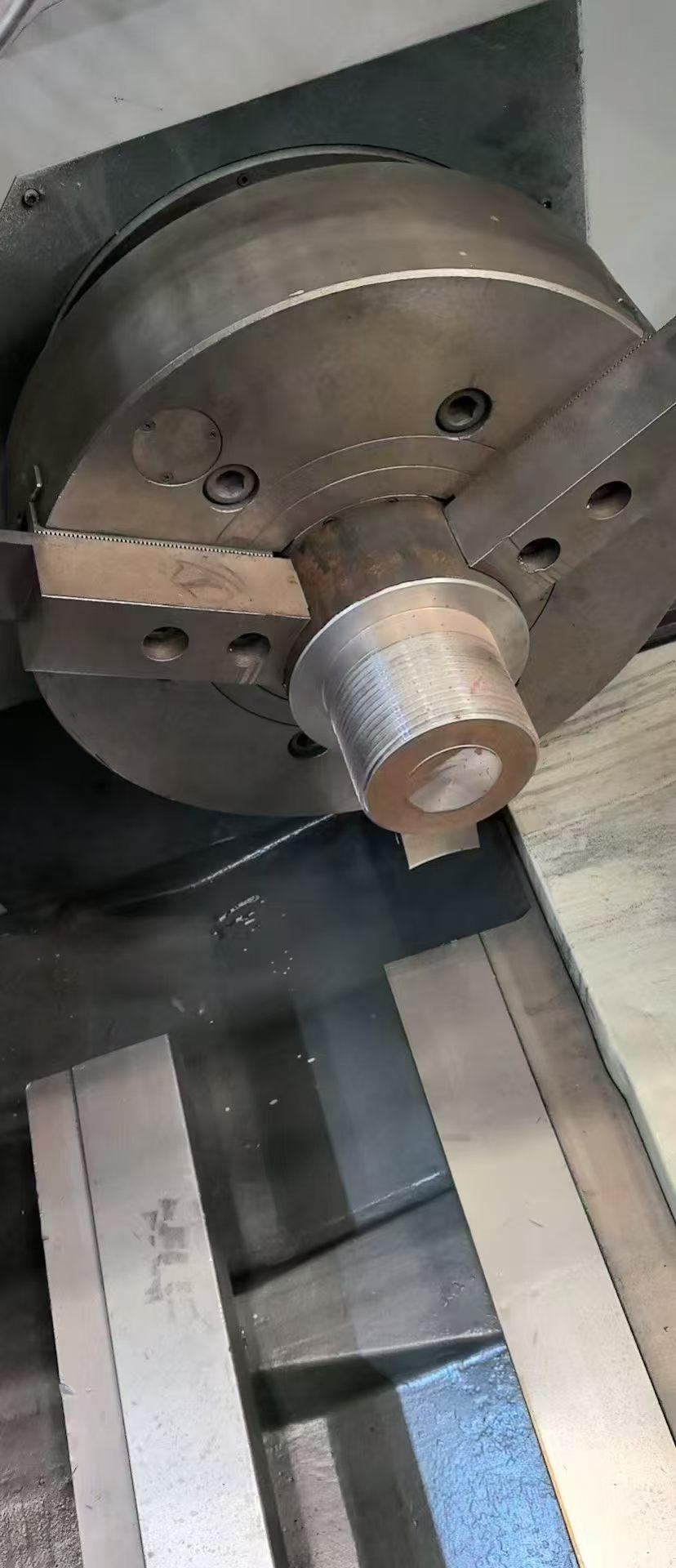

Standard chuck specification: 15-inch hydraulic chuck
Spindle nose type: A2-11
Spindle speed range: 3–1120 rpm
Standard spindle motor power: 30 kW / 40 HP (continuous rating)
Optional spindle motor upgrade: 45 kW / 60 HP
X-axis travel: 360 mm
Z-axis travel: 1250 mm
X-axis rapid traverse rate: 8 m/min
Z-axis rapid traverse rate: 10 m/min

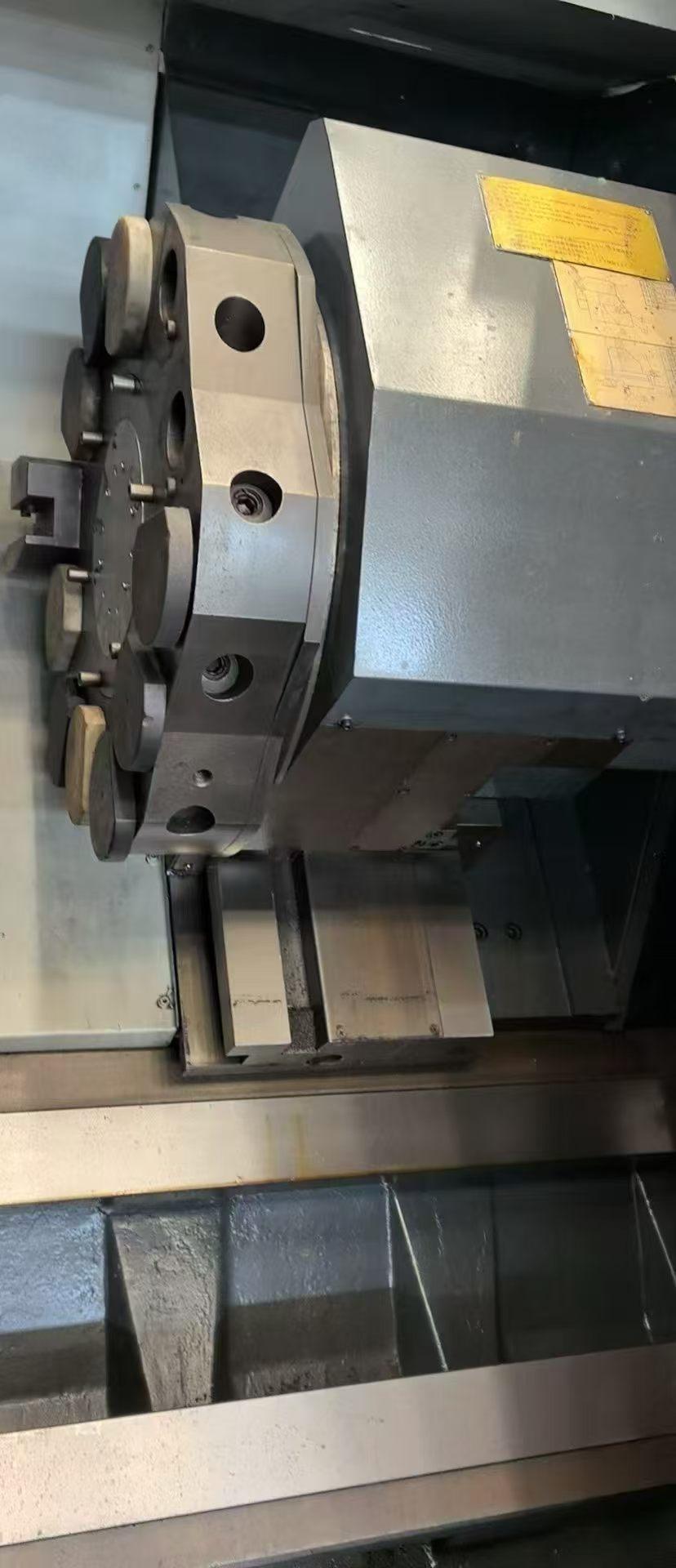

Standard tool turret: 8-station hydraulic turret
External turning tool size: 32 × 32 mm
Maximum boring bar diameter: φ50 mm

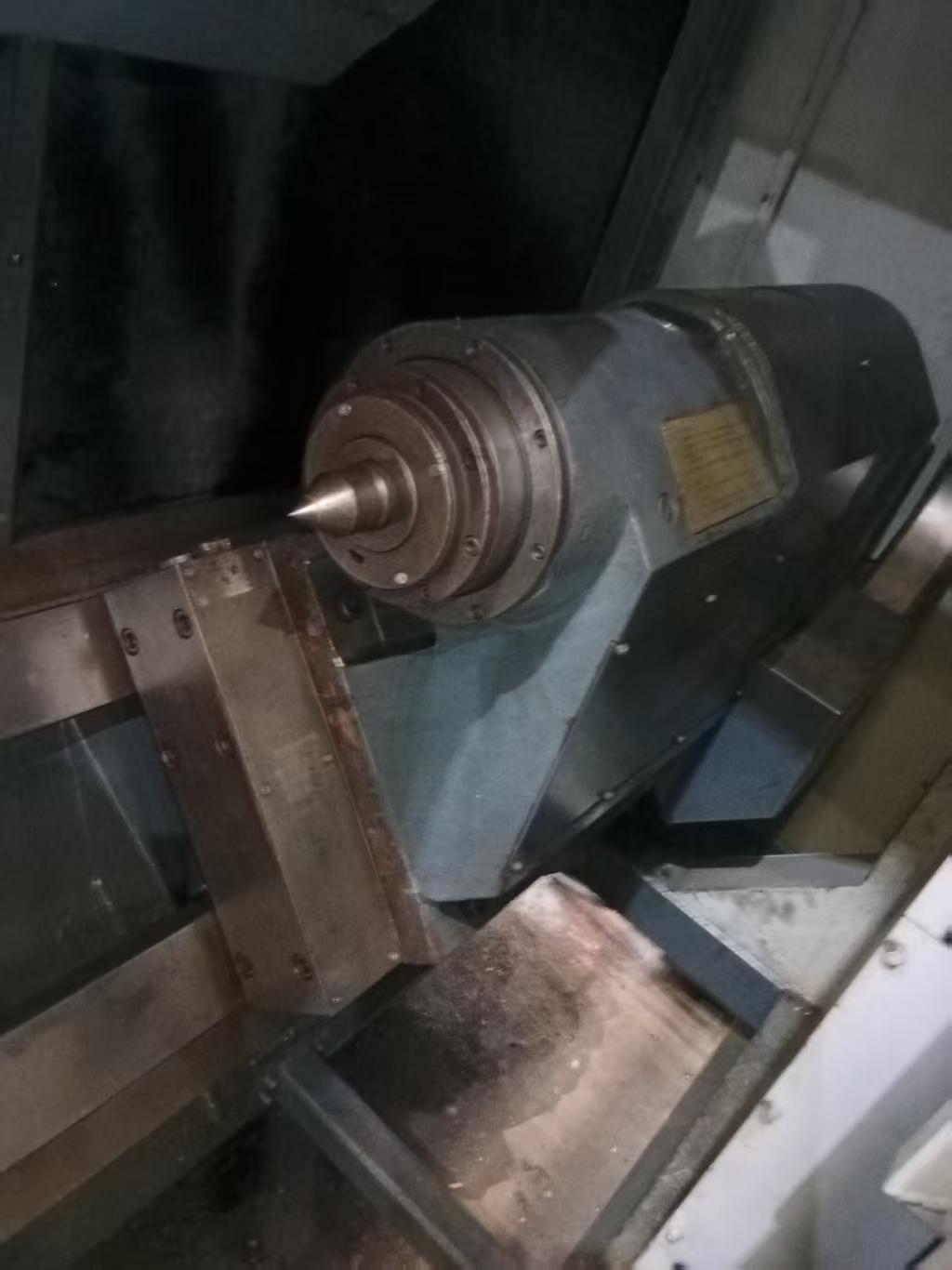

Quill travel: 150 mm
Quill taper: MT6
Quill drive mode: Hydraulic telescopic type with hydraulic locking
Optional features: Power-driven turret + C-axis (with milling function)

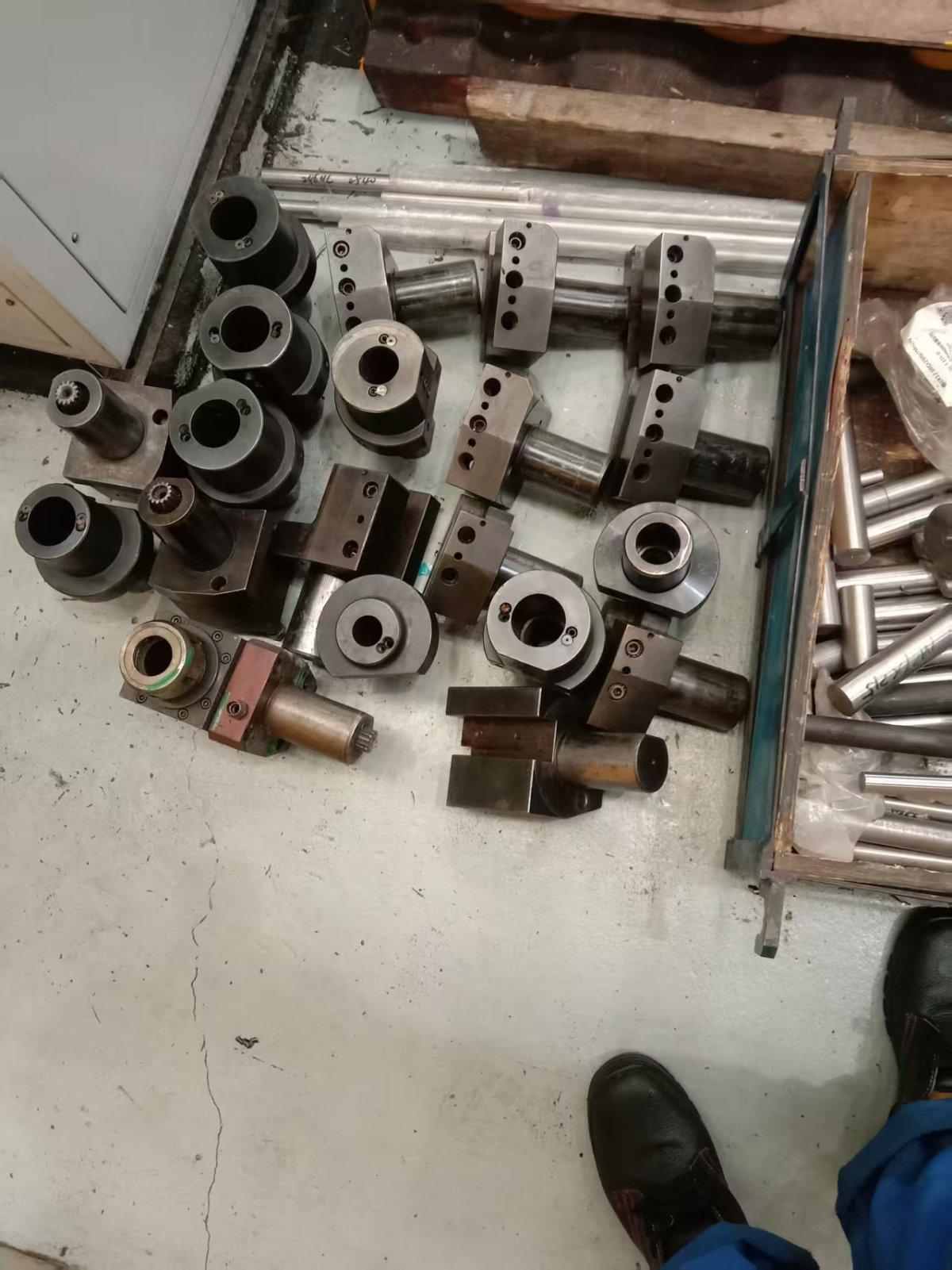

Optional accessories: Hydraulic steady rest, tool holders
Expansion options: Supports C-axis, live tooling, and second spindle

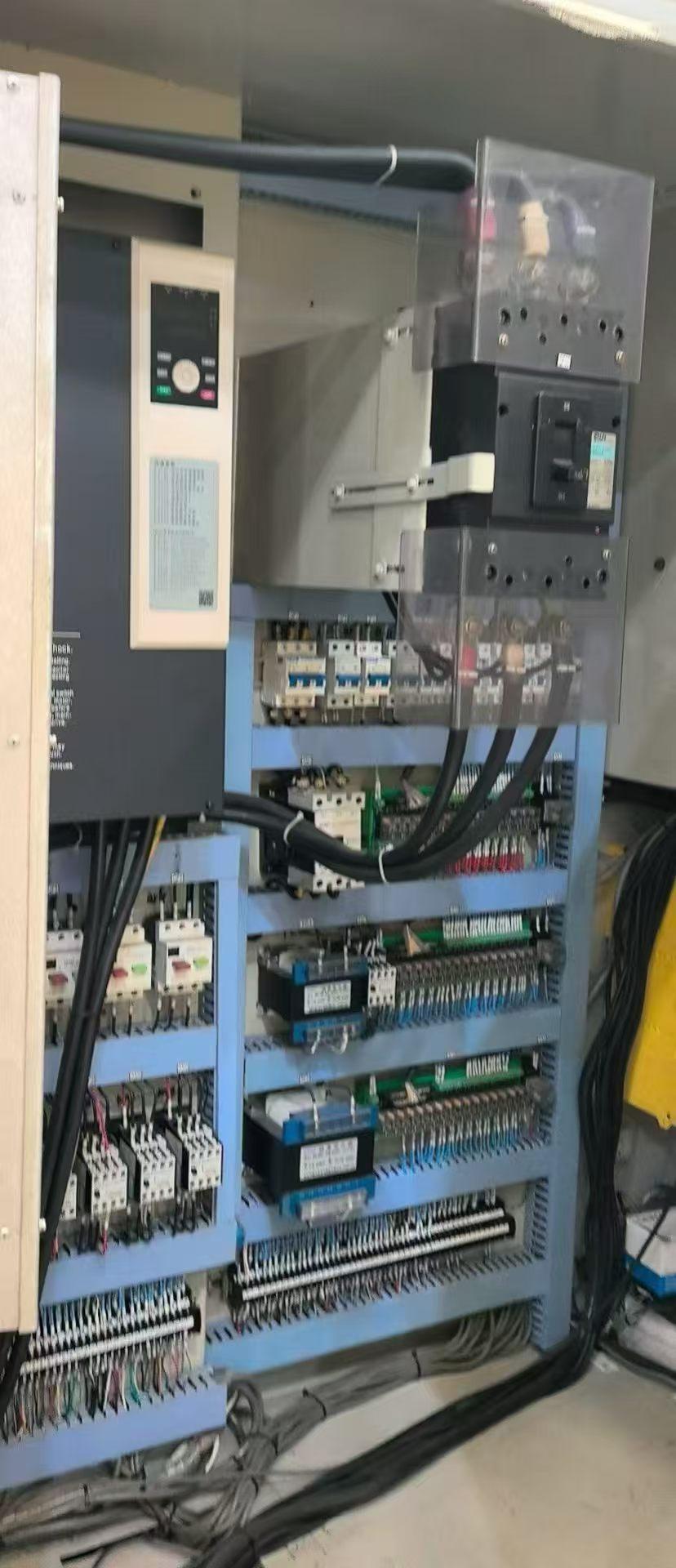

Power supply: AC380V, 50Hz
Total power capacity: Approximately 55 kVA
Machine weight: Approximately 11,000 kg
Floor space (L × W): 4250 × 2100 mm
Machine height: 1850 mm
