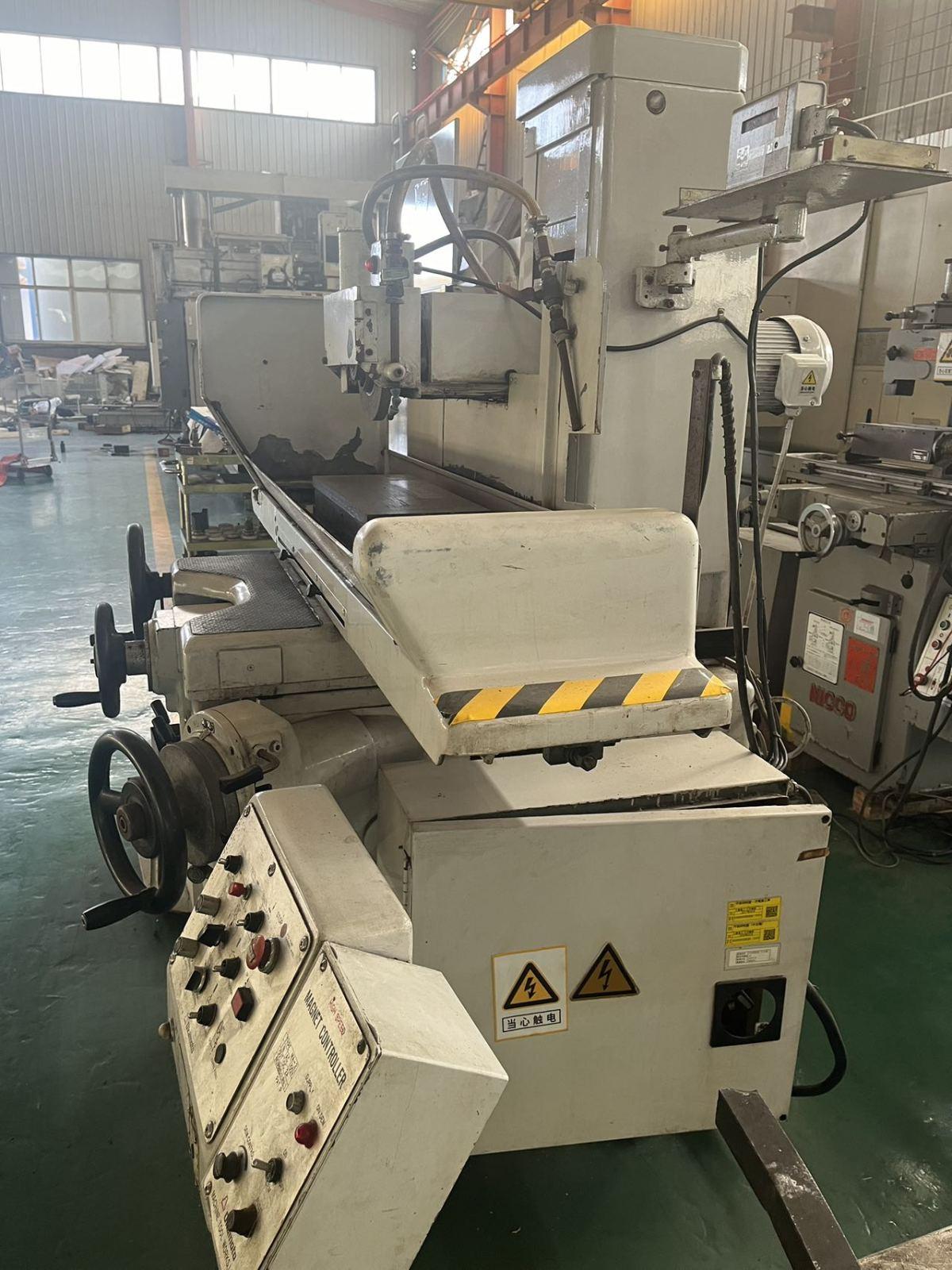

Okamoto - PSG-52BN

Inventory number：812999

Brand：Okamoto

Model：PSG-52BN

Origin："Japan

Location：China

Year：1990

Create Time：2026-08-24

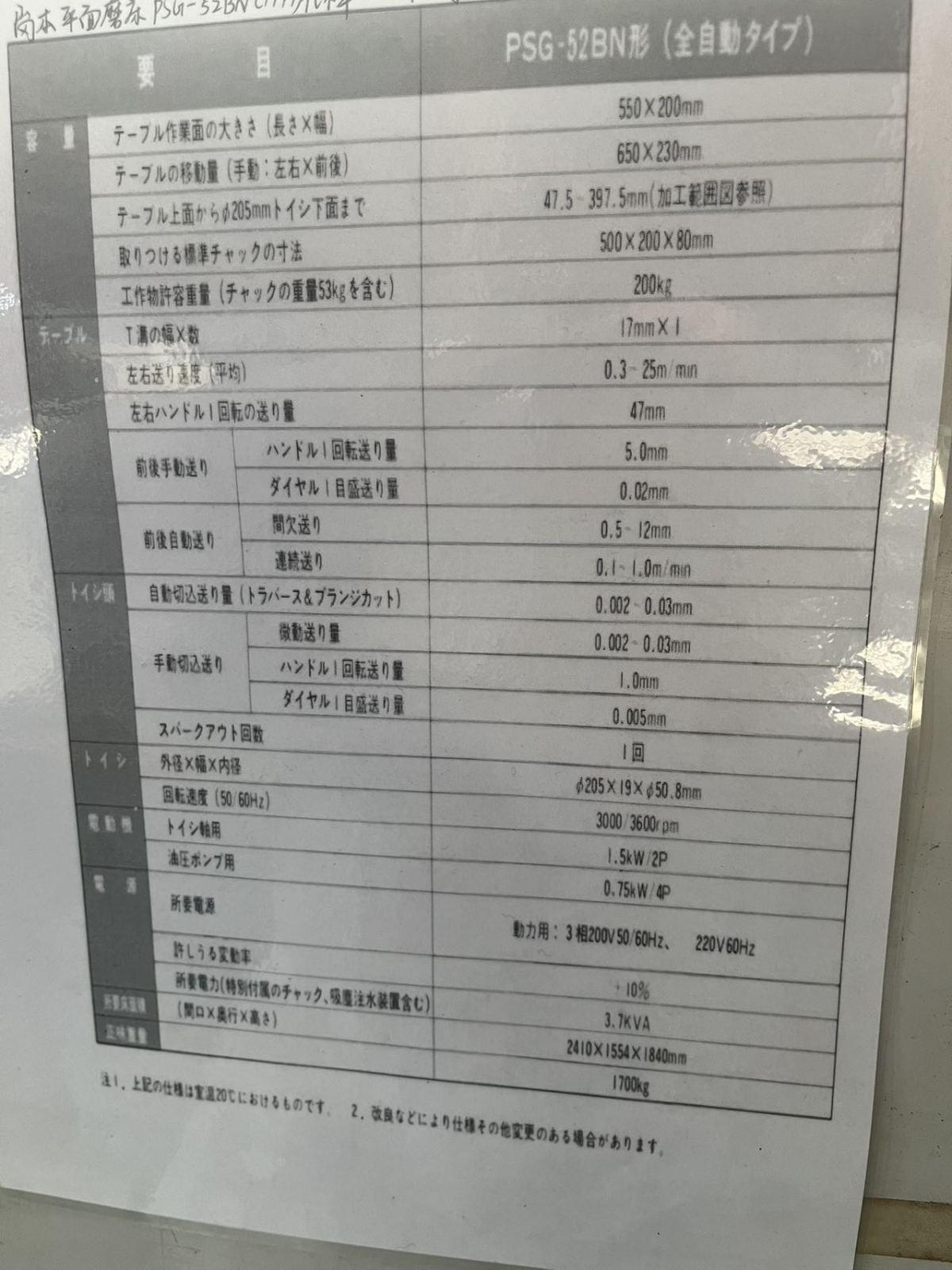

Specifications:

Worktable size: 550 × 200 mm
Distance from worktable surface to the bottom of the grinding wheel: 47.5–397.5 mm
Standard chuck size: 500 × 200 × 80 mm
Maximum workpiece weight: 200 kg (including 53 kg chuck)
T-slot: 17 mm × 1
Left-right worktable speed: 0.3–25 m/min
Feed per revolution of left-right handwheel: 47 mm
Feed per graduation of left-right handwheel: 5.0 mm
Left-right fine feed: 0.02 mm
Front-rear manual feed: 0.5–12 mm
Front-rear automatic feed: 0.1–1.0 m/min
Feed per revolution of front-rear handwheel: 0.002–0.03 mm
Feed per graduation of front-rear handwheel: 0.002–0.03 mm
Intermittent feed: 1.0 mm
Continuous feed: 0.005 mm
Automatic infeed: 0.002–0.03 mm
Fine feed: 0.002–0.03 mm
Manual infeed: 1.0 mm
Feed per revolution of handwheel: 0.005 mm

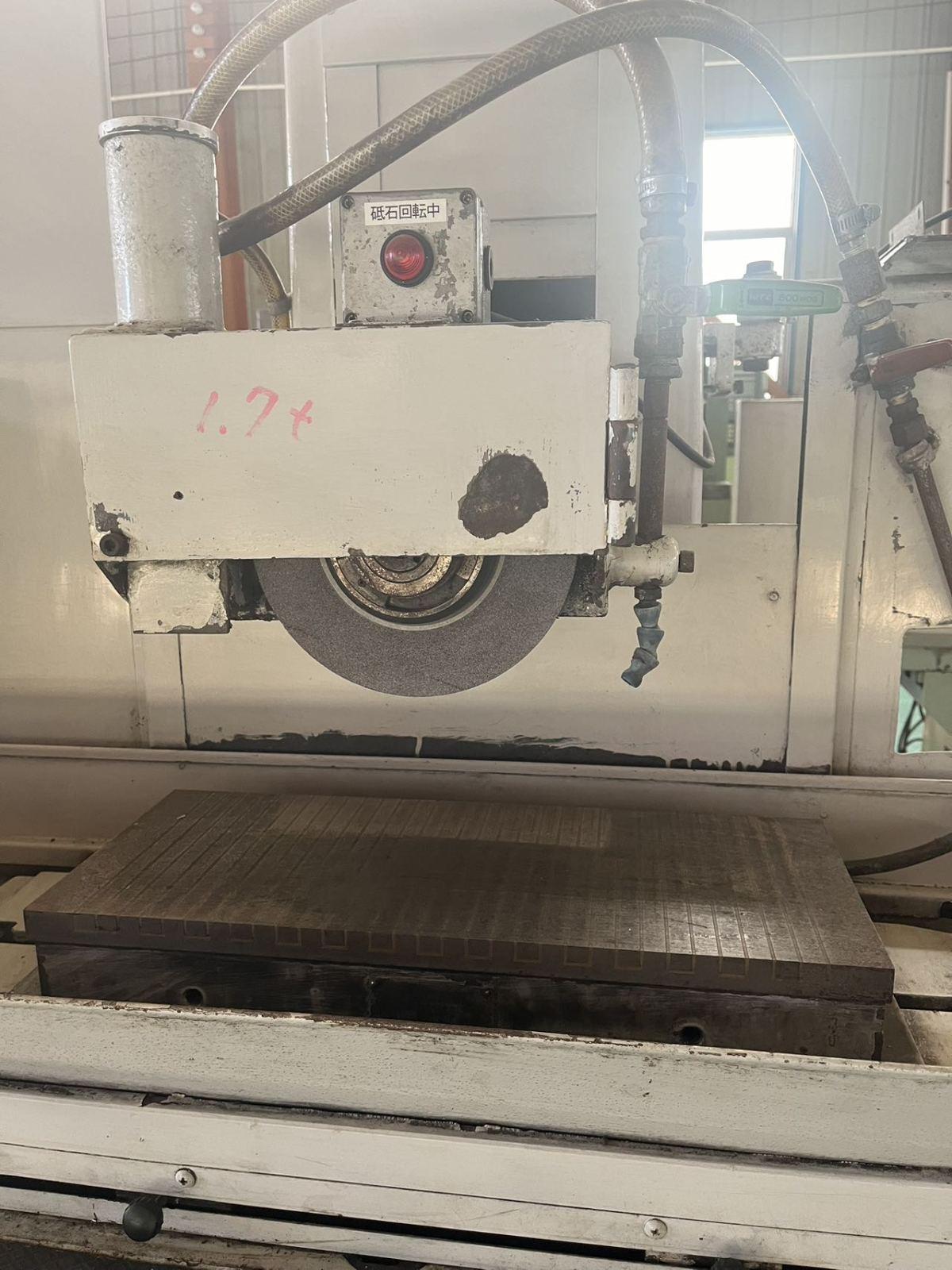

Grinding wheel size: Ø205 × 19 × Ø50.8 mm
Grinding wheel speed: 3000/3600 rpm
Grinding wheel spindle motor: 1.5 kW / 2P
Hydraulic pump motor: 0.75 kW / 4P
Power supply: Three-phase 200 V, 50/60 Hz; 220 V, 60 Hz
Allowable voltage fluctuation: ±10%
Required power: 3.7 kVA
Overall dimensions: 2410 × 1554 × 1840 mm
Machine weight: 1700 kg
