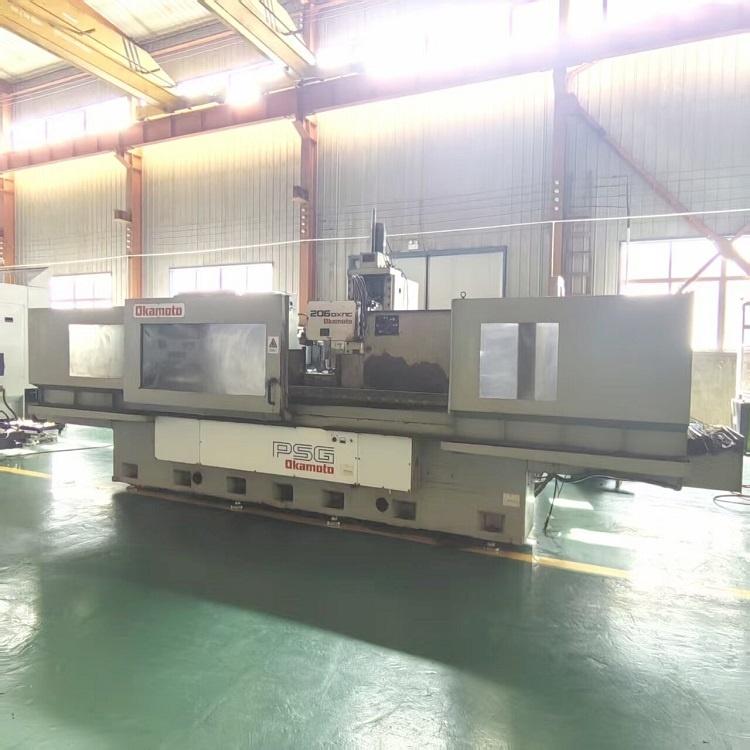

Okamoto - PSG-206DXNC

Inventory number：812974

Brand：Okamoto

Model：PSG-206DXNC

Origin："Japan

Location：China

Year：1993

Create Time：2026-08-21

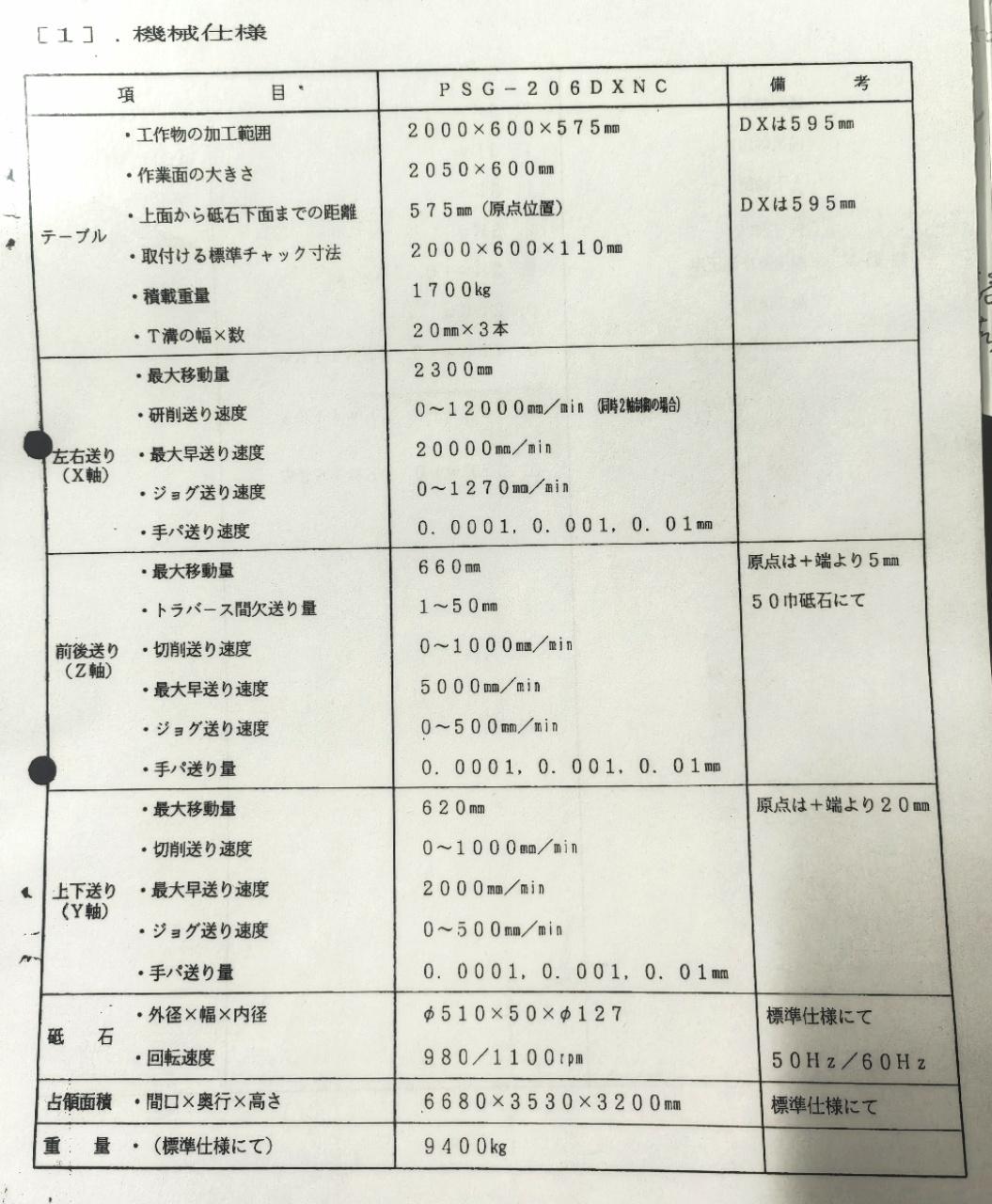

Specifications:

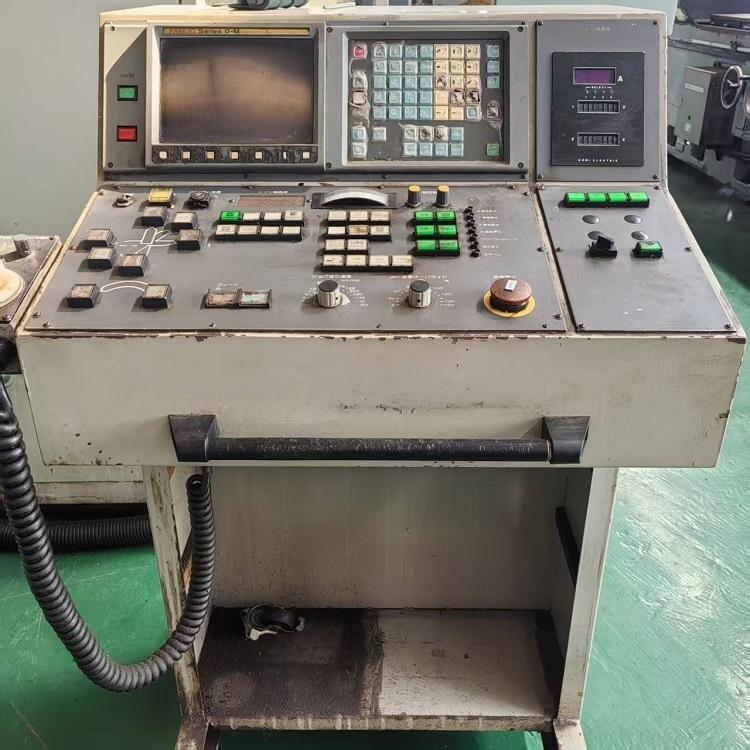

CNC System: FANUC 0-M

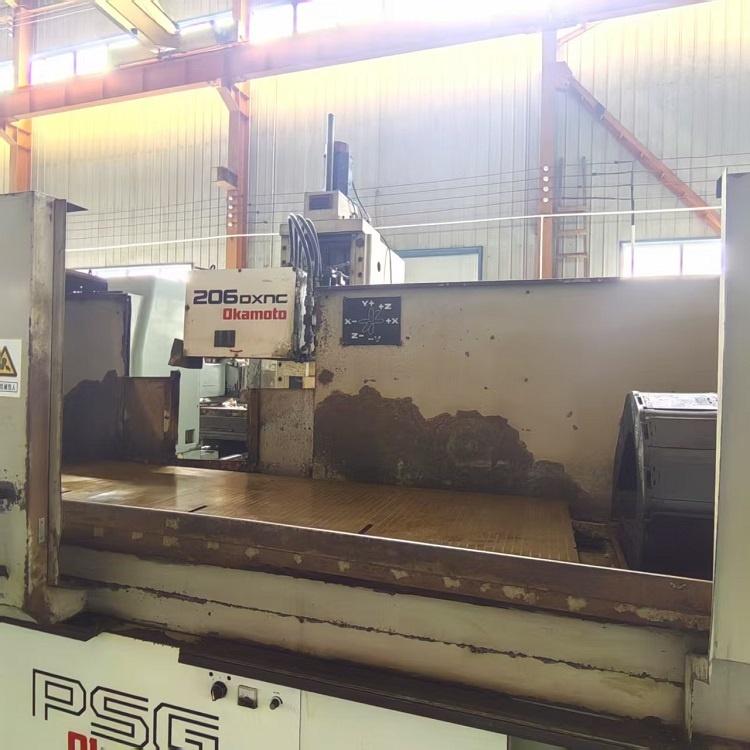

Worktable Size: 2050 × 600 mm
Maximum Worktable Load: 1700 kg
Maximum Machining Range (X/Y/Z): 2000 × 600 × 575 mm
X/Y/Z-Axis Travel: 2300 × 620 × 660 mm
Distance from Worktable Surface to Grinding Wheel Bottom: 575 mm (at Origin Position)
Standard Electromagnetic Chuck Size: 2000 × 600 × 110 mm
Grinding Wheel Size (OD × Width × ID): Ø510 × 50 × Ø127 mm
Grinding Wheel Speed: 980 / 1100 rpm
Machine Dimensions (L × W × H): 6680 × 3530 × 3200 mm
Machine Weight: 9400 kg
