MAZAK - INTEGREX 50YB

Inventory number：812762

Brand：MAZAK

Model：INTEGREX 50YB

Origin："Japan

Location：China

Year：2001

Create Time：2026-07-28

Specifications:

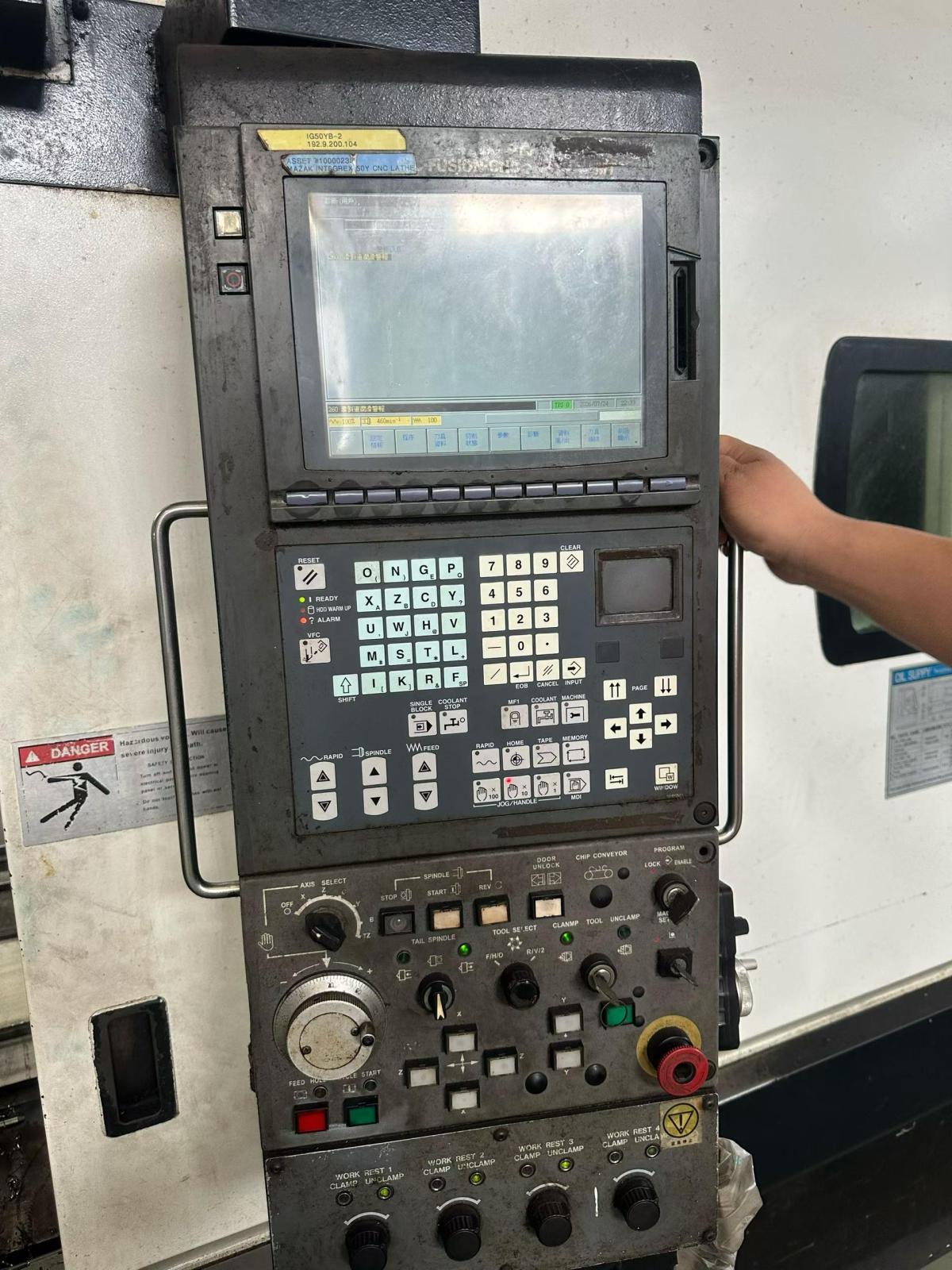

CNC System: Mazatrol Fusion 640T
Maximum machining length: 2500mm
Maximum machining diameter: 710mm
Maximum swing diameter over bed: 710mm
Maximum swing diameter over cross slide: 520mm
Distance between centers: 1500mm
X-axis travel: 680mm
Z-axis travel: 2122mm
Spindle bore: 104mm
Maximum spindle speed: 2200rpm
Spindle motor power: 30kW
Machine dimensions (L × W × H): 3485 × 7239 × 2883mm
Machine tool weight: 15,200kg
