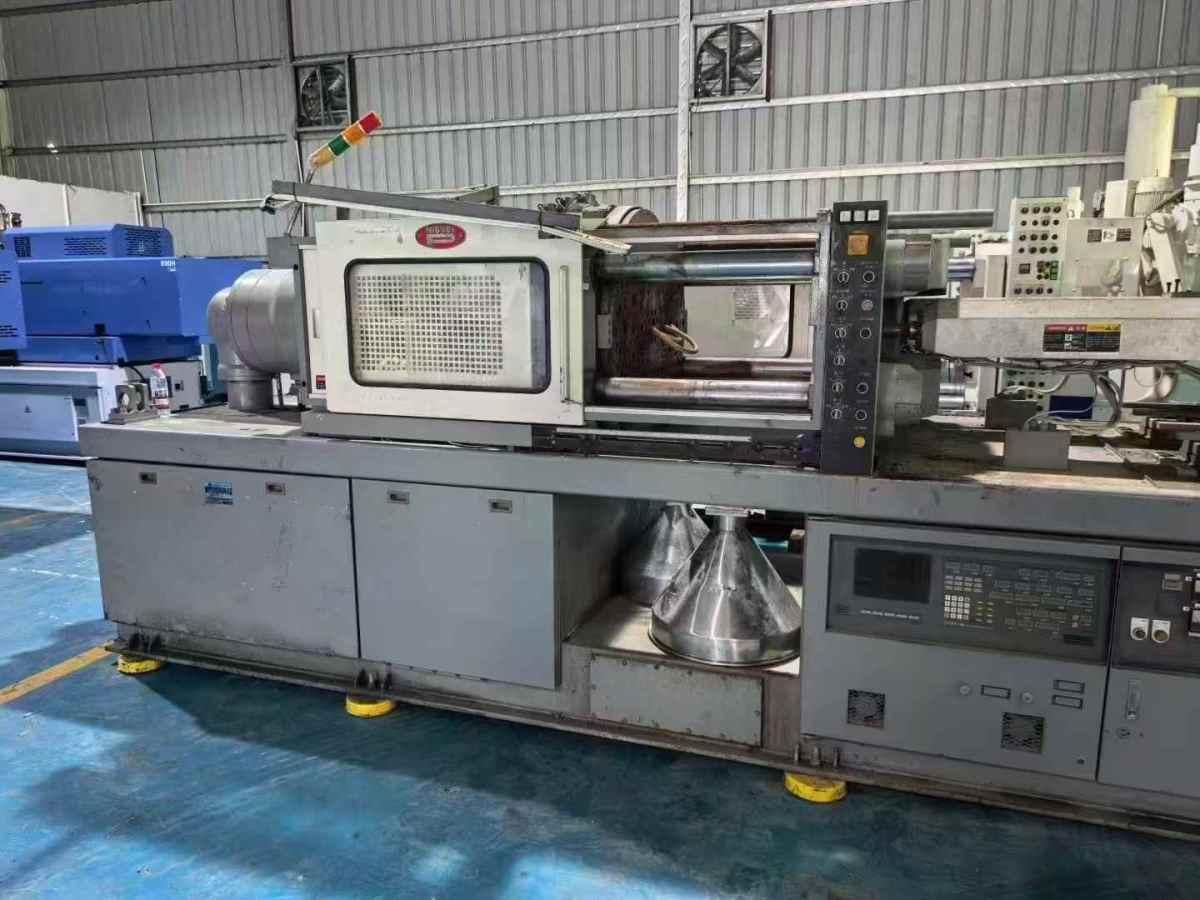

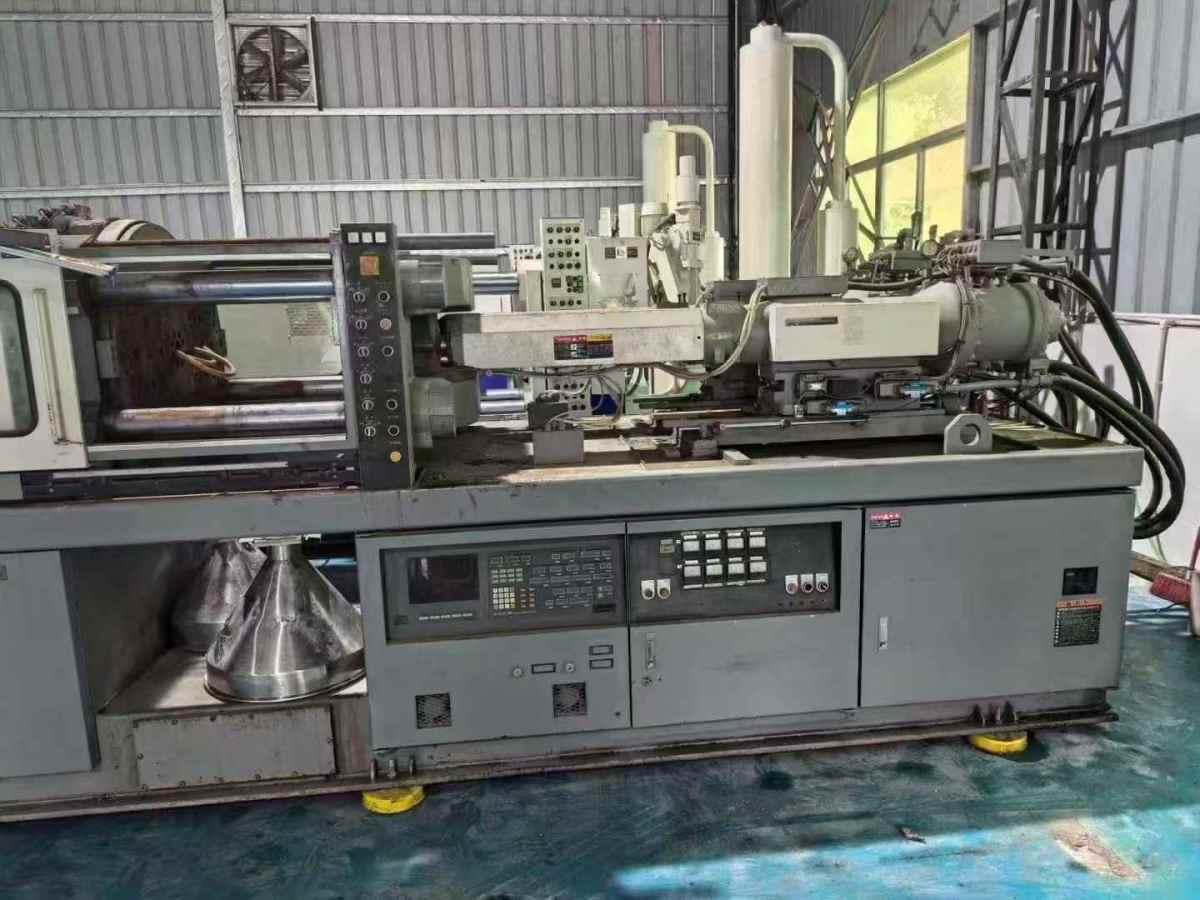

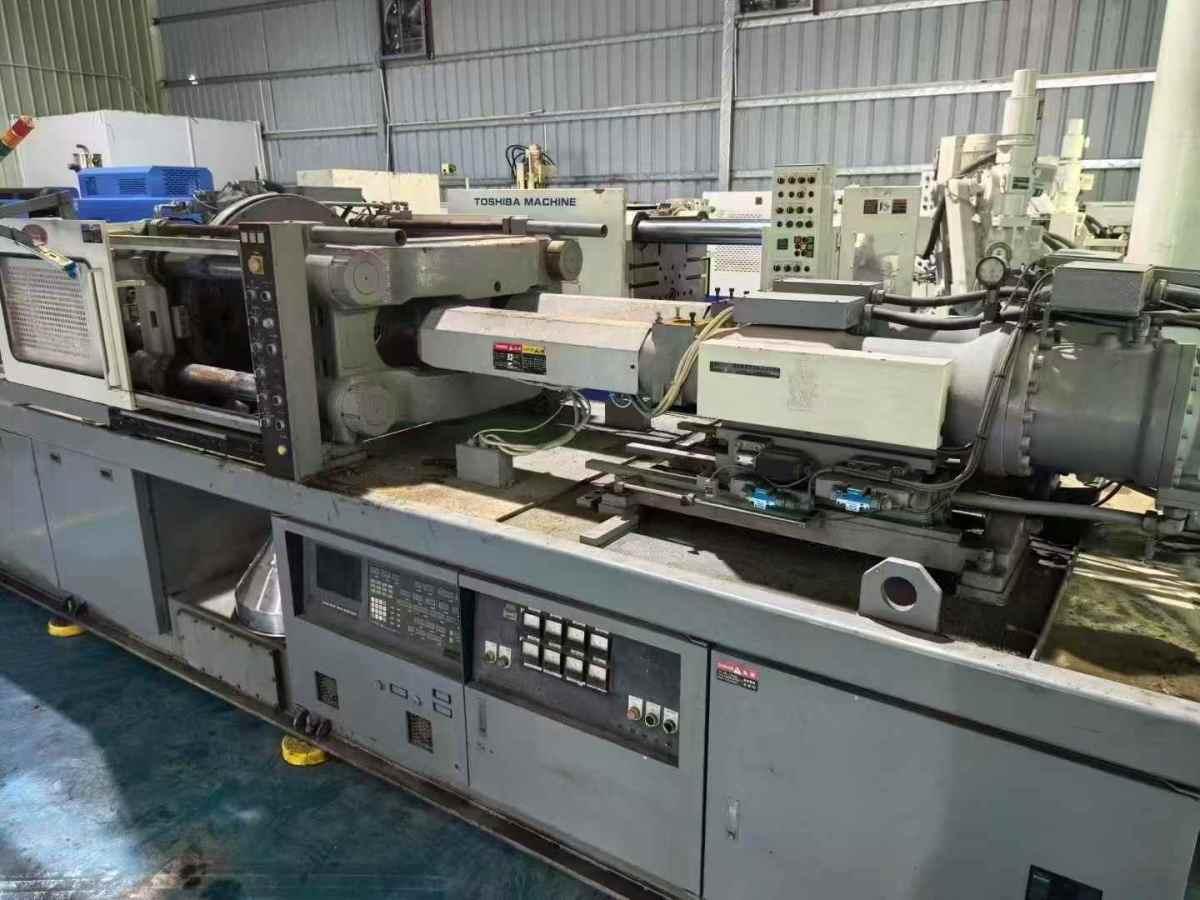

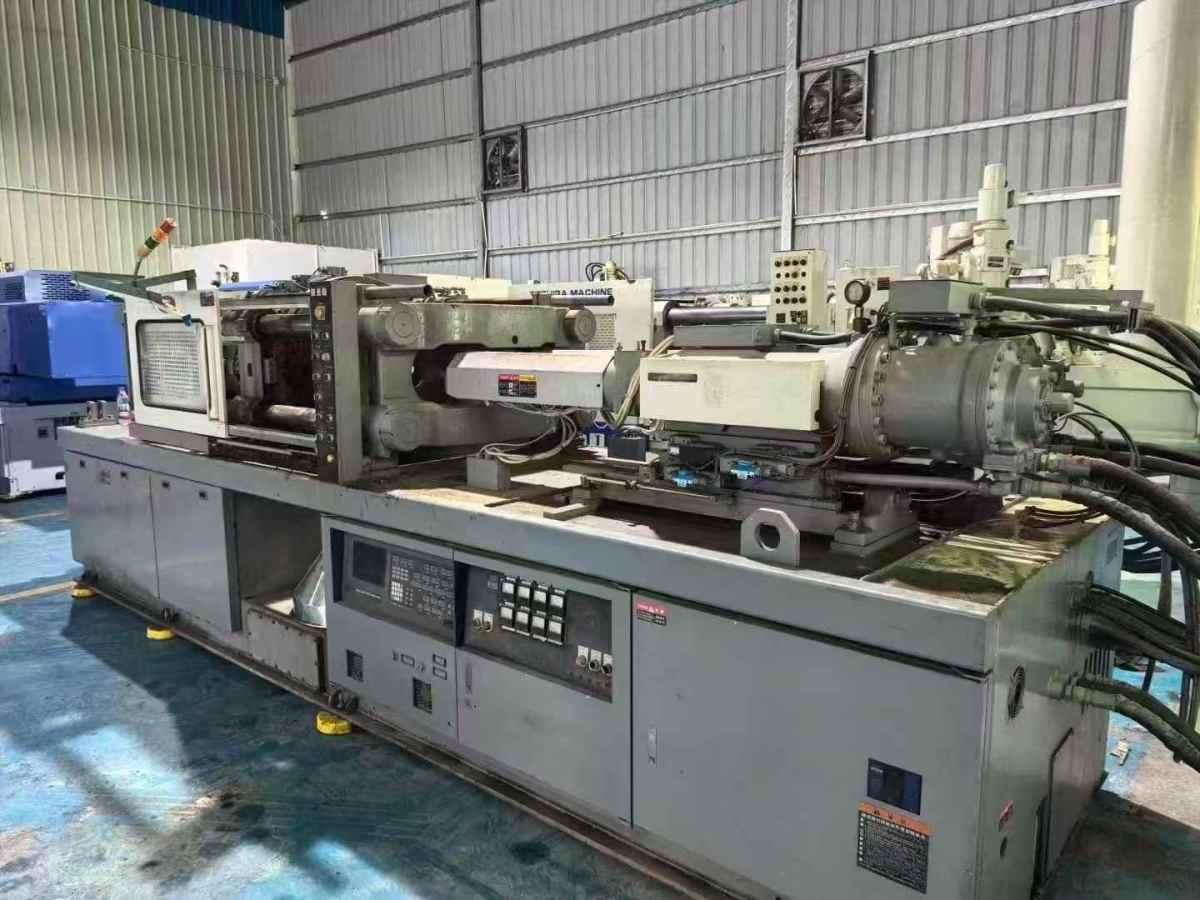

NISSEI - DC200

Inventory number：468055

Brand：NISSEI

Model：DC200

Origin："Japan

Location：China

Year：2012

Create Time：2026-07-13

Specifications:

Rated clamping force: 2000kN
Mold opening travel: 510mm
Maximum mold thickness: 550mm
Minimum mold thickness: 150mm
Rotary Worktable diameter: 960mm
The maximum size of the lower die is 930×930mm
The Positioning precision of the Rotary Worktable: ±0.01mm
Rotary Worktable rotation time: 1.8 seconds (90°)
swing diameter (A/B) : 40mm/40mm
Theoretical injection volume (A/B) : 226cm³/226cm³
Maximum injection pressure: 196MPa
Maximum injection rate: 160cm³/s
Screw speed range: 0-300r/min
Screw Distance between centers: 500mm
Hopper capacity: 25L×2
