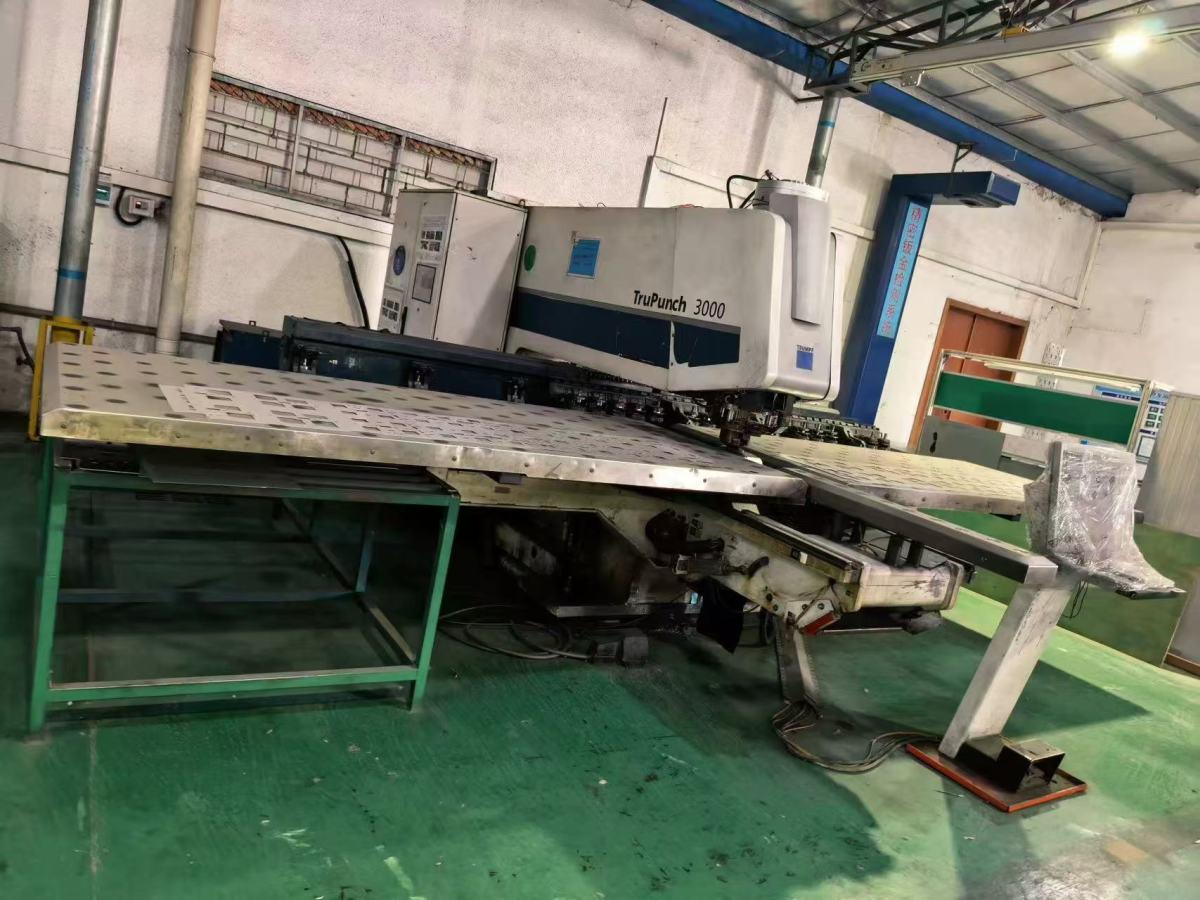

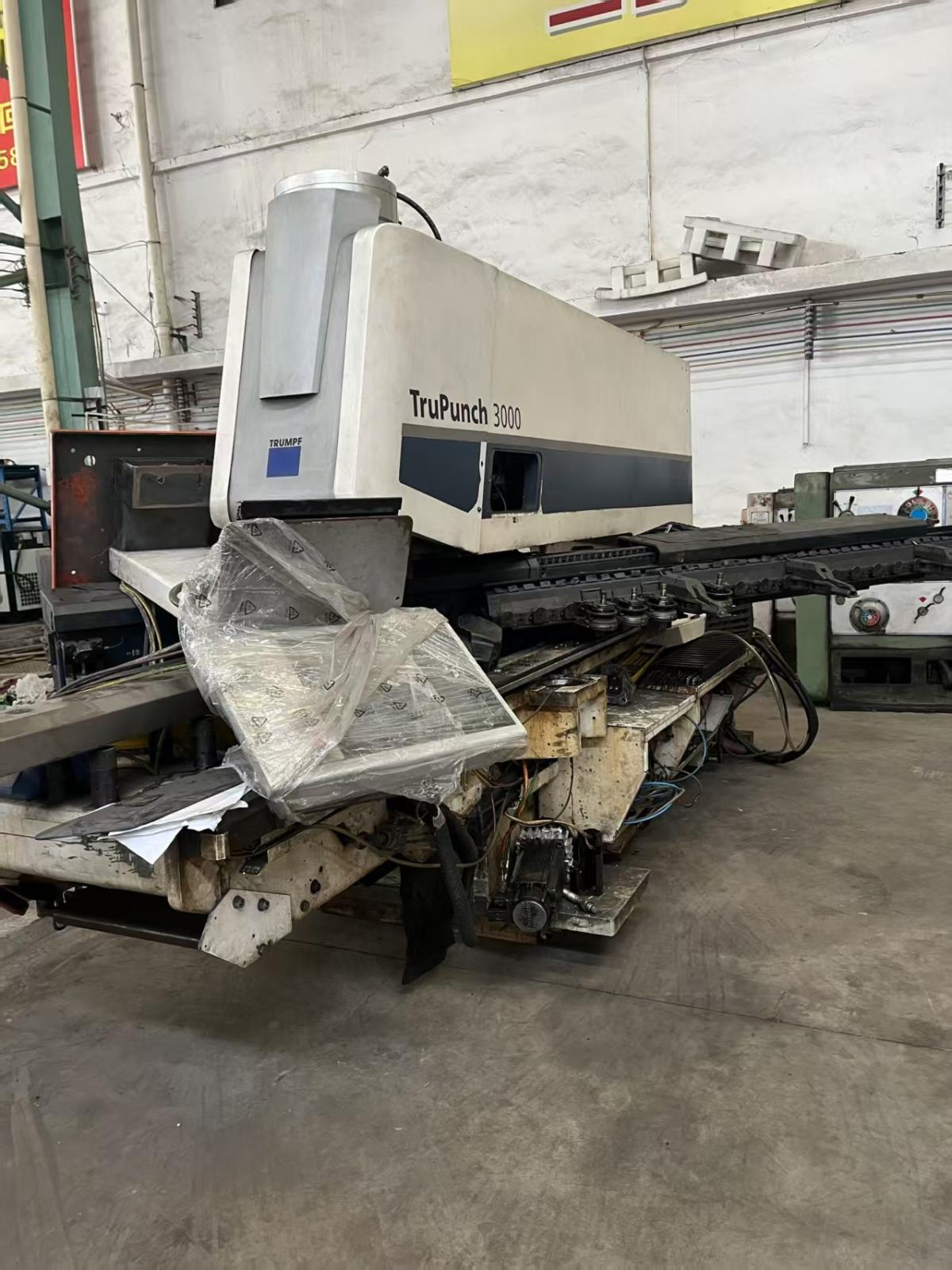

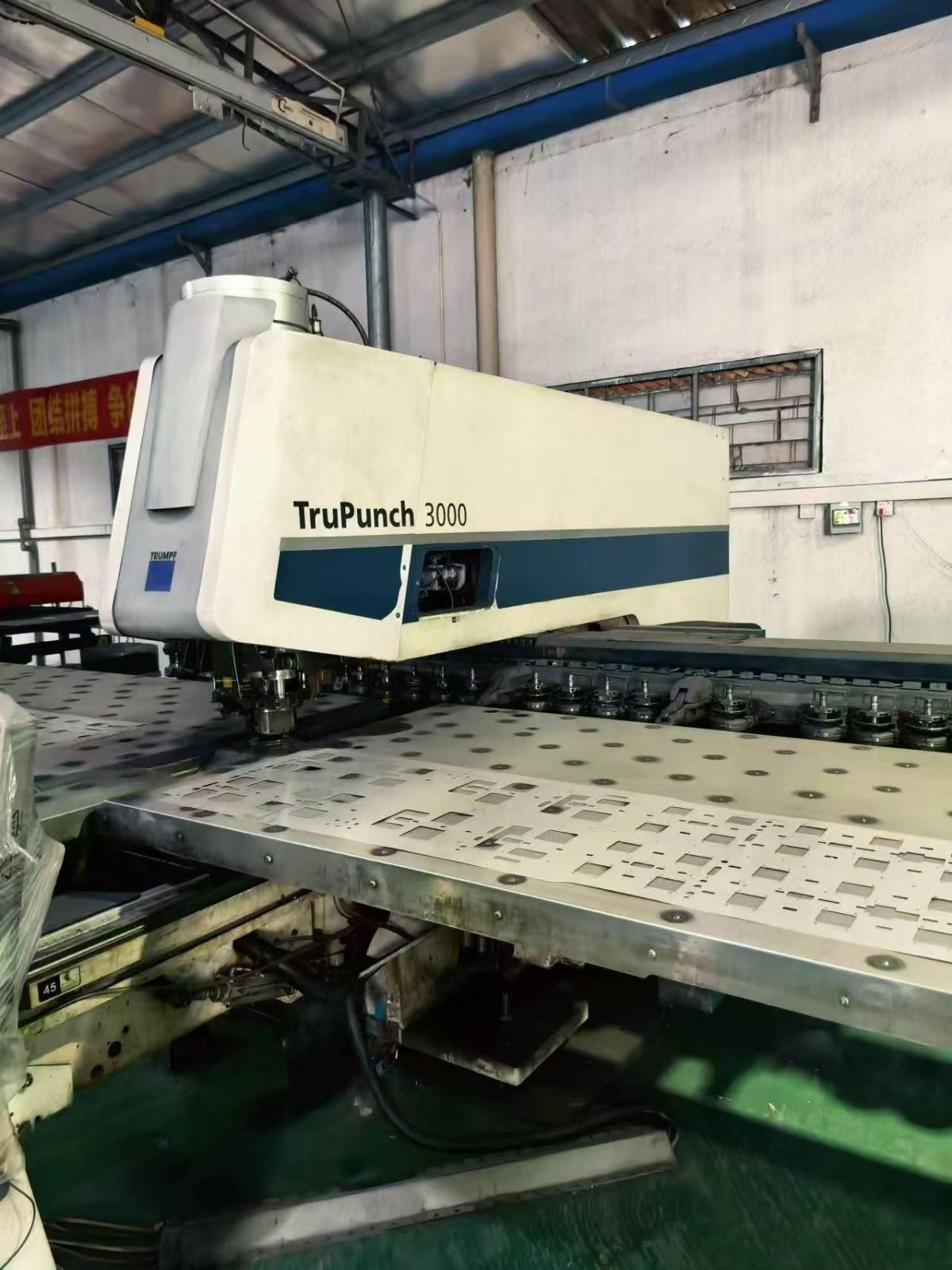

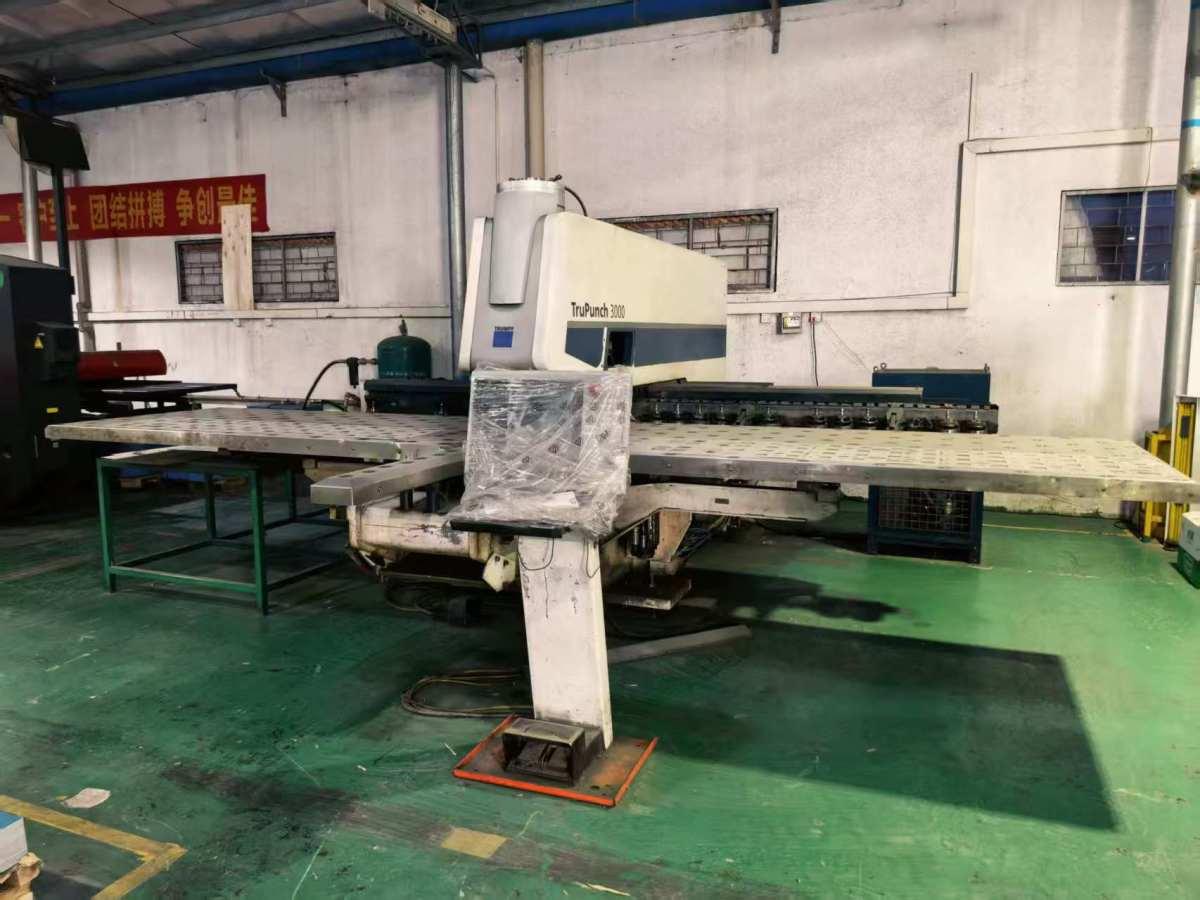

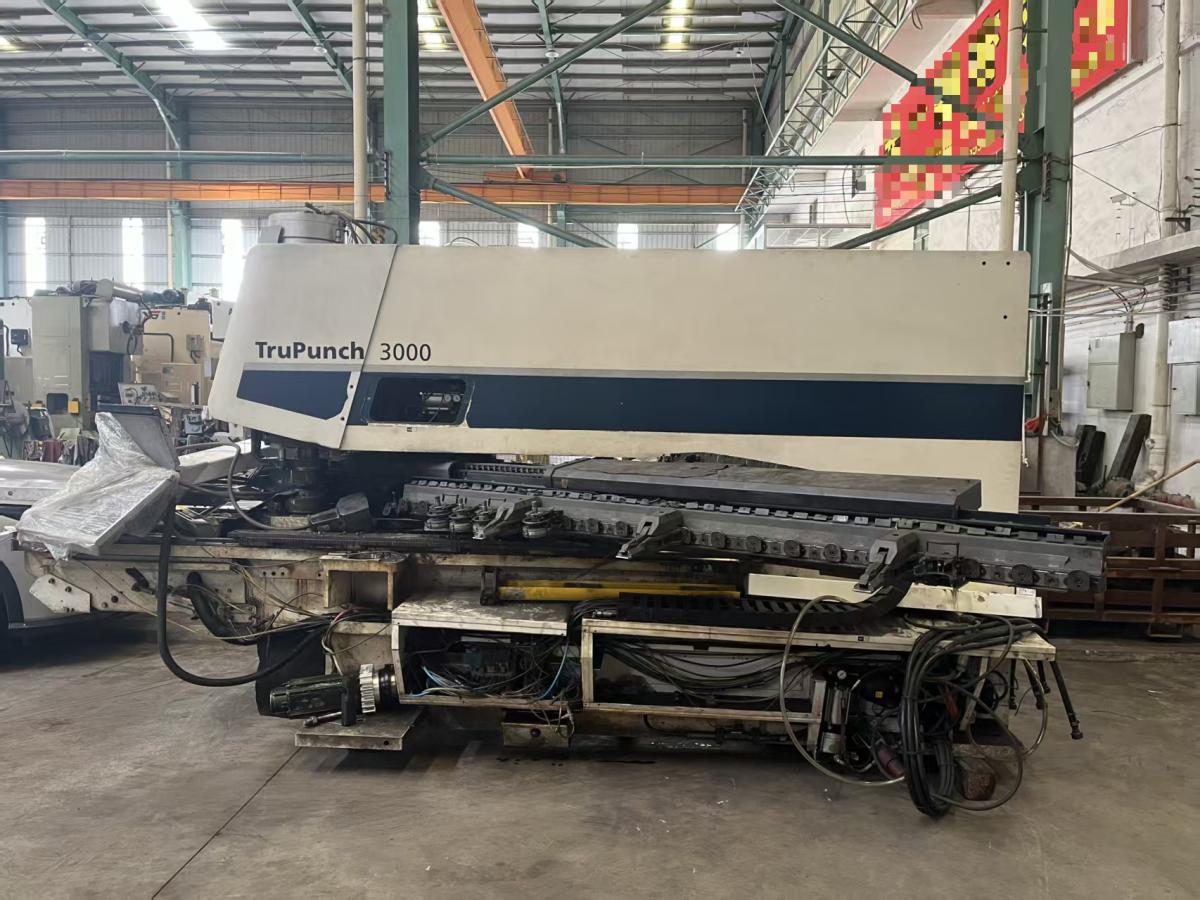

TRUMPF - TruPunch 3000

Inventory number：68508

Brand：TRUMPF

Model：TruPunch 3000

Origin：Germany

Location：China

Year：2012

Create Time：2026-07-13

Specifications:

Maximum Travel Rate
Stamping (E = 1 mm): 800 times per minute
Marking: 1000 times per minute
Scope of Work
Stamping mode, X-axis: 2500 mm
Stamping mode, Y-axis: 1250 mm
Maximum sheet thickness: 6.4 mm
Maximum workpiece weight: 150 kg
Maximum stamping force: 180 kN
Tools
Tool changing time for MultiTool: 0.5 seconds
Number of tools/fixtures: 18 pieces / 2 pieces
Component Discharge
Maximum component size, component removal flap, stamping: 400 mm x 600 mm
Maximum component size, fixed hopper, stamping (with moving worktable): 180 mm x 180 mm
Processing time: 15,000 hours
