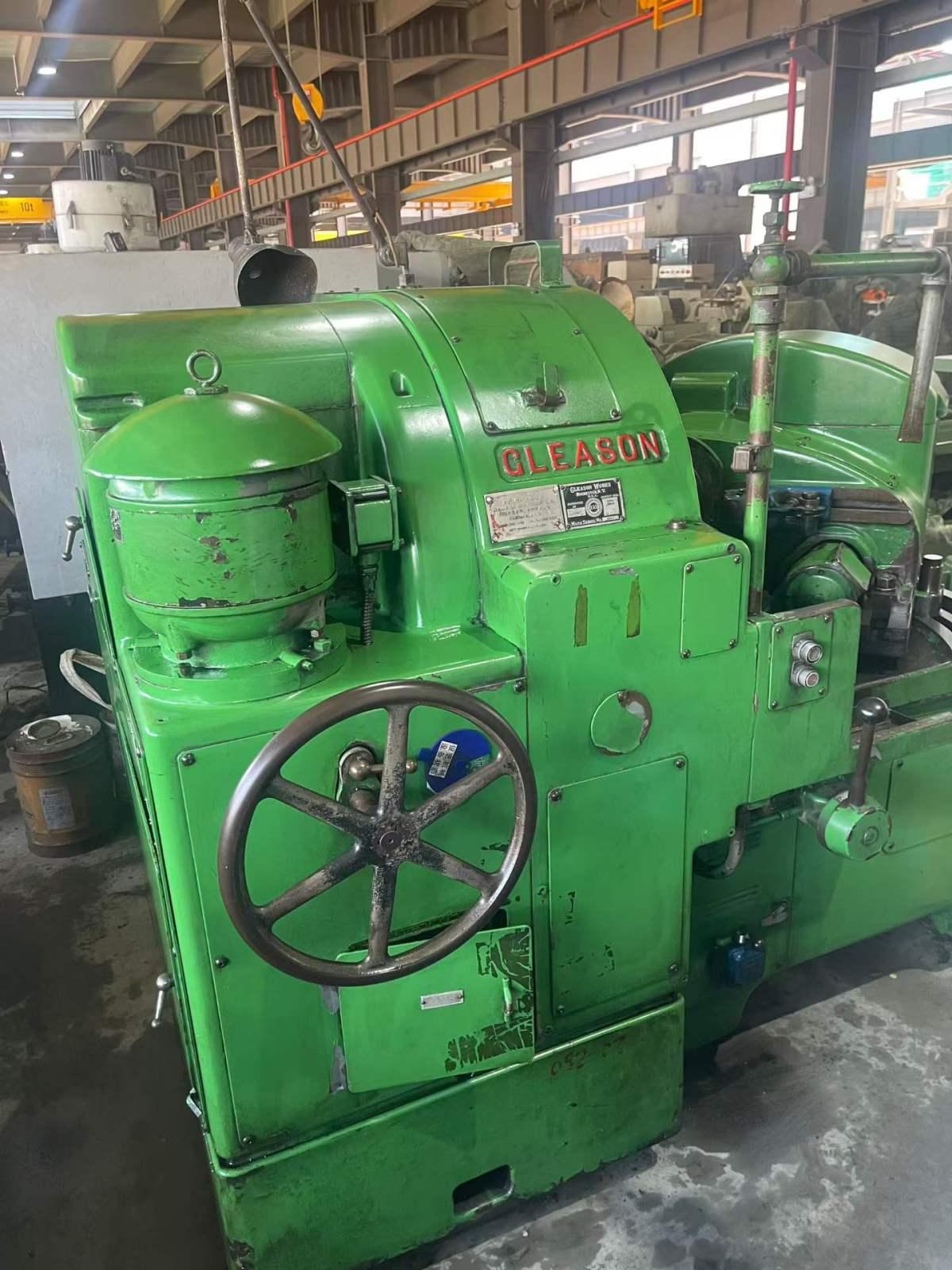

GLEASON - No.116

Inventory number：468052

Brand：GLEASON

Model：No.116

Origin：The United States

Location：China

Year：1970

Create Time：2026-07-12

Specifications:

Maximum machining taper: 228.6mm
Maximum gear pitch: 457.2mm
Maximum machining module: 12.7mm
Maximum tooth surface width: 78mm
machining tooth count range: 5-175 teeth
Joint taper angle range: 5°42 '-84°18'
Maximum helix Angle: 60°
Maximum Tool head diameter: 304.8mm
