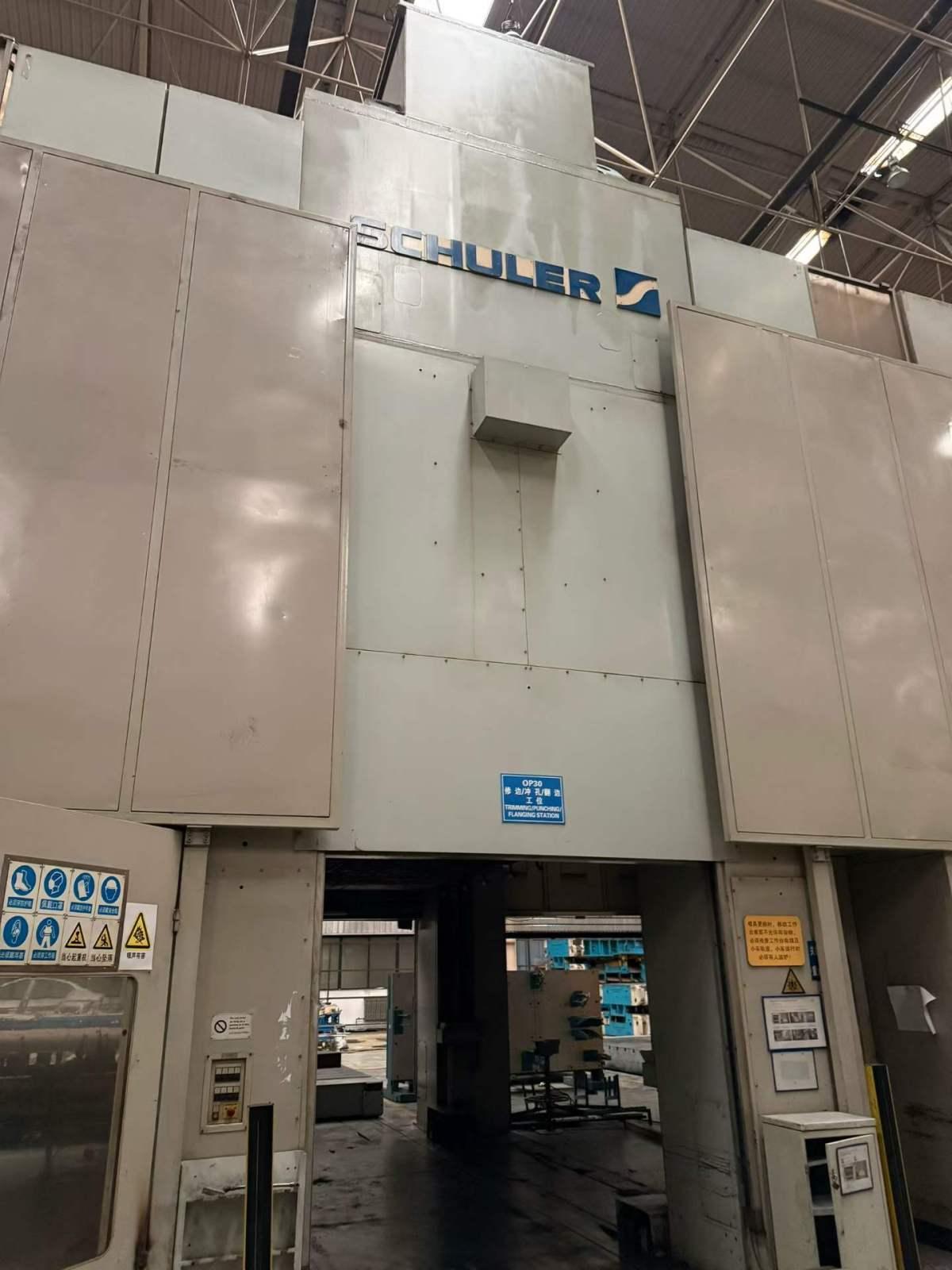

SCHULER - EB54-1000-4.6X2.2-914

Inventory number：812618

Brand：SCHULER

Model：EB54-1000-4.6X2.2-914

Origin：Germany

Location：China

Year：2001

Create Time：2026-07-10

Specifications:

Nominal capacity: 10,000 kN (approximately 1,000 tons)
Nominal stroke before bottom dead center: 25 mm
Energy per working cycle: 400 kJ (at 8 SPM)
Stroke rate during continuous operation: 8–20 SPM
Stroke rate during setup operation: 4 SPM
Maximum stroke rate for single stroke operation: 14 SPM
Clutch / brake operating pressure:
Minimum: 60 bar
Maximum: 65 bar
Maximum flywheel speed: 428 rpm
Drive motor:
Power: 100 kW
Speed: 1750 rpm
Distance between uprights: 5000 mm

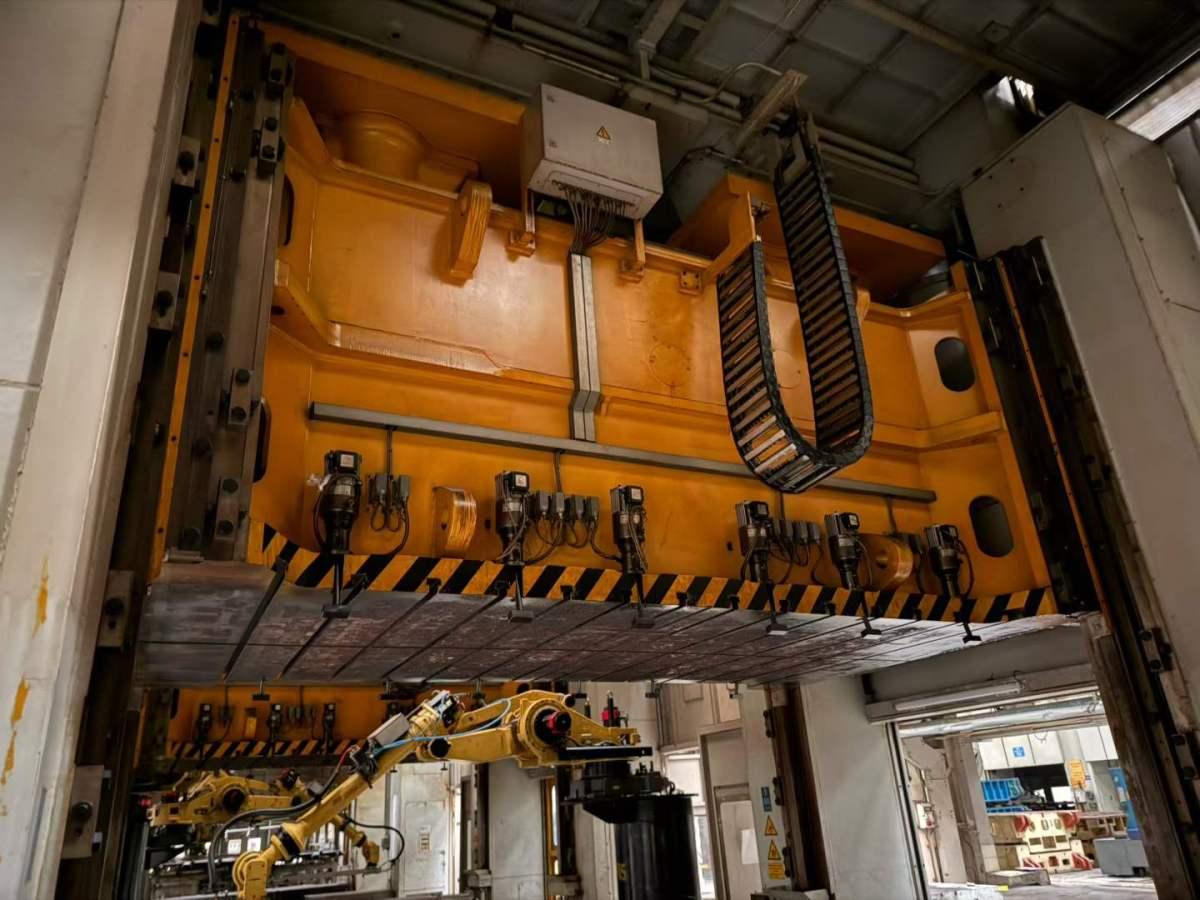

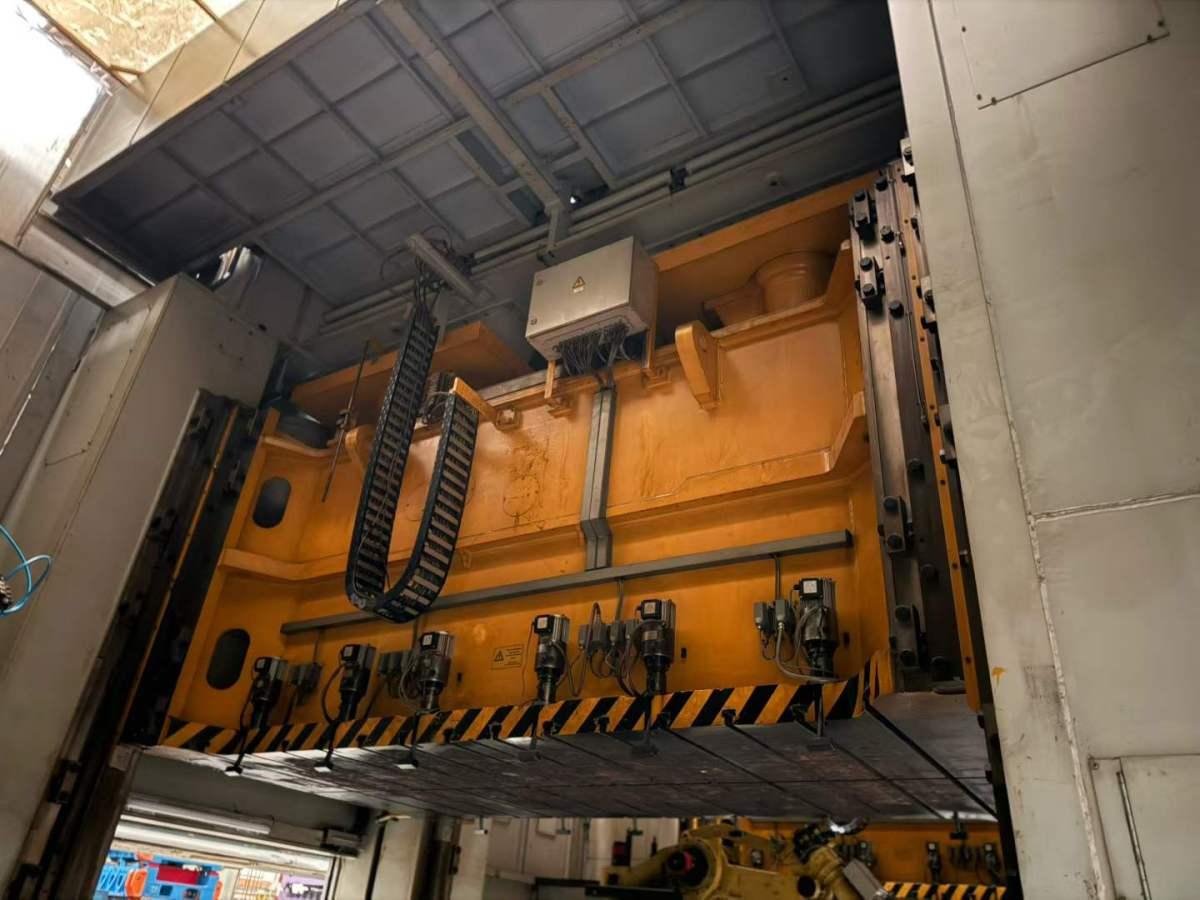

Slider parameters:
Slider stroke: 914 mm
Die height adjustment: 600 mm
Slider bottom surface area (left-right × front-back): 4600 × 2200 mm
Distance from clamping surface to slider mounting height: 1450 mm

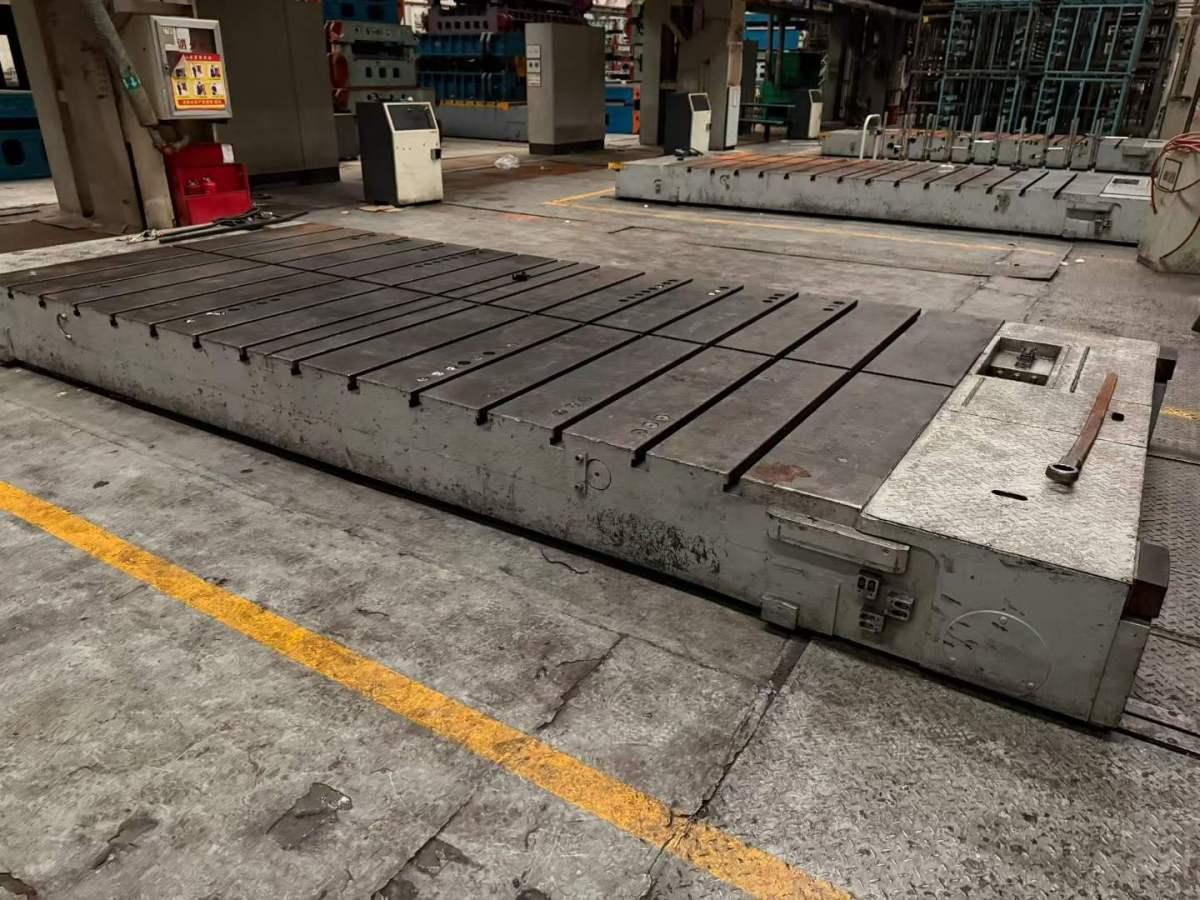

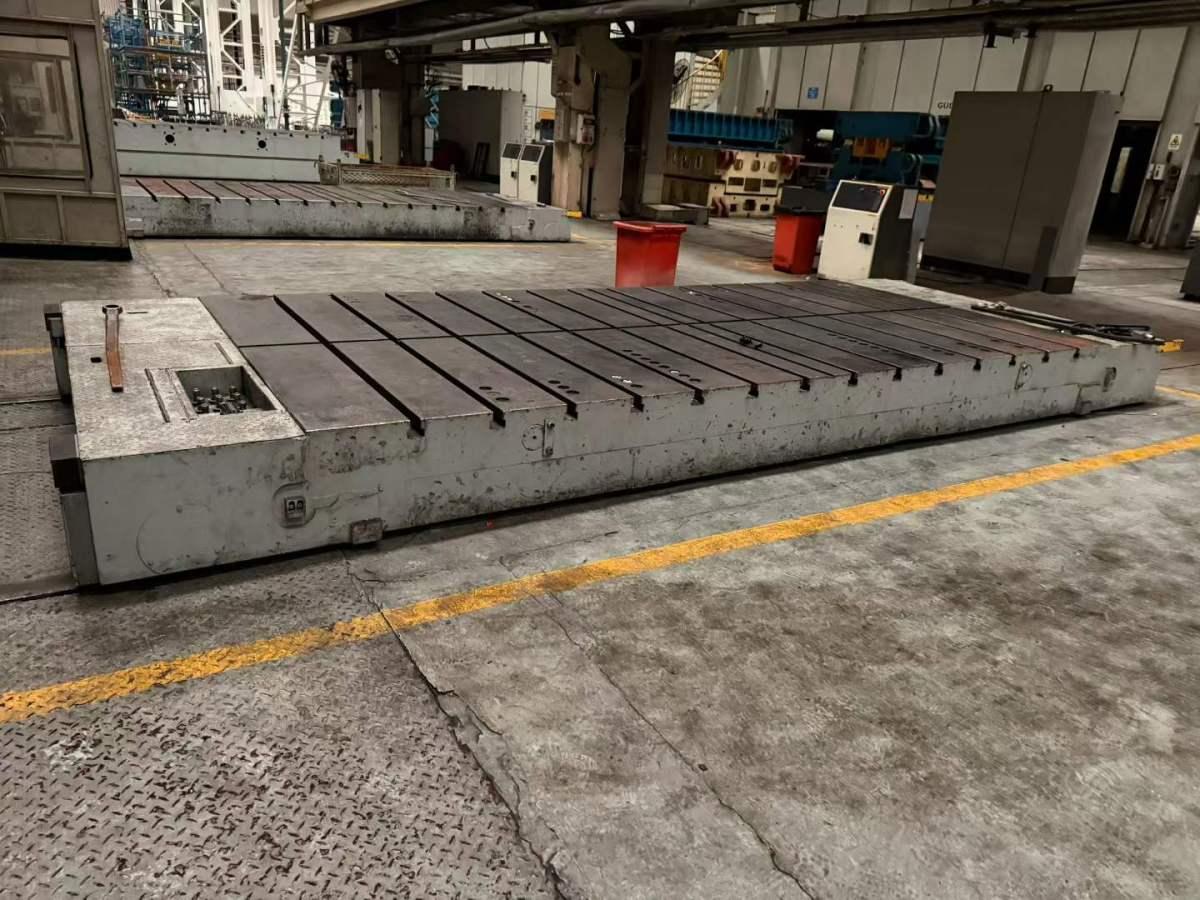

Bolster table size (left-right × front-back): 4600 × 2200 mm
Total machine weight (excluding dies and adapter plates): 295,000 kg
Die weight:
Maximum upper die weight: 60,000 kg
Maximum lower die weight: 30,000 kg
Stopping position: Top Dead Center (OT/TDC)
Slider stopping distance: 190 mm
Stopping time: 0.25 s
Safety distance: 1250 mm
