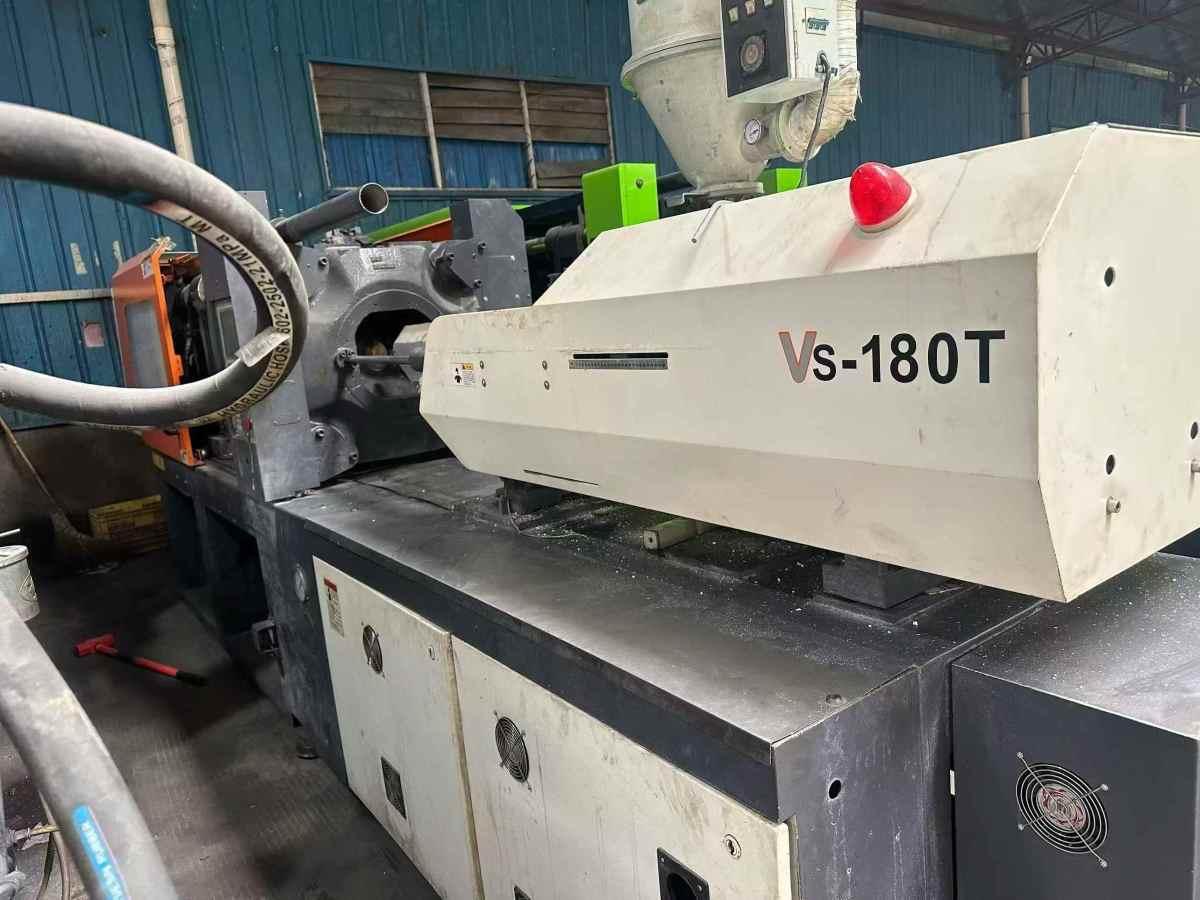

VICTOR - VS-180T

Inventory number：468190

Brand：VICTOR

Model：VS-180T

Origin：Taiwan, China

Location：China

Year：2018

Create Time：2026-07-07

Specifications:

Rated clamping force: 1800kN
Mold opening travel: 470mm
Maximum mold thickness: 520mm
Minimum mold thickness: 180mm
Template size: 710x710mm
The inner spacing of the pull rod: 460x460mm
Ejection travel: 120mm
Maximum top force: 38kN
swing diameter: 50mm
Screw length-to-diameter ratio: 22:1
Theoretical injection volume: 402cm³
Maximum injection pressure: 145MPa
Maximum injection rate: 160g/s
Screw speed range: 0 to 220rpm
