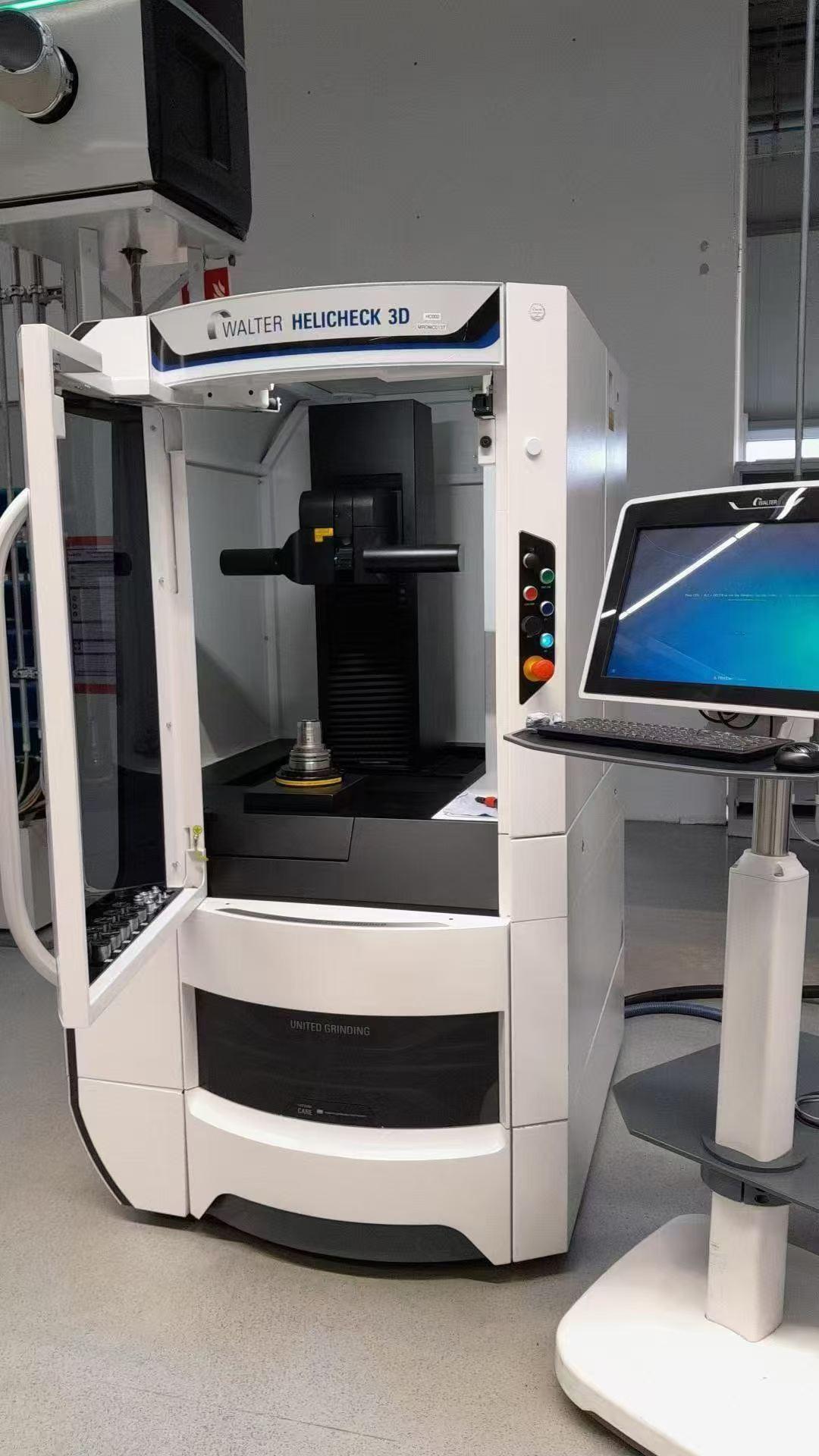

Walter - Helicheck 3D

Inventory number：812345

Brand：Walter

Model：Helicheck 3D

Origin：Germany

Location：China

Year：2018

Create Time：2026-06-15

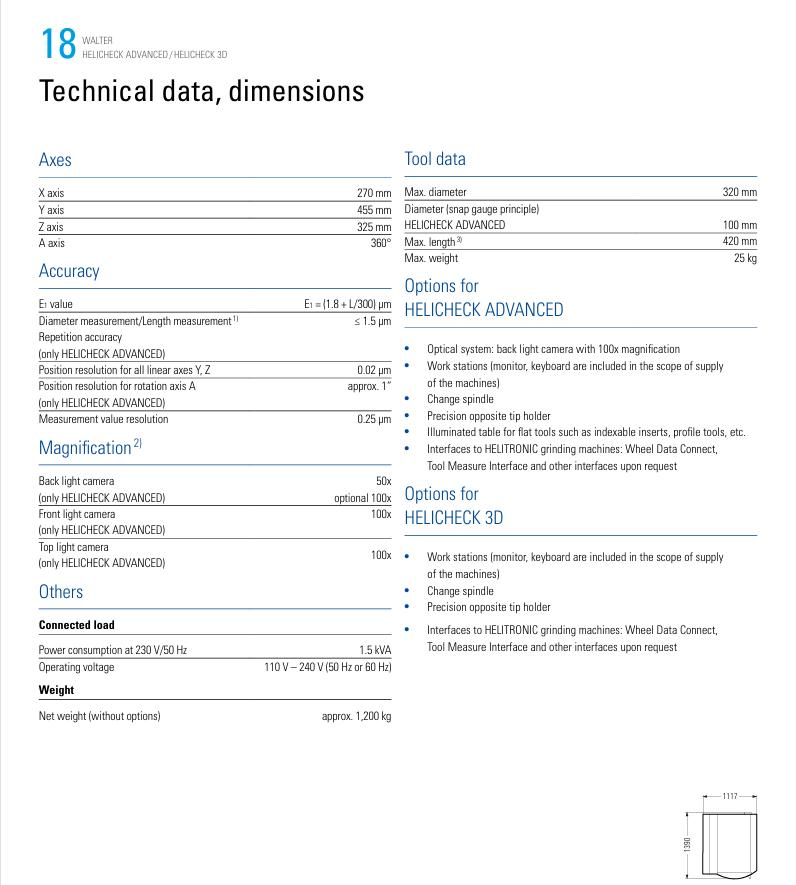

Specifications:

Axis Travel
X-Axis: 270 mm
Y-Axis: 455 mm
Z-Axis: 325 mm
A-Axis: 360°
Accuracy
E1 Value: E1 = (1.8 + L/300) µm
Diameter Measurement / Length Measurement
Repeatability: ≤ 1.5 µm (HELICHECK ADVANCED only)
Linear Axis Position Resolution (Y, Z): 0.02 µm
Rotary Axis Position Resolution (A): approx. 1″ (HELICHECK ADVANCED only)
Measurement Resolution: 0.25 µm
Magnification
Backlit Camera: 50× (optional 100×) (HELICHECK ADVANCED only)
Front Light Camera: 100× (HELICHECK ADVANCED only)
Top Light Camera: 100× (HELICHECK ADVANCED only)
Other Parameters
Connected Load: 1.5 kVA
Power Consumption (230 V / 50 Hz): 1.5 kVA
Operating Voltage: 110–240 V (50 Hz / 60 Hz)
Weight
Net Weight (excluding optional items): approx. 1,200 kg
Tool Data
Maximum Diameter: 320 mm
Diameter (Caliper Principle): 100 mm (HELICHECK ADVANCED)
Maximum Length: 420 mm
Maximum Weight: 25 kg
