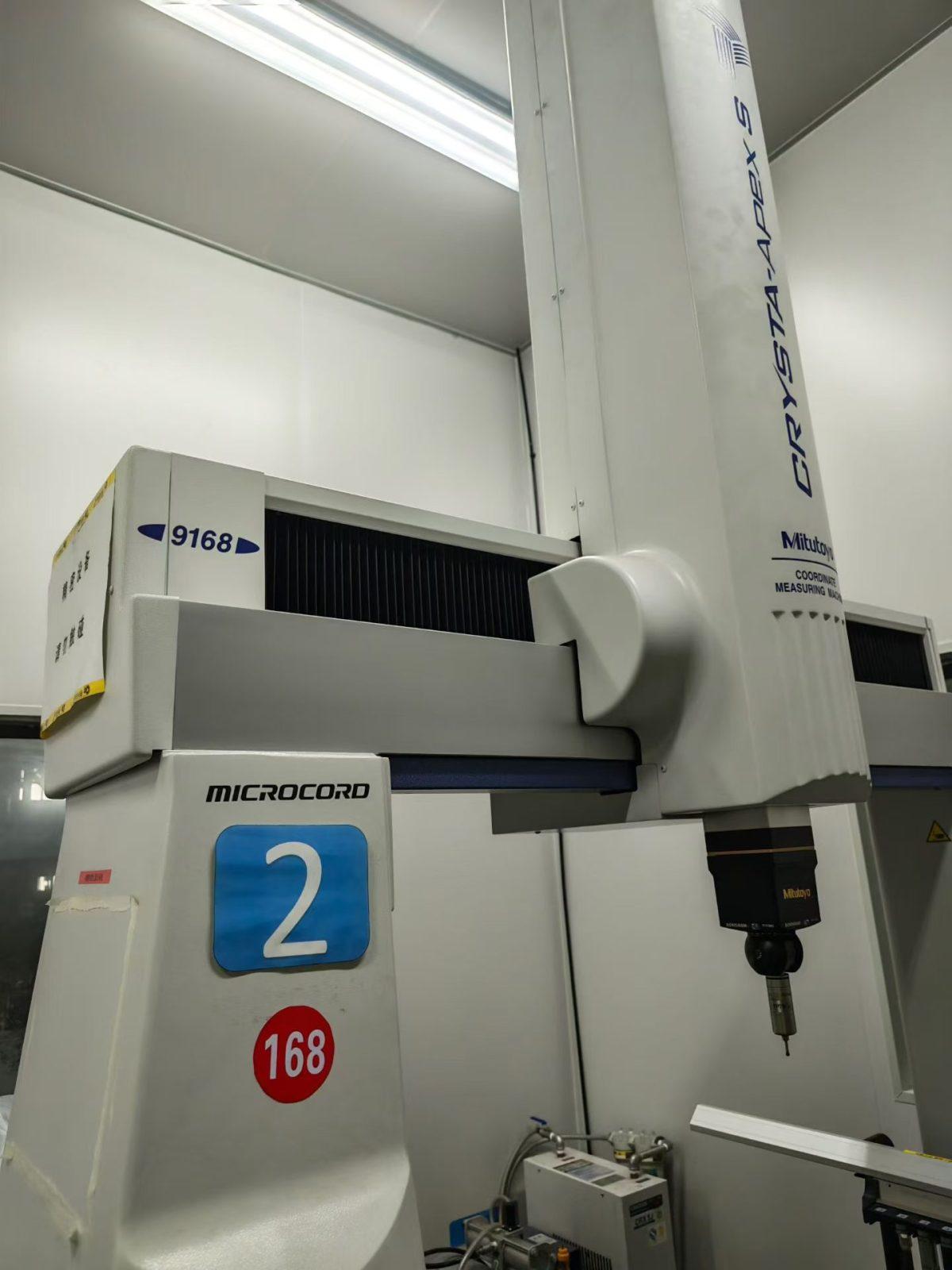

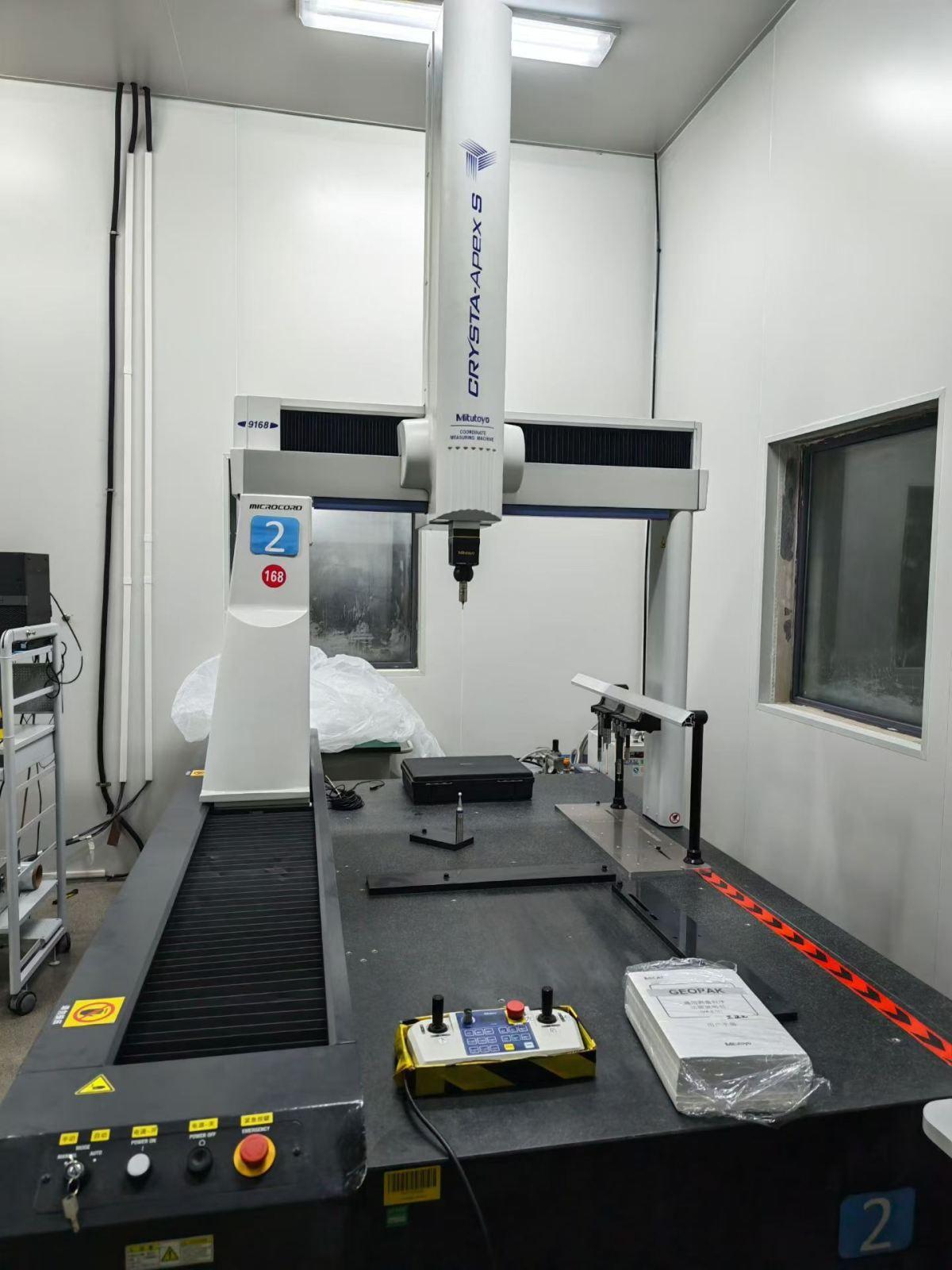

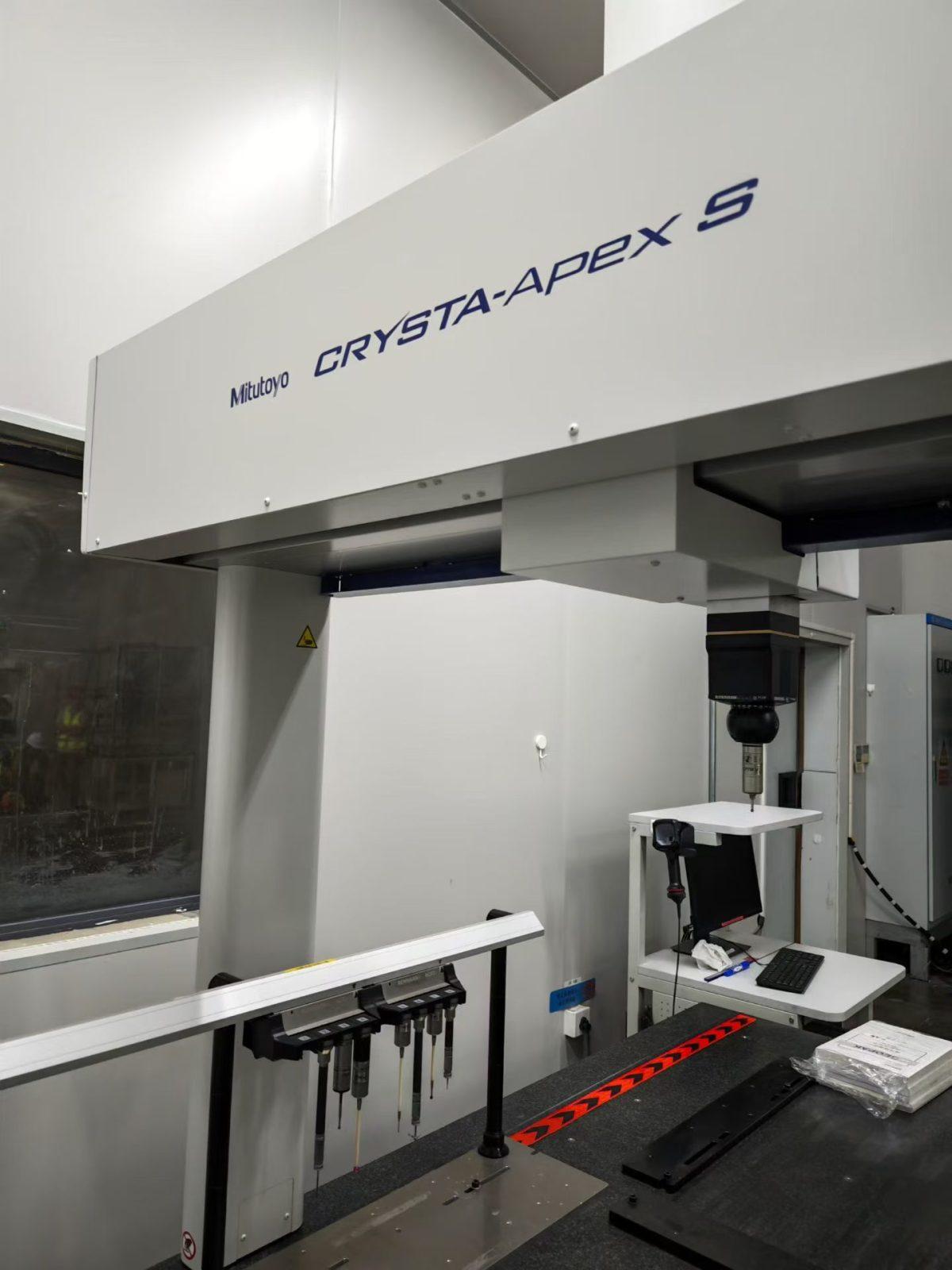

Mitutoyo - CRYSTA-Apex S9168

Inventory number：812143

Brand：Mitutoyo

Model：CRYSTA-Apex S9168

Origin："Japan

Location：China

Year：2018

Create Time：2026-05-29

Specifications:

Measuring range: 900 × 1600 × 800 mm
Measurement accuracy: MPEE = (1.7 + 3L/1000) μm (L in mm)
Resolution: 0.1 μm
Drive system: Full-axis air bearing
Maximum speed: 519 mm/s
Acceleration: 1732 mm/s²
Maximum workpiece load: 1500 kg
Maximum workpiece height: 1000 mm
Working environment: 16–26°C with automatic temperature compensation; no strictly constant-temperature workshop required
