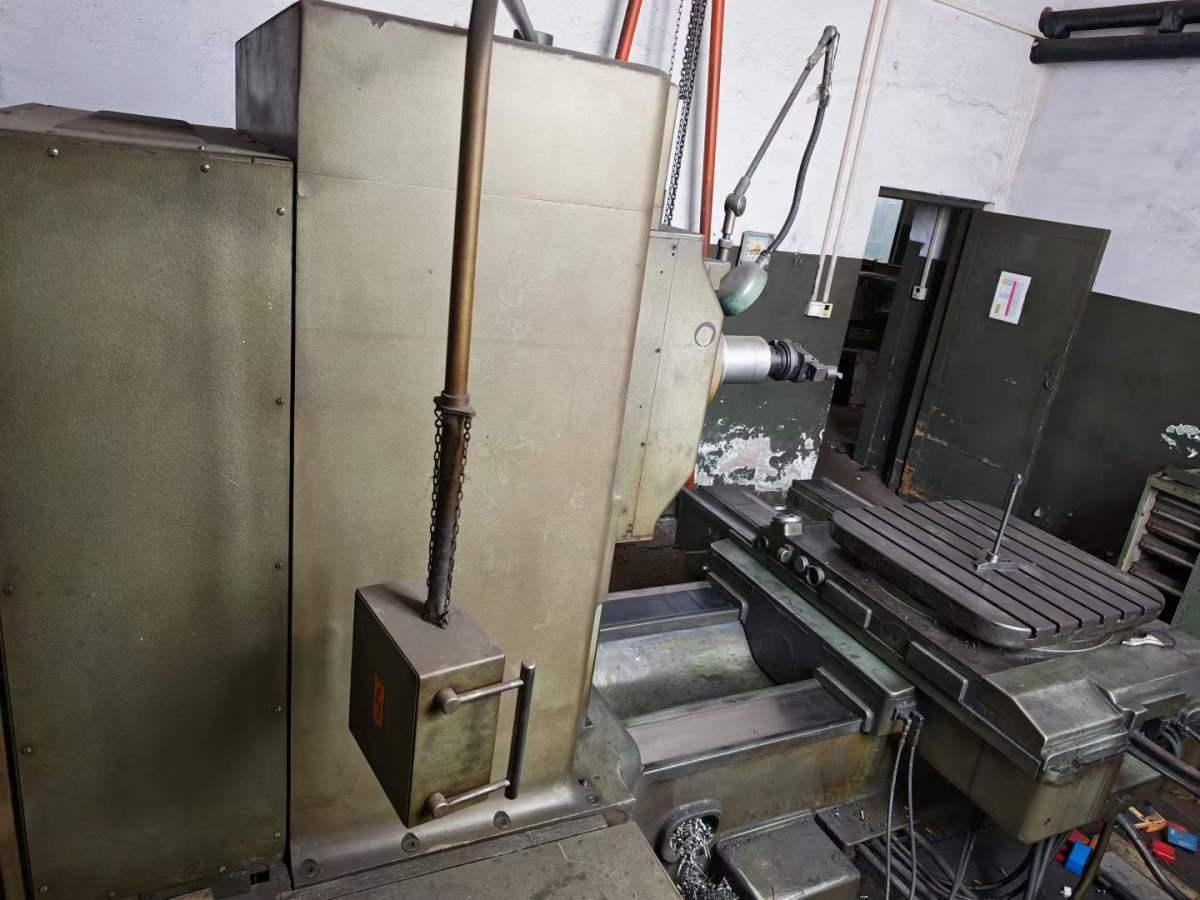

Dixi - 3S-0

Inventory number：812110

Brand：Dixi

Model：3S-0

Origin：Switzerland

Location：China

Year：1980

Create Time：2026-05-27

Specifications:

Worktable size: 810 × 810 mm
Circular worktable rotation angle: 360°
X-axis travel: 550 (+20) mm
Y-axis travel: 710 (+40) mm
Z-axis travel: 510 (+20) mm
Distance from spindle center to worktable: 50–580 mm
Automatic feed stepless speed regulation range: 0–3000 mm/min
Spindle speed range (two-speed stepless variation): 32–1600 rpm
Spindle speed range after pulley replacement: 50–2500 rpm
Spindle diameter: 95 mm
Spindle taper: ISO 50
Horizontal center position of the worktable: 300 mm
Main motor power: 8 hp
Total power: 14 kW
Optical system precision reference value: 0.001 mm
Power supply requirements:
Three-phase power: 220/380 V, 50 Hz
Working voltage: 380 V
